With the Fenix TK75, four 18650 rechargeable cells are stunningly transformed into 2600-
lumen max output. Throwing 606m with an 80-degree plus beam angle lets the TK75 light up
extended terrain.
On high at 1100 lumens, this compact Fenix flashlight pushes for four hours while the 400-
lumen level stays the course at 12 hours runtime. The stainless crown, strobe and SOS
functionality as well as the on-body dual switch system make the TK75 a trustworthy carry on
search, caving and scouting missions. Mounted on a vehicle or stowed for emergency use, this
light captures the proven performance found in every Fenix lighting product.
Technical Parameters
ANSI/NEMA
FL1
Turbo
Lumens
OUTPUT
15min*
RUNTIME
DISTANCE
INTENSITY
IMPACT
RESISTANT
WATERPROOF
EXTRA
FUNCTION
ACCESSORIES
Notice: The above-mentioned parameters (lab-tested by Fenix using ARB-L2 18650
rechargeable Li-ion batteries) are approximate and may vary between flashlights, batteries and
environments.
*TK75 will automatically enter into the high brightness level from the turbo brightness level
after a 20-minute working time with the security setting. As a result, the runtime of the turbo
brightness level is the accumulated time.
◎Uses Cree XM-L(U2) LED with a lifespan of 50000 hours
◎Uses four18650 rechargeable Li-ion batteries
185mm (Length) x 52.5mm (Diameter) x 87.5mm (Head)

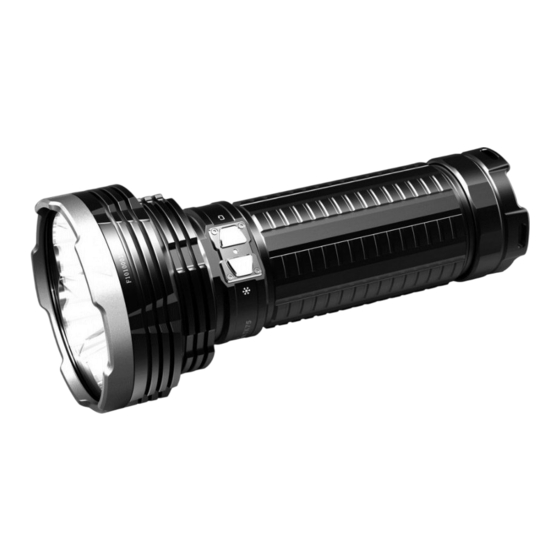

TK75 Flashlight
General Mode
High
2600
1100
Lumens
1h
4h
Lanyard and two spare O-rings
Mid
Low
400
18
Lumens
Lumens
12h
200h
606m (Max)
92000cd (Max)
1m
IPX-8，underwater 2m
Strobe
SOS
2600
400
Lumens
Lumens
Advertisement
Table of Contents
Related Manuals for Fenix TK75
Summary of Contents for Fenix TK75
- Page 1 TK75 Flashlight With the Fenix TK75, four 18650 rechargeable cells are stunningly transformed into 2600- lumen max output. Throwing 606m with an 80-degree plus beam angle lets the TK75 light up extended terrain. On high at 1100 lumens, this compact Fenix flashlight pushes for four hours while the 400- lumen level stays the course at 12 hours runtime.
- Page 2 To enter into SOS mode, press and hold the side mode switch for about three seconds. While in strobe or SOS mode, a single press on the side mode switch returns the TK75 to non-flashing mode where brightness can be adjusted.
- Page 3 . Replace the battery holder and screw the tail cap back on. ◎ When absolutely necessary, the flashlight can be powered by four or eight CR123A batteries. In this case, the TK75 will run at a low brightness level and the mode switch will be disabled.
- Page 4 If the above methods don't work, please refer to the warranty policy before contacting your authorized distributor. Note: The video for TK75 cleaning can be viewed and downloaded from t h e Fenix website by clicking to SERVICE followed by MAINTENANCE FOR LIGHT.
