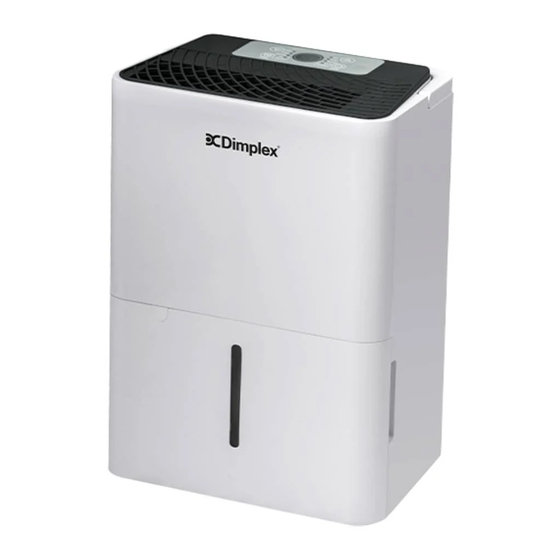

- Page 1 INSTRUCTION MANUAL 12L Dehumidifier I 12L Dehumidifier w/ Purifier Models: DC12DE & DC12DEPUR For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance DETAILS OF TYPE AND RATING OF FUSES : T; 3.15A; 250VAC. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your dehumidifier for the first time and keep them in a safe place.
- Page 3 from traffic areas and where it will not be a tripping hazard. DO NOT COVER. Never cover or obstruct in any way the outlet at the top of the • dehumidifier or the air inlet slots at the rear of the dehumidifier. Only operate this appliance with a minimum of 50cm clearance all around i.e.
- Page 4 WARNING: For using R290 refrigerant. ThIs symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION: RISK OF FIRE/FLAMMABLE MATERIALS. THE APPLIANCE MUST BE INSTALLED, USED &...
- Page 5 1. Transport of equipment containing flammable refrigerants - see transport regulations 2. Marking of equipment using signs - see local regulations 3. Disposal of equipment using flammable refrigerants - see national regulations. 4. Storage of equipment/appliances - The storage of equipment should be in accordance with the manufacturer's instructions.
- Page 6 • Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.
- Page 7 • Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
- Page 8 • Charging procedures In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. Cylinders shall be kept upright.
- Page 9 • Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available.
- Page 10 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 11: Specification
Specification Model no. DC12DE DC12DEPUR Power supply 220-240V~, 50Hz Dehumidification capacity at 32°C, 80% RH Operating Temperature 5-32°C Modes Refrigerant R290 Water Tank 1.5L Timer 24 hours Air Purification Dust & HEPA & Filter Dust Active Carbon Size (WxDxH) mm 195 x 280 x 386mm N.W. -
Page 12: How It Works
How It Works This product is a dehumidifier. It controls relative humidity by passing the air through the unit, forcing the excess moisture to condensate over the cooling elements. Contact with this cold surface causes the moisture in the air to condense. This condensed water then drains safely into the water tank. - Page 13 Parts Control Panel Air Outlet Water Tank Water Level Handle Castor Air Inlet Power Cord Drainage Port...
- Page 14 Accessories Note: Before use, please ensure to remove the water tank from the appliance, take out the plug and any other accesories and then place the tank back into the slot. Accessories - x1 Plug - x1 Drain Pipe 1. Remove the water tank from the slot and then remove all accessories from inside it. 2.
-
Page 15: Control Panels
Control Panels DC12DE Decrease On/Off Increase DC12DEPUR Decrease On/Off Purification... -
Page 16: Operation
Operation 1. Press the ON/OFF button to control the start up or shut down of the unit. When using this button to shit down the unit, please note that the fan will keep running for another 3 minutes, in order for the unit to blow dry itself and prevent mold from forming. 2. - Page 17 Purification Note: The following function is only applicable to the DC12DEPUR model. WARNING: The DC12DEPUR model contains a UV-C lamp. Please ensure to read the maintanence instructions before opening the appliance. If the UV-C lamp has an error, please contact a service professional to fix. The appliance must be disconnected from the power supply before replacing the UV-C lamp.
- Page 18 Drainage Water Tank Full Alarm When the water tank is full, the compressor will shut off, the fan will stop and the unit will begin to make a 'beeping' noise. The 'TANK FULL' indicator light will begin to flash. Note: Please ensure to hold the water tank with both hands when emptying. Note: The unit will not run again until the water tank is emptied and properly placed back into the unit.
- Page 19 Drainage Continuous Drainage Connect the drain pipe onto the back of the unit. Place the unit on level flooring and unscrew the cap on the back of the unit. 2. Install the connector chip of the drain and gasket. 3. Install the drain pipe onto the connector chip. 4.
-
Page 20: Automatic Defrost
40°C. After washing, leave the filter to dry and then attach the intake grille to the appliance. • It is recommended to replace the filter every 3 months. Filters can be purchased from the Dimplex spare parts shop on the website. - Page 21 Cleaning Note: If you do not plan on using the device for an extended period of time, ensure to: • Unplug the device from the mains socket. • Empty the water tank and remove the cap. • Clean the filter and dry thoroughly before putting back. •...
-
Page 22: Troubleshooting
Trouble shooting THE UNIT DOES NOT OPERATE: • Is the unit plugged in? • Is the fuse blown or circuit breaker tripped? • Is the water tank full or has the dehumidifer reached its present level? • Is the water tank in the proper position? •... -
Page 23: Error Codes
Trouble shooting ERROR CODES: • EH - Humidity Sensor Failure • E2 - Temperature Sensor Failure Recycling: Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding the collection systems available. - Page 24 Supplied by Glen Dimplex Australia 1340 Ferntree Gully Road, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
