3.Servicing Procedures

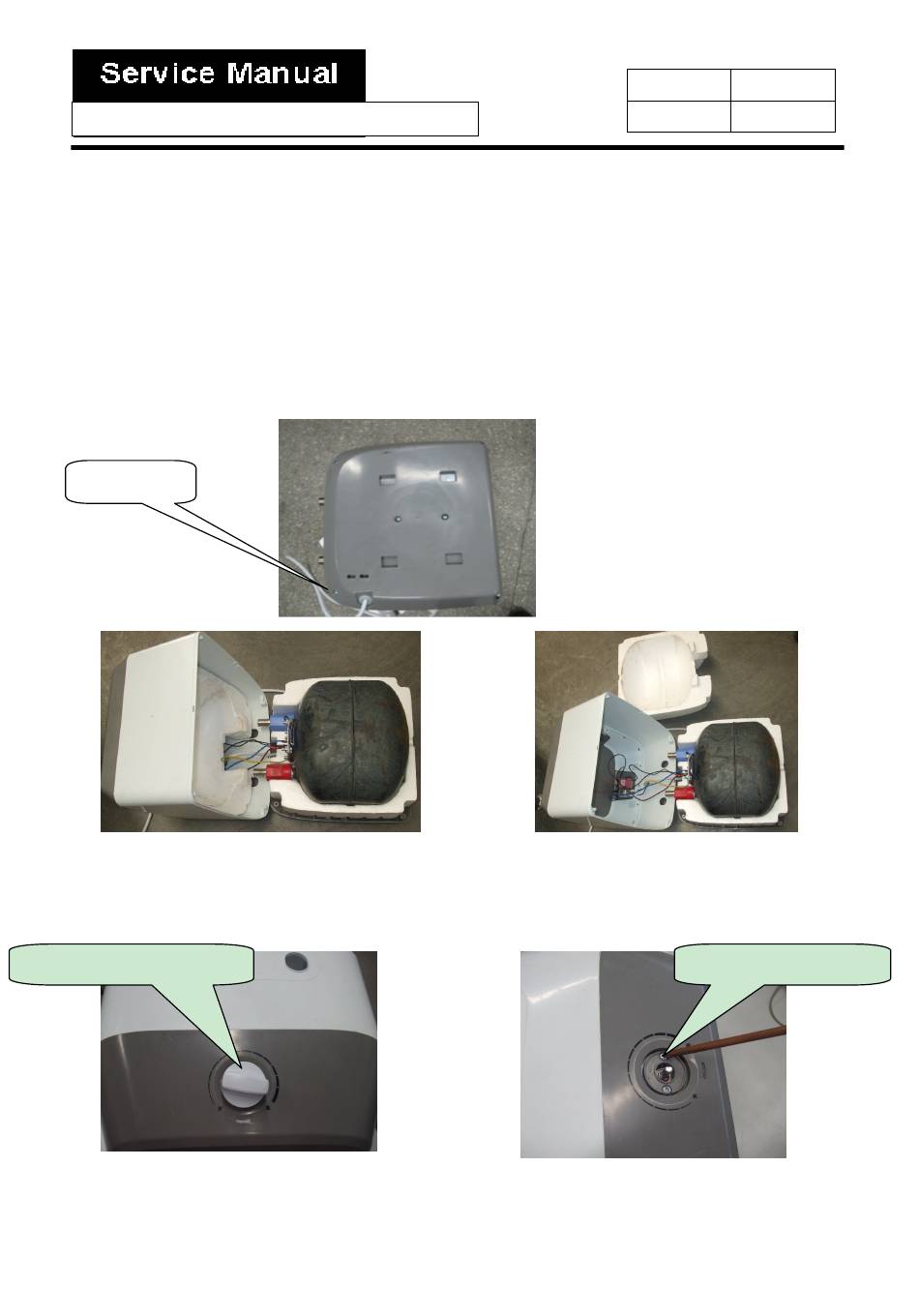

3.1 Remove the shell.

Before maintenance, the shell should be removed.
Firstly, take off the red and blue rings; then remove four screws, after that the shell can be
removed,
Attention to the snap joint, Don't break them.
Join screw
Unfold the shell

3.2 Change Temperature Controller (thermostat)

Temperature control Knob
1. Remove the knob
Issue
Rev.
Remove the foam cushion
2. Remove two screws and remove
temperature controller
Nov. 2014
A
Remove the screws
