- Page 1 User Manual Dolphin 海豚 www.atomrc.com...

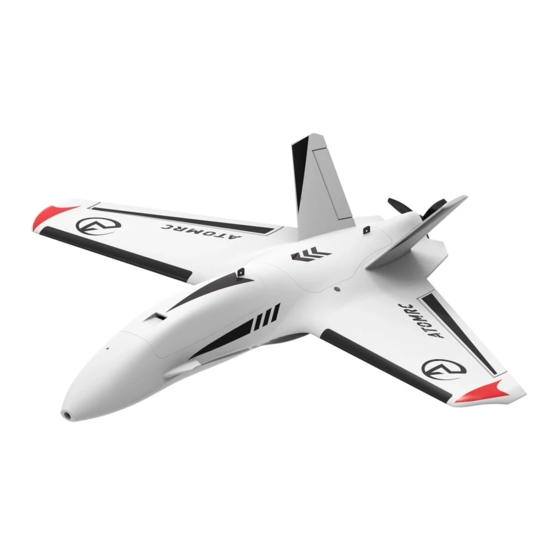

- Page 2 Introduction/简介 The Dolphin is sweep forward fly wing, with elegant design, the dolphin can fly stable both on high speed and low speed, the large fuselage can give use lots of space to install the electronics, the detachable wing made the wing easy for transport, V tail made the wing more stable for crusing.
- Page 3 VersionDescription/版本说明 ATOMRC Dolphin V1.1 Fixed Wing Version RTH FPV PNP+Pre- RTH+VTX+C turned Pre-glued KIT+Motor amera, all Description FC+GPS, all Fixed WING +ESC+Servo electronic electronics are installed are installed Pre-Build KIT √ √ √ √ Wood plate √ √ √ √...
- Page 4 KIT Foam Contents/KIT 泡沫配件 FA:Front Hatch Cover FB:Gopro Cover FCU:Upper Fuselage 尖机头 Gopro机头 上机身 FCL:Lower Fuselage FD:Front Hatch FER:Right Wing 下机身 前舱盖 右机翼 FEL:Left Wing FF:Rear Hatch FGR:V Tail 左机翼 后舱盖 右V尾 FGL:V Tail 左V尾...
- Page 5 KIT/PNPInstallation/安装指南 Install the motor and ESC. 安装电机电调。 Install the servo and push rods, then install the rudder. 将舵机安装到垂尾、平尾，居中调试后，安装拉杆。粘合左右垂尾。 User can choose carbon plate to install the camera or just use foam to fill. ⻜机机头位置，可以选择安装摄像头固定碳⽚或者泡沫填充。 Install the wing to the fuselage. 将左右机翼安装到机身。...
- Page 6 When Gopro is installed, adjust battery slider to adjust balance. 安装Gopro时，需要将电池安装到后⾯，通过滑块调平。 To install Gopro, use rubber band to lock the gopro then install the hatch. 若安装GOPRO，需⽤橡⽪筋固定住GOPRO，然后盖上机头相机盖。 Install the Nose and Cam. 安装摄像头机头。 The CG is marked under the wing, you can move the CG 3-4mm to get better control.
- Page 7 RTH/RTHFPVInstallation/安装指南 Install the Camera mount plate, and the V taill. 安装机头相机安装⽚，粘接V尾。 Install the wing to the fuselage， Plug the Left Servo to S4, Right Servo to S4. 将左右机翼安装到机身，将左边舵机连接⻜控中的S3和右边S4。 Install the INAV configurator then plug to PC 下载INAV地⾯站，安装接收机，连接地⾯站 Check INAV Configurator the receiver type, then assign the channel and mode 连接INAV地⾯站，检查接收机设置、模式开关分配设置...
- Page 8 If using how power device, suggest solder the capacitor . F405 GND GND Xt60 VTX+ Rx1 Rx2 Rx3 CL Tx1 Tx2 Tx3 DA F405-NAVI Voltage 12V~30V ATOMRC F405 NAVI Boot Specifications IMU:BMI270 MCU:STM32F405RGT6 ATOMRC F405 NAVI Baro:SPL06-001 OSD:AT7456E Blackbox:SD Card...
- Page 9 ESCInformation/电调说明 Throttle calibration /电调油⻔校准 1.The ESC included with the model has a safe start.If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or off position,the motor will not start untill the throttle stick is moved to the low throttle or off...
- Page 10 4.Hold button 3 second to get into Power setting mode, there is short bar on LED, short press to switch power, 1 bar means 200mW, 2 bar means 800mW, 3 bar means 1500mW. 1.⻓按设置按键三秒，进⼊波段设置模式。 2.在设置模式下，短按按键切换波段。 3.再次⻓按按键三秒钟，进⼊频道切换模式，短按按键切换频道。 4.再次⻓按按键三秒钟，进⼊切换功率模式，短按按键切换功率，数码管⼀条为200mw，两条 为800mw, 三条为1500mw。 Please download the latest user manual at www.atomrc.com/pages/download...
