SEGA Retro-Bit Genesis - Wireless 8-Button Arcade Controller Manual

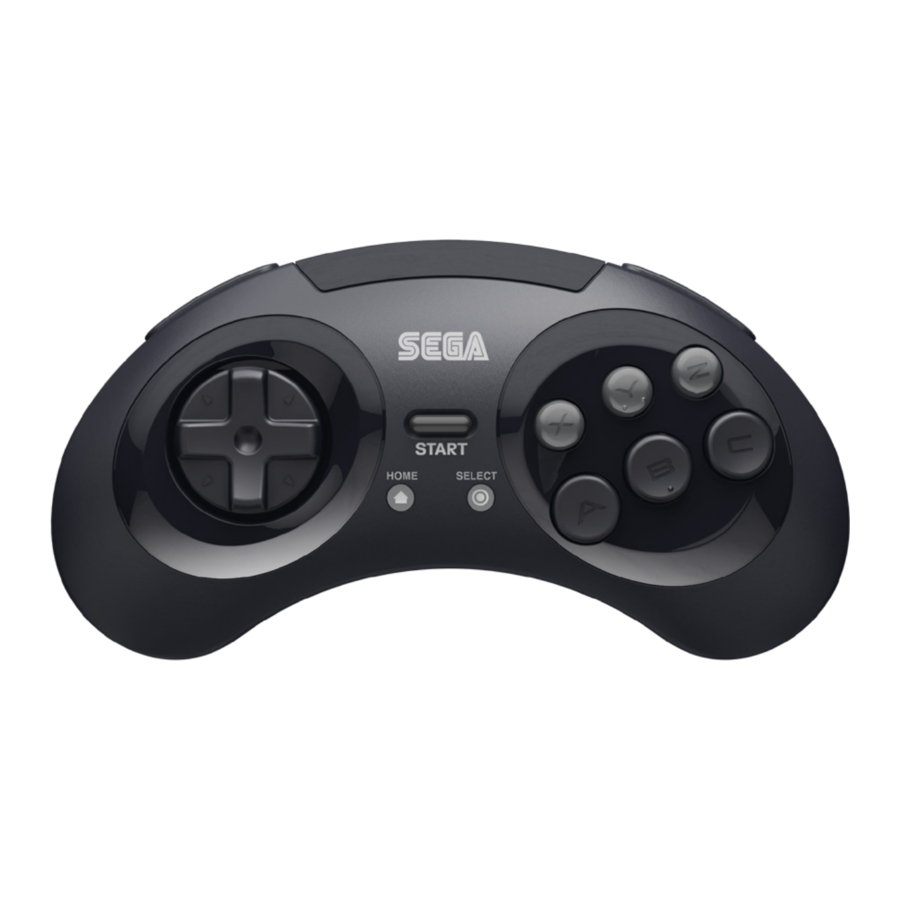

LAYOUT DIAGRAM

Includes controller, Micro USB® Cable for charging, and instruction manual.

DEFAULT BUTTON MAPPING

Controller	Switch	Android®/ Amazon®	PC (Wireless)	PC (Wired)	Mac®	PS3®
A	A	A	0 | A	0 | A	0 | A	X
B	B	B	1 | B	1 | B	1 | B	●
X	X	X	2 | X	2 | X	2 | X	■
Y	Y	Y	3 | Y	3 | Y	3 | Y	▲
C	ZR	R2	Axis 2	Axis 2	Axis 2	R2
Z	ZL	L2	Axis 5	Axis 5	Axis 5	L2
L	L	L1	4 | L	4 | L	4 | L	L1
R	R	R1	5 | R	5 | R	5 | R	R1
Select	-	Select	6 | Back	6 | Back	6 | Back	Back
Start	+	Start	7 | Start	7 | Start	7 | Start	Start
Home	Home		10 | Guide	10 | Guide	10 | Guide	PS Home

FEATURES

• Officially-licensed SEGA® controller featuring Bluetooth® technology
• Compatible with Steam®, PC/Mac®, Android® and Switch
• Rumble capability on supported games
• 30ft / 10m range
• 550 mAh rechargeable battery
• Micro USB® charge cable
• Up to 20 hours of gameplay on full charge
• Features Home & Select buttons and X-input/D-input modes
• Compatible with the original Sega® consoles via Retro-Bit® Receiver with Bluetooth® technology (sold separately)

OPERATION

• Power On - Press Home for 1 second to power on. The four LEDs will flash once.
• Power Off - Press and hold Home for 3 seconds to power off the controller.
• Charging - Plug in the Micro USB® cable from the controller into a powered, open USB® slot. If the controller is synced via a Bluetooth connection to a console and powered on, you can charge and play.
• Low Power - Plug in the Micro USB® cable from the controller into a powered, open USB® slot. If the controller is synced via a Bluetooth connection to a console and powered on, you can charge and play.
• Sleep Mode - Controller will enter Sleep Mode if unpaired without a signal for 10 seconds, if paired but no buttons pressed in 6 minutes, or if paired but without a signal for 3 minutes. When in Sleep Mode, press Home once to wake up controller.

CONNECTING TO DEVICES

SWITCH

1. Go to the Switch Home and go to Controllers, then to Change Grip/Order.
2. Press Home + Y to turn on the controller. The LEDs will go into Search mode and vibrate when connected. The appropriate player # LED will remain on.
3. The controller will auto-reconnect to the console when woken up with Home until you sync the controller to another device.
4. To switch the D-Pad to Left Analog mode, press and hold L + R + Start for 5 seconds. The controller will vibrate once to indicate it has switched. Repeat process to return to D-Pad mode.
5. To swap A-B and X-Y, press and hold ↓ + Start for 3 seconds. Repeat the process to change it back.

ANDROID®

1. On the Android® device, enable Bluetooth® mode.
2. Press A + Home to turn on the controller. The LED1 will flash while searching and remain solid when connected.

AMAZON®

1. On the Amazon® device, ensure device and displays are both on and enabled.
2. Press A + Home to turn on the controller. The LED1 will flash while searching and remain solid when connected.
3. Press L + R + Start for 3 seconds will change the D-Pad to left analog. Repeat this to return it back to D-Pad mode.

PC WINDOWS®

1. Plug in the Micro USB cable from the controller to an open USB® slot on the PC. By default, the controller is in X-Input mode. LED2 will remain flashing while charging and remain solid when fully charged.
2. Hold B while connecting the controller to the PC to enter D-Input mode. LED3 will remain flashing while charging and remain solid when fully charged.
3. X-Input/D-Input with vibration: Press and hold L + R + Start for 3 seconds to change into D-Input mode. LED4 will remain flashing while charging and remain on when fully charged. Hold L+R+Start for 3 seconds again to return the buttons to their original state.

MAC®

1. On your Mac® Device, ensure Bluetooth is enabled.
2. Press Home + X to turn on the controller. The LED3 and LED4 will flash while searching and remain solid when connected. You may need to accept the connection on your Mac® device before proceeding.

PS3®

1. Plug in the Micro USB® cable from the controller to an open USB slot on the PS3® while holding Select.
2. The LED1 will stay on then press the Home button. LED1-4 will indicate the player.

SUPPORT

To keep up to date on the latest firmware, please visit www.retro-bit.com/support.
