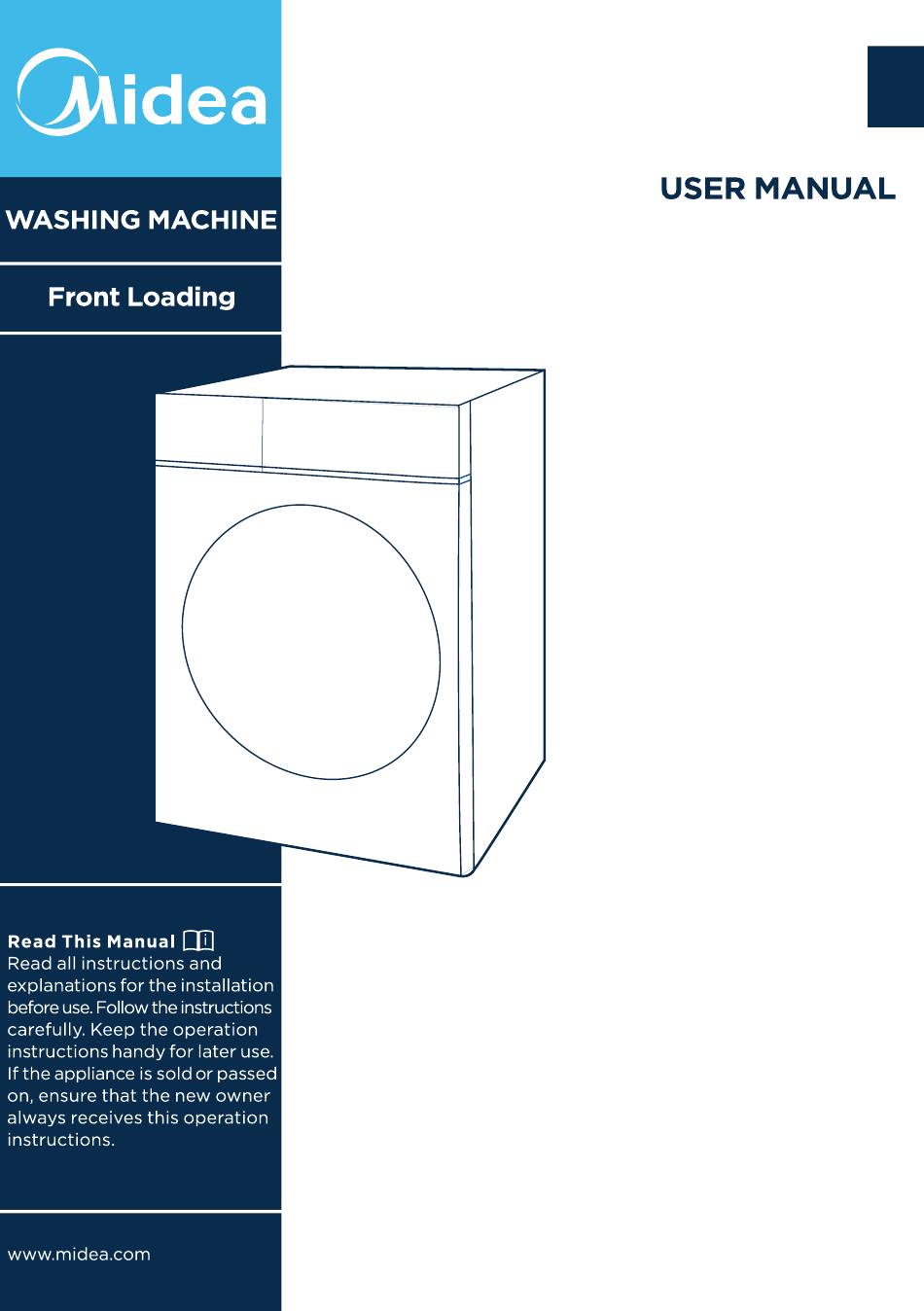

Read all instructions and explanations for
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
appliance is sold or passed on, ensure
that the new owner always receives this operation instructions.
delete installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
product is sold or passed on then ensure
that the new owner always receives this
manual.
MODEL:
MODEL:
360471
EN
Advertisement
Table of Contents
Related Manuals for Midea 360471
Summary of Contents for Midea 360471
- Page 1 Follow the instructions carefully. Keep the operation instructions handy for later use. If the product is sold or passed on then ensure that the new owner always receives this manual. MODEL: MODEL: 360471...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Safety Instructions ..........Installation Product Description ..........Installation ............Operations Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programmes ............Washing Programmes Table ........Maintenances Cleaning And Care ..........Trouble Shooting ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 4 SAFETY INSTRUCTIONS • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Before any maintenance the device, unplug the appliance from the mains. • Always unplug the machine and turn off the water supply after use.
- Page 5 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas. • Remove all packages and transport bolts before using the appliance.
- Page 6 SAFETY INSTRUCTIONS • Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result. Risk of damaging appliance! • Your product is only for home use and is only designed for the textiles suitable for machine washing. •...
- Page 7 SAFETY INSTRUCTIONS • Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc. may cause serious damages to this machine. • Please check whether the water inside the drum has been drained before opening its door.Please do not open the door if there is any water visible.
-
Page 8: Product Description

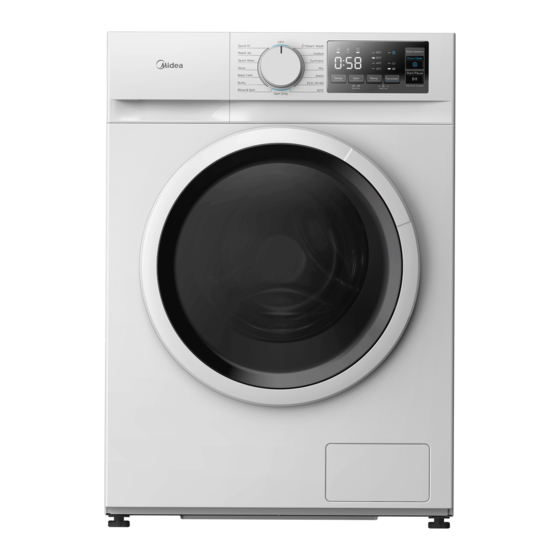

INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories 4 x Cover caps 1 x Owner’s manual Acoustic 1 x Supply hose... -
Page 9: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 10 INSTALLATION Remove transport bolts ！ Warning! • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts cover caps.
- Page 11 INSTALLATION Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough.
-
Page 12: Operations
OPERATION Quick Start Caution! • Before washing, please make sure the washer is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent. - Page 13 OPERATIONS 1. Before Washing earth terminal Main wash Softener Prewash Load Close door Add detergent Plug in Open tap Note! • Detergent need to be added in compartment I if the pre-wash function is selected. 2. Washing Select programme Select function or Press remain default Start/Pause to...
-
Page 14: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40)°C.If used under 0°C,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Pull out the dispenser Caution! Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Bulky Cotton Synthetic Baby Care Wool Jeans Sport Wear... -
Page 16: Control Panel
OPERATIONS Control Panel Start/Pause Turn the appliance on and off. Start or pause your programme. Programmes Option Available according to the laundry type. This allows you to select additional functions and will light when selected. Display rum Clean Specially set in this machine to clean The display shows settings, estimated remaining time, options and status the drum and tube. - Page 17 OPERATIONS Option Delay Set the Delay function: 1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.); 3.Press [Start/Pause] to commence the delay operation Delay Choose the Programme Setting time Start Cancel the Delay function: Press the [Delay] button before starting the programme.
- Page 18 OPERATIONS Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec.
-
Page 19: Other Functions
OPERATIONS Other Functions Temp. Press the button to regulate the temperature(Cold,20℃,40℃,60℃,90℃) Spin Spin Press the button to change the speed. 1400: 0-400-600-800-1000-1200-1400 Programme Programme Default Speed(rpm) Default Speed(rpm) 1400 1400 Steam Wash 1000 Rinse & Spin 1000 Cotton 1000 1000 Bulky Synthetic 1000... -
Page 20: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Wash synthetic articles, for example: shirts, coats, blending. Synthetic While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. -
Page 21: Washing Programmes Table
OPERATIONS Washing Programmes Table Programme Load(kg) Temp. Default Time °C Default Quick 15’ Cold 0:15 Rapid 45' 0:45 Sport Wear 0:47 Wool 1:07 Baby Care 2:01 Bulky 1:48 Rinse & Spin 0:20 Spin Only 0:12 20℃ 1:01 ECO Wash 0:59 Jeans 1:40 0:58... -
Page 22: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 23 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washing machine: Screw off the inlet pipe from the backside of the machine.
- Page 24 MAINTENANCES Cleaning the Drain Pump Filter ！ Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Allow the water to cool down. Risk of scalding! •...
-
Page 25: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 26: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) 360471 MFN70-JS1409B/D03E-AU 7.0kg 595*565*850 68kg 2000W 10 24 10 25... -
Page 27: Testing Methods
MAINTENANCES Testing methods Model:360471 MFN70-JS1409B/D03E-AU ADDITIONAL INFORMATION FOR Standard performance TESTING:(AS/NZS 2040.1:2005+ Amdt1-2007+Amdt2-2009) 1. Water connections:Cold & hot water connection 2. Water supply pressure: 320 kPa 3. Warm wash Program: ECO Wash 1400RPM,60℃ Display:5:34 Cold wash program: Cotton Cold( no temperature display is cold wash) 4. - Page 28 16138100A33229 V1.0...
