Sealey Quality MACHINERY MC550 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure the bike is adequately secured to the

lifting platform with appropriate straps before raising the load.
Maintain the lift in good condition (use an authorised service agent).

replace or repair damaged parts. Use genuine parts only.

Unauthorised parts may be dangerous and will invalidate the
warranty.
use a qualified person to lubricate and maintain the lift. DO NOT

use brake fluid to top up hydraulic unit.
locate the lift in a suitable work area, keep area clean and tidy

and free from unrelated materials, and ensure that there is
adequate lighting. Also ensure that the floor is level and strong
enough (preferably concrete) to take the weight of the lift and the
bike. DO NOT operate the lift on tarmacadam, as the surface
may be unstable.
Keep the lift clean for best and safest performance.

the maximum bike weight is 450kg. DO NOT exceed this rated

capacity.
remove ill fitting clothing. remove ties, watches, rings and other

loose jewellery, and contain long hair.
Maintain correct balance and footing, do not over reach. ensure

the floor is not slippery and wear non-slip shoes.
Before lifting check that there are no overhead obstructions.

When platform has been raised to the working height ensure the

locking bar is engaged to prevent accidental lowering.
Keep children and unauthorised persons away from the work area.

the lowering speed will vary according to the weight of the load

and the amount of pressure applied to the release pedal.
DO NOT attempt to ride a motorcycle up onto the lift

DO NOT use the lift for a task it is not designed to perform.

DO NOT operate the lift if damaged.

DO NOT exceed the rated capacity of the lift.

DO NOT operate the lift when you are tired or under the influence

of alcohol, drugs or intoxicating medication.
DO NOT allow untrained persons to operate the lift.

DO NOT make any modifications to the lift and DO NOT adjust or

tamper with the safety valve.
DO NOT sit or stand on the lift or hold onto it when it is being

raised or lowered.
DO NOT attempt to raise the lift using manual strength.

DO NOT put any body parts within the interior frame of the lift

whilst raising or lowering.
DO NOT use the ram alone to maintain a raised motorcycle.

AlWAys engage the locking mechanism.
Before lowering the lift ensure that there are no obstructions

underneath and that all persons are standing clear.
Before storing in safe area, ensure all parts are clean and free of

grease and oil. store lift in the lowest position.
2. SPECIFICATION
Model no: .................................................................................Mc550
capacity:......................................................................................450kg
Minimum/Maximum Height: ............................................... 205/750mm
Platform Width/length: ....................................................333x2060mm
overall Width/length: ......................................................800x2900mm
Weight: ..........................................................................................75kg
© Jack sealey limited
InstructIons for:
HYDRAULIC MOTORCYCLE LIFT 450kg
MC550
Model no:
3. ASSEMBLY
the lift comes completely assembled, except for the following
items: (refer to fig.4).
3.1 Tie Down Hooks
3.1.1. fit front two tie down hooks (18) using bolts (17) and nuts (19)
and rear ones (6) by screwing them into their captive nuts.
3.2 Wheel Chock
3.2.1. Bolt on wheel chock end plate (16) and fixed clamp (15).
3.2.2. Bolt down screw base (10).
3.2.3. Attach handle (7) using pin (8) to threaded rod (9), and screw
this through the screw base (10). use roll pin to fix moving tyre
clamp (14) to threaded rod (9).
3.3 Pedals
3.3.1. fit raise pedal (40) using pin (42) and lower pedal (41) using
pin (43) secure both with split pins.

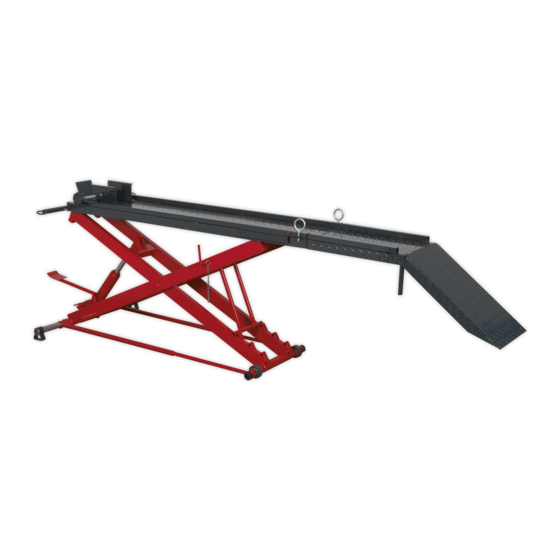

4. INTRODUCTION
All steel construction with foot operated, integral hydraulic
pump and ram assembly. fitted with platform safety lock device
to prevent accidental lowering. Bike fixed by front wheel clamp,
in addition, four eyelets allow tie downs to be used for added
stability. fitted with a full width loading ramp. Has a 500mm
removable rear extension to assist with the removal of the rear
wheel. can be stored in an upright position to save space when
not in use.
5. OPERATING INSTRUCTIONS
WARNING! ensure that you read, understand and apply the

safety instructions before use.
WARNING! DO NOT attempt to overload the lift.

5.1 Position the lift in a suitable area, checking that the surface on
which the lift will stand is solid and flat (preferably concrete).
5.2 Bleeding the system: Whilst removing the oil filler plug from
the ram the lift must have the safety locking locking bar
engaged. Remove the locking bar pin shown in fig.2B. Using the
raise pedal (see fig.1A), raise the platform until the locking
bar rides over the first locking bar stop (see fig.2). Press the
lower pedal (see fig.1B) and allow the locking bar to
settle fully against the stop.
5.2.1 Remove the oil filler cap from the side of the ram as shown in
fig.1C.
5.2.2 raise the lift slightly so that the locking bar is no longer under
pressure. Using the locking bar lever (see fig.2C) raise the
locking bar to the horizontal position and insert the locking bar
pin. Press the lower pedal (see fig.1B) and allow
the lift to settle to its lowest position so that the ram is fully
retracted.
5.2.3 fully open the release valve by depressing and holding down
the lower pedal (see fig.1B). Now pump the foot pedal 6 to 8
strokes. this will help release any pressurised air which may be
trapped within the reservoir.
5.2.4 raise the platform again, engage the safety locking bar and
reinstall the oil filler plug.
5.2.5 check to ensure that the pump operates smoothly before
putting into service. lubricate as instructed in the Maintenance
section.
5.2.6 Inspect before each use. do not use if any bent, broken or
cracked components are noted.
Original Language Version
Mc550 Issue: 1 - 02/07/13
