RS 125 - Tuono 125 - Euro 4

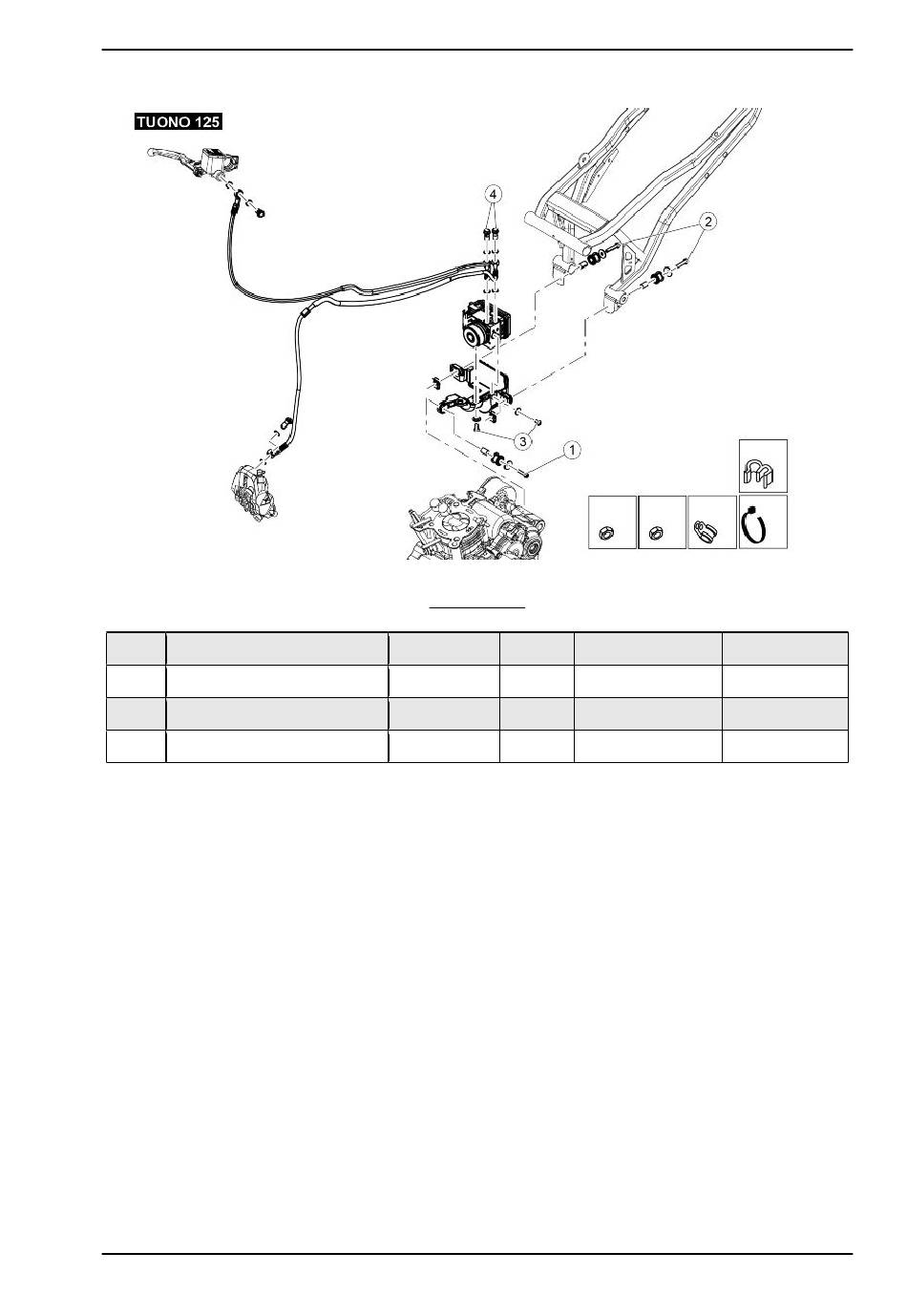

pos. Description
1 Flanged hex head screw fastening
modulator mounting case
2 Flanged hex head screw fastening
modulator mounting case
3 Hex socket button head screw fas-
tening modulator to mounting case
4 Special brake pipe fastening screw
ABS control unit pin assignment
•
PIN 1 (Blue) - Ground for valves and ECU
•
PIN 2 (X4) - CAN H line (high speed)
•
PIN 3 (White) - Front speed sensor input
•
PIN 4 (Green/Red) - Control unit key positive
•
PIN 5 (White/Blue) - Serial K Line for diagnosis
•
PIN 6 (Green/Red) - Hwvc 1 (+)
•
PIN 7 (Blue) - Hwvc 2 (-)
•
PIN 8 - N.C.
•
PIN 9 (Red/White) - Battery positive for valves
•
PIN 10 (Blue) - Pump motor ground
•
PIN 11 (X3) - CAN L line (low speed)
•
PIN 12 (White/Brown) - Front speed sensor positive
•
PIN 13 (Yellow/Brown) - Rear speed sensor positive
•
PIN 14 (Yellow) - Rear speed sensor input
ABS
SYSTEM
Type Quantity
M5x25 1 3.5 Nm (2.58 lb ft)
M6x30 2
M6 2
- 2 23-26 Nm (16.96-19.18
Braking system
Torque Notes
10 Nm (7.38 lb ft)
10 Nm (7.38 lb ft)
lb ft)
BRAK SYS - 277
-
-
-
-
