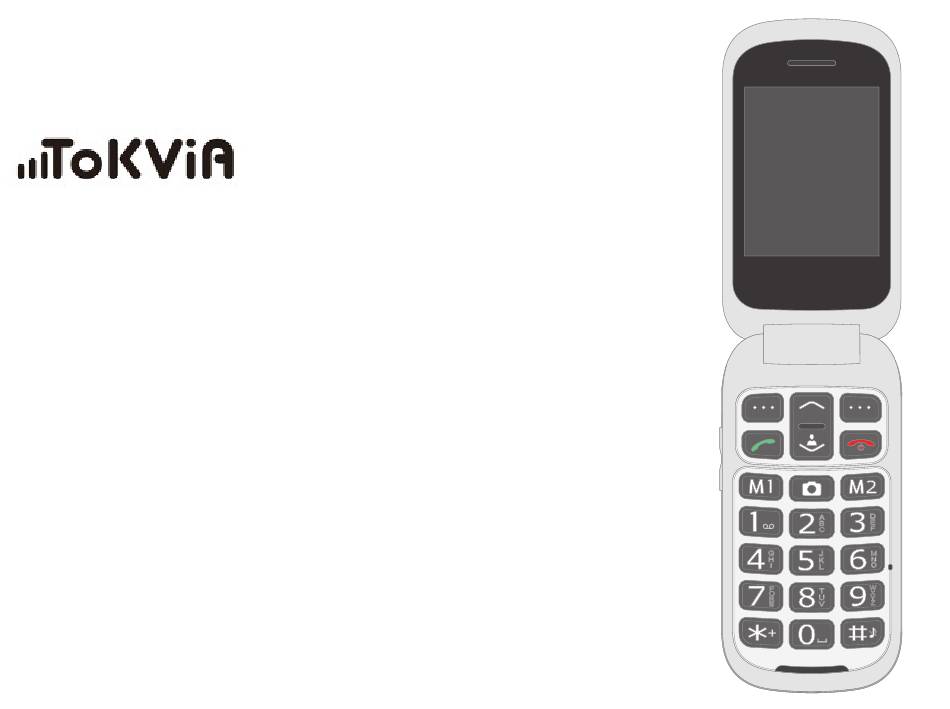

- Page 1 T201 Quick Reference Manual For PDF version, For after-sales support, Please contact tokviainfo@gmail.com...
- Page 2 This mobile phone is unlocked. It only supports 2G GSM SIM card. If your SIM card is not accepted by the phone, please contact your SIM card provider to check if the SIM card supports 2G GSM. A microSD memory card (up to 16GB, not included in the equipment supplied) is necessary, for instance, when you want to use the camera or use the PhotoContact function.
-
Page 3: General View
General View The illustration on the following page shows details of the mobile phone. Famil- iarise yourself with all the operating elements before starting to use the mobile phone. Speaker Camera key Display Hash key Softkey, left Headphone connection port Navigation key Emergency call key (SOS) Call key... -
Page 5: Inserting The Sim Card
Inserting the SIM Card Only use SIM cards of the size illustrated (Standard SIM). If you want to use a micro or nano SIM card, you will need an appropriate adapter. Insert the SIM card in the slot labelled SIM. Inserting the MicroSD Memory Card If you want to increase the memory capacity of the mobile phone, you can insert a microSD memory card... -
Page 6: Inserting The Battery
Inserting the Battery Open the battery cover door and insert the battery as illustrated. Ensure the battery is aligned correctly. Charging the Battery Connect the power adapter to a properly installed power socket. Connect the USB plug to the USB connection port on the mobile phone. -
Page 7: Charging Cradle
Charging Cradle Connect the power adapter to a properly installed power socket. Connect the USB plug to the USB-C connection port on the charging cradle. Place the mobile phone in the charging cradle. When the phone battery is fully charged, disconnect the connection to the power supply. -
Page 8: Switching On The Mobile Phone
Switching On the Mobile Phone Press the On-hook key for 3 seconds. Switching Off the Mobile Phone Press the On-hook key for 3 seconds. Operating the Mobile Phone Use the following keys to navigate through the menus provided by the mobile phone. - Page 9 When you want to take, end or reject calls, use the following keys: Take an incoming call or begin a conversation. End a call in progress. Reject an incoming call. When you want to enter phone numbers and digits or delete entries, use the following keys: Delete entries.
- Page 10 The operating elements on the sides or rear of the phone are assigned the following functions: Trigger an emergency call to the stored phone numbers. Charge the mobile phone battery or establish a connection to a computer. Switch the torch on and off. During a call conversation, increase/decrease the call volume.
-
Page 11: Overview Of The Most Important Functions
Overview of the Most Important Functions Italics texts are provided in the following operating steps. These italics indicate texts which can appear in the display of the mobile. Setting the language Press the left-hand softkey to open the main menu. Navigate to the Settings >... -
Page 12: Adding A Contact To The Phone Book
Adding a contact to the phone book Press the left-hand softkey to open the main menu. Navigate to the Phonebook > Add new contact menu option. Select the storage location required To SIM or Phone. Enter the name and phone number. Select Option >... -
Page 13: Speed Dial
Setting Direct Number key M1 and M2 Press the left-hand softkey to open the main menu. Navigate to Phonebook > Direct Number > OK > M1/M2. Enter name and number, press Save. On the start screen, long press M1 or M2, the number is dailled. Speed dial Press the left-hand softkey to open the main menu. - Page 14 Adding contacts to PhotoCall Press the Navigation down to open the PhotoCall. Select the entry you want and select the Edit option. Enter the name and phone number of the picture contact. Select Option> Save. The contact is saved. Adding a picture to PhotoCall When you want to assign a picture to a contact, you can either use the camera integrated in the mobile phone or transfer a picture stored on your computer to the mobile phone.
- Page 15 Emergency Call Function (SOS) The emergency call key (SOS) on your mobile phone has an emergency call function. Press and hold the emergency call key (SOS) for approx. 3 seconds to trigger an emergency call. An alarm signal sounds and an emergency text mes-sage is sent to stored phone numbers.
- Page 16 Bluetooth The Bluetooth function, a standard for data transfer via wireless communication, can be used to connect a compatible headphone to the mobile phone without the need for any cables. Activating Bluetooth Switch the Bluetooth function on when you want to connect compatible devices to your mobile phone.
- Page 17 Menu paths for other settings Blacklist: Settings > Call settings > Advanced settings > Blacklist, set the status to "On". And set the Blacklist numbers. Block the contact in Phonebook: Open Phonebook, then select a contact, click Option > Add to Blacklist. FM radio: Multimedia >...
- Page 18 Switch between Silence/Vibration/General mode: Long press # button. Change Alarm tone, Ringtone, Ring volume, Message tone, keypad tone, Cover open/close tone and system alarm tones: Settings > Profiles > General (or another profile you will use) > Customize. Caller ringtone: Assign ringtone to a contact, go to Phonebook, select a contact, Option >...
- Page 19 Q & A How to open the battery cover Battery cover door locates at the bottom right of the back side, as showed in Page 4. Open it with fingernail or a tool (such as a screwdriver) . Does it support 3G/4G/5G/MMS/Whatsapp/Spotify/Wi-Fi/GPS No, it's for voice call and short message only.
-
Page 20: Technical Properties
Technical Properties Frequency band GSM: 850 / 900 / 1,800 / 1,900 MHz Bluetooth: 2,402 - 2,480 GHz Sending power (max.) GSM: 2.47 W Bluetooth: 2.67 mW Power supply Input: 100 - 240 V, 50 - 60 Hz, 0.3 A Output: 5 V, 550 mAh Battery 3.7 V, 800 mAh Up to 250 h standby...
