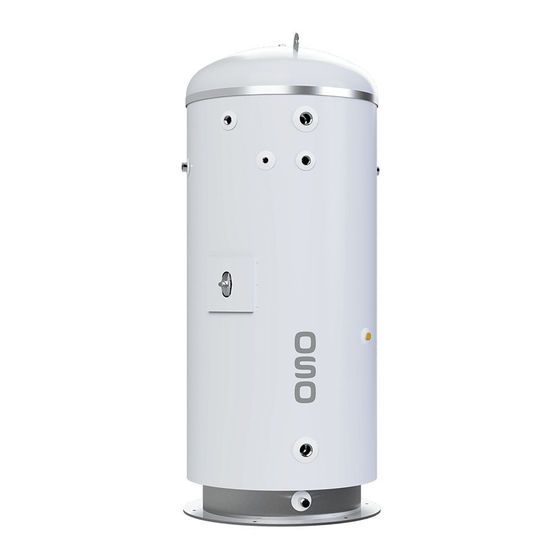

- Page 1 Triton Marine - TM/TMC/TME/TMCE 80-5000 l. SAFETY INFORMATION O&M INFORMATION INSTALLATION MANUAL Manufactured by OSO Hotwater AS Industriveien 1 - 3300 Hokksund - Norway Tel: + 47 32 25 00 00 / Fax: + 47 32 25 00 90 E-mail: oso@oso.no / www.osohotwater.com...
-
Page 2: Table Of Contents
CONTENTS 1. Safety instructions ............. 3 General information ......... 3 1.2 Safety instructions for users ......4 1.3 Safety instructions for installers ....4 2. Product description ..........5 2.1. Product identification ........5 2.2. Intended use ............5 2.3 CE marking ............5 2.4 Technical data ............ -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 General information • Read the following safety instructions carefully before installing, maintaining or adjusting the product. • Personal injury or material damage may result if the product is not installed or used in the intended manner. •... -
Page 4: Safety Instructions For Users
1.2 Safety instructions for users WARNING The overflow from any safety valve shall NOT be sealed or plugged. The product must NOT be modified or changed from its original state. Children must NOT play with the product or go near it without supervision. Maintenance/settings shall only be carried out by persons over 18 years of age, with sufficient understanding CAUTION... -
Page 5: Product Description
• Bureau Veritas Ship Rules Conformity at www.osohotwater.com for more • Lloyd’s Register Ship Rules information. OSO Hotwater AS is certified for The product complies with EU Directives for: • Quality ISO 9001 • Low voltage LVD 2014/35/EU • Environment ISO 14001 •... -
Page 6: Instructions For Installation, Operation
3. INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE 3.1 Products covered by these instructions: Triton Marine - TM Triton Marine Coil - TMC Triton Marine Electric - TME Triton Marine Coil Electric - TMCE 3.2 Specs and installation The OSO Triton Marine series is manufactured to customer specifications. -
Page 7: Delivery And Location
4. DELIVERY AND LOCATION 4.1 Delivery The product should be transported carefully as shown, with packaging. CAUTION Pipe stubs, valves etc. should not be used to lift the product as this could cause malfunctions. 4.2 Requirements for installation, location and positioning CAUTION The product shall be placed in a room with a gulley/drain. -
Page 8: Pipe Installation
4.3 Pipe installation 4.3.1 Nozzles connection for leaks. Tighten if necessary. All con- Dimension Connection description nections should be re-checked after approx. 3 months of service, then annually. 3/4-1” internal thread. Venting (not 80-400 l.) To order Flow/Return 4.4.2 Operation 1/2”... -
Page 9: Handover To End User
WARNING to thermostats and the wires from thermo- stats to elements are pre-connected from Constant voltage is present at the terminals. Be- the factory. fore any electrical work is done, the power sup- ply must be disconnected and secured against C) Make sure that the earth wire (yellow wire activation while the work is in progress. -
Page 10: User Guide
5. USER GUIDE 5.1 Settings WARNING 5.1.1 Thermostat setting Constant voltage is present in the junction box. The product thermostats are adjustable from Before any electrical work is done, the power sup- 50-75°C. The thermostat should not be set lower ply must be disconnected and secured against than 65°C to prevent bacteria growth. -
Page 11: Warranty Conditions
6. WARRANTY CONDITIONS 1. Scope The immersion heater has not been exposed to hardness OSO Hotwater AS (hereinafter called OSO) warrants for 2 years • levels exceeding 10°dH (180 ppm CaCO3). A water softener from the date of purchase, that the Product will: i) conform to OSO specification, ii) be free from defects in materials and is recommended in such cases. - Page 12 OSO Hotwater AS Industriveien 1 3300 Hokksund - Norway Tel: + 47 32 25 00 00 oso@oso.no www.osohotwater.com © This installation manual and all its content is protected by copyright and may be reproduced or distributed only with written consent from the manufacturer.
