Sealey LED37 Instructions

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
instruction
manual
1. safety
1.1. general

ensure the lamp is fully charged before initial use.

Do not turn the lamp on when it is being charged.

Do not shine directly into your, another person's or an animal's eyes.

Do not allow children to use the lamp.

Do not handle or move the lamp whilst it is being charged.

Do not use the lamp if you suspect that the battery or the lamp casing is damaged.

Do not leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently
recharge the battery at least once every six months of non-use.
1.2. battery safety
Warning! To reduce the risk of burns or fire:
R

Do not attempt to open, disassemble, modify or service the battery pack.
Do not crush, puncture, short external contacts or dispose of in fire or water.


Do not expose to temperatures above 60°c (140°).

replace only with the battery pack designated for this product.

recycle or dispose of used battery as stipulated by local regulation.

if the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. if it gets in your eyes, rinse thoroughly with cool
water and seek immediate medical attention.
2. introDUction

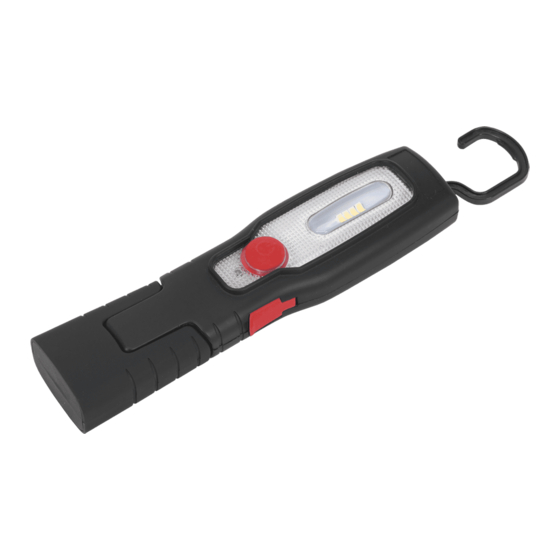

compact design ideal for keeping in tool box, features 4 bright smd's for use as inspection lamp and 1 smd for use as a directional torch.
integral hanging hook and a magnetic base which can rotate through 180° to obtain the best angle in hands-free applications. Push on/off
button on front of casing. supplied with usB charging lead.
3. specification
model no: .................................................................... led37
led quantity: ............................................... 4 smd + 1 smd
lumen output side/top: ........................................... 140/70 lm
Battery: ...................................................3.7V 650mAh li-ion
operating time side/top: ..............................................2.5/3hr
charging time: ...................................................................2hr
iP rating:..........................................................................iP20
length: ....................................................................... 185mm
V
important WArrAntY informAtion
The battery fitted to this lamp is considered to be a consumable item and its ability to accept a charge will reduce over time.
We will provide warranty against mechanical and electrical defect for a period of one year - this does not cover fair wear and tear.
If the battery is not properly charged before first use, or regularly conditioned, its capacity will diminish. Under these circumstances
we will not replace the battery regardless of whether it is less than one year old.
4. operation
Refer to fig.1
4.1. connect the usB lead to the socket on the side of the lamp. Plug usB lead into a power supply and turn on. the charging led on
the lamp will light red to show that charging has commenced.
4.2. When the battery has fully charged the led will turn Green.
4.3. direct the lens away from your eyes before switching on.
4.4. toggle the lamp between the end light and side light using the on/off switch.
4.5. the lamp may be suspended by the hook or attached to any ferrous surface by using the magnet.
© Jack sealey limited
instructions for
rechargeable inspection lamp Usb 4 smD
+ 1 smD leD lithiUm-ion
leD37
model no:
Original Language Version led37 | issue 1 - 17/10/16
