Cabling
Cabling overview
This section provides guidelines that help you make informed decisions about cabling the server and hardware options to
optimize performance.
CAUTION: When routing cables, always be sure that the cables are not in a position where they can be pinched or
crimped.
Four-bay non-hot-plug drive cabling
The four-bay non-hot-plug drive cable assembly consists of the drive power and SATA cables attached to a bracket. If
either the drive power or SATA cable becomes defective, the entire cable assembly will need to be replaced.
•

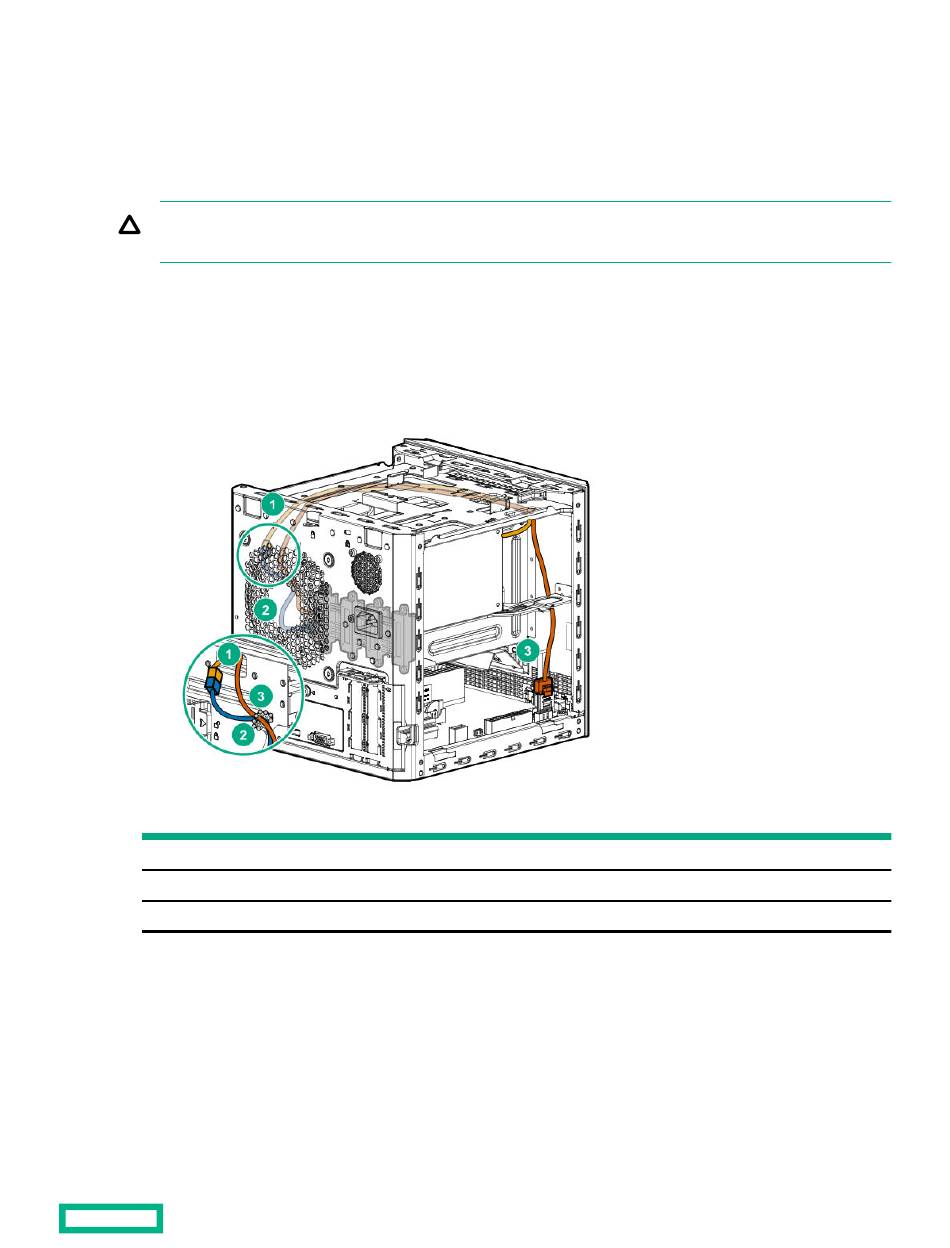

LFF/SFF drive SATA cable connected to the system board
Item
1
2
3
•
LFF/SFF drive SATA cable connected to a Smart Array storage controller board
Description
P2 power supply cable
LFF/SFF drive power cable
LFF/SFF drive SATA cable
62
Cabling
