- Page 1 Philips EP 1200 series 2200 series 3200 series...
-
Page 2: Table Of Contents
• Pump pressure : 15 bar Temporany solutions • Adjustable spout height : 85 - 145 mm Espresso Philips Service Center (EPSC) • Weight and dimensions: Deactivate AquaClean filter reminder -Weight of product : 7 - 7.5 kg Deactivate the beeping sound of the buttons... -
Page 3: Overview
General information General information Overview CMF (classic milk frother) Latte Go Latte Go Philips EP Series... -
Page 4: Technical Information
Serkit Tool needed for programming with our service tool EP series cable Cable for Philips EP1200-2200-3200 series Tool used to flash the SW on the machines (for SW upgrade and EPSC (Espresso Philips Service Center) diagnostics mode). Refer to SDA_114585... -
Page 5: Specification For The Measurement Of The Coffee Products Temperature
5. Then stir the probe for 3 to 5 times and read out the thermometer values during stirring, values should for 35gr 10 mm stabilize. 6. Hold the probe still in the center of the beaker and read out the temperature. Philips EP Series... -
Page 6: Operating Logic
An NTC is used as a temperature sensor; in the event of overheating this reduces boiler element power consumption. The electronic system detects the current boiler temperature from the drop in voltage of the sensor and adjusts it accordingly. Heating element values and corresponding temperatures: see table. Philips EP Series... - Page 7 The product dispensing process will then come to an end. If a dispensing cycle ends after the sensor has been triggered (in the reserve) then 200 puls. the display “Water low” continues to be displayed during the following dispensing cycle. Philips EP Series...
-
Page 8: Brew Unit Mainteinance - Where To Grease And Positions
Hard (15° - 21°dH) 60 litres (120,000 pulses) 52.5 litres (105,000 pulses) Very hard (over 21°dH) 30 litres (60,000 pulses) 26.25 litres (52,500 pulses) The default water hardness level is 4. Each litre of water corresponds to approximately 2,000 pulses. Philips EP Series... -
Page 9: Disassembly- And Reassembly Advice
5. To remove the two laterals panel take out 3 screws for each of them Removal of the housing: power cable is unplugged Make sure the 2. Take out the four screws and pull up the upper cover. Philips EP Series... - Page 10 Removal of the Electrovalves 1. For the upper EV pull outwards the valve holder. 2. For the lateral EV take out the 2 screws, then remove the valve. 3. Click on the 4 snaps to remove the UI board protection. Philips EP Series...
- Page 11 When reassembling the pump, ensure to use hot melt to fix the thermal fuse. Removal of the Flowmeter 1. Remove the electric connection 2. Press on the holder to pull out the flowmeter, then remove water connections. Philips EP Series...
- Page 12 1. To remove the microswitch please take extra care, slowly pulling it out from its place, then remove the connections. 3. Take out the 2 screws 4. Unsnap the click (as shown in picture) and pull the front case cover to remove it (some force is needed). Philips EP Series...
-
Page 13: Test Mode
Level 2 : Led L1 ON (O), Led L2 ON (O) Legend: (O) = Orange (B) = Blu (R) = Red At the start up all loads are turned off. The software allow to have multiple loads active at the same time. Philips EP Series... - Page 14 Change UI boad Short circuit in Leds or Buttons Other Lx toggle Change UI boad or Buttons Nicola Laffi 2-nov-18 4/16 Nicola Laffi 2-nov-18 5/16 revNum Redatto Verificato Approvato SaveDate Pagina/pagine revNum Redatto Verificato Approvato SaveDate Pagina/pagine Philips EP Series...
- Page 15 Pin9) L25 remain ON Insert Dreg drawer and drip L25(R) OFF The Microswitch is Check assembly of Nicola Laffi 2-nov-18 7/16 revNum Redatto Verificato Approvato SaveDate Pagina/pagine Nicola Laffi 2-nov-18 6/16 revNum Redatto Verificato Approvato SaveDate Pagina/pagine Philips EP Series...
- Page 16 (open) Pump and Flowmeter direction into home. Motor of BU Change the BU motor Nicola Laffi 2-nov-18 9/16 Nicola Laffi 2-nov-18 8/16 revNum Redatto Verificato Approvato SaveDate Pagina/pagine revNum Redatto Verificato Approvato SaveDate Pagina/pagine Philips EP Series...
- Page 17 Change Main Board L11(O) ON->OFF present>0,5A. < 0,5A. In this case we suppose that was ON, then Nicola Laffi 2-nov-18 11/16 Nicola Laffi 2-nov-18 10/16 revNum Redatto Verificato Approvato SaveDate Pagina/pagine revNum Redatto Verificato Approvato SaveDate Pagina/pagine Philips EP Series...
-
Page 18: Functions/Features Explanation
Qty Latte Macchiato Custom Milk (ml) Temperature setting Medium Temperature setting CntCoffee Reset counter Number of grounds in dregs drawer Philips EP Series Alarm_Refill TRUE Request priming circuit next power-on of the machine Bu_Loaded FALSE Set Brew-unit clean and not fill with coffee... -
Page 19: Descaling
3. Remove the water tank and empty it. Then remove the AquaClean water filter. 4. Pour the whole bottle of Philips descaler in the water tank and then fill it with water up to the Calc/ Clean indication. Then place it back into the machine. -
Page 20: Espresso Philips Service Center (Epsc)
All details related to the registration and operation are explained in the enclosed Quick start guide (QSG). Espresso Philips Service Center– Quick Start Guide Press the icon to view the document To open the attached document is necessary to save the service manual on your The main Diagnostic Parameters description is available on the GDA_114331. -
Page 21: Deactivate Aquaclean Filter Reminder
1. Press the ON/OFF button to switch OFF the machine Milk (if applicable) 2. Press and hold the Coffee icon (or Espresso Lungo icon for Philips EP3221 model) for 3 seconds - Cappuccino Does the cappuccinatore produce good froth 10 check water circuit for any leakage, such as Oetiker clamps, boiler and valve connection and hoses 3. -
Page 22: Version History
Version history 28/03/19 Version 1.0 : Initial release. www.philips.com Philips EP Series...
Need help?
Do you have a question about the EP Series and is the answer not in the manual?
Questions and answers
bei mir leuchtet immer eine Lampe , habe alles probiert, entkalkt, Brühgerät gereinigt etc..warum, wie kann ich das problem lösen?
If a light is always on in your Philips EP Series machine, it may indicate a failure mode where the LED is displaying an unexpected color. The issue could be caused by a faulty UI board or a damaged main board.
To solve this problem:
1. Check if the light color matches the expected color.
2. If the LED is showing the wrong color, replace the UI board.
3. If the main board is damaged, replace the main board.
If the issue persists, further troubleshooting may be needed.
This answer is automatically generated
Empty ground container, how to fix Philips Espresso Machine ep2220 while it is empty, and the sensor is good
Empty the coffee grounds container only when the machine is switched on. If the issue persists, remove the coffee grounds container, wait at least 5 seconds, and then reinsert it.
This answer is automatically generated

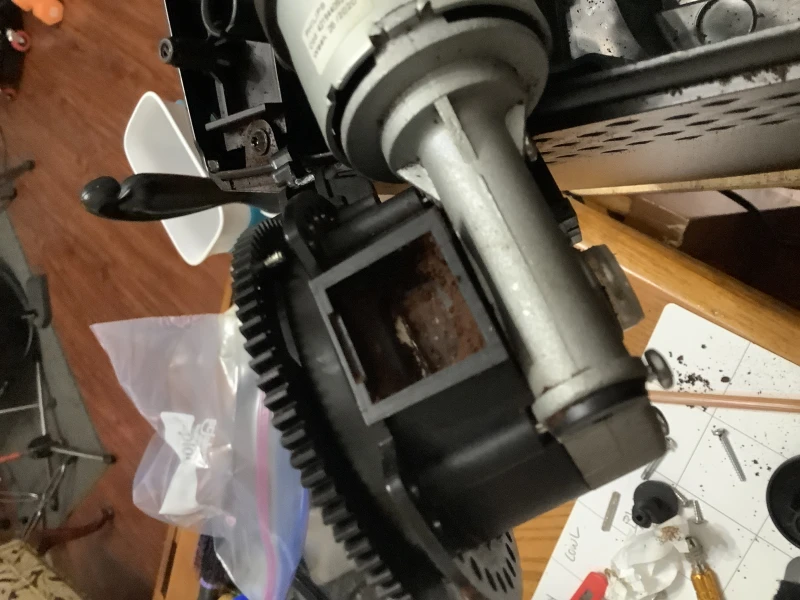

The large plastic grinder wheel is it removable as the small part was not connected came off when lifting the top
