6 Ensure that the Data Source selector is
showing LIVE.
7 Ensure that the Laser Safety Switch is
enabled or the Laser Safety input is high.
8 Select the Setup Page.
9 Press the Start button to start the sensor.
The Start button is used to run sensors
continuously, while the Snapshot button is used
to trigger a single capture.
10 Move a target into the laser plane.
If a target object is within the sensor's
measurement range, the Data Viewer will display
the distance to the target and the sensor's range
indicator LED will illuminate.
If you cannot see the laser, or if a range is
not displayed in the Data Viewer, refer to
Troubleshooting (page 181).
11 Press the Stop button.
You should now see the laser turns off.
R
d
S
u n n i n g a
u a l
e n S o R

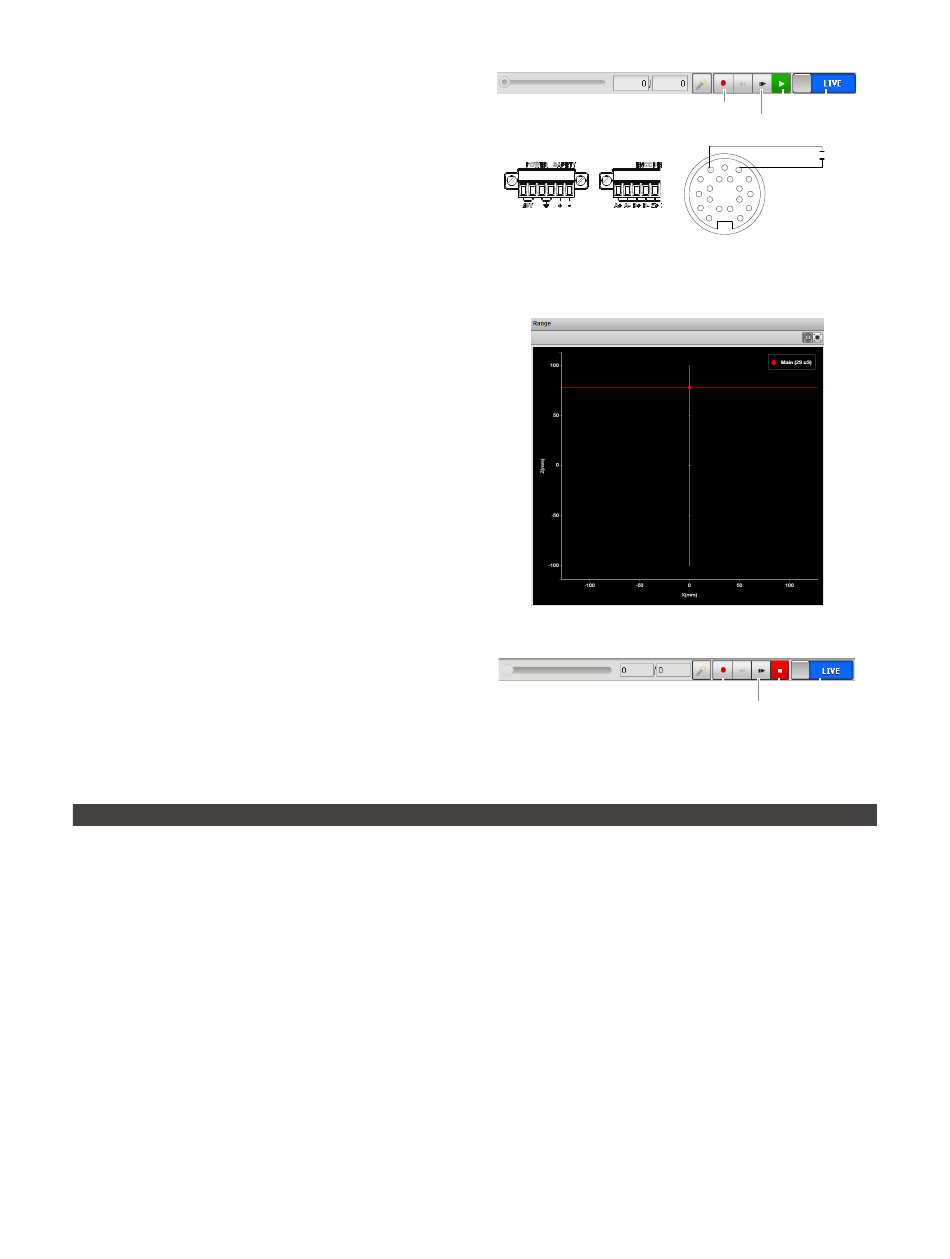

After the sensors are installed, you can perform laser ranging to verify basic sensor operation.
To run configure a dual sensor system:
Gocator 1100 & 1300 Series
S
y S t e m
Master 400/800/1200/2400
RECORD
START
SNAPSHOT
DATA SOURCE
Safety_in+
5V - 48VDC
Safety_in-
Standalone
RECORD
STOP
SNAPSHOT
DATA SOURCE
Getting Started • 35
