Summary of Contents for Zanussi ZCG922A6XA
- Page 1 User Manual GETTING STARTED? EASY. ZCG922A6XA EN User Manual Cooker...
-
Page 2: Safety Information
VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.zanussi.com/support SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. - Page 3 accommodation where such use does not exceed (average) domestic usage levels. Only a qualified person must install this appliance and replace • the cable. This appliance is intended for use up to an altitude of 2000 m • above sea level. This appliance is not intended to be used on ships, boats or •...
-
Page 4: Safety Instructions
WARNING: Ensure that the appliance is switched off before • replacing the lamp to avoid the possibility of electric shock. If the mains power supply cable is damaged, it must be • replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard. -
Page 5: Gas Connection
GAS CONNECTION WARNING! Risk of fire and explosion • All gas connections must be made by a qualified person. • Before installation, make sure that the local • Fats and oil when heated can release flammable distribution conditions (nature of the gas and vapours. -
Page 6: Internal Lighting
• Make sure the flame does not go out when you • Keep the lid glass open, while the oven is in quickly turn the knob from the maximum to the operation (if applicable). minimum position. INTERNAL LIGHTING • Use only the accessories supplied with the appliance. -

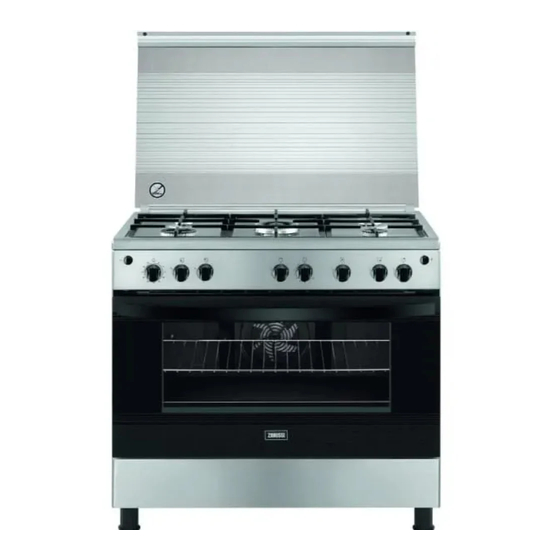

Page 7: Product Description
PRODUCT DESCRIPTION GENERAL OVERVIEW Button for the spark generator Knob for the Minute Minder Knob for the grill Knob for the oven functions Button for the lamp and turnspit Knobs for the hob Grill Lamp Turnspit hole Shelf positions COOKING SURFACE LAYOUT Auxiliary burner Semi-rapid burner Semi-rapid burner... -
Page 8: Hob - Daily Use
1. Set the oven function knob to maximum gas The appliance can emit an odour and smoke. This is normal. Make sure that the airflow is sufficient. flow position Let the oven cool down. Dampen a soft cloth with Refer to "Oven - Daily use" chapter. warm water and a little mild washing-up liquid and 2. -
Page 9: Hob - Hints And Tips
A. Burner cap B. Burner crown C. Ignition candle D. Thermocouple (if applicable) TURNING THE BURNER OFF To put the flame out, turn the knob to the off position WARNING! Always turn the flame down or switch it off before you remove the pans from the burner. -
Page 10: Periodic Maintenance
• Use a special cleaner suitable for the surface of 1. Remove the pan supports to easily clean the the hob. hob. • Wash stainless steel parts with water, and then Be very careful when you replace dry them with a soft cloth. the pan supports to prevent the hob top from damage. - Page 11 Oven function Application Oven fan To thaw frozen food. To use the fan in combination with the gas oven burner ignite the gas oven and turn the knob for the grill clockwise to activate the fan. Oven lamp To illuminate the oven interior. To use this function, press the button for the lamp and turnspit.
-
Page 12: Oven - Clock Functions
for the grill to the flame position. Hold the knob pushed down. • For ignition on the spark generator button push and hold the spark generator button. Push and turn the knob for the grill to the flame position. Hold the knob pushed. Release the spark generator button when burner lights. - Page 13 Put the shelf on the correct shelf position. Make The support hook is installed in the top sure it does not touch the back wall of the oven. of the oven cavity. You can leave the support hook in the WARNING! The maximum weight oven, when the turnspit is not active.
-
Page 14: Oven - Hints And Tips
When meat is ready press the turnspit button. Turn remove the turnspit and the roasting pan from the off the grill. Install the turnspit handle. Carefully oven. OVEN - HINTS AND TIPS BAKING WARNING! Refer to Safety chapters. Use the lower temperature the first time. You can extend baking times by 10 –... - Page 15 Meat Grilling Oven set- Grill posi- Shelf posi- Food Quantity (kg) Time (min) Oven fan time (min) ting tion tion at the end Chicken 1.8 - 3.0 max. 65 - 75 55 mi- max. nutes Duck 2.5 - 3.5 max. 70 - 80 Beef 1.2 - 1.8...
-
Page 16: Oven - Care And Cleaning
Grilling Food Quantity (kg) Grill position Time (min) Shelf position Burgers 2.0 - 2.5 max. 35 - 40 Trout 1.2 - 1.5 max. 25 - 35 Toast browning 0.5 - 1.0 max. 10 - 20 1) Turn over after half of cooking time. Grilling on turnspit Food Quantity (kg) - Page 17 4. Put the door on a soft cloth on a stable surface. Avoid placing the levers in the vertical 5. Use a screwdriver to remove the 3 screws from position and make sure both of them the bottom edge of the door. are pulled maximally towards you.
-
Page 18: Replacing The Lamp
When the cleaning is completed, install the glass Make sure the levers are in their panels and the oven door. To install the oven door, original position before closing the do the above steps in the opposite sequence. door. Make sure the slot in the hinge A rests on the edge of the hinge support B REPLACING THE LAMP before releasing the oven door. -
Page 19: Service Data
WHAT TO DO IF... Problem Possible cause Remedy There is no spark when you try The hob is not connected to an Check if the hob is correctly to activate the spark generator. electrical supply or it is con- connected to the electrical nected incorrectly. -
Page 20: Installation
We recommend that you write the data here: Model (MOD.) ......... Product number (PNC) ......... Serial number (S.N.) ......... INSTALLATION WARNING! Refer to Safety chapters. Dimension LOCATION OF THE APPLIANCE You can install your freestanding appliance with cabinets on one or two sides and in the corner. Keep a distance of about 1 cm between the appliance and the back TECHNICAL DATA... - Page 21 BYPASS DIAMETERS BURNER Ø BYPASS 1/100 mm Auxiliary Semi-rapid Rapid Triple Crown Oven Grill GAS BURNERS FOR NATURAL GAS G20 20 mbar INJECTOR MARK 1/100 BURNER NORMAL POWER kW REDUCED POWER kW Triple Crown Rapid Semi-rapid 1.85 0.45 Auxiliary 0.95 0.35 Oven Grill...
- Page 22 they do not come in touch with mobile parts and The appliance is set for liquid gas. You they are not squeezed. can change it to natural gas, with the correct injectors. The gas rate is adjusted to suit. WARNING! Before you replace the injectors, make sure that the gas knobs are in the Off position.
- Page 23 5. Replace the rating plate (it is near the gas supply pipe) with the one for the new type of gas supply. You can find this plate in the bag supplied with the appliance. If the supply gas pressure is not constant or it is different from the necessary pressure, install an applicable pressure adjuster on the gas supply pipe.
- Page 24 6. Remove the knob for the oven functions again. 7. Screw on slowly the bypass screw till the flame becomes minimum and stable. 8. Put the knob for the oven functions back. 9. Set the maximum gas flow position on the knob for the oven functions and let the oven heat for at least 10 minutes.
- Page 25 CAUTION! The assembly should be made by two people. 1. Open the lid of the appliance and disassemble 2. Disassemble the pan supports and all the burner assemblies. 5. Tilt the cooker forward 30 degrees and repeat the previous step for the back feet. 3.
-
Page 26: Electrical Installation
ELECTRICAL INSTALLATION WARNING! The manufacturer is not responsible if you do not follow the safety precautions from Safety chapters. This appliance is supplied with a main plug and a main cable. WARNING! The power cable must not touch the part of the appliance shaded in the illustration. - Page 28 WWW.ZANUSSI.COM/SHOP...
