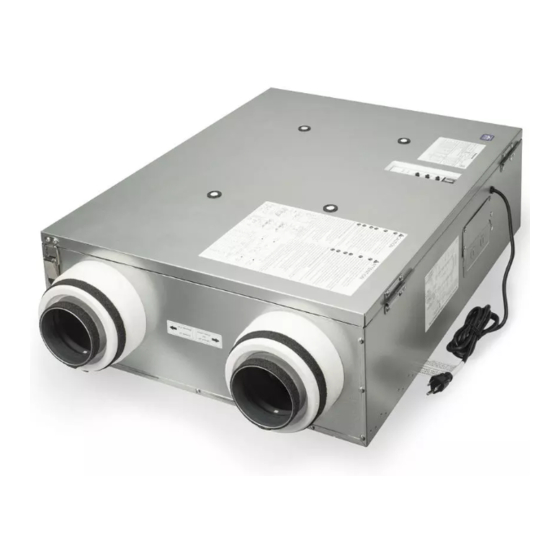

Service Manual Energy Recovery Ventilator (North America Market) FV-10VEC2R WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Page 2
Voltage Frequency Static Weight Model No. (CFM) Duct direction (Hz) pressure Lb.(Kg) Supply Exhaust Fan unit Exhaust 0.1”WG FV-10VEC2R & 4“/6” (22.4) 0.4”WG Supply <Energy Performance> Supply Power Sensible Apparent temperature Net air flow consumption recovery sensible moisture Model No.
Page 3
2. Parts Identification FV-10VEC2R Main Body Section Frame Body Assy (4 pcs) (5pcs) SA Fan Assy EA Fan Assy (6pcs) PCB Box Assy (2pcs) (2pcs) (2pcs) Frame Cover Assy...
Page 4
2. Parts Identification FV-10VEC2R Frame Body Assy (2 pcs) (2 pcs) (8 pcs) (2 pcs) (2pcs) (4 pcs) (2 pcs) SA Fan Assy / EA Fan Assy (4pcs) (4pcs) (4pcs)
Page 9
Troubleshooting FV-10VEC2R If a problem is encountered, please investigate it by going through the following items. If the problem still persists, please disconnect the power and contact the dealer for repair. Display Running Filter Problem Action indicator indicator (Green) (Red) Check the power cord is connected.
Page 10
4. Parts List FV-10VEC2R Main Body Section Part No. Part Name Q´ty Remark 1 FFV1600174M Frame Body Assy 2 FFV0720012S Cord Bushing 3 FFV4620115S Power Cord 4 FFV6710047S Wiring Cover 5 FFV3740038S Maintenance Plate 6 FFV3402188M EA Damper Assy 7 FFV4710448M...
Page 11
4. Parts List FV-10VEC2R SA Fan Assy/EA Fan Assy Part No. Part Name Q´ty Remark 21 FFV3730127M Motor Holder Plate 22 FFV2230022S Holder Gum(B) 23 FFV3402192M EA Motor Assy (23) FFV3702281M SA Motor Assy 24 FFV2230023S Holder Gum(A) 25 FFV3730128M...
Page 12
4. Parts List FV-10VEC2R Frame Cover Assy Part No. Part Name Q´ty Remark 49 FFV2220076S Hinge A 50 FFV4620133S Pressure Plug 51 FFV3440022S Latch Base A FFV7000074S Truss Tap Screw Main Labels Part No. Part Name Q´ty Remark 52 FFV3740056M...
