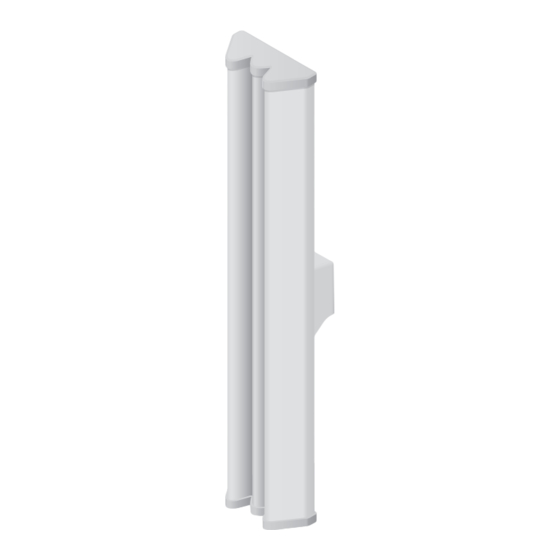

- Page 1 3 GHz 2x2 MIMO BaseStation Sector Antenna Model: AM-3G18-120...
-
Page 2: Package Contents
(M8, Qty. 8) Products may be different from pictures and are subject to change without notice. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™... -
Page 3: Installation Requirements
Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Overview Slotted... -
Page 4: Hardware Installation
Hardware Installation 1. Attach the RF Cables to the connectors labeled Chain 0 and Chain 1 on the Rocket. 2. Attach the Rocket to the Rocket Mount Bracket. a. Align the mounting tabs on the back of the Rocket with the four mounting slots on the bracket. - Page 5 3. Connect the other ends of the RF Cables to the RF Connectors on the antenna. 4. Slide the Protective Shroud down over the Rocket until it locks onto the Rocket Mount Bracket. Note: If you have difficulty locking the shroud into place, try adjusting the placement of the RF Cables.
- Page 6 5. Attach the U-Brackets to the antenna: a. Secure the Slotted U-Bracket to the upper Mounting Lugs of the antenna using two Serrated Flange Nuts. b. Secure the other U-Bracket to the lower Mounting Lugs of the antenna using two Serrated Flange Nuts. Note: Orient both U-Brackets as shown below.
- Page 7 6. Insert two Carriage Bolts into each Pole Bracket. 7. Attach each Pole Bracket to each U-Bracket using two Serrated Flange Bolts. Hand-tighten the bolts.
- Page 8 8. To mount the antenna to the pole, slide a Pole Clamp over each pair of Carriage Bolts. Secure each Pole Clamp with two Serrated Flange Nuts. Note: The mounting assembly can accommodate a Ø 40 mm - 80 mm pole.
- Page 9 9. The antenna has an electrical downtilt of 3°. To further adjust the elevation angle: a. Loosen the four Serrated Flange Bolts on the U-Brackets and the two Serrated Flange Nuts on the upper Pole Clamp. b. Slide the antenna to the desired tilt. (The brackets may slide along the pole, depending on the angle of the elevation tilt.) c.
-
Page 10: Specifications
Specifications AM-3G18-120 Dimensions 735 x 144 x 78 mm (28.94 x 5.67 x 3.07") Weight (Mount Included) 5.9 kg (13 lbs) Frequency 3.3 - 3.8 GHz Gain 17.3 - 18.2 dBi HPOL Beamwidth 118° (6 dB) VPOL Beamwidth 121° (6 dB) Elevation Beamwidth 6°... -
Page 11: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 12: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 13 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 14: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... - Page 15 Compliance RF Exposure Warning The antenna and transmitter must be installed to provide a separation distance from all persons and must not be located or operating in conjunction with any other antenna or transmitter. For the specific separation distance, refer to the Quick Start Guide for your Rocket device (transmitter).
- Page 16 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 17 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 18: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. -
Page 19: Online Resources
NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. - Page 20 . u b n t . c o m ©2012-2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, Rocket, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc.
