TILE MATRIX Allows one image to be expanded and displayed over multiple screens (up to 100) through a
distribution amplifi er.
NOTE: Low resolution is not suitable for tiling to a large number of monitors. You can operate
without a distribution amplifi er at a lower number of screens.
This function is released when selecting IMAGE FLIP except for NONE.
NOTE: Dynamic or Zoom will not work when Tile Matrix is activated.
When "DYNAMIC" or "ZOOM" is selected in ASPECT while executing TILE MATRIX, the setting
will be applied after completing of TILE MATRIX.
H MONITORS Number of monitors arranged horizontally.
V MONITORS Number of monitors arranged vertically.
POSITION Select which section of the tiled image to be displayed on the monitor.
TILE COMP Turns the TILE COMP feature on.
TILE MATRIX ENABLE Enables Tile Matrix.
FRAME COMP Sets the tiled image timing to be displayed on the monitor. Large number makes large infl uence
to displayed image.
NOTE: The image may be distorted when turning the power on or changing the settings.
NONE FRAME COMP is not available.
AUTO Sets display timing to vertical direction of all monitors automatically.
MANUAL Sets display timing to individual monitor.
1
V SCAN REVERSE* Reverse scanning image direction. Normal scanning direction is top to bottom.
NOTE: If V SCAN REVERSE is set to AUTO or MANUAL, FRAME COMP is not available.
NONE V SCAN REVERSE is not available.
AUTO Sets automatically calculated image scanning direction to all monitors.
MANUAL Sets scanning direction to individual monitor.
NON REVERSE Sets normal scanning direction and delays 1 frame display image timing.
REVERSE Reverse scanning direction to individual monitor.
TILE MATRIX MEM When "INPUT" is selected, TILE MATRIX setting is applied to each signal input.
AUTO TILE MATRIX Allows auto setting of multiple screens by inputting the number of monitors arranged horizontally
SETUP and vertically on the primary monitor. Following settings are set automatically: MONITOR
ID, TILE MATRIX, TILE MATRIX MEM, Input Signal, VIDEO OUT SETTING, DisplayPort in
TERMINAL SETTING.
NOTE: All monitors which follow in the chain with LAN should be ON. When executing this
function while in standby mode or power save mode, "LAN POWER" should be set to ON.
AUTO ID will be automatically executed. When you use this function, it is recommended that
monitors are chained by DisplayPort cable.
POWER ON DELAY Adjusts the delay time between being in "standby" mode and entering "power on" mode.
DELAY TIME "POWER ON DELAY" can be set between 0 and 50 seconds.
LINK TO ID When "ON" selected, delay time is linked with Monitor ID. It takes more time as larger ID number.
*1: Except for UN551S/UN551VS.

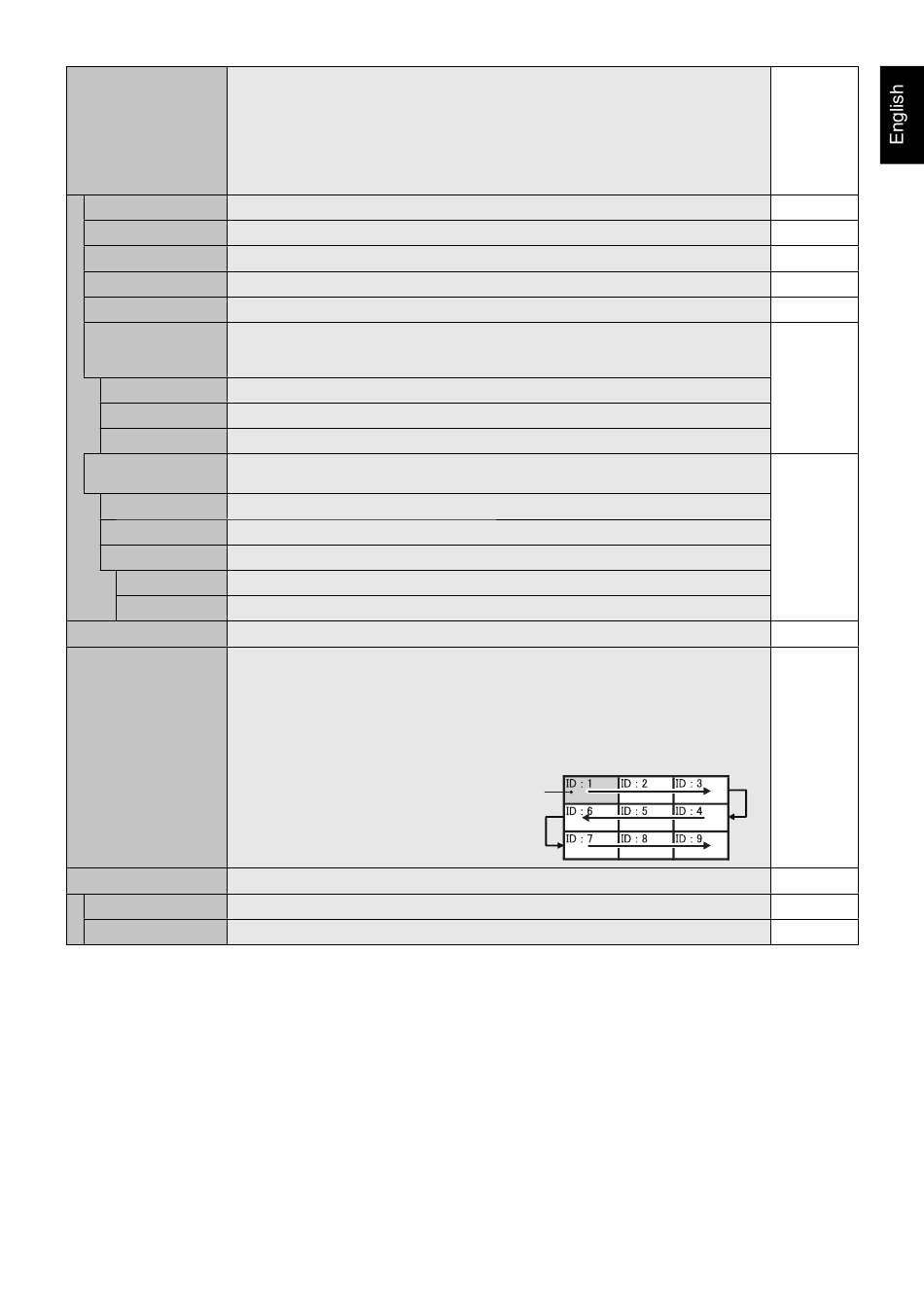

Example of installation via LAN:
H MONITORS 3
V MONITORS 3
Primary monitor
English-25
1
1
1
NO
NO
NONE
NONE
COMMON
DEACTIVATE
0 SEC.
OFF
