TECHNICAL & SERVICE MANUAL
STW-2 Series
PACKAGED TERMINAL
AIR CONDITIONERS (PTAC)
COOLING & ELECTRIC HEATING MODEL (230/208 V)
Capacity Class
Heater
2.55 kW
6,000 BTU
3.45 kW
2.55 kW
9,000 BTU
3.45 kW
5.00 kW
2.55 kW
12,000 BTU
3.45 kW
5.00 kW
2.55 kW
15,000 BTU
3.45 kW
5.00 kW
COOLING & ELECTRIC HEATING MODEL (265 V)
Capacity Class
Heater
3.00 kW
6,000 BTU
4.00 kW
3.00 kW
9,000 BTU
4.00 kW
3.00 kW
12,000 BTU
4.00 kW
5.00 kW
4.00 kW
15,000 BTU
5.00 kW
Model No.
Product Code No.
STW0622C2
1 851 006 46
STW0623C2
1 851 006 47
STW0922C2
1 851 006 48
STW0923C2
1 851 006 49
STW0925C2
1 851 006 50
STW1222C2
1 851 006 51
STW1223C2
1 851 006 44
STW1225C2
1 851 006 52
STW1522C2
1 851 006 53
STW1523C2
1 851 006 54
STW1525C2
1 851 006 55
Model No.
Product Code No.
STW0633C2
1 851 006 56
STW0634C2
1 851 006 57
STW0933C2
1 851 006 58
STW0934C2
1 851 006 59
STW1233C2
1 851 006 60
STW1234C2
1 851 006 61
STW1235C2
1 851 006 62
STW1534C2
1 851 006 63
STW1535C2
1 851 006 64
FILE NO.
PACKAGED TERMINAL
HEAT PUMPS (PTHP)
HEAT PUMP MODEL (230/208 V)
Capacity Class
Heater
2.55 kW
6,000 BTU
3.45 kW
2.55 kW
9,000 BTU
3.45 kW
5.00 kW
2.55 kW
12,000 BTU
3.45 kW
5.00 kW
2.55 kW
15,000 BTU
3.45 kW
5.00 kW
HEAT PUMP MODEL (265 V)
Capacity Class
Heater
3.00 kW
6,000 BTU
4.00 kW
3.00 kW
9,000 BTU
4.00 kW
3.00 kW
12,000 BTU
4.00 kW
5.00 kW
4.00 kW
15,000 BTU
5.00 kW
REFERENCE NO.
Destination: U.S.A.
Model No.
Product Code No.
STW0622H2
1 851 006 65
STW0623H2
1 851 006 66
STW0922H2
1 851 006 67
STW0923H2
1 851 006 68
STW0925H2
1 851 006 69
STW1222H2
1 851 006 70
STW1223H2
1 851 006 71
STW1225H2
1 851 006 72
STW1522H2
1 851 006 73
STW1523H2
1 851 006 74
STW1525H2
1 851 006 75
Model No.
Product Code No.
STW0633H2
1 851 006 76
STW0634H2
1 851 006 77
STW0933H2
1 851 006 45
STW0934H2
1 851 006 78
STW1233H2
1 851 006 79
STW1234H2
1 851 006 80
STW1235H2
1 851 006 81
STW1534H2
1 851 006 82
STW1535H2
1 851 006 83
SM
700508
Advertisement
Table of Contents
Related Manuals for Sanyo STW-2 Series
Summary of Contents for Sanyo STW-2 Series

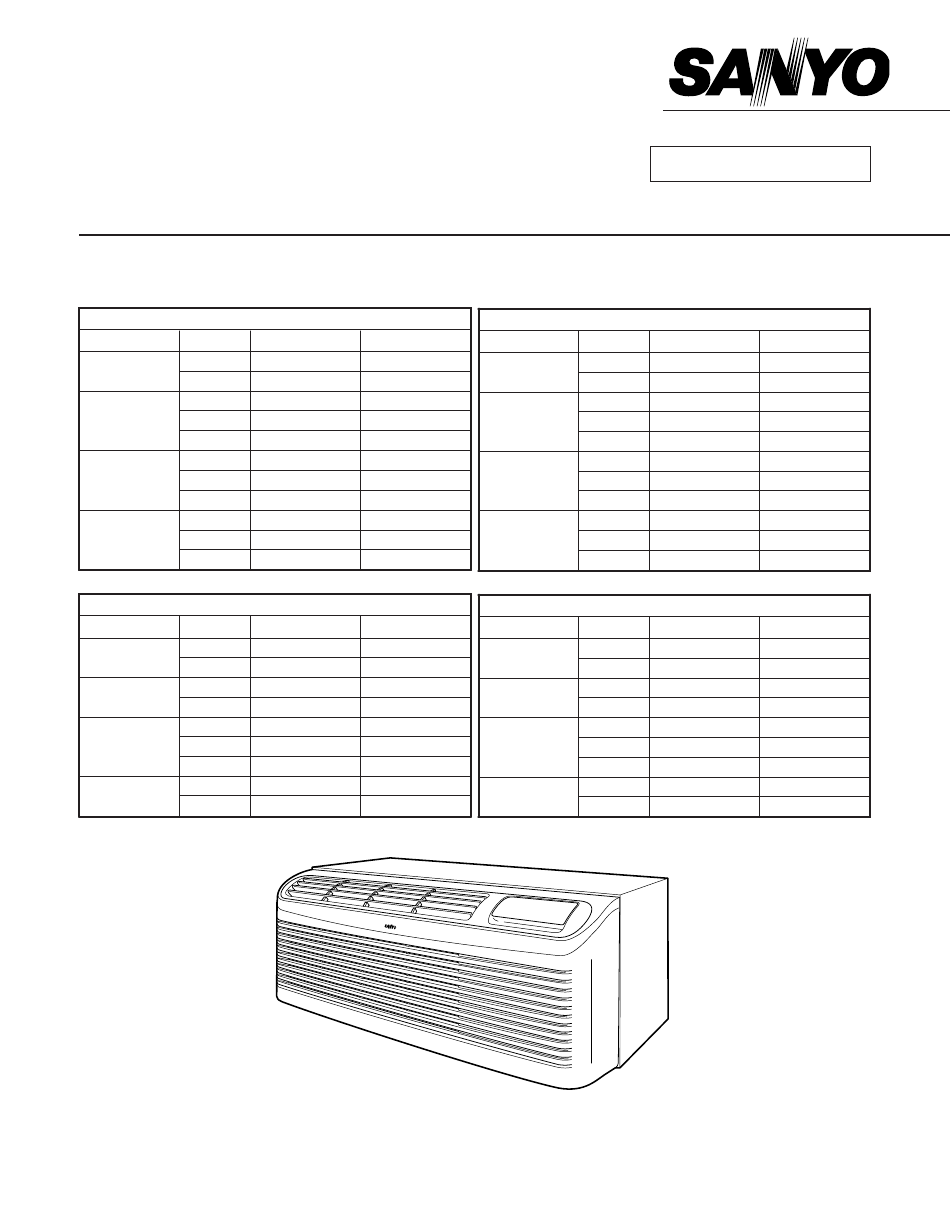

- Page 1 TECHNICAL & SERVICE MANUAL STW-2 Series FILE NO. Destination: U.S.A. PACKAGED TERMINAL PACKAGED TERMINAL HEAT PUMPS (PTHP) AIR CONDITIONERS (PTAC) COOLING & ELECTRIC HEATING MODEL (230/208 V) HEAT PUMP MODEL (230/208 V) Capacity Class Heater Model No. Product Code No.
