General information

Cabinet model information

1
1.1 Cabinet model information
Enter the following information and have it ready in the event of queries:
Cabinet model: Production

1.2 Notes for reading

The following symbols designate specific types of information.
Link to another part of the document:

1.3 Labelling

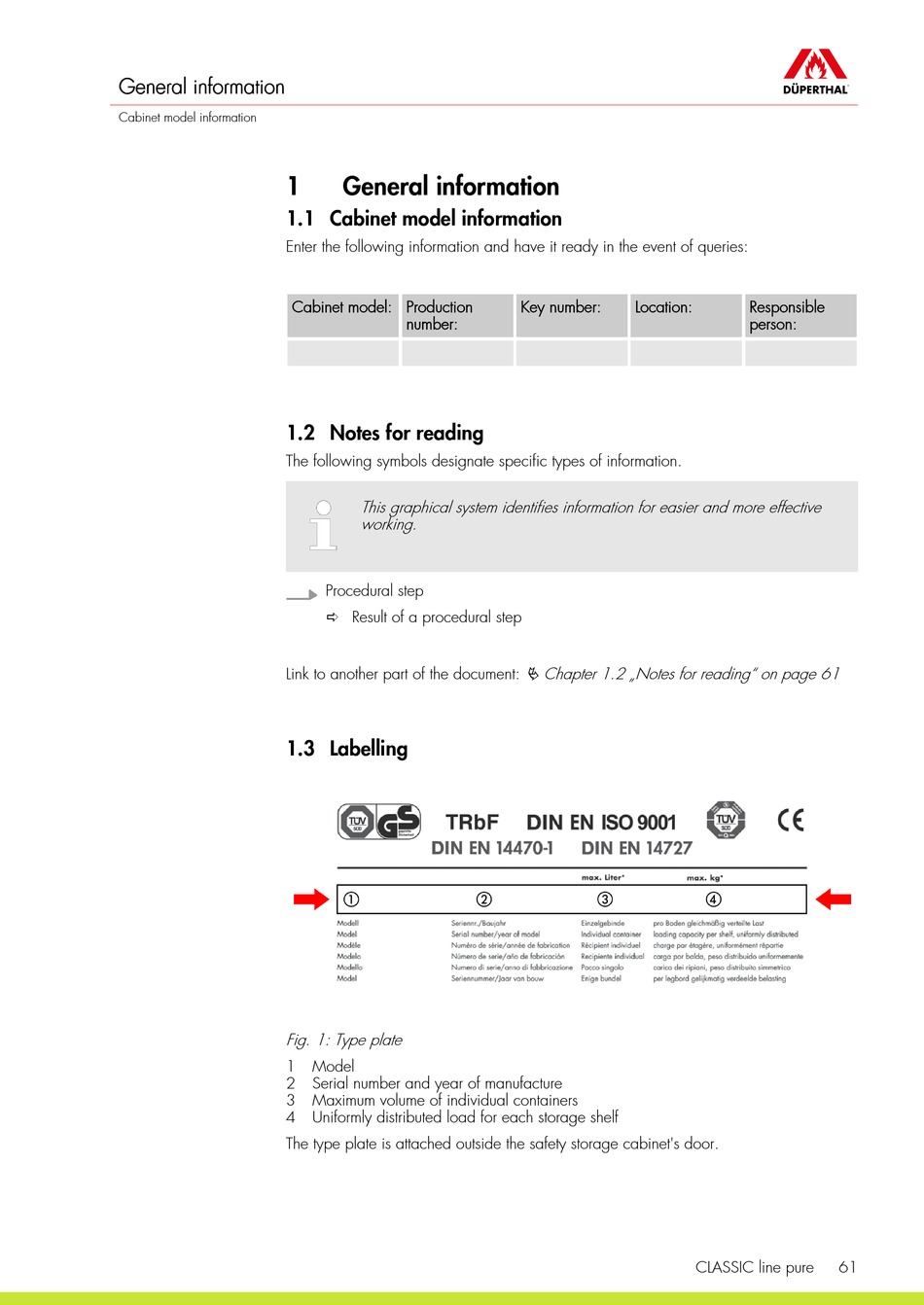

Fig. 1: Type plate
1
2
3
4
The type plate is attached outside the safety storage cabinet's door.

General information

number:
This graphical system identifies information for easier and more effective
working.
Procedural step
ð Result of a procedural step
Model
Serial number and year of manufacture
Maximum volume of individual containers
Uniformly distributed load for each storage shelf
Key number: Location:
Ä Chapter 1.2 „Notes for reading" on page 61
Responsible
person:
CLASSIC line pure 61
