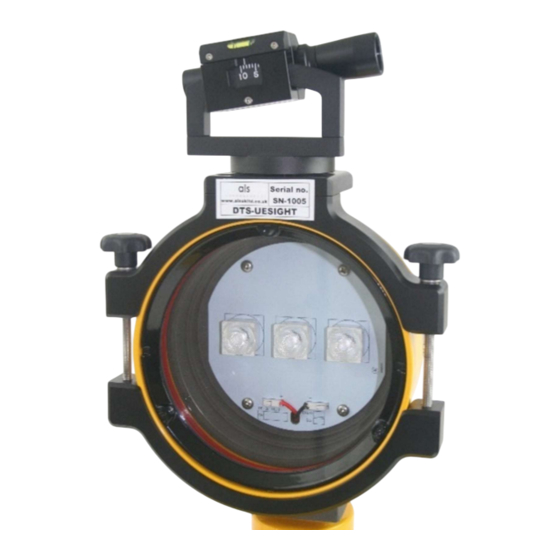

DTS Uni-Directional Elevated Lights
Sighting Device
Part Code DTS-UESIGHT
Operation & Maintenance Manual
Document Number:
MAN010 – REV C
Contents
Airfield Lighting Systems UK Limited
Aviation House, Russel Gardens, Wickford, Essex, SS11 8BF
Tel +44 1702 547562 Fax +44 1702 533962 Web
www.alsukltd.co.uk
Email
sales@alsukltd.co.uk
Advertisement
Table of Contents
Related Manuals for ALS DTS-UESIGHT
Summary of Contents for ALS DTS-UESIGHT
- Page 1 DTS Uni-Directional Elevated Lights Sighting Device Part Code DTS-UESIGHT Operation & Maintenance Manual Document Number: MAN010 – REV C Contents Airfield Lighting Systems UK Limited Aviation House, Russel Gardens, Wickford, Essex, SS11 8BF Tel +44 1702 547562 Fax +44 1702 533962 Web www.alsukltd.co.uk...
- Page 2 The warranty given by Airfield Lighting Systems will be invalidated if non- approved replacement parts are used. The device should be returned to ALS for alignment calibration every 2 years or sooner if any damage has occurred or the unit has been dropped.
- Page 3 3.0 CONTENTS Please carefully read and observe all safety related warnings throughout this manual. Failure to do so could result in damage to the device / light fitting and serious injury if the Airfield light is incorrectly installed. Please observe all local site and regional safety requirements before commencing work on any Airfield.
- Page 4 4.0 INSTALLATION First remove all the items from the box and check all the components are present as shown in Figure 1. The light fitting is set at 2.5 in the factory, but this should be checked on site. There is no need to adjust the fixing screws on the neck of the fitting pole until after using the sighting device is fitted.
- Page 5 c) Once the bracket is correctly placed over the front rim of the light fitting, twist the screws clockwise over the front rim to secure the sighting device on to the light fitting. 4.1 SETTING THE SIGHTING DEVICE The DTS light fitting is Uni-directional and must be set up precisely. After its installation on the Airfield, please adjust the angle of azimuth and sight to complete installation prior to any operation by Aircraft.
- Page 6 To adjust the angle required, slide the spirit level assembly forwards or backwards to align the marker at the top with the required angle visible through the window on the sighting device. Check the spirit level bubble on the top of the sighting device, if it is level then no adjustment is required and the fitting is ready to be used.
- Page 7 The sighting device should be stored indoors at room temperature. 5.0 SPARES All individual items shown in Fig 1 are available as serviceable parts and can be ordered from ALS. This includes the screws and mounting bracket. The telescope and mount are one complete piece.
