Foreword

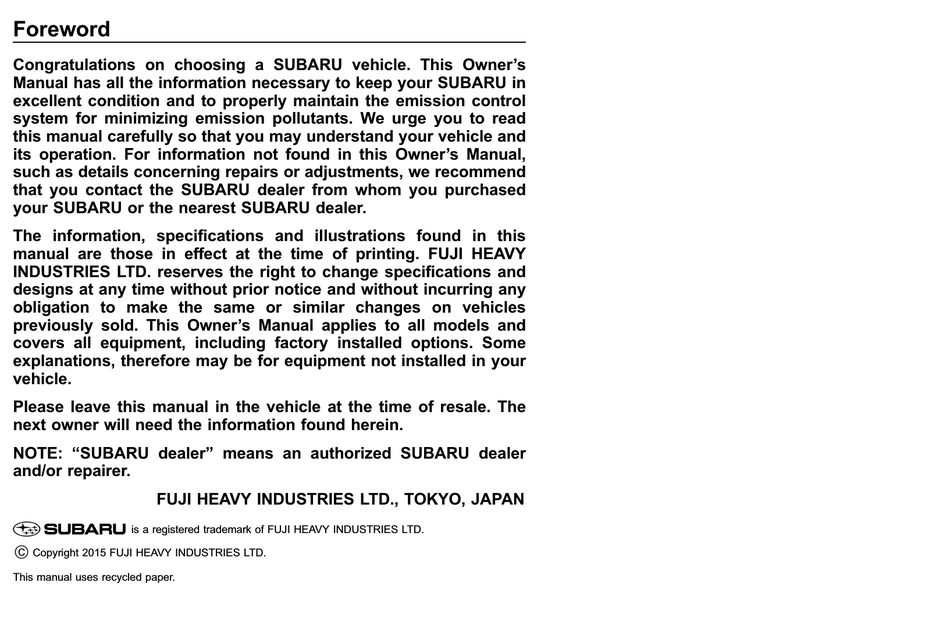

Congratulations on choosing a SUBARU vehicle. This Owner's

Manual has all the information necessary to keep your SUBARU in

excellent condition and to properly maintain the emission control

system for minimizing emission pollutants. We urge you to read

this manual carefully so that you may understand your vehicle and

its operation. For information not found in this Owner's Manual,

such as details concerning repairs or adjustments, we recommend

that you contact the SUBARU dealer from whom you purchased

your SUBARU or the nearest SUBARU dealer.

The information, specifications and illustrations found in this

manual are those in effect at the time of printing. FUJI HEAVY

INDUSTRIES LTD. reserves the right to change specifications and

designs at any time without prior notice and without incurring any

obligation to make the same or similar changes on vehicles

previously sold. This Owner's Manual applies to all models and

covers all equipment, including factory installed options. Some

explanations, therefore may be for equipment not installed in your

vehicle.

Please leave this manual in the vehicle at the time of resale. The

next owner will need the information found herein.

NOTE: "SUBARU dealer" means an authorized SUBARU dealer

and/or repairer.

FUJI HEAVY INDUSTRIES LTD., TOKYO, JAPAN

is a registered trademark of FUJI HEAVY INDUSTRIES LTD.

*

C

Copyright 2015 FUJI HEAVY INDUSTRIES LTD.

This manual uses recycled paper.

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the Outback 2015 and is the answer not in the manual?

Questions and answers

Summary of Contents for Subaru Outback 2015

Page 1 Foreword Congratulations on choosing a SUBARU vehicle. This Owner’s Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation.
Page 2 This manual describes the following vehicle types. Sedan Outback...
Page 3 This chapter informs you when you need Chapter 3: Instruments and controls to take your SUBARU to the dealer for This chapter informs you about the opera- scheduled maintenance and informs you tion of instrument panel indicators and...
Page 4 Intermittent as all other portions of this manual care- Light emitting diode fully in order to gain a better understand- Left-hand drive ing of how to use your SUBARU vehicle safely. Limited slip differential Maximum permissible weight WARNING Manual transmission...
Page 5 Name WARNING Research octane number . All persons in the vehicle should WARNING SI-DRIVE SUBARU Intelligent Drive fasten their seatbelts BEFORE the vehicle starts to move. Other- Supplemental restraint sys- CAUTION wise, the possibility of serious injury becomes greater in the...
Page 6 & Child safety considerable speed and force. with considerable speed and Occupants who are out of proper force and can injure or even kill position when the SRS airbag children, especially if they are WARNING deploys could suffer very serious not restrained or improperly re- .
Page 7 front of it, DEATH or SERIOUS enough to cause death or serious INJURY to the CHILD can occur. heat-related injuries including brain damage to anyone locked . Always turn the child safety locks inside, particularly for small chil- to the “LOCK” position when dren.
Page 8 & Drinking and driving & Drugs and driving gine exhaust system to prevent engine exhaust gas from enter- ing the vehicle. WARNING WARNING . Never run the engine in a closed Drinking and then driving is very There are some drugs (over the space, such as a garage, except dangerous.
Page 9 & Driving when tired or sleepy & Modification of your vehicle & Driving vehicles equipped with navigation system WARNING CAUTION WARNING When you are tired or sleepy, your Your vehicle should not be modified. reaction will be delayed and your Modification could affect its perfor- Do not allow the monitor to distract perception, judgment and attentive-...
Page 10 handle. Never restrain pets or pet carriers EU Battery directive 2006/66/ The following devices utilize batteries that in the front passenger’s seat. For further do not have the symbol: information, consult your veterinarian, local animal protection society or pet Followings are the symbol of EU Battery shop.
Page 11 General information engine speed. & Gear shift indicator (Europe models) CAUTION The indication of the gear shift indicator is only a guideline for driving more fuel-efficiently. The indicator does not inform the driver about safe shift operation timing. The driver has the responsibility for suitable shift operation depending on the traffic conditions or driving conditions (e.g., overtaking or driv-...
Page 12: Table Of Contents
Table of contents Seat, seatbelt and SRS airbags Keys and doors Instruments and controls Climate control Audio Interior equipment Starting and operating Driving tips In case of emergency Appearance care Maintenance and service Specifications Supplement Index...
Page 13 Engine hood (page 11-11) Illustrated index Headlight switch (page 3-47) & Exterior Replacing bulbs (page 11-49) Wiper switch (page 3-59) Sunroof (page 2-39) Roof rails with integrated crossbars (page 8-16) Door locks (page 2-4) Tire pressure (page 11-35) Flat tires (page 9-7) 10) Tire chains (page 8-13) 11) Fog light switch (page 3-55) 12) Tie-down hooks (page 9-25)
Page 14 Rear window defogger switch (page 3-63) Fuel filler lid and cap (page 7-4) Child safety locks (page 2-26) Towing hook (page 9-25) Trunk lid (page 2-31) Rear wiper switch (page 3-62) Rear gate (page 2-32) Bulb replacement (page 11-53) Tie-down holes (page 9-25) –...
Page 15 & Interior Anchor bars for ISOFIX child restraint system (page 1-39) ! Passenger compartment area Seatbelt (page 1-15) Center console (page 6-5) Front seat (page 1-2) Rear seat (page 1-11)
Page 16 Ignition switch (models without push- button start system) (page 3-3)/Push- button ignition switch (models with push- button start system) (page 3-5) Shift lever (MT) (page 7-14)/Select lever (CVT) (page 7-18) Climate control (page 4-1) Audio (page 5-1)/Navigation system (Re- fer to the Owner’s Manual supplement for the navigation system) Glove box (page 6-4) Accessory power outlet (page 6-8)
Page 17 Sunroof switches (page 2-40) Sun visor (page 6-4) Warning labels for child restraint system (page 1-29) AIRBAG *: NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Page 18 & Instrument panel Power windows (page 2-27) Power folding mirror switch (page 3-67) ! Left-hand drive models Remote control mirror switch (page 3-66) Combination meter (page 3-8) Audio (page 5-1)/Navigation system (Re- fer to the Owner’s Manual supplement for the navigation system) Hazard warning flasher switch (page 3-8) Front seat heater switch (page 1-9) Climate control (page 4-1)
Page 19 ! Right-hand drive models Power windows (page 2-27) Power folding mirror switch (page 3-67) Remote control mirror switch (page 3-66) Combination meter (page 3-8) Audio (page 5-1)/Navigation system (Re- fer to the Owner’s Manual supplement for the navigation system) Hazard warning flasher switch (page 3-8) Front seat heater switch (page 1-9) Climate control (page 4-1) Memory switch (page 2-37)
Page 20 & Steering wheel Audio control buttons (page 5-23) Cruise control (page 7-45) Shift paddle (page 7-20) Hands-free switches (page 5-80) Multi information display control switches (page 3-37) SRS airbag (page 1-45) Horn (page 3-68) SI-DRIVE switches (page 7-22) – CONTINUED –...
Page 21 & Light control and wiper control levers/switches Windshield wiper (page 3-59) Mist (page 3-59) ! Except Australia models Windshield washer (page 3-61) Rear window wiper and washer switch (page 3-62) Wiper intermittent time control switch (page 3-61)/Sensor sensitivity control (page3-60) Wiper control lever (page 3-57) Light control switch (page 3-47) Fog light switch (page 3-55)
Page 22 ! Australia models Windshield wiper (page 3-59) Mist (page 3-59) Windshield washer (page 3-61) Rear window wiper and washer switch (page 3-62) Wiper intermittent time control switch (page 3-61)/Sensor sensitivity control (page3-60) Wiper control lever (page 3-57) Light control switch (page 3-47) Fog light switch (page 3-55) Headlight ON/OFF/AUTO (page 3-47) 10) Headlight flasher High/Low beam...
Page 23 & Combination meter Tachometer (page 3-10) ECO gauge (page 3-12) ! Petrol engine models Speedometer (page 3-8) Temperature gauge (page 3-11) Select lever/gear position indicator (page 3-31) Trip meter and odometer (page 3-9) Fuel gauge (page 3-10) The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.
Page 24 ! Diesel engine models Tachometer (page 3-10) ECO gauge (page 3-12) Speedometer (page 3-8) Temperature gauge (page 3-11) Select lever/gear position indicator (page 3-31) Trip meter and odometer (page 3-9) Fuel gauge (page 3-10) The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.
Page 25 & Warning and indicator light Mark Name Page Mark Name Page Vehicle Dynamics Con- Mark Name Page Brake system warning 3-21 trol warning light/Vehicle light (red) 3-20 Dynamics Control op- eration indicator light Seatbelt warning light 3-13 Electronic parking brake 3-22 warning light (yellow) Vehicle Dynamics Con-...
Page 26 Mark Name Page Mark Name Page Immobilizer indicator Sport Sharp (S#) mode 3-30 3-31 light indicator (3.6 L models) Icy road surface warning Headlight indicator light 3-33 3-38 screen Cruise control indicator 3-32 Cruise control set indi- 3-32 cator Low fuel warning light 3-24 Low tire pressure warn- 3-18...
Page 27 Function settings A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. We recommend that you contact the nearest SUBARU dealer for details. Item Function Possible settings Default setting *1*2...
Page 28 Item Function Possible settings Default setting Auto dimmer cancel Sensitivity of the operation of the auto OFF/Min/Low/Mid/Hi/Max dimmer cancel Headlight off delay function Operation period OFF/30 seconds/60 seconds/90 30 seconds seconds Reverse gear interlocked rear wiper Reverse gear interlocked rear wiper Operation/Non-operation Operation operation...
Page 29 Seat, seatbelt and SRS airbags Front seats............Precautions against vehicle modification .... 1-26 Child restraint systems ........1-26 Manual seat (if equipped) ........Where to place a child restraint system ....1-27 Power seat (if equipped) ........Head restraint adjustment........Choosing a child restraint system ......
Page 30: Front Seats
Seat, seatbelt and SRS airbags/Front seats Front seats used in the upright position in a dren are lighter and weaker than collision, the risk of sliding under adults, their risk of being injured the lap belt and of the lap belt from deployment is greater.
Page 31: Manual Seat (If Equipped)
Seat, seatbelt and SRS airbags/Front seats & Manual seat (if equipped) ! Forward and backward adjustment WARNING WARNING To prevent the passenger from slid- Do not let rear passengers rest their 1. Sit in the seat to adjust. ing under the seatbelt in the event of feet between the front seatback and 2.
Page 32: Power Seat (If Equipped)
Seat, seatbelt and SRS airbags/Front seats & Power seat (if equipped) ! Reclining the seatback ! Seat cushion height adjustment (if equipped) 1. Pull up the reclining lever, adjust the Push the lever down to lower the seat. seatback to the desired position, and then Pull the lever up to raise the seat.
Page 33 Seat, seatbelt and SRS airbags/Front seats ! Memory function (driver’s seat — if the seat cushion angle or seat cushion malfunctions occur during the height. equipped) retrieval of the seat position, stop Seat cushion angle control switch the retrieval of the seat position To adjust the seat cushion angle, pull up by performing any of the follow- WARNING...
Page 34 Seat, seatbelt and SRS airbags/Front seats (CVT models). A chirp sounds once, and the seat position is registered. ! Registration of seat position with each access key (if equipped) 1. Adjust the seat position under the following conditions. . The parking brake is applied. .
Page 35 Seat, seatbelt and SRS airbags/Front seats 2. While the select lever is in the “P” ! Retrieval of the seat position involving serious injury or death. position (CVT models) and the parking registered with access key (if brake is applied, press button “1” or “2”. equipped) 1.
Page 36: Head Restraint Adjustment
Seat, seatbelt and SRS airbags/Front seats & Head restraint adjustment ! Head restraint height adjustment driver’s door. (2) Press the “ ” button on the access key or the door lock button WARNING to lock the doors. . Never drive the vehicle with the (3) Perform the prior procedures head restraints removed because again.
Page 37: Seat Heater (If Equipped)
Seat, seatbelt and SRS airbags/Seat heater are located on the top of the seatback until automatically return to the fully upright Seat heater (if equipped) the head restraint locks. Press and hold position. Then, adjust the head restraint the release button to lower the head again to the preferred angle.
Page 38: Front Seat Heater (If Equipped)
1-10 Seat, seatbelt and SRS airbags/Seat heater & Front seat heater (if pressing and holding the front seat heater Press the rear seat heater switch to turn switch. on the rear seat heater. Then select the equipped) “HIGH” or “LOW” mode, as desired, When LOW mode is selected, the LOW depending on the temperature.
Page 39: Rear Seats
1-11 Seat, seatbelt and SRS airbags/Rear seats & Head restraint adjustment Rear seats Both the rear window side seats and the rear center seat are equipped with head restraints. WARNING . Never drive the vehicle with the head restraints removed because they are designed to reduce the risk of serious neck injury in the event that the vehicle is struck...
Page 40 1-12 Seat, seatbelt and SRS airbags/Rear seats To raise: head restraint to the click position. Pull the head restraint up. To lower: Push the head restraint down while pressing the release button on the top of the seatback. To remove: While pressing the release button, pull out the head restraint.
Page 41: Reclining The Seatback (Outback)
1-13 Seat, seatbelt and SRS airbags/Rear seats & Reclining the seatback To raise: CAUTION Pull the head restraint up. (Outback) When using the cargo area cover, To lower: observe the following precautions. Push the head restraint down while . Be careful not to pinch your hand pressing the release button on the top of the seatback.
Page 42: Folding Down The Rear Seatback
1-14 Seat, seatbelt and SRS airbags/Rear seats & Folding down the rear seat- move out from the cargo area, back which could cause serious injury or death. . After returning the rear seatback WARNING to its original position, be certain .
Page 43: Seatbelts
1-15 Seat, seatbelt and SRS airbags/Seatbelts & Armrest Seatbelts if damage is not obvious. . When wearing the seatbelt, insert & Seatbelt safety tips the tongue plate into the correct buckle. Otherwise, in an acci- WARNING dent, serious injury or death could result.
Page 44: Emergency Locking Retractor (Elr)
1-16 Seat, seatbelt and SRS airbags/Seatbelts ! Expectant mothers child closer to the belt buckle to help SERIOUS INJURY OR DEATH TO provide a good shoulder belt fit. Care must THE CHILD BY PLACING THE be taken to securely place the lap belt as CHILD’S HEAD TOO CLOSE TO low as possible on the hips and not on the THE SRS AIRBAG.
Page 45: Automatic Locking Retractor/Emergency Locking Retractor (Alr/Elr) (If Equipped)
1-17 Seat, seatbelt and SRS airbags/Seatbelts & Automatic Locking Retractor/ Retractor (ALR) mode. For instructions on sion, this spreads the force of the how to install the child restraint system Emergency Locking Retrac- lap belt over stronger hip bones using a seatbelt, refer to “Installing child instead of across the weaker tor (ALR/ELR) (if equipped) restraint systems with seatbelt”...
Page 46 1-18 Seat, seatbelt and SRS airbags/Seatbelts ! Front seatbelts 1. Adjust the seat position: Driver’s seat: Adjust the seatback to the upright position. Move the seatback as far from the steering wheel as practical while still maintaining full vehicle control. Front passenger’s seat: Adjust the seat- back to the upright position.
Page 47 1-19 Seat, seatbelt and SRS airbags/Seatbelts ! Adjusting the front seat shoulder catching the belt webbing in the door. WARNING belt anchor height ! Rear seatbelts (except rear center When wearing the seatbelts, make seatbelt on Outback) sure the shoulder portion of the 1.
Page 48 1-20 Seat, seatbelt and SRS airbags/Seatbelts 1. Push the button on the buckle. 2. Have the seatbelt retracted slowly to avoid the seatbelt being tangled or twisted. Before closing the door, make sure that the belts are retracted properly to avoid catching the belt webbing in the door.
Page 49 1-21 Seat, seatbelt and SRS airbags/Seatbelts 2. Pull out the seatbelt slowly from the retractor. Rear center seatbelt is stowed in the WARNING recess of the ceiling. 3. After confirming that the webbing is not 1. Retrieve the connector (tongue) plate Be sure to fasten both tongue plates twisted, insert the connector (tongue) to the respective buckles.
Page 50 1-22 Seat, seatbelt and SRS airbags/Seatbelts “CENTER” on the left-hand side until it ! Unfastening the seatbelt clicks. 4. After fastening the seatbelt, make sure that the “ ” mark on the connector 1. Push the release button of the center (tongue) and the “...
Page 51: Seatbelt Maintenance
1-23 Seat, seatbelt and SRS airbags/Seatbelts . Have the seatbelt fully rolled up You should hold the webbing end and guide it back into the retractor while it is so that the tongue plates are rolling up. Neatly store the tongue plate in neatly stored.
Page 52: Seatbelt Pretensioners
Consequently, the seatbelt cannot commend that you contact your be pulled out and retracted and therefore SUBARU dealer as soon as possible.
Page 53: System Monitors
SUBARU dealer as soon as possible. ping the entire vehicle due to seatbelt pretensioner and/or . When you sell your vehicle, we urge...
Page 54: Precautions Against Vehicle Modification
& Precautions against vehicle modification We recommend that you consult your SUBARU dealer if you want to install any accessory parts to your vehicle. CAUTION Do not perform any of the following modifications. Such modifications can interfere with proper operation of the seatbelt pretensioners.
Page 55: Where To Place A Child Restraint System
1-27 Seat, seatbelt and SRS airbags/Child restraint systems & Where to place a child re- properly secured in the vehicle. When installing the child restraint system, care- straint system fully follow the manufacturer’s instructions. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.
Page 56 BAG. In this seating position, you should use only a child restraint system that has a The following descriptions are SUBARU’s Right-hand drive models bottom base that fits snugly against the recommendations on where to place a A: Front passenger’s seat...
Page 57: Choosing A Child Restraint System
1-29 Seat, seatbelt and SRS airbags/Child restraint systems & Choosing a child restraint side seating position. system ! Warning label WARNING . Warning labels are located on both sides of the front passen- ger’s sun visor. The warning label indicates that it is forbidden to install a rearward facing child restraint system in the front pas- senger’s seat.
Page 58 U: Suitable for universal category child restraint system. UF: Suitable for forward-facing “universal” category restraints approved for use in this mass group. For European countries, refer to the L1: Childseat SUBARU Baby Safe Plus following table for the recommended child L2: Childseat SUBARU Duo Plus restraint system.
Page 59 IL1: Childseat G0/1S ISO FIX with Childseat G0/1S ISO FIX base it. After installing the child re- IL2: Childseat SUBARU Duo Plus straint system, check to ensure IL3: Childseat SUBARU Kidfix X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and / or this that it is held securely in posi- size class.
Page 60 1-32 Seat, seatbelt and SRS airbags/Child restraint systems . The passenger’s seat is adjusted as . The front passenger’s frontal airbag . Do not place the head restraint follows. ON indicator is off. that has been removed in the passenger compartment to pre- vent it from being thrown around in the passenger compartment in a sudden stop or a sharp turn.
Page 61: Installing Child Restraint Systems With Seatbelt
1-33 Seat, seatbelt and SRS airbags/Child restraint systems F1-16. the extended position. If the child restraint CAUTION . For details about the ALR, refer to system still makes contact, remove the head restraint. For details, refer to “Head “Automatic Locking Retractor/Emer- When you install a child restraint restraint adjustment”...
Page 62 1-34 Seat, seatbelt and SRS airbags/Child restraint systems with the child restraint system, use the buckle. lock-off device or the locking clip to secure the child restraint system. WARNING Through the following steps, the child NEVER INSTALL A REARWARD FA- restraint system is fastened with a seatbelt CING CHILD SEAT IN THE FRONT that is set to ELR mode.
Page 63 1-35 Seat, seatbelt and SRS airbags/Child restraint systems ! Models without ALR Lock-off lever 4. Run the lap and shoulder belt through or around the child restraint system 6. Release the child restraint system 1. Remove the head restraint of the rear following the instructions provided by its lock-off lever and pass the shoulder belt seating position where the child restraint...
Page 64 1-36 Seat, seatbelt and SRS airbags/Child restraint systems equipped with a lock-off (a seatbelt locking Through the following steps, the child feature), secure the child restraint system restraint system is fastened by changing using a locking clip. the seatbelt from ELR mode to ALR mode. Lock-off lever 8.
Page 65 1-37 Seat, seatbelt and SRS airbags/Child restraint systems 6. Take up the slack in the lap belt. Sometimes a child restraint can be more firmly secured by pushing it down into the 7. Pull out the seatbelt fully from the seat cushion and then tightening the retractor to change the retractor over from seatbelt.
Page 66: Installing A Booster Seat
1-38 Seat, seatbelt and SRS airbags/Child restraint systems & Installing a booster seat 11. To remove the child restraint system, press the release button on the seatbelt buckle and allow the belt to retract completely. The belt will return to the ELR mode.
Page 67: Installation Of Child Restraint Systems Using Isofix Anchor Bars
1-39 Seat, seatbelt and SRS airbags/Child restraint systems & Installation of child restraint effective in preventing or redu- cing injury. systems using ISOFIX an- . Place the lap belt as low as chor bars possible on the child’s hips. High-positioned lap belt will in- crease the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen, and...
Page 68 1-40 Seat, seatbelt and SRS airbags/Child restraint systems the rear seat seatbacks. These marks indicate the positions of the ISOFIX anchor bars. The ISOFIX anchor bars allow you to 2. Remove the head restraint of the rear install a child restraint system only on the seating position where the child restraint rear seat window-side seating positions.
Page 69 1-41 Seat, seatbelt and SRS airbags/Child restraint systems The inserting aids make it easier to fit the child restraint system with ISOFIX and avoid damage to the seat. Inserting aid 4. While following the instructions sup- plied by the child restraint system manu- NOTE facturer, connect the connectors of the child restraint system to the anchor bars.
Page 70: Top Tether Anchorages
1-42 Seat, seatbelt and SRS airbags/Child restraint systems anchorages” F1-42. observing the instructions by the child restraint system manufacturer. For further information, refer to the in- struction manual supplied by the child Since a top tether can provide additional restraint system manufacturer. stability by offering another connection between a child restraint system and the CAUTION...
Page 71 1-43 Seat, seatbelt and SRS airbags/Child restraint systems ! Anchorage location There are two or three anchorages on the There are two or three anchorages on the rear shelf behind the rear seat. back side of the rear seatback. ! Sedan ! To hook the top tether ! Outback CAUTION...
Page 72 1. Remove the head restraint at the We recommend that you contact your window-side seating position where the SUBARU dealer if you have any question child restraint system has been installed regarding the installation of a child re- with the ISOFIX anchor bars or seatbelt;...
Page 73: Srs Airbag (Supplemental Restraint System Airbag)
1-45 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) sioners” F1-24. *SRS airbag (Supplemental need to fasten seatbelts. It is also important to wear your seatbelt Restraint System airbag) & General precautions regard- to help avoid injuries that can ing SRS airbag system result when an occupant is not *SRS: This stands for supplemental re-...
Page 74 1-46 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) still maintaining full vehicle control parts of the body are too close to dent braking. and the front passenger should the SRS side airbag. Even when properly positioned, move the seat as far back as .
Page 75 1-47 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) If the SRS airbag deploys, those driver’s side of the instrument objects could interfere with its panel. If the SRS knee airbag proper operation and could be deploys, those objects could in- propelled inside the vehicle and terfere with its proper operation cause injury.
Page 76 1-48 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) phone or any other accessory to a front pillar, a center pillar, a rear pillar, the windshield, a side win- dow, an assist grip, or any other cabin surface that would be near a deploying SRS curtain airbag.
Page 77 1-49 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) ward facing child seats) in the BY PLACING THE CHILD’S HEAD REAR seats at all times. TOO CLOSE TO THE SRS AIRBAG. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing positions.
Page 78 1-50 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) seat facing the side window – Wrap his/her arms around the front seat seatback – Put his/her head, arms or other parts of the body out of the window In the event of an accident, the force of SRS side airbag and/or SRS curtain airbag deployment...
Page 79 1-51 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) blems after SRS airbag deploys, get fresh air promptly. . A deploying SRS airbag releases hot gas. Occupants could get burned if they come into direct contact with the hot gas. NOTE .
Page 80: Components
1-52 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) & Components The SRS airbags are stowed in the following locations. Driver’s SRS frontal airbag: in the center portion of the steering wheel An “SRS AIRBAG” mark is located on the steering pad.
Page 81 1-53 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) Frontal airbag module (front passenger’s Left-hand drive models side) Front sub sensor (right-hand side) Airbag control module (including impact Front sub sensor (left-hand side) sensor) Frontal airbag module (driver’s side) Knee airbag module Front passenger’s frontal airbag ON and OFF indicator...
Page 82: Seat, Seatbelt And Srs Airbags
1-54 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) Left-hand drive models...
Page 83 1-55 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) Seatbelt pretensioner (rear seat left-hand side) Curtain airbag module (left-hand side) Curtain airbag module (right-hand side) Curtain airbag sensor (rear wheel house left-hand side) Side airbag sensor (center pillar left-hand side) Seatbelt pretensioner (front seat left- hand side)
Page 84 1-56 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) Frontal airbag module (front passenger’s Right-hand drive models side) Front sub sensor (right-hand side) Airbag control module (including impact Front sub sensor (left-hand side) sensor) Frontal airbag module (driver’s side) Knee airbag module Front passenger’s frontal airbag ON and OFF indicator...
Page 85 1-57 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) Right-hand drive models – CONTINUED –...
Page 86: Srs Airbags
1-58 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) & SRS airbags Seatbelt pretensioner (rear seat right- for front seat occupants. hand side) In a moderate to severe side impact Curtain airbag module (right-hand side) WARNING Curtain airbag module (left-hand side) collision, the SRS curtain airbag on the Curtain airbag sensor (rear wheel house impacted side of the vehicle deploys...
Page 87 SUBARU dealer immediately if the . Do not place anything (shoes, SRS airbag system warning light illumi- umbrella, etc.) under the front nates.
Page 88 Do not use the front passenger’s seat PASSENGER’S SEAT EVEN IF THE priate child restraint system, ob- while driving the vehicle to your SUBARU FRONT PASSENGER’S SRS FRON- serve the following precautions. dealer or another service center.
Page 89 SUBARU dealer for an inspection. tem (including booster seat) scribed above, relocate the child restraint Even if the system has passed the 1.
Page 90: System Operation
1-62 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) straight in the center of the seat cushion, contact your SUBARU dealer for an so may lessen the load on the front correctly fasten the seatbelt, position his/ inspection.
Page 91 1-63 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) ! SRS frontal airbag operation If the following sensors detect a certain predetermined amount of force during a frontal collision, the control module sends signals to the frontal airbag modules instructing them to inflate the SRS frontal airbags.
Page 92 1-64 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) ! When will the SRS frontal airbag ! At what other times might the follows. . to deploy in the event of an accident most likely deploy? SRS frontal airbag deploy? involving a moderate to severe frontal collision .
Page 93 1-65 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) plunges into a deep ditch, is severely impacted or knocked hard against an obstacle on the road such as a curb). – CONTINUED –...
Page 94 1-66 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) The vehicle strikes an object, such as a ! When is the SRS frontal airbag unlikely to deploy? telephone pole or sign pole. The vehicle slides under the load bed of a truck.
Page 95 1-67 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) ! SRS side airbag and SRS curtain ! When will the SRS frontal airbag in a low-speed frontal collision. airbag operation not deploy? First impact Second impact Your vehicle has the following airbags. .
Page 96 1-68 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) the airbag control module sense, the SRS The table below shows the relationship between the impact sensor that has detected an side airbags and SRS curtain airbags impact and the airbags that deploy. deploy independently.
Page 97 1-69 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) NOTE . to deploy in the event of an accident ! When will the SRS side airbag involving a moderate to severe side most likely deploy? Even if a frontal collision occurs, both impact collision right and left SRS curtain airbags will .
Page 98 1-70 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) ! When will the SRS curtain airbag most likely deploy? A severe side impact near the front seat or the rear seat. An offset frontal collision that is severe enough to deploy the front airbag.
Page 99 1-71 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) Hitting a curb, edge of pavement or hard ! When will the SRS curtain airbag deploy? surface Falling into or jumping over a deep hole Landing hard or vehicle falling It is possible that the SRS side and curtain airbags will deploy if a serious impact occurs to the underside of your vehicle.
Page 100 1-72 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) The vehicle is involved in an oblique ! When are the SRS side airbag and SRS curtain airbag unlikely to deploy? side-on impact. The vehicle is involved in a side-on impact in an area outside the vicinity of the passenger compartment.
Page 101: Srs Airbag System Monitor
1-73 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) The vehicle pitches end over end. ! When will the SRS side airbag first impact, they will not be activated on the second. and SRS curtain airbag not de- In the event of accidents like those ploy? illustrated, the SRS side airbag and SRS...
Page 102: Srs Airbag System Servicing
. Seatbelt buckle switch (front passen- the work performed by an author- ized SUBARU dealer. The SRS air- ger’s side) (models with occupant detec- bag control module, impact sensors...
Page 103: Precautions Against Vehicle Modification
SRS airbag system. areas tact your SUBARU dealer as soon as . Each front seat and nearby area This includes the following modifi- possible in the following cases.
Page 104 Do not perform any of the following We recommend that you always consult modifications. Such modifications your SUBARU dealer if you want to install can interfere with proper operation any accessory parts on your vehicle. of the SRS airbag system.
Page 105 Keys and doors Keys ..............Remote keyless entry system......2-21 Key number plate ..........Locking and unlocking doors ......2-21 Technical information of the radio wave Opening trunk lid/unlocking rear gate....2-23 regulation ............Replacing battery..........2-23 Immobilizer ............Technical information......... 2-23 Immobilizer indicator light ........
Page 106: Keys
Keys and doors/Keys & Technical information of the Keys against your knees while you are driving, it could turn the ignition radio wave regulation switch from the “ON” position to the NOTE These devices comply with the essential “ACC” or “LOCK” position, thereby requirements and provisions such as the For models with “keyless access with stopping the engine.
Page 107: Immobilizer
Keys and doors/Immobilizer & “Ignition switch (models without push- Immobilizer Immobilizer indicator button start system)” F3-3. light The immobilizer system is designed to Refer to “Immobilizer indicator light” F3- CAUTION prevent an unauthorized person from . Do not place the key under direct starting the engine.
Page 108: Door Locks
Keys and doors/Door locks SUBARU dealer. Door locks 1. Remove the key from the ignition switch (models without keyless access & Locking and unlocking from with push-button start system) or turn off the ignition switch (models with the outside with key keyless access with push-button start system).
Page 109: Locking From The Outside Without Key
Keys and doors/Door locks & Locking from the outside NOTE ! Models with double locking system without key Make sure that you do not leave the key To lock the doors and the rear gate inside the vehicle when locking the (Outback) from the outside with the key, doors from the outside without the key.
Page 110: Locking And Unlocking From The Inside
SUBARU dealer. We recommend that & Battery drainage prevention you contact the nearest SUBARU dealer function if you would like to change the setting. If a door or the rear gate (Outback) is not...
Page 111: Power Door Locking Switch
SUBARU dealer. We recommend that To unlock the doors including the rear you contact a SUBARU dealer for details. gate, press the rear side of the switch. NOTE NOTE When leaving the vehicle, make sure .
Page 112: Keyless Access With Push-Button Start System (If Equipped)
Keys and doors/Keyless access with push–button start system & Safety precautions . Opening the trunk Keyless access with push- . Starting and stopping the engine button start system (if WARNING equipped) Locking and unlocking by the remote keyless entry system can also be con- If you wear an implanted pacemaker trolled with the buttons on the access key.
Page 113 Keys and doors/Keyless access with push–button start system tem” . The keyless access with push- button start system uses radio waves of the following fre- quency* in addition to the radio waves used for the remote key- less entry system. The radio waves are periodically output from the antennas installed on the vehicle as shown in the...
Page 114 F2-16. The setting can pending on the location of the Doing so may cause malfunc- also be changed by a SUBARU dealer. access key. tions. For more details, we recommend that . The access key contains electro- –...
Page 115 . For a spare access key, we recom- and power transmission lines – When products that transmit mend that you contact a SUBARU radio waves are used, such as an dealer. . Up to 7 access keys can be regis-...
Page 116: Locking And Unlocking With "Keyless Access
2-12 Keys and doors/Keyless access with push–button start system & Locking and unlocking with the vehicle body, the keyless access “keyless access” entry func- function may not operate properly. If it does not operate properly, repeat the tion operation from further away. ! Operating ranges .
Page 117 2-13 Keys and doors/Keyless access with push–button start system . When the battery of the access key is . If the door handle is gripped with a ! Unlocking discharged, or when operating it in a gloved hand, the door lock may not be location with strong radio waves or noise released.
Page 118 2-14 Keys and doors/Keyless access with push–button start system ! Opening rear gate (Outback) ! Opening trunk (Sedan) ! Locking with the door lock sensor Rear gate opener button Trunk opener button Door lock sensor Carry the access key, and press the rear Carry the access key, and press the trunk gate opener button.
Page 119 For further details, we recommend that . For models with double locking system, you consult a SUBARU dealer. lock the doors using the mechanical key ! Power saving function that is built into the access key.
Page 120: Warning Chimes And Warning Indicator
When the vehicle is not going to be used takes place can be changed by a for a long time, or when you choose not to SUBARU dealer. For more details, we use the keyless access function, the recommend that you contact a SUBARU keyless access function can be disabled.
Page 121 2-17 Keys and doors/Keyless access with push–button start system ! Disabling functions ! By operating the access key If you have registered a PIN code for PIN Code Access, you can disable the keyless access function by operating the access key.
Page 122: Keys And Doors
2-18 Keys and doors/PIN Code Access (models with “keyless access with push–button start system”) 8. Within 5 seconds after step 7 is 1999/5/EC. A copy of the original Declara- PIN Code Access (models with “keyless access with performed, close the door. A chirp sound tion of Conformity and the CE marking are will be heard, and the functions are found in chapter 13.
Page 123: Registering A Pin Code
2-19 Keys and doors/PIN Code Access (models with “keyless access with push–button start system”) ! Registration & Registering a PIN code For example, to register “32468” as the ! Preparation PIN code, perform the following proce- dure. 1. Turn off the ignition switch. 2.
Page 124: Unlocking
2-20 Keys and doors/PIN Code Access (models with “keyless access with push–button start system”) 6. Perform steps 1 to 5 again within the registered PIN code will be deleted. buzzer will sound if incorrect PIN codes approximately 30 seconds after the buz- You cannot unlock the doors by PIN are entered five times continuously.
Page 125: Remote Keyless Entry System
2-21 Keys and doors/Remote keyless entry system & Locking and unlocking doors Remote keyless entry system take measures to prevent the buttons of the remote transmitter from being pressed. The remote transmitter can be used within . Do not expose the transmitter to a distance of approximately 1.0 m (3.2 ft) shocks.
Page 126 Also, the hazard warning the front door handle while an access flashers will flash twice. you consult a SUBARU dealer. key is in the operating range. Pull the ! Automatic locking (except models Models with double locking system:...
Page 127: Opening Trunk Lid/Unlocking Rear Gate
(the push-button start system”, the trade, time period after which locking takes model and supplier’s names of this device place) can be changed by a SUBARU are as follows. dealer. We recommend that you contact . Equipment’s trade name: SUBARU the nearest SUBARU dealer for details.
Page 128: Double Locking System (If Equipped)
2-24 Keys and doors/Double locking system & To set double locking system ! Setting system using remote trans- Double locking system (if mitter equipped) ! Setting system using key 1. Remove the key from the ignition 1. Remove the key from the ignition switch (models without “keyless access The double locking system is an anti-theft switch (models without “keyless access...
Page 129: To Cancel Double Locking System
2-25 Keys and doors/Double locking system & To cancel double locking ! Canceling system using remote direction. . Break one of the windows and climb system transmitter out through the window opening. Press the “ ” button on the access key or ! Canceling system using key “...
Page 130: Function Disabling Unlocking With The Power Door Locking Switch (Australia Models)
2-26 Keys and doors/Function disabling unlocking with the power door locking switch (Australia models) Function disabling unlocking This function is canceled when the doors Child safety locks are unlocked using the remote keyless with the power door locking entry system or the ignition switch is switch (Australia models) turned to “ON”.
Page 131: Windows
2-27 Keys and doors/Windows ! Operating the driver’s window & Power window operation by Windows driver ! Driver’s side power window WARNING switches To avoid serious personal injury caused by accidental, child’s mis- chief, or improper operation, the driver is responsible for obeying the following instructions without exception.
Page 132 2-28 Keys and doors/Windows ! Operating the passenger’s window This switch also has a one-touch auto up held. function that allows the window to be For some models, this switch also has a closed fully without holding the switch. one-touch auto up feature that allows the Pull the switch up until it clicks and release window to be closed fully without holding it, and the window will fully close.
Page 133: Power Window Operation By Driver
2-29 Keys and doors/Windows & Power window operation by NOTE ! Locking the passengers’ windows . If a window detects an impact simi- passengers lar to that caused by trapping an object ! Passenger’s side power window (for example, when the vehicle encoun- switches ters a deep pothole), the anti-entrap- ment function may operate.
Page 134 2-30 Keys and doors/Windows ! Operating the window held. object gets trapped just before the window fully closes. For some models, this switch also has a one-touch auto up feature that allows the window to be closed fully without holding NOTE the switch.
Page 135: Initialization Of Power Window
2-31 Keys and doors/Trunk lid (Sedan) & Initialization of power win- & To open and close the trunk Trunk lid (Sedan) lid from outside If the vehicle’s battery is disconnected due The trunk lid can be opened using the WARNING to situations such as battery or fuse keyless access function or remote keyless replacement, the following functions are...
Page 136: To Open The Trunk Lid From Inside
2-32 Keys and doors/Rear gate (Outback) & To open the trunk lid from Rear gate (Outback) To open: inside & Manual rear gate (if equipped) The rear gate can be locked and unlocked using any of the following systems. . Power door locking switch: Refer to “Power door locking switch”...
Page 137: Power Rear Gate (If Equipped)
2-33 Keys and doors/Rear gate (Outback) . Do not attempt to shut the rear To close: chance, should hit a part of the gate while holding the recessed body, this may result in an injury. grip. Also do not close the rear .
Page 138 . If the power rear gate button is . Do not install any accessories pressed repeatedly while the power other than genuine SUBARU rear gate is operating, the system may parts or an equivalent on the rear ignore the button operation in order to gate.
Page 139 2-35 Keys and doors/Rear gate (Outback) ! Operation by the button on the To close the rear gate: instrument panel Press and hold the power rear gate button. Then the hazard warning flashers will flash twice. If the button is briefly pressed again, the rear gate will open.
Page 140 2-36 Keys and doors/Rear gate (Outback) ! Operation by the buttons on the To close the rear gate: To stop the rear gate midway: Press and hold the power rear gate rear gate Briefly press either of the following buttons button.
Page 141 2-37 Keys and doors/Rear gate (Outback) ! Memory function briefly pressed again, the rear gate will registered. open. Registration of the rear gate height: To register the rear gate height, perform NOTE the following procedures while the ignition . The rear gate remains unlocked switch is in the “LOCK”/“OFF”...
Page 142 2-38 Keys and doors/Rear gate (Outback) NOTE the hazard warning flashers flash three CAUTION times. The electronic chirp and the flash- The rear gate will open to the position . If the reverse function is operated ing hazard warning flashers confirm the that is stored in the memory function selected rear gate height has been regis- even if the rear gate is opened by the...
Page 143: Sunroof (If Equipped)
2-39 Keys and doors/Sunroof ! Rear gate drop prevention function Sunroof (if equipped) If, while fully opened via the power rear gate function, the rear gate is lowered by WARNING the weight of snow and such, an electronic chirp will sound and the rear gate drop Never let anyone’s hands, arms, prevention function will apply braking to head or any objects protrude from...
Page 144: Sunroof Switches
2-40 Keys and doors/Sunroof & Sunroof switches pletely. Pressing the switch continuously allow an unattended child to may cause damage to the sunroof. remain in the vehicle. Failure to The sunroof has both tilting and sliding follow this procedure could re- ! Sliding sunroof functions.
Page 145: Sun Shade
2-41 Keys and doors/Sunroof & Sun shade of the switch. After washing the vehicle or after it rains, wipe away water on the roof prior to opening the sunroof to prevent drops of water from falling into the passenger compartment. ! Anti-entrapment function When the sunroof senses a substantial enough object trapped between its glass...
Page 146: Instruments And Controls
Instruments and controls Ignition switch (models without push- Front passenger’s frontal airbag ON and OFF indicators (if equipped) ........3-15 button start system)......... Malfunction indicator light (Check Engine LOCK..............light) ............... 3-16 ACC..............Charge warning light.......... 3-16 ON..............Oil pressure warning light ........3-17 START ..............
Page 147 Instruments and controls Immobilizer indicator light ........3-30 Menu screens ............ 3-42 SI-DRIVE indicator light (petrol engine Light control switch........... 3-47 models)............3-31 Headlights ............3-47 Select lever/gear position indicator ..... 3-31 High/low beam change (dimmer) ......3-49 Turn signal indicator lights ......... 3-32 Headlight flasher ..........
Page 148: Ignition Switch (Models Without Push- Button Start System)
Instruments and controls/Ignition switch (models without push–button start system) slightly to the left and right as you turn Ignition switch (models with- ignition switch for safety and the ignition switch. never allow an unattended child out push-button start sys- to remain in the vehicle. Failure tem) &...
Page 149: Acc
Instruments and controls/Ignition switch (models without push–button start system) & ACC NOTE contains an immobilizer transponder. . The key is near or touching another The engine may not start in the follow- In this position the electrical accessories transmitter. ing cases. (audio, accessory power outlet, etc.) can be used.
Page 150: Push-Button Ignition Switch (Models With Push-Button Start System)
Instruments and controls/Push–button ignition switch (models with push–button start system) The light gradually turns off under the Push-button ignition switch following conditions. (models with push-button . when the ignition switch is turned to the start system) “ON” position . when the doors are locked using the &...
Page 151: Switching Power
Instruments and controls/Push–button ignition switch (models with push–button start system) & Switching power – On the floor – Inside the glove box – Inside the door trim pocket – On the rear seat – On the rear shelf (Sedan) – Inside the trunk (Sedan) –...
Page 152: When Access Key Does Not Operate Properly
Indicator color Operation switch while turning the steering wheel status the operation. We recommend left and right. that you contact a SUBARU deal- Power is turned Turned off off. er immediately. ! Battery drainage prevention func- . If the push-button ignition switch...
Page 153: Hazard Warning Flasher
Instruments and controls/Hazard warning flasher NOTE Hazard warning flasher Meters and gauges This sequence of operations may not take place if you quickly turn the NOTE ignition switch to start the engine. This Liquid crystal displays are used in is not a malfunction. some of the meters and gauges on &...
Page 154: Odometer
Instruments and controls/Meters and gauges & Odometer & Double trip meter Trip reset switch If you press the trip reset switch when the U.K. models This meter displays the two trip meters ignition switch is in the “LOCK”/“OFF” or when the ignition switch is in the “ON” Except U.K.
Page 155: Tachometer
3-10 Instruments and controls/Meters and gauges & Tachometer The tachometer shows the engine speed To set the trip meter to zero, select the A in thousands of revolutions per minute. trip or B trip meter by pressing the trip CAUTION reset switch and keep the switch pressed for more than 2 seconds.
Page 156: Temperature Gauge
3-11 Instruments and controls/Meters and gauges & Temperature gauge about diesel fuel, refer to “Fuel If, while the fuel gauge needle is indicating the amount of fuel remaining in the tank, requirements for diesel engine mod- els” F7-3. you (a) do not press the trip reset switch for 10 seconds or (b) open and close the driver’s door, the fuel gauge needle will drop to the “E”...
Page 157: Eco Gauge
3-12 Instruments and controls/Warning and indicator lights Warning and indicator lights CAUTION Needle position Displayed unit “+” side “-” side If the pointer exceeds the normal Several of the warning and indicator lights operating range, safely stop the illuminate momentarily and then turn off Better Poorer vehicle as soon as possible.
Page 158 3-13 Instruments and controls/Warning and indicator lights “ON” to remind the driver to wear the : Oil pressure warning light authorized SUBARU dealer for repair. seatbelt. & Seatbelt warning light : Engine low oil level warning indicator If the vehicle is driven at a speed no...
Page 159: Rear Seatbelt Indicator Light (If Equipped)
3-14 Instruments and controls/Warning and indicator lights ! Seatbelt warning for front passen- mph) with the front passenger’s seatbelt If the driver’s seatbelt and/or the front not fastened, the warning light(s) will start passenger’s seatbelt is still not fastened ger’s seat (if equipped) a repeated cycle consisting of 5 seconds when the 108-second period has elapsed, Your vehicle is equipped with a seatbelt...
Page 160: Srs Airbag System Warning Light
We Front passenger’s frontal airbag OFF recommend that you contact your We recommend that you have the indicator SUBARU dealer immediately for an in- Front passenger’s frontal airbag ON system checked immediately by indicator spection.
Page 161: Malfunction Indicator Light (Check Engine Light)
! Models equipped with OBD system vehicle checked/repaired by your . Stop towing a trailer as soon as Vehicles sold in Europe are equipped with SUBARU dealer as soon as possi- possible. an enhanced on-board diagnostics sys- ble. Continued vehicle operation...
Page 162: Oil Pressure Warning Light
. After replacing or adding the engine illuminated, we recommend that you con- oil, if the engine oil level is within the tact your nearest SUBARU dealer imme- If the “AT OIL TEMP” warning light flashes normal range when restarting the en- diately.
Page 163: Low Tire Pressure Warning Light (If Equipped)
SUBARU dealer as soon as possible. be selected, refer to “TPMS mode setting” under-inflation has not reached the level F7-44.
Page 164: Abs Warning Light
– The warning light illuminates four road wheels. We recommend pressure threshold, the low tire that you contact your SUBARU deal- during driving. pressure warning light should turn er as soon as possible for tire and –...
Page 165: Vehicle Dynamics Control Warning Light/Vehicle Dynamics Control Operation Indicator Light
This is due to the low battery voltage . The warning light illuminates right recommend that you have your and does not indicate a malfunction. after the engine is started but turns off vehicle checked at a SUBARU deal-...
Page 166: Vehicle Dynamics Control Off Indicator Light
(with the parking brake released and with ing condition. We recommend that you the ignition switch positioned in “ON”), it have your vehicle checked at a SUBARU could be an indication of leaking of brake – CONTINUED –...
Page 167: Electronic Parking Brake Warning Light (Yellow)
. Even if both warning lights turn off, the the vehicle. We recommend that you have WARNING EBD system may be malfunctioning. the vehicle towed to the nearest SUBARU dealer for repair. For details, refer to We recommend that you drive carefully to When the electronic parking brake “Towing”...
Page 168: Electronic Parking Brake Indicator Light
10 seconds. When the electronic parking WARNING that you drive carefully to the near- brake system is malfunctioning, this light est SUBARU dealer and have the If the Hill Holder indicator light does may flash. vehicle inspected immediately. not illuminate even when the Hill...
Page 169: Fuel Filter Warning Indicator (Diesel Engine Models)
SUBARU dealer as soon as possible. CAUTION Never drive the vehicle when the warning indicator is on. Continuing...
Page 170: All-Wheel Drive Warning Light (Cvt Models)
We recommend that you system sounds a warning chime and the spare tire with a conventional tire as have your vehicle inspected at a SUBARU access key warning indicator appears on soon as possible. dealer as soon as possible.
Page 171 We recommend that the access key takeout warning or you contact your SUBARU dealer passenger access key takeout warning as soon as possible. will not be provided.
Page 172 3-27 Instruments and controls/Warning and indicator lights Access key Operation indica- Inside warning Outside warning warning indica- tor on push-button Status Action chime chime tor on meter ignition switch Switch the push-button ignition switch to “OFF”, or close the The driver’s door was opened while the push-button ignition switch is driver’s door.
Page 173 3-28 Instruments and controls/Warning and indicator lights Access key Operation indica- Inside warning Outside warning warning indica- tor on push-button Status Action chime chime tor on meter ignition switch Ding, Access key warning: Carry the access key, and drive — —...
Page 174 We recommend that you contact System malfunction warning: Flashes in orange — — a SUBARU dealer immediately Ding A malfunction was detected in the (15 seconds max.) and have the vehicle inspected. power system or steering lock.
Page 175: Immobilizer Indicator Light
– when the ignition switch is in the ing. We recommend that you contact your following conditions. “ON” position nearest SUBARU dealer immediately. For models with “keyless access with In the event that an unauthorized key (for . Even if a malfunction occurs, such push-button start system”:...
Page 176: Drive Indicator Light (Petrol Engine Models)
3-31 Instruments and controls/Warning and indicator lights & SI-DRIVE indicator light (pet- & Select lever/gear position in- mended, the downshift indicator blinks. rol engine models) dicator NOTE ! CVT models . The gear shift indicator cannot be deactivated. . Usually, the gear shift indicator is guideline for driving more fuel-effi- ciency and it also may operate to prevent a possible engine stall at low...
Page 177: Turn Signal Indicator Lights
We recommend late filter warning indicator (diesel engine that you have your vehicle in- models)” F3-33. & spected at a SUBARU dealer as Turn signal indicator soon as possible. The gear position indicator and upshift lights indicator can be activated or deactivated.
Page 178: Headlight Indicator Light
3-33 Instruments and controls/Warning and indicator lights & & & Headlight indicator Hill descent control Diesel particulate filter light indicator (if equipped) warning indicator (diesel engine models) This indicator light illuminates under the This indicator appears while the hill following conditions. descent control function is in standby.
Page 179: Over-Rev Warning Light (Yellow) (Mt Diesel Engine Models)
F7-15. indicator flashes, we recommend that you (yellow) (if equipped) . For MT models, if it is difficult to consult the nearest SUBARU dealer for an immediate inspection. maintain all these conditions, maintain- ! Auto Start Stop warning indicator...
Page 180: Auto Start Stop Indicator (Green) (If Equipped)
& Auto Start Stop indica- NOTE tor (green) (if equipped) Clock Your SUBARU dealer can change the This indicator appears in green when the Climate control mode indicators settings of activating/deactivating the engine has been temporarily stopped by Outside temperature indicator automatic adjustment of the clock by the Auto Start Stop system.
Page 181: Climate Control Mode Indicators
3-36 Instruments and controls/Information display & Climate control mode indica- & Outside temperature indica- tors The clock shows the time while the ignition switch is in the “ACC” or “ON” position. Set temperature indicator (left-hand side) The outside temperature indicator shows To adjust the time shown by the clock, Set temperature indicator (right-hand the outside temperature in a range from...
Page 182: Multi Information Display
3-37 Instruments and controls/Multi information display F3-31.) Multi information display SI-DRIVE indicator (refer to “SI-DRIVE indicator light (petrol engine models)” F3-31.) WARNING Warning and indicator screen (refer to “Warning screen” F3-38.) Odometer (refer to “Odometer” F3-9.)/ Always pay adequate attention to double trip meter (refer to “Double trip safe driving when operating the meter”...
Page 183: Basic Operation
3-38 Instruments and controls/Multi information display & Basic operation & Welcome screen and Good- rear gate) is opened while the welcome screen is displayed, the door ajar bye screen By operating “ ” or “ ” of the control warning will appear. switch, the screens and selection items When the driver’s door is opened and .
Page 184: Basic Screens
3-39 Instruments and controls/Multi information display Average fuel consumption screen: increased to 58C (418F) or higher. & Basic screens By operating the “ ” or “ ” switch on the steering wheel, you can change the screen that is always displayed. Default screen: Icy road surface warning screen : Fuel consumption...
Page 185 3-40 Instruments and controls/Multi information display Current fuel consumption screen: Driving information screen: Digital speed screen: : Fuel consumption : Journey time This screen displays the current vehicle speed. : Driving range on remaining fuel : Journey distance This screen displays the rate of fuel con- This screen displays the journey time (the SI-DRIVE mode screen: sumption at the present moment.
Page 186 . The time spent with the engine Auto Start Stop screen (if equipped): Multi Media Link screen (while selecting the destination) (models with genuine SUBARU stopped by means of the Auto Start navigation system): Stop system is also added to the journey time.
Page 187: Menu Screens
3-42 Instruments and controls/Multi information display & Menu screens Pull and hold the “ /SET” switch to enter the menu screens when all of the following conditions are satisfied. . The vehicle has been completely stopped. . The select lever is in the “P” position (CVT models).
Page 188 3-43 Instruments and controls/Multi information display The menu list is as follows. Second menu First menu Third menu Settings Screen Settings Welcome Screen ON (with sound) — ON (without sound) — Good-bye Screen ON/OFF — Gauge Initial Movement ON/OFF Gear Position Indicator Settings ON/OFF —...
Page 189 3-44 Instruments and controls/Multi information display Second menu First menu Third menu Settings Vehicle Setting Keyless Entry System ON/OFF Audible Signal ON/OFF Hazard Warning Flasher 20 seconds – 60 seconds, OFF Security Relocking Driver Door Only/All Driver Door Unlock Rear Gate/Trunk Only/All Rear Gate/Trunk Unlock —...
Page 190 3-45 Instruments and controls/Multi information display ! Screen Settings ! Units (U.K. models) ! Manual Mode Indication After entering the “Screen Settings” menu, You can select the displayed units of the You can activate or deactivate the gear position indicator. Select “On” to activate select one of the following menus.
Page 191 3-46 Instruments and controls/Multi information display . Detection is not possible . Hazard Warning Flasher: ! Interior Light The hazard warning flasher operation can The setting for the period of time in which Select “On” to activate the buzzer. Select be activated or deactivated.
Page 192: Light Control Switch
3-47 Instruments and controls/Light control switch & Headlights Regardless of the position of the light Light control switch control switch, the illuminated lights are turned off when the key is removed from CAUTION the ignition switch. . Use of any lights for a long period NOTE of time while the engine is not The light control switch can be oper-...
Page 193 To turn on the headlights, turn the knob on and the exterior lights is 30 seconds. be changed by your SUBARU dealer. For the end of the turn signal lever. This setting can be changed to OFF (no...
Page 194: High/Low Beam Change (Dimmer)
3-49 Instruments and controls/Light control switch & High/low beam change (dim- ! Sensor of the auto on/off headlights off when any of the following conditions occur. (if equipped) mer) . 30 seconds have passed since the driver’s door was closed. .
Page 195: Headlight Flasher
3-50 Instruments and controls/Turn signal lever & Headlight flasher & Daytime running light system Turn signal lever (if equipped) WARNING The light switch must always be turned to the “ ” position when it is dark outside. The daytime running light will automati- cally illuminate at reduced brightness when the following conditions are fulfilled.
Page 196: One-Touch Lane Changer
The operational/non-operational setting of the one-touch lane changer’s can be When the ambient light is bright, the changed by a SUBARU dealer. We illumination brightness is set to the max- recommend that you contact the nearest imum regardless of the position of the The illumination brightness of the clock SUBARU dealer for details.
Page 197: Headlight Beam Leveler (If Equipped)
3-52 Instruments and controls/Headlight beam leveler & Manual headlight beam leve- Headlight beam leveler (if ler (models without LED equipped) headlights, if equipped) & Automatic headlight beam leveler (models with LED headlights) The LED headlights generate more light than conventional halogen headlights. Therefore a driver of an oncoming vehicle may experience too much glare when your headlight beam height adjustment is high...
Page 198 3-53 Instruments and controls/Headlight beam leveler Sedan: Number of front seat Number of rear seat Load in the luggage Dial position Trailer towing occupants occupants compartment area 1 or 2 No load No load Full load* Full load* Full load* Full load* Not applicable Not applicable...
Page 199 3-54 Instruments and controls/Headlight beam leveler Outback: Number of front seat Number of rear seat Load in the luggage Dial position Trailer towing occupants occupants compartment area 1 or 2 No load No load Full load* Full load* Full load* Full load* Not applicable Not applicable...
Page 200: Fog Light Switch
3-55 Instruments and controls/Fog light switch switch back down to the following posi- Fog light switch tions. & Front fog light switch . “ ” position (except Australia models) . “OFF” position (Australia models) Front fog light operating condition (Australia models) Headlight switch Fog light switch Front fog light operating condition...
Page 201: Rear Fog Light Switch (If Equipped)
3-56 Instruments and controls/Fog light switch & Rear fog light switch (if To turn off the rear fog light, either turn the lights). switch upward back to the “ ” position or . The key is removed from the ignition equipped) turn it downward to the “...
Page 202: Wiper And Washer
Otherwise, the wipers may oper- on a dry windshield or rear washer fluid is unavailable. In ate unexpectedly and cause in- window, always use the wind- areas where water freezes in jury. shield washer. winter, use SUBARU Windshield – CONTINUED –...
Page 203 We recommend that you contact solution to prevent streaking, and to switch is in the “ON” position, the your SUBARU dealer and have the remove accumulations of road salt or system inspected as soon as pos- wipers will operate once. This indicates road film.
Page 204: Windshield Wiper And Washer Switches
3-59 Instruments and controls/Wiper and washer & Windshield wiper and washer lever down to the low speed posi- tion or high speed position, switches although the wipers will switch to The wiper operates only when the ignition the automatic operation with the switch is in the “ON”...
Page 205 The setting can be changed by a SUBARU dealer. For more details, we recommend that you contact a SUBARU dealer. . While the intermittent wiper is in operation, if the vehicle is started, the wiper will operate once.
Page 206 3-61 Instruments and controls/Wiper and washer ! Windshield washer ! Wiper intermittent time control Australia models / MIST: Mist (for a single wipe) When the wiper switch is in the “ ”/“INT” To wash the windshield, pull the wiper / OFF: Off control lever toward you.
Page 207: Rear Window Wiper And Washer Switch (Outback)
3-62 Instruments and controls/Wiper and washer : Washer (accompanied by wiper operation) position (Australia models) . when the light switch is in the ! Rear wiper “AUTO” position and the headlights To turn the rear wiper on, turn the knob illuminate automatically (models with switch upward.
Page 208: Defogger And Deicer
Defogger and deicer rear wiper to “non-operational”. For the “ON” position. more details, we recommend that you contact a SUBARU dealer. ! Washer To wash the rear window while the rear wiper is operating, turn the knob switch upward to the “ ” position. The washer fluid sprays until you release the knob.
Page 209 SUBARU dealer. We 15 km/h (9 mph) or lower for 15 recommend that you contact your minutes, the windshield wiper deicer SUBARU dealer for details.
Page 210: Headlight Washer (If Equipped)
3-65 Instruments and controls/Headlight washer ous operation of the defogger and washer fluid as soon as you release the Headlight washer (if deicer system is canceled and the wiper control lever. The headlight washer equipped) system stops operating. sprays the washer fluid for approximately 1 second and then stops automatically.
Page 211: Mirrors
3-66 Instruments and controls/Mirrors & Outside mirrors ! Remote control mirror switch Mirrors ! Convex mirror Always check that the inside and outside mirrors are properly adjusted before you WARNING start driving. Objects look smaller in a convex & Inside mirror mirror and farther away than when viewed in a flat mirror.
Page 212 3-67 Instruments and controls/Mirrors ! Power folding mirror switch (if manually folded slightly forward of the work. This is not a malfunction. Oper- regularly unfolded position, when you ate after waiting for a short period of equipped) turn the ignition switch from the time.
Page 213: Tilt/Telescopic Steering Wheel
3-68 Instruments and controls/Tilt/telescopic steering wheel Tilt/telescopic steering wheel Horn WARNING . Do not adjust the steering wheel tilt/telescopic position while driv- ing. This may cause loss of vehicle control and result in personal injury. . If the lever cannot be raised to the fixed position, adjust the steering wheel again.
Page 214: Climate Control
Climate control Ventilator control..........Operating tips for heater and air conditioner ............Center ventilators..........Cleaning ventilation grille........Side ventilators ........... Rear ventilators (if equipped)....... Efficient cooling after parking in direct sunlight ............. Climate control panel.......... Lubrication oil circulation in the refrigerant Automatic climate control system .....
Page 215: Ventilator Control
Climate control/Ventilator control & Side ventilators & Rear ventilators (if equipped) Ventilator control & Center ventilators Open Open Close Close Open Move the tab to adjust the flow direction. Move the tab to adjust the flow direction. Close To open the ventilator, turn the side grille To open the ventilator, turn the rear grille open/close wheel upward to the “...
Page 216: Climate Control Panel
Climate control/Climate control panel Temperature control dial (Refer to “Tem- Climate control panel perature control” F4-6.) “AUTO” button (Refer to “Automatic climate control system” F4-4.) “OFF” button (Refer to “Automatic cli- mate control system” F4-4.) “A/C” button (Refer to “Air conditioner control”...
Page 217: Automatic Climate Control System
Climate control/Automatic climate control system & Temperature sensors NOTE Automatic climate control If you operate any of the buttons on the system control panel other than the “OFF” button, rear window defogger button NOTE and temperature control buttons during . Operate the automatic climate con- FULL AUTO mode operation, the trol system when the engine is running.
Page 218: Manual Climate Control
Climate control/Manual climate control properly and become damaged, the sys- Manual climate control tem may not be able to control the interior & Airflow mode selection temperature correctly. To avoid damaging the sensors, observe the following pre- Select the preferred airflow mode by cautions: performing the following procedure.
Page 219: Temperature Control
Climate control/Manual climate control the instrument panel and some through When this mode is selected, some of the windshield defroster outlets (A small settings will be changed as follows. . The temperature setting will be chan- amount of air flows to the windshield and both side windows to prevent fogging.) ged to the maximum cooling mode.
Page 220: Fan Speed Control
Climate control/Defrosting When the “DUAL” mode is selected: mately 08C (328F), the air conditioner Defrosting and dehumidification system may not Turn the driver’s side dial to set the work properly. driver’s side temperature. Turn the front Select the desired “ ”...
Page 221: Operating Tips For Heater And Air Conditioner
SUBARU dealer. Since the condenser is located in front of the radiator, this area should be kept clean &...
Page 222: Refrigerant For Your Climate Control System
SUBARU dealer. For which type of refrigerant is used in your replacement, we recommend that you use vehicle.
Page 223: Replacing An Air Filter
4-10 Climate control/Air filtration system & Replacing an air filter (3) Pull out the glove box. 1. Remove the glove box. (1) Open the glove box. Pull the air filter approximately 10 cm (3.9 inches) first. Gently push the near side of the air filter 2.
Page 224 4-11 Climate control/Air filtration system 4. Replace the air filter element with a new one. 5. Reinstall the cover of the air filter. CAUTION The arrow mark on the filter must point UP. 6. Reinstall the glove box, and connect the damper shaft.
Page 225 Audio Antenna system ..........Media operation ..........5-44 Printed antenna........... CD ..............5-44 FM reception ............USB memory ............. 5-49 Installation of accessories........iPod ..............5-54 Bluetooth audio ..........5-61 Audio set ............. AUX ..............5-68 Type A audio set (for Europe) ......®...
Page 226: Antenna System
Installation of accessories portion of the rear window/windshield & Printed antenna glass. We recommend that you always consult your SUBARU dealer before installing a & FM reception CAUTION citizen band radio or other transmitting device in your vehicle. Such devices may...
Page 227: Audio Set
Audio/Audio set Audio set Your SUBARU may be equipped with one of the following audio sets. See the pages indicated in this section for operating details. NOTE . If a cell phone is placed near the audio set, it may cause the audio set to emit noise when a phone call is received.
Page 228: Type A Audio Set (For Europe)
Audio/Audio set & Type A audio set (for Europe) The audio set will operate only when the ignition switch is in the “ACC” or “ON” position. For regional specification The illustration on the left is a typical example for left-hand drive models. For right-hand drive models, some of the switch locations are the opposite of those shown in the illustration.
Page 229: Type B Audio Set (Except For Europe)
Audio/Audio set & Type B audio set (except for Europe) The audio set will operate only when the ignition switch is in the “ACC” or “ON” position. For regional specification The illustration on the left is a typical example for left-hand drive models. For right-hand drive models, some of the switch locations are the opposite of those shown in the illustration.
Page 230: Type C Audio Set (For Australia)
Audio/Audio set & Type C audio set (for Australia) The audio set will operate only when the ignition switch is in the “ACC” or “ON” position.
Page 231: Basic Information Before Use
Audio/Basic information before use ! Initial screen (except for Europe) Basic information before use 1. When the ignition switch is in the & Initial screen “ACC” or “ON” position, the initial screen will be displayed and the system will begin ! Initial screen (for Europe) operating.
Page 232: Loading And Unloading A Disc
Audio/Basic information before use & Loading and unloading a disc & Connecting and disconnect- NOTE . For compatible discs, refer to “CD ing a USB memory/portable ! Loading a disc player and disc” F5-26. device . When inserting a disc, gently insert CAUTION ! Connecting a device it with the label facing up.
Page 233: Touch Screen Gestures
Audio/Basic information before use & Touch screen gestures “iPod” F5-28. . If a USB hub is plugged in, only the Operations are performed by touching the touch screen directly with your finger. most recently connected USB device will be recognized. Operation method Outline Main use...
Page 234: Touch Screen Operation
5-10 Audio/Basic information before use NOTE it again. In-Car-Device setting . Grayed-out screen buttons cannot There may be a delayed response to be operated. flick operation that are performed at . The displayed image may become high altitudes. darker and moving images may be slightly distorted when the screen is &...
Page 235 5-11 Audio/Basic information before use ! List screen Dialpad Contacts list (Example: phone book) Two types of list are available on this device. . Multimedia playlists . Contacts list Multimedia playlists (Example: iPod play- list) Function Function & & Alphabet button: Jump to list entries Enter the desired numbers.
Page 236: Screen Adjustment
5-12 Audio/Basic information before use & Screen adjustment . If the screen is set to “Day” mode SETTINGS display (except for Europe) with the headlight switch turned on, The contrast and brightness of the screen this condition is memorized even with display and the image of the camera the engine turned off.
Page 237: Other Settings
5-13 Audio/Other settings 2. Select (SETTINGS). Other settings SETTINGS WARNING 3. Select the items to be set. 1. Select When adjusting the camera display screen, make sure to depress the Gear wheel symbol tab (for Europe) For LHD models: brake pedal fully to stop the vehicle from moving.
Page 238 5-14 Audio/Other settings Gear wheel symbol tab (for Australia) Bluetooth symbol tab (for Europe) Item Function BT De- Select to pair/connect the Blue- vices Con- tooth devices. nection Select to enter the Bluetooth In-Car-De- device name or PIN-code. vice setting Note symbol tab (for Europe) Bluetooth symbol tab (except for Europe) Item...
Page 239 5-15 Audio/Other settings Note symbol tab (except for Europe) Monitor symbol tab (except for Europe) Item Function Select to pick-up vocal sound Vocal Im- signal from the sound data, and age Con- adjust it to right/left or front/rear. trol Monitor symbol tab (for Europe) Item Function Item...
Page 240: Basic Operation
5-16 Audio/Basic operation ! Turning the system on and off Spanner symbol tab (for Europe) Basic operation For LHD models: & Some basics This section describes some of the basic features of the audio/visual system. Some information may not pertain to your sys- tem.
Page 241 5-17 Audio/Basic operation displayed. Press and hold the knob For RHD models: approx. 1.5 seconds or more, turn the display to off. Turn this knob to adjust the volume. “AUDIO/TUNE” knob: Press to display screen buttons for the audio/visual sys- tem.
Page 242 5-18 Audio/Basic operation Source select display (except for Europe) Setting ranges Item Step Default Audio volume 0-40 Balance L9-R9 0 (Center) Fader F9-R9 0 (Center) Vocal Image Control Left/Right: R9-L9 LHD: Left/Right: R3 Front/Rear: R9-F9 RHD: Left/Right: L3 Speed Volume Control OFF, Low, High −6-+6 Graphic Equalizer, SET1-3...
Page 243 5-19 Audio/Basic operation “ ” button. ! “Balance/Fader” Except for Europe: 5. Select the “Vocal Image Control” A good balance of the left and right stereo menu. channels and of the front and rear sound levels is important for good quality audio program listening.
Page 244 5-20 Audio/Basic operation ! “Graphic Equalizer” For Europe: 2. In this mode, 6 preset equalizer patterns and 3 customized patterns are 1. Touch the “Set” button of the Graphic available. Equalizer function. 6 preset patterns: “Bass”, “Treble”, For Europe: “Acoustic”, “Impact”, “Smooth”, “Flat” 3 customized patterns: “SET 1”...
Page 245 5-21 Audio/Basic operation Except for Europe: For Europe: ! “Sound Restorer” Except for Europe: ! “Volume Smoother” Select “ON” or “OFF” by the right side 1. Touch the right side button of the button of the Sound Restorer function. Volume Smoother function, and select For Europe: “OFF”, “Low”, “Mid”...
Page 246 5-22 Audio/Basic operation ! Voice command system ! “Virtual Bass” Except for Europe: 1. Press this switch to operate the voice 1. Touch the right side button of the Virtual Bass function, and select “OFF”, command system. “Low”, “Mid” or “High” menu. “High” comes to have a bigger effect.
Page 247: Audio/Visual Remote Controls
5-23 Audio/Audio/visual remote controls “+/-” switch Audio/visual remote controls & Steering switches Mode Operation Function Press Volume up/down Some parts of the audio/visual system can Except list screen be adjusted using the switches on the Press and hold Volume up/down continuously steering wheel.
Page 248 5-24 Audio/Audio/visual remote controls Back switch Mode Operation Function All (except STARLINK) (for Press Return to the previous screen Europe) Press and hold Return to the HOME screen List switch Mode Operation Function All (except STARLINK) (for Press Show list screen Europe) “Source”...
Page 249: Tips For Operating The Audio/Visual System
5-25 Audio/Tips for operating the audio/visual system can interfere with FM reception. Power the FM band, the radio may tune in the Tips for operating the audio/ lines or phone wires can interfere with AM second station until the original signal can visual system signals.
Page 250 5-26 Audio/Tips for operating the audio/visual system ! CD player and disc be playable on your player: Transparent/translucent discs – SACD . This CD player is intended for use with – dts CD 12 cm (4.7 in) discs only. – Copy-protected CD .
Page 251 5-27 Audio/Tips for operating the audio/visual system . Do not use printable discs. The Labeled discs cases away from moisture, heat and direct sunlight. use of such discs may damage the player, or it may be impossi- ble to eject the disc. CAUTION To clean a disc: Wipe it with a soft, lint- .
Page 252 5-28 Audio/Tips for operating the audio/visual system ! File information of disc characteristics, scratches or dirt on can be used with this system. Compatible compressed files (Audio) the disc, or dirt, condensation, etc. on the Made for lens of the unit. .
Page 253 5-29 Audio/Tips for operating the audio/visual system . M3u playlists are not compatible with Corresponding bit rates (Audio) and playback errors, use the appropriate file extension. the audio device. File type Bit rate (kbps) . This system can play only the first .
Page 254 5-30 Audio/Tips for operating the audio/visual system . Level 2: The file name can have up to ! ID3 tag 31 characters (including the separation . This is a method of embedding track- mark “.” and file extension). Each folder related information in an MP3 file.
Page 255 This indicates that there is no audio file in the “No audio file” iPod connected iPod. This indicates that the accessed file cannot play “Unplayable file” back. NOTE If the malfunction is not rectified: We recommend that you take your vehicle to your SUBARU dealer.
Page 256: Useful Information
5-32 Audio/Useful information Useful information STARLINK disclaimer error screen & STARLINK (for Europe) The STARLINK function allows the system to link with a smartphone using Bluetooth. ! Displaying STARLINK information 1. Press APPS key on the home screen, or press APPS button, the STARLINK disclaimer screen or the error screen is displayed.
Page 257 5-33 Audio/Useful information Error screen that is displayed while using using the function. STARLINK NOTE Connection method iPhone: USB Android: Bluetooth Supported devices iPhone: iPhone 4/iPhone 4s/iPhone 5/ iPhone 5c/iPhone 5s (iOS Ver. 5.1 or later) Android: (OS Ver. 4.0 or later) The error screen will be displayed while using STARLINK due to one of the following possible reasons.
Page 258: Radio Operation
5-34 Audio/Radio operation Radio operation Control screen (for Europe) & AM/FM radio ! Overview Select (AM) or (FM) on the “Select Audio Source (Select Audio Source)” screen. Refer to “Selecting an audio source” F5-17. Control panel (for Europe LHD models)
Page 259 5-35 Audio/Radio operation Control panel (for Europe RHD models) Control screen (except for Europe) – CONTINUED –...
Page 260 5-36 Audio/Radio operation Control panel (except for Europe LHD models) Control panel (except for Europe RHD models)
Page 261 5-37 Audio/Radio operation Control screen (for Australia) Control panel (for Australia) – CONTINUED –...
Page 262 5-38 Audio/Radio operation For Europe, for Australia: Function Function Function Select to display the sound setting If you press a key for less than 1.5 & screen. Refer to “Basic operation” seconds, the system tunes to the & Select to display the audio source F5-16.
Page 263 5-39 Audio/Radio operation ! Presetting a station of the frequency. ! Selecting a desired options Except for Europe: screen (for Europe) The radio mode has a preset function and can store the amount of stations as follows. AM: up to 6 stations for each band (AM1/ AM2) FM: up to 6 stations for each band (FM1/ FM2/FM3)
Page 264 5-40 Audio/Radio operation ! Selecting a desired options Options screen (AM radio) screen (for Australia) Options screen (AM radio) 1. Select (Option). Function Option Options screen (FM radio) Select to turn the news interrupt function ON and OFF (Default setting: OFF). If the setting is ON, &...
Page 265 5-41 Audio/Radio operation For Europe, for Australia: For Europe, for Australia: Function Select to turn the TA (Traffic An- nouncement) interrupt function ON and OFF (Default setting: OFF). If & the setting is ON, when the current station broadcasts TA, the system will automatically switch the audio source to the radio (TA).
Page 266 5-42 Audio/Radio operation ! Interruption by Alarm, Traffic An- For Europe, for Australia: Alarm interruption screen: nouncement or News (for Europe and Australia) . Even when another audio source is selected, if the Alarm (emergency broad- cast) or TA (Traffic Announcement) or a news program is received, the system automatically switches to the Radio (FM) mode.
Page 267 5-43 Audio/Radio operation News interruption screen:...
Page 268: Media Operation
5-44 Audio/Media operation Media operation Control screen (for Europe, for Australia) & CD ! Overview The CD operation screen can be reached by the following methods: . Insert a disc. Refer to “Loading and unloading a disc” F5-8. . Select (DISC) on the “Select DISC Audio Source (Select Audio Source)”...
Page 269 5-45 Audio/Media operation Control panel (for Europe RHD models) Control panel (for Australia) – CONTINUED –...
Page 270 5-46 Audio/Media operation Control screen (except for Europe) Left: Audio CD, Right: MP3/WMA/AAC disc Control panel (except for Europe LHD models)
Page 271 5-47 Audio/Media operation Control panel (except for Europe RHD models) Function & Select to display the audio source selection screen. & Select to display Trick Play Settings screen. Audio CD Select to display a track list. & MP3/WMA/AAC disc Select to display a folder list &...
Page 272 5-48 Audio/Media operation Control screen (Trick Play) (for Europe, for Australia) Function & Select to start 1 Track Repeat. & Select to start Repeat All. & Select to start Shuffle All. & Return to the control screen. & Select to start Folder Repeat. &...
Page 273: Usb Memory
5-49 Audio/Media operation & USB memory Control screen (for Europe, for Australia) Audio files on the USB memory can be played back. ! Overview The USB Audio playback screen can be reached by the following methods: . Connect a USB memory. Refer to “Connecting and disconnecting a USB memory/portable device”...
Page 274 5-50 Audio/Media operation Control panel (for Europe RHD models) Control panel (for Australia)
Page 275 5-51 Audio/Media operation Control screen (except for Europe) Control panel (except for Europe LHD models) – CONTINUED –...
Page 276 5-52 Audio/Media operation Control panel (except for Europe RHD models) Function & Select to display the audio source selection screen. & Select to display Trick Play Settings screen. & Select to display Folders List. & Shows progress. The tracks in the disc are played back &...
Page 277 5-53 Audio/Media operation Control screen (Trick Play) (for Europe, for Australia) Function & Select to start 1 Track Repeat. & Select to start Folder Repeat. & Select to start Repeat All. & Return to the control screen. & Select to start Shuffle All. &...
Page 278: Ipod
5-54 Audio/Media operation . Select (USB / iPod) on the USB / iPod CAUTION “Select Audio Source (Select Audio Source)” screen. Refer to “Selecting an . Do not leave your portable player audio source” F5-17. in the car. In particular, high temperatures inside the vehicle may damage the portable player.
Page 279 5-55 Audio/Media operation Control screen (for Europe, for Australia) Control panel (for Europe LHD models) – CONTINUED –...
Page 280 5-56 Audio/Media operation Control panel (for Europe RHD models) Control panel (for Australia)
Page 281 5-57 Audio/Media operation Control screen (except for Europe) Control panel (except for Europe LHD models) – CONTINUED –...
Page 282 5-58 Audio/Media operation Control panel (except for Europe RHD models) Function & Select to display the audio source selection screen. & Select to display Trick Play Settings screen. & Select to display iPod List. & Shows progress. Select to display the sound setting &...
Page 283 5-59 Audio/Media operation Control screen (Trick Play) (for Europe, for Australia) Function & Select to start 1 Track Repeat. & Select to start Repeat All. & Return to the control screen. & Select to start Shuffle Track. & Select to start Shuffle Album. &...
Page 284 5-60 Audio/Media operation Control screen (Play List) Function & Select to display the Playlist. & Select to display Song List. & Select to display Artists List. & Select to display Albums List. & Select to open Others List. & Select to open Genres List. &...
Page 285: Bluetooth Audio
5-61 Audio/Media operation may not be available. WARNING . Files/tracks selected by operating a connected iPod may not be recognized Do not operate the player’s controls or displayed properly. or connect the iPod while driving. . If you press the “Mute” switch on the steering wheel during playback, the track pauses.
Page 286 5-62 Audio/Media operation Control screen (for Europe, for Australia) Control panel (for Europe LHD models)
Page 287 5-63 Audio/Media operation Control panel (for Europe RHD models) Control panel (for Australia) – CONTINUED –...
Page 288 5-64 Audio/Media operation Control screen (except for Europe) Control panel (except for Europe LHD models)
Page 289 5-65 Audio/Media operation Control panel (except for Europe RHD models) Function & Select to display the audio source selection screen. & Select to display Trick Play Settings screen. Select to display as a list (for the & models with AVRCP Ver. 1.4 or high- er).
Page 290 5-66 Audio/Media operation Control screen (Play List) (for Europe, for Australia) Function & Select to start 1 Track Repeat. & Select to start Repeat All. & Return to the control screen. & Select to start Shuffle Track. & Select to start Group Shuffle. &...
Page 291 5-67 Audio/Media operation switch is in the “ACC” or “ON” posi- WARNING CAUTION tion, the system will automatically . Do not operate the player’s con- reconnect to the portable player. Do not leave your portable player in . If the Bluetooth device is discon- trols or connect to the Bluetooth the vehicle.
Page 292 5-68 Audio/Media operation Registering an additional device 1. Select (Add) on the BT Devices Connection screen. 2. For more information: Refer to “Regis- tering a Bluetooth device” F5-77. Selecting a registered device 1. Select (Select) on the BT Select Devices Connection screen. 2.
Page 293 5-69 Audio/Media operation Control screen (for Europe, for Australia) Control panel (for Europe LHD models) – CONTINUED –...
Page 294 5-70 Audio/Media operation Control panel (for Europe RHD models) Control panel (for Australia)
Page 295 5-71 Audio/Media operation Control screen (except for Europe) Control panel (except for Europe LHD models) – CONTINUED –...
Page 296 5-72 Audio/Media operation Control panel (except for Europe RHD models) Function & Select to display the audio source selection screen. & Option Key: Select to display the Options screen. Select to display the sound setting & screen. Refer to “Basic operation” F5-16.
Page 297 5-73 Audio/Media operation Control screen (Option Display) Function & Select to adjust the audio gain level. Select High, Mid, or Low for the audio & gain level. The High setting has greater effect. & Select to close the list. – CONTINUED –...
Page 298: Bluetooth Settings
5-74 ® Audio/Bluetooth settings ® Bluetooth settings screen. WARNING For Europe: & Registering/connecting Do not operate the player’s controls ® or connect the portable audio device Bluetooth device while driving. CAUTION ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth .
Page 299 5-75 ® Audio/Bluetooth settings when registration is complete. . The system waits for connection requests coming from the registered device. . At this stage, the Bluetooth func- tions are not yet available. ! Registering a Bluetooth Audio de- vice for the first time To use the Bluetooth Audio, it is necessary to register an audio device with the system.
Page 300 . If the connected Bluetooth device version is older than recommended or incompatible, the Bluetooth device function may not work properly. . We recommend that you contact your SUBARU dealer to arrange a demonstration in order to confirm whether or not the device can be paired with the vehicle.
Page 301: Setting Bluetooth Details
5-77 ® Audio/Bluetooth settings & Setting Bluetooth details 3. To register a device, select “Add” on Function “BT Devices Connection”. 1. Select & “Add” key: Registers the device. For LHD models: “Select” key: Makes the connection to & the registered device. This shows the status of the device &...
Page 302 5-78 ® Audio/Bluetooth settings The “Add” button is not displayed when Press and hold the Trash box icon for the tooth is set to OFF or when the five devices are already registered. device to be deleted, and then select connection cannot be made with the “OK”.
Page 303 BT device name: Displays the Blue- tooth device name of the in-vehicle & equipment. The default name is “SUBARU BT”, which can be changed by selecting it and entering alphanu- meric characters. PIN code: Displays the PIN code of &...
Page 304: Audio
5-80 Audio/Phone operation (Hands–free system for cellular phones) ! When the cursor is at the “Device Phone operation (Hands-free Function Name Display Area” system for cellular phones) “123” key: Switches the screen to & . The device name can be set or input numbers.
Page 305 5-81 Audio/Phone operation (Hands–free system for cellular phones) PHONE (Menu) screen (for Europe, for PHONE (Menu) screen (except for Eur- For Europe, for Australia: Australia) ope) PHONE (Dialpad) screen (for Europe, for PHONE (Dialpad) screen (except for Australia) Europe) – CONTINUED –...
Page 306: Some Basics
5-82 Audio/Phone operation (Hands–free system for cellular phones) Except for Europe: is a wireless data system that enables Function cellular phones to be used without being “Incoming Calls” key: Opens the & connected by a cable or placed in a Incoming Calls screen.
Page 307 5-83 Audio/Phone operation (Hands–free system for cellular phones) be cut. tion under the influence of radio – Noise may be heard when play- waves. Radio waves could have unexpected effects on the opera- ing back voice with the Bluetooth tion of such medical devices. function.
Page 308 5-84 Audio/Phone operation (Hands–free system for cellular phones) ! About the contacts in the contact 101. list NOTE . The following data is stored for every . The other party’s voice will be heard registered phone. When another phone is from the front speakers.
Page 309: Calling On The Bluetooth Phone
5-85 Audio/Phone operation (Hands–free system for cellular phones) & Calling on the Bluetooth . On the PHONE screen, select “Incom- For RHD models: ing Calls” to open the Incoming Calls phone screen. Refer to “Quick reference” F5-80. After a Bluetooth phone has been regis- tered, a call can be made using the hands- free system.
Page 310 5-86 Audio/Phone operation (Hands–free system for cellular phones) . On the PHONE screen, select “Out- . On the PHONE screen, select “Con- . On the PHONE screen, select “Dia- going Calls” to open the Outgoing Calls tacts” to open the Contacts screen. Refer lpad”...
Page 311 5-87 Audio/Phone operation (Hands–free system for cellular phones) How to make a call list Page By call history 5-87 By contacts list 5-89 By dialpad 5-91 By off hook switch 5-92 By voice command system 5-102 : The operation cannot be performed while driving.
Page 312 5-88 Audio/Phone operation (Hands–free system for cellular phones) NOTE . When making a call to the same number continuously, only the most recent call is listed in call history. . When a phone number registered in the contact list is received, the name is displayed.
Page 313 5-89 Audio/Phone operation (Hands–free system for cellular phones) NOTE . When making a call to the same number continuously, only the most recent call is listed in call history. . When a phone number registered in the contact list is received, the name is displayed.
Page 314 5-90 Audio/Phone operation (Hands–free system for cellular phones) ! When the contact is empty For PBAP incompatible but OPP com- patible Bluetooth phones . On the Contacts screen, select “Down- load Contacts”. A screen where you can select how to download contacts opens. .
Page 315 5-91 Audio/Phone operation (Hands–free system for cellular phones) . All contact data downloaded into the in- phone: – It may be necessary to perform vehicle equipment will be deleted. additional steps on the phone when transferring contact data. ! By Dialpad The Outgoing Call screen opens when you perform the following operations.
Page 316: Receiving On The Bluetooth Phone
5-92 Audio/Phone operation (Hands–free system for cellular phones) ! By off hook switch Function Calls can be made using the latest call “Hold” key: Puts the incoming call on history item. hold. This function may not work on & 1. Press the switch on the steering some cell phone models.
Page 317: Talking On The Bluetooth Phone
5-93 Audio/Phone operation (Hands–free system for cellular phones) & Talking on the Bluetooth phone While talking on the phone, this screen is displayed. The operations outlined below can be performed on this screen. . When the Incoming Call screen is displayed and you accept the call, the screen changes to the Call screen.
Page 318 5-94 Audio/Phone operation (Hands–free system for cellular phones) formed by operating the cellular phone Function Function directly. “Mute” key: Mutes your voice to the . Transferring methods and opera- “Dialpad” keys: Allows you to enter other party. Press the “Mute” key &...
Page 319: Setup
5-95 Audio/Setup NOTE Setup . Depending on the type of phone, & Phone settings certain functions may not be available. . Contact data is managed indepen- ! “Sound Settings (Sound Settings)” dently for every registered phone. screen When one phone is connected, another The call and ringtone volume can be phone’s registered data cannot be adjusted.
Page 320 5-96 Audio/Setup . If another Bluetooth device is con- Refer to “By contacts list” F5-89. nected when transferring contact data, depending on the phone, the con- NOTE nected Bluetooth device may need to For deleting data, all items are deleted. be disconnected.
Page 321: What To Do If
We recommend that you contact your The connected device may not be a SUBARU dealer to arrange a demonstration in — compatible Bluetooth cellular phone. order to confirm whether or not the device can The hands-free system or Bluetooth be paired with the vehicle.
Page 322 5-98 Audio/What to do if... When registering/connecting a cellular phone Page Symptom Likely cause Solution Cellular This phone system An incorrect passcode was entered — Enter the correct passcode on the cellular phone. on the cellular phone. The registration operation has not Complete the registration operation on the cellular —...
Page 323 We recommend that you contact your The profile version of the connected SUBARU dealer to arrange a demonstration in — cellular phone may not be compatible order to confirm whether or not the device can with transferring phonebook data.
Page 324 5-100 Audio/What to do if... In other situations Page Symptom Likely cause Solution Cellular This phone system The cellular phone is not close enough — — Bring the cellular phone closer to this system. to this system. Turn the cellular phone off, remove and —...
Page 325: Voice Command System Operation
5-101 Audio/Voice command system operation ! Microphone tem may not recognize the command Voice command system op- properly and using voice commands eration may not be possible: – The command is incorrect or & Voice command system unclear. Note that certain words, The voice command system enables the accents or speech patterns may be audio, hands-free systems, etc.
Page 326 5-102 Audio/Voice command system operation NOTE . Say “Audio”. again. When the voice command mode is ! Voice command example: Call audio mode, voice guidance for the name voice command system can be skipped 1. Press the talk switch. by pressing the talk switch. 2.
Page 327 5-103 Audio/Voice command system operation ! Voice command example: Dial on the screen. If the desired name is date list to select a phone number from not displayed on the top of the screen, the candidate list. number say or select the number of the name 1.
Page 328: Command List
5-104 Audio/Command list Command list Basic command Commands for changing the radio mode Voice Voice Phrase Function Phrase Function Recognizable voice commands and their command command actions are shown below. Go back one Change to Switch to AM . Some voice commands may not be hierarchy or mode cancel the...
Page 329 5-105 Audio/Command list Commands for Hands Free Commands for AM/FM control Voice Phrase Function command Voice Voice Phrase Function Phrase Function command command Places a call to the phone Dial Number Tunes in the Redial Redial number of the ? <0-9, +, *, higher fre- latest out- Seek up...
Page 330 5-106 Audio/Command list Commands for CD control Commands for iPod Control Voice Phrase Function command Voice Voice Phrase Function Phrase Function command command Plays from the start of the Folder down Folder Down Track up, Select the Track up, Select the previous Track Up Track Up...
Page 331: Appendix
5-107 Audio/Appendix . How to get the source code using Commands for Bluetooth audio control Appendix the open source & Certification Voice Phrase Function command This system implements software using . Bluetooth the open source. For customers who Pause Pause Pause play would like to get the source code of the The Bluetooth word mark and logo are...
Page 332: Certification For Paraguay Models
5-108 Audio/Appendix & Certification for Paraguay models Record Number: 2014-06-I-000137 Manufacturer: Clarion Co., Ltd. Paraguay Distributor: Tokyo Motors S.A. Avda. Eusebio Ayala 4649 kg 5 1/2 Asuncion, Paraguay...
Page 333 Interior equipment Interior light ............Coat hook............6-11 Dome light ............Shopping bag hook ........... 6-12 Map lights ............For Sedan ............6-12 Cargo area light (Outback)........For Outback ............6-12 OFF delay timer ..........Convenient grip (Outback) ........ 6-12 Sun visors ............
Page 334: Interior Light
Interior equipment/Interior light ! Door interlock switch Interior light DOOR: The dome light illuminates auto- matically when any of the doors (for Outback, including the rear gate) is CAUTION opened. Several seconds after all of the doors (including the rear gate) are closed, the dome light gradually turns off.
Page 335: Cargo Area Light (Outback)
The setting for the period of time in which the lights remain on (OFF delay timer) can After being illuminated automatically, be changed by a SUBARU dealer. We these lights remain on for several seconds recommend that you contact your and then gradually turn off under the SUBARU dealer for details.
Page 336: Sun Visors
Interior equipment/Sun visors & Vanity mirror with light Sun visors Storage compartment CAUTION CAUTION Keep the vanity mirror cover closed . Always keep the storage com- while the car is being driven to avoid partment closed while driving to being distracted by the light. reduce the risk of injury in the event of sudden stops or an accident.
Page 337: Center Console
Interior equipment/Storage compartment & Overhead console close it, push the lid firmly upward. & Center console The center console box provides a sto- rage space. Pen holder Card holder To open the console, push on the lid lightly When the lid inside the center console is and it will automatically open.
Page 338: Pocket
Interior equipment/Cup holders & Pocket Cup holders CAUTION Take care to avoid spills. Beverages, if hot, might burn you and/or your passengers. Spilled beverages may also damage upholstery, carpets or audio equipment. & Front passenger’s cup holder Two cup holders are built into the center CAUTION console.
Page 339: Rear Passenger's Cup Holder
Interior equipment/Bottle holders NOTE The bottle holder equipped on each door Bottle holders trim can be used to hold beverage bottles With the divider taken out, the cup and other items. holder can be used as a storage box. CAUTION &...
Page 340: Accessory Power Outlets
Interior equipment/Accessory power outlets Accessory power outlets console. Electrical power (12V DC) from is 120W. Do not use an appliance the battery is available at any of the outlets which exceeds the indicated wat- when the ignition switch is in either the tage for each outlet.
Page 341: Ashtray (If Equipped)
Interior equipment/Ashtray NOTE Ashtray (if equipped) appliance while driving. When the lid of the center console is closed, a gap remains between the CAUTION center console and the lid to allow the power outlet in the center console to be .
Page 342: Floor Mat (If Equipped)
. Be sure to use a genuine tray’s inner lid. Clean them off using a SUBARU floor mat or an equiva- toothbrush or another narrow-ended lent designed with grommets in implement.
Page 343: Coat Hook
6-11 Interior equipment/Coat hook Coat hook WARNING Do not hang coat hangers or other hard or pointed objects on the coat hooks. If such items were hanging on the coat hooks during deploy- ment of the SRS curtain airbags, they could cause serious injuries by coming off the coat hooks and being thrown through the cabin or by preventing correct airbag deploy-...
Page 344: Shopping Bag Hook
6-12 Interior equipment/Shopping bag hook & For Outback Shopping bag hook Convenient grip (Outback) CAUTION CAUTION . Do not hang items on the con- Do not hang items on the shopping venient grip that weigh 3 kg (6 bag hook that weigh 5 kg (11 lbs) or lbs) or more.
Page 345: Interior Equipment
6-13 Interior equipment/Cargo area cover (Outback) Cargo area cover (Outback) The cargo area cover is provided for covering the cargo area and to protect its contents from direct sunlight. This cover is detachable to make room for additional cargo. & Using the cover To extend the cargo area cover: A convenient grip is attached to the rear 2.
Page 346: To Install The
6-14 Interior equipment/Cargo area cover (Outback) CAUTION . Be careful not to scratch the rear gate stays while extending and rewinding the cover. Scratches on the stays could cause leakage of gas from the stays, which may result in their inability to hold the rear gate open.
Page 347: Stowage Of The Cargo Area Cover
6-15 Interior equipment/Cargo area cover (Outback) & Stowage of the cargo area 2. To keep the lid open, hang the hook (provided on the back of the lid) on the cover rear edge of the roof. The cargo area cover can be stowed in under the cargo floor.
Page 348: To Take Out The Stowed Cover Housing
6-16 Interior equipment/Cargo area cover (Outback) & To take out the stowed cover & To install the cover housing toward the front. housing 5. Insert the left end of the cover housing 1. Insert both ends of the cover housing into the retainer.
Page 349: Cargo Tie-Down Hooks (Outback)
6-17 Interior equipment/Cargo tie–down hooks (Outback) Cargo tie-down hooks Under-floor storage compart- CAUTION (Outback) ment (if equipped) The cargo tie-down hooks are de- signed only for securing light cargo. NOTE Never try to secure cargo that The shape of the storage compartment exceeds the capacity of the hooks.
Page 350: Rear View Camera (If Equipped)
6-18 Interior equipment/Rear view camera Rear view camera (if equipped) NOTE For models without flat tire repair kit, when storing a flat tire, put the storage tray in the trunk (Sedan) or the cargo area (Outback). CAUTION . Always keep the lid of the storage compartment closed while driv- ing to reduce the risk of injury in Sedan (type B)
Page 351 We recommend that you contact . When replacing the fuse, be sure lens may develop white light stripes your SUBARU dealer for an in- to use a fuse with the specified around the light source. This is not a spection. Continued use may rating.
Page 352: How To Use The Rear View Camera
2. Set the shift lever or select lever to “R”. NOTE . For models with the genuine SUBARU navigation system, the image of the rear view camera has priority over other screen displays. Therefore, while the rear view camera is in opera- tion, the operations of other screens are disabled.
Page 353: Help Line
6-21 Interior equipment/Rear view camera tion cannot be seen on the screen. CAUTION The range that can be viewed with the rear view camera is limited. Always be sure to check with your eyes when moving backward and proceed slowly. &...
Page 354 6-22 Interior equipment/Rear view camera . The actual position may be dif- ! When there is an upward slope at ferent from the indication of the the back help lines. . Differences may occur due to number of passengers or loaded cargo.
Page 355 6-23 Interior equipment/Rear view camera ! Feature of distance marker ! When there is a downward slope at the back 1 m (3 feet) line 2 m (6.5 feet) line 1 m (3 feet) 3 m (10 feet) line The distance on the screen looks nearer The distance marker shows the distance than the actual distance.
Page 356 Starting and operating Fuel ..............Power steering........... 7-25 Fuel requirements for petrol engine models ..Braking ............... 7-26 Fuel requirements for diesel engine models ..Braking tips............7-26 Fuel filler lid and cap........... Brake system ............ 7-26 Preparing to drive ..........Disc brake pad wear warning indicators .....
Page 357 Starting and operating To change the cruising speed ......7-47 Auto Start Stop system (if equipped)....7-49 Cruise control indicator ........7-49 System operation..........7-49 Cruise control set indicator ........ 7-49 Displaying the Auto Start Stop system status ..7-52 System warning..........
Page 358: Fuel
If unleaded petrol with an octane rating of . Do not let fuel spill on the exterior the SUBARU Limited Warranty. 95 or higher is not available, unleaded surfaces of the vehicle. Because . The neck of the fuel filler pipe is...
Page 359: Fuel Filler Lid And Cap
Only one person should be involved in fuel, we recommend that you contact a refueling. Do not allow others to approach SUBARU dealer. the area of the vehicle near the fuel filler pipe while refueling is in progress. Be sure to observe any other precautions that are posted at the service station.
Page 360 Starting and operating/Fuel slowly counterclockwise. WARNING WARNING Before opening the fuel filler cap, first touch the vehicle body or a . Fuel vapor is highly flammable. metal portion of the fuel pump or Before refueling, always first similar object to discharge any stop the engine and close all static electricity that may be present vehicle doors and windows.
Page 361 . We recommend that you always Otherwise, the painted surface could be damaged. use a genuine SUBARU fuel filler cap. If you use the wrong cap, it may not fit or have proper vent- ing and your fuel tank and emis-...
Page 362: Preparing To Drive
Starting and operating/Preparing to drive Preparing to drive Starting and stopping engine CAUTION (models without push-button Trapping small animals in the cool- start system) You should perform the following checks ing fan and belts of the engine may and adjustments every day before you result in a malfunction.
Page 363 Starting and operating/Starting and stopping engine (models without push–button start system) NOTE ! General precautions when starting/ and shift the shift lever into neutral. Hold . Avoid rapid racing and rapid accel- the clutch pedal to the floor while starting stopping engine the engine.
Page 364 (4) If the engine still does not start, we warning and indicator lights. Refer to recommend that you contact your “Warning and indicator lights” F3-12. nearest SUBARU dealer for assis- 5. Turn the ignition switch to the “START” tance. position without depressing the accelera- 6.
Page 365: Starting And Operating
7-10 Starting and operating/Starting and stopping engine (models with push–button start system) warning and indicator lights. At this time, vibration is caused by a self-learning Starting and stopping engine confirm that the preheating indicator light procedure of the injector. This learning (models with push-button has illuminated for a few seconds and has procedure is necessary to stabilize the...
Page 366 We recommend that you contact the clutch pedal (MT models) or the a SUBARU dealer immediately. brake pedal (CVT models), the engine . If the indicator on the push- can be started regardless of the power button ignition switch is flashing status.
Page 367 7-12 Starting and operating/Starting and stopping engine (models with push–button start system) NOTE with the select lever in the “N” position, the . In case the engine does not start by indicator does not turn green. the normal engine start procedure, 5.
Page 368: Stopping Engine
Stop the vehicle in a position (CVT models). safe place, and we recommend 3. Press the push-button ignition switch. that you contact a SUBARU deal- The engine will stop, and the power will be er immediately. switched off. CAUTION WARNING .
Page 369: Manual Transmission
7-14 Starting and operating/Manual transmission Manual transmission WARNING . Do not drive the vehicle with the clutch disengaged (i.e., when the clutch pedal is depressed) or with the shift lever in the neutral position. Engine braking has no effect in either of these condi- tions and the risk of an accident is consequently increased.
Page 370 7-15 Starting and operating/Manual transmission at the speeds listed in the following table. the upshift indicator blinks. When shifting The shift-up indicator illuminates to inform down is recommended, the downshift the driver about the upshift timing. Shift up km/h (mph) indicator blinks.
Page 371: Driving Tips
7-16 Starting and operating/Manual transmission NOTE ! Over-rev warning Not doing so could result in serious engine damage. Never exceed posted speed limits. WARNING & Driving tips When shifting down a gear, ensure Do not drive with your foot resting on the that the vehicle is not travelling at a clutch pedal and do not use the clutch to speed exceeding the Maximum Al-...
Page 372: Continuously Variable Transmission
7-17 Starting and operating/Continuously variable transmission into the “R” position or vice most appropriate times for the current Continuously variable trans- condition of your vehicle. Optimized versa until the vehicle has com- mission shifting will be restored as the vehicle pletely stopped.
Page 373: Select Lever
7-18 Starting and operating/Continuously variable transmission ! N (Neutral) & Select lever ! P (Park) This position is for restarting a stalled This position is for parking the vehicle and engine. starting the engine. In this position the wheels and transmis- In this position, the transmission is me- sion are not locked.
Page 374: Shift Lock Function
7-19 Starting and operating/Continuously variable transmission NOTE “OFF” position (models with “keyless ! D (Drive) access with push-button start system”). Diesel engine models: This position is for normal driving. The . If the ignition switch is turned to the When depressing the brake pedal with transmission shifts automatically and con- the select lever in the “D”...
Page 375: Selection Of Manual Mode
If you must perform the above procedure, the shift lock system (or the vehicle control system) may be malfunctioning. We re- commend that you contact a SUBARU dealer for an inspection as soon as possible. If the select lever does not move after performing the above procedure, refer to “Shift lock release using the shift lock...
Page 376 7-21 Starting and operating/Continuously variable transmission both indicators are on, upshifting and the current gear condition. downshifting are both possible. When the CAUTION vehicle stops (for example, at traffic signals), the downshift indicator turns off. Do not place or hang anything on Gearshifts can be performed using the the shift paddles.
Page 377: Driving Tips
“D” position. Use the brake instead. ! Gear shift indicator (if equipped) . The engine may, on rare occasions, SI-DRIVE (SUBARU Intelligent Drive) When shifting up is recommended for knock when the vehicle rapidly acceler- works to maximize engine performance, good fuel economy, the upshift indicator ates or rapidly pulls away from a standstill.
Page 378: Intelligent (I) Mode
7-23 Starting and operating/SI–DRIVE (petrol engine models) & Intelligent (I) mode & Sport (S) mode & Sport Sharp (S#) mode (3.6 L models) ! For smooth, efficient performance ! For all-around performance driving ! For maximum performance driving driving The Sport (S) mode provides the engine power desired by those who want to make The linear acceleration characteristic of For sports-minded drivers, the Sport...
Page 379: Drive Switches
We recommend that you con- vehicle is in the Sport Sharp (S#) mode, . The next time you turn on the tact your SUBARU dealer. it changes to the Sport (S) mode when engine, after you turned off the engine the engine coolant temperature in- ! 3.6 L models...
Page 380: Power Steering
Power steering wheel is operated. We recommend turned off. that you drive carefully to the near- est SUBARU dealer and have the vehicle inspected immediately. NOTE If the steering wheel is operated in the following ways, the power steering...
Page 381: Braking
7-26 Starting and operating/Braking ! Braking when a tire is punctured trol system may result in a malfunction. Braking Do not depress the brake pedal suddenly & Braking tips when a tire is punctured. This could cause a loss of control of the vehicle. Keep WARNING driving straight ahead while gradually reducing speed.
Page 382: Disc Brake Pad Wear Warning Indicators
However, even recommend that you immediately have though these occur, they do not indi- your vehicle checked by your SUBARU WARNING cate any malfunctions, and the brake dealer. assist system is operating properly.
Page 383: Abs (Anti-Lock Brake System)
7-28 Starting and operating/ABS (Anti–lock Brake System) & ABS warning light ABS (Anti-lock Brake Sys- following distance from other vehicles. tem) Refer to “ABS warning light” F3-19. . When driving on badly surfaced roads, gravel roads, icy roads, or The ABS system prevents the lock-up of over deep newly fallen snow, wheels which may occur during sudden stopping distances may be long-...
Page 384: Electronic Brake Force Distribution (Ebd) System
ABS system and uses some of the ABS We recommend that you drive carefully to system’s components to perform its func- the nearest SUBARU dealer and have the tion of optimizing the distribution of brak- system inspected. ing force. If any of the ABS components...
Page 385: Vehicle Dynamics Control System
Starting and operating/Vehicle Dynamics Control system Instead, we recommend that you have the Vehicle Dynamics Control when driving the vehicle in such vehicle towed to the nearest SUBARU a condition. system dealer for repair. . Activation of the Vehicle Dy-...
Page 386: Vehicle Dynamics Control System Monitor
7-31 Starting and operating/Vehicle Dynamics Control system slippery road surfaces, thereby helping to vehicle may be less stable than it feels should be the same for all four maintain traction and directional control. to the driver. The Vehicle Dynamics tires. Activation of this function is indicated by Control System may therefore operate.
Page 387: Vehicle Dynamics Control Off Switch
7-32 Starting and operating/Vehicle Dynamics Control system Dynamics Control OFF indicator light” F3- . extrication of the vehicle when its Control system automatically reacti- wheels are stuck in mud or deep snow vates itself the next time the ignition switch is turned to the “LOCK”/“OFF” When the switch is pressed during engine &...
Page 388: X-Mode (Outback Cvt Models)
When tremely steep downhill, frozen, authorized SUBARU dealer. the hill descent control indicator muddy or sandy roads. Failure disappears, the hill descent con- . The following precautions should to control the vehicle’s speed...
Page 389: To Activate/Deactivate The X-Mode
7-34 Starting and operating/X–mode (Outback CVT models) . Hill descent control function: (25 mph) or more while the X-mode is activated, a buzzer will sound once and Using the hill descent control function, you the X-mode will be deactivated. can keep the vehicle at a consistent speed .
Page 390: Hill Descent Control Function
7-35 Starting and operating/X–mode (Outback CVT models) . The hill descent control function is engine could overheat because of a mode. It flashes while the function is temperature increase of the engine operable regardless of the gradient of operating. It will disappear when the coolant, it is not possible to activate the road.
Page 391: Parking Your Vehicle
Starting and operating/Parking your vehicle & Electronic parking brake Parking your vehicle tires to prevent the vehicle from moving and we recommend that you contact your SUBARU deal- WARNING . Never leave unattended children or pets in the vehicle. They could CAUTION accidentally injure themselves or .
Page 392 7-37 Starting and operating/Parking your vehicle . Never drive while the parking (MT models), the parking brake is not released. brake is applied because this will . The electronic parking brake system cause unnecessary wear on the uses motors to apply the parking brake linings.
Page 393 7-38 Starting and operating/Parking your vehicle – The parking brake overheats. . For models with Auto Start Stop automatically released even when the – The vehicle is parked on a steep system, when starting the engine or accelerator pedal is depressed. restarting the engine using the Auto slope.
Page 394 7-39 Starting and operating/Parking your vehicle ! Hill Holder switch tion may not operate properly. How- for more than 30 seconds, the Hill ever, this is not a malfunction. When Holder indicator light turns off, electro- stopping on an uphill slope, depress nic parking brake warning light illumi- the brake pedal firmly and release it nates and the system ignores any...
Page 395: Parking Tips
Refer to “Electronic parking brake and we recommend that you contact be turned away from the curb. warning light (yellow)” F3-22 and “Elec- your SUBARU dealer. tronic parking brake indicator light” F3-23. & Parking tips When parking your vehicle, always per- form the following items.
Page 396: Hill Start Assist System (Mt Models)
7-41 Starting and operating/Hill start assist system (MT models) Hill start assist system (MT models) WARNING . The Hill start assist system is a device only for helping the driver to START the vehicle on an uphill grade. To prevent accidents when the vehicle is parked on a slope, be sure to firmly set the parking brake.
Page 397: To Activate/Deactivate The Hill Start Assist System
7-42 Starting and operating/Hill start assist system (MT models) assist system when the brake pedal is released. The driver is therefore able to When using the Hill start assist system, a start the vehicle the same way as on a braking effect may be felt even after the level grade, just using the clutch and brake pedal has been released.
Page 398: Tire Pressure Monitoring System (Tpms) (If Equipped)
We recommend warm and their pressures increase installed in each wheel when a tire that you contact your SUBARU deal- accordingly. Be sure to let the tires pressure is severely low relative to the er as soon as possible for tire and cool thoroughly before adjusting selected TPMS mode.
Page 399: Tpms Mode Setting
If the Loading mode light illuminates steadily after blink- ing for approximately one minute, Towing mode we recommend that you promptly contact a SUBARU dealer to have ! Liquid-crystal type meter display the system inspected. TPMS1: Normal mode CAUTION...
Page 400: Cruise Control
7-45 Starting and operating/Cruise control Cruise control NOTE For models with EyeSight system: Refer to the Owner’s Manual supple- ment for the EyeSight system. Cruise control enables you to maintain a constant vehicle speed without holding your foot on the accelerator pedal and it is operative when the vehicle speed is 30 km/h (20 mph) or more.
Page 401: To Set Cruise Control
We recommend that you contact your SUBARU dealer for an inspection. . Make sure the cruise control system is turned off when the cruise control is not in use to avoid unintentionally setting the cruise control.
Page 402: To Temporarily Cancel The Cruise Control
7-47 Starting and operating/Cruise control & To turn off the cruise control accelerator pedal to accelerate the vehi- driving. If the select lever is shifted into the “N” position, cruise control cle. When the accelerator pedal is re- There are two ways to turn off the cruise leased, the vehicle will return to and can be canceled but the engine control.
Page 403 7-48 Starting and operating/Cruise control When setting the displayed unit as is set and the vehicle will keep running at When setting the displayed unit as “MPH”: “km/h”: that speed without depressing the accel- erator pedal. The set speed can be increased 1 mph The set speed can be decreased 1 km/h each time by pressing the “RES/SET”...
Page 404 . the rear window defogger is not in use commend that you consult your . the defroster is not in use SUBARU dealer. Continuing to drive the vehicle while using the . the air conditioner is not in use or used...
Page 405 . the temperature of the CVT fluid is not set to any temperature setting except the with a genuine SUBARU battery (or maximum heating or maximum cooling abnormally high settings (refer to “Temperature control”...
Page 406 SUBARU dealer as soon as possi- ble. Auto Start Stop warning light (yellow) When the engine is temporarily stopped...
Page 407 7-52 Starting and operating/Auto Start Stop system display. For details, refer to “Basic Stop OFF indicator light on the combina- screens” F3-39. tion meter will then illuminate in yellow. If the switch is pressed once more, the Auto & System warning Start Stop system will turn on again.
Page 408: Driving Tips
Driving tips New vehicle break-in driving – the first Corrosion protection.......... 8-13 1,600 km (1,000 miles) ........Snow tires ............8-13 Tire chains ............8-13 Fuel economy hints ..........Rocking the vehicle ........... 8-14 Engine exhaust gas (carbon monoxide).... Loading your vehicle......... 8-14 Catalytic converter ..........
Page 409: New Vehicle Break-In Driving - The First 1,600 Km (1,000 Miles)
Driving tips/New vehicle break–in driving – the first 1,600 km (1,000 miles) New vehicle break-in driving Fuel economy hints Engine exhaust gas (carbon – the first 1,600 km (1,000 monoxide) miles) The following suggestions will help to save your fuel. WARNING The performance and long life of your .
Page 410: Catalytic Converter
Driving tips/Catalytic converter Catalytic converter exhaust fumes are entering the vehicle, have t he probl em checked and corrected as soon as possible. If you must drive under these conditions, drive only with all windows fully open. . Keep the trunk lid (Sedan) or rear gate (Outback) closed while driv- ing to prevent exhaust gas from entering the vehicle.
Page 411: Diesel Particulate Filter (Diesel Engine Models)
SUBARU dealer. . Do not apply undercoating or rust prevention treatment to the heat shield of catalytic converter and the exhaust sys- tem.
Page 412: Periodic Inspections
Therefore, we recommend that you contact your SUBARU dealer for service or maintenance of the diesel particulate filter. Fully trained me- chanics are on standby at the SUBARU dealer to utilize the special tools and spare parts.
Page 413: Driving Tips For Awd Vehicles
Driving tips/Driving tips for AWD vehicles Driving tips for AWD vehicles obey the specification that is CAUTION printed on the tire placard. The tire placard is located on the If you use a temporary spare tire to WARNING bottom of the driver’s door pillar. replace a flat tire, be sure to use the original temporary spare tire stored .
Page 414: Outback
Driving tips/Driving tips for AWD vehicles & Outback stress. AWD vehicles should be driven mud or puddle. Do this by driving slowly only under the same conditions suitable and stepping on the brake pedal. Repeat All-Wheel Drive distributes the engine for ordinary front wheel drive vehicles.
Page 415: Off Road Driving
Off road driving under warranty. If you do take your ing items than that specified in “Mainte- SUBARU off road, you should review the nance schedule” F11-3. common sense precautions in the next – Engine oil...
Page 416 AWD all times. When driving off-road, you will water should be shallow enough that it SUBARU is a passenger car and is not have the benefit of marked traffic does not reach the vehicle’s undercar-...
Page 417: Winter Driving
8-10 Driving tips/Winter driving mode” F7-20. Winter driving SUBARU Windshield Washer Fluid con- tains 58.5% methyl alcohol and 41.5% ! After driving & Operation during cold surfactant, by volume. Its freezing tem- . Always check your brakes for effec- perature varies according to how much it...
Page 418 Clear away ice and snow that has icing may develop on the brake If your SUBARU is not going to be used accumulated under the fenders to avoid system, which could cause poor making steering difficult. During severe for an extended period, it is best to have braking action.
Page 419: Driving On Snowy And Icy Roads
8-12 Driving tips/Winter driving & Driving on snowy and icy to stick on the surface of the windshield CAUTION despite wiper operation, use the defroster roads with the airflow selection in “ ” and the Avoid prolonged continuous driving To prevent skidding and slipping, avoid temperature set for maximum warmth.
Page 420: Corrosion Protection
8-13 Driving tips/Winter driving (f) Manufacturer to an accident. CAUTION (g) Brand (tread pattern) In winter, it may be possible to enhance During high-speed driving, non- (h) Degrees of wear performance through use of tires designed freezing type wiper blades may not specifically for winter driving conditions.
Page 421: Rocking The Vehicle
Driving tips/Loading your vehicle in 2nd than 1st (both for MT and CVT). Loading your vehicle nearest SUBARU dealer. If your vehicle is a CVT model, for If you need to use the tire chains for information about holding the transmission...
Page 422: Roof Rack (Outback) (Dealer Option)
8-15 Driving tips/Loading your vehicle of a sudden stop or a collision. WARNING CAUTION This could cause serious injury. . For cargo carrying purposes, the Never stack luggage or other cargo higher than the top of the seatback roof rail must be used together CAUTION because it could tumble forward and with the roof rack.
Page 423: Roof Rails With Integrated Crossbars (Outback - If Equipped)
A roof rack set is designed to genuine SUBARU carrying attachment or carry loads (cargo and attachments) of not an equivalent. more than 75 kg (165 lbs). Before...
Page 424 SUBARU carrying at- securely fixed to the crossbars. Use only tachment or an equivalent. The attachments designed specifically for the bars must never be used alone to crossbars.
Page 425 8-18 Driving tips/Loading your vehicle 3. Install the bars into the holders. 2. Undo the cap of the roof rail holder by 4. Pull out the crossbar from the roof rail using the torque wrench. holder by pulling up the cover. 4.
Page 426 8-19 Driving tips/Loading your vehicle torque is approximately 12 + 3.0 N·m (1.2 + 0.3 kgf·m, 8.9 + 2.2 lbf·ft). 1. Pull out the crossbars from the roof rail 3. Install the bars into the holders. holders by pulling up the covers. 4.
Page 427: Trailer Towing
. Safety performance is decreased recommend that you seek the advice of (1,000 miles) of driving. and there is increased risk of your SUBARU dealer to assist you in injury to passengers in the case purchasing a hitch and other necessary & Towing weight...
Page 428: Trailer Hitches (Dealer Option)
& Trailer hitches (dealer option) & Side mirrors increase the load on the vehicle. Both the maximum permissible weight (MPW) and The use of a genuine SUBARU trailer maximum permissible rear axle weight hitch is recommended. We recommend (rear MPAW) must not be exceeded.
Page 429: Trailer Lights
You should can result in failure of the spare tire that you consult your SUBARU dealer. also keep the following tips in and/or less stability of the vehicle Check for proper operation of the turn mind.
Page 430 8-23 Driving tips/Trailer towing . Check that the vehicle and trailer are If your vehicle is equipped with SI-DRIVE, longer than normal turning radius because and when towing a trailer on an uphill connected properly. Confirm that: the trailer wheels will be closer than the –...
Page 431: Additional Information For Europe
TEMP warning light (CVT models)” and shut off the engine. F3-17. repairs performed immediately by your . For CVT models, avoid using the nearest SUBARU dealer. & Additional information for ! Driving on grades accelerator pedal to stay stationary on Europe an uphill slope instead of using the .
Page 432 8-25 Driving tips/Trailer towing ! Maximum permissible vehicle Rear MPAW at towing Model MPW at towing (kg) weight (MPW) and maximum per- (kg) missible rear axle weight (rear 2.5 L non-turbo petrol engine 2,130 MPAW) for trailer towing Sedan 1,200 3.6 L petrol engine 2,180 2,210...
Page 433 8-26 Driving tips/Trailer towing ! The technically permissible maxi- mum mass at the coupling point (ball coupling load) 90 kg ! Mounting points of the coupling device The mounting points of the coupling on the towing vehicle are shown in the diagram. Sedan Maximum permissible rear overhang for the coupling point: 1,141 mm (45 in) Coupling...
Page 434 8-27 Driving tips/Trailer towing Outback Maximum permissible rear overhang for the coupling point: 1,157 mm (46 in) Coupling Fixing points: Three places on the side of the rear frame and four places on the rear side of the rear frame for each side Rear frame...
Page 435: In Case Of Emergency
In case of emergency If you park your vehicle in case of an Using a flat-bed truck......... 9-27 emergency ............Towing with all wheels on the ground....9-28 Electronic parking brake – if the electronic Temporary spare tire (if equipped) ....parking brake cannot be released....
Page 436: If You Park Your Vehicle In Case Of An Emergency
(TPMS) is un- The hazard warning flasher can be acti- able to monitor all four road vated regardless of the ignition switch wheels. Contact your SUBARU position. dealer as soon as possible for Turn on the hazard warning by pressing tire and sensor replacement and/ the hazard warning flasher switch.
Page 437: Maintenance Tools
In case of emergency/Maintenance tools spare tires at the same time. Maintenance tools CAUTION . Do not drive over obstacles. This tire . Never use any temporary spare has a smaller diameter, so road clearance Your vehicle is equipped with the following tire other than the original.
Page 438: Sedan
In case of emergency/Maintenance tools & Sedan NOTE Wheel nut wrench Jack This jack complies with the Machinery ! Models without flat tire repair kit Towing hook (eye bolt) Directive 2006/42/EC. A copy of the Jack handle original Declaration of Conformity is found in chapter 13.
Page 439: Outback
In case of emergency/Maintenance tools & Outback ! Models with flat tire repair kit Screwdriver Flat tire repair kit ! Models without flat tire repair kit Jack Towing hook (eye bolt) The maintenance tools are stored in the pocket of the under-floor storage compart- ment.
Page 440 In case of emergency/Maintenance tools Wheel nut wrench ! Models with flat tire repair kit Towing hook (eye bolt) Screwdriver Screwdriver Jack Wheel nut wrench Towing hook (eye bolt) Jack The jack handle is stored under the cargo The jack handle is stored under the cargo area.
Page 441: Flat Tires
In case of emergency/Flat tires . Always turn off the engine before ever possible, then stop the engine. Flat tires raising the flat tire off the ground 2. Apply the parking brake and shift the using the jack. Never swing or shift lever to the reverse position (MT If you have a flat tire while driving, never models) or the select lever to the “P”...
Page 442 In case of emergency/Flat tires Turn the attaching bolt counterclockwise, Turn the jackscrew by hand until the jack 7. Loosen the wheel nuts using the wheel then take the spare tire out. head engages firmly into the jack-up point. nut wrench but do not remove the nuts. NOTE If the spare tire provided in your vehicle is a temporary spare tire, read carefully...
Page 443 In case of emergency/Flat tires 10. Insert the jack handle into the jack- 12. Before putting the spare tire on, clean 15. Use the wheel nut wrench to securely screw, and turn the handle until the tire the mounting surface of the wheel and hub tighten the wheel nuts to the specified clears the ground.
Page 444: Sealing Flat Tire (Models With Flat Tire Repair Kit)
We recommend that you have the sealed tire changed by your flat tire repair kit) nearest SUBARU dealer. You may reuse the wheel if the attached sealant is wiped WARNING off, but the valve of the wheel must be replaced with a new one.
Page 445 We recommend that accident or injury due to the fact you consult your SUBARU dealer – When the tire has been taken that compressed air can act as or tire dealer for advice.
Page 446 9-12 In case of emergency/Flat tires ! Location of the flat tire repair kit ! Contents of the flat tire repair kit Compressor (front side) The flat tire repair kit is stored under the Air vent button Bottle of sealant Pressure gauge floor of the cargo area.
Page 447 9-13 In case of emergency/Flat tires WARNING . Do not drink the sealant. If the sealant is accidentally swal- lowed, seek medical attention immediately. . If the sealant splashes onto your skin or eyes, wash it away im- mediately with plenty of water. If necessary, seek medical atten- tion immediately.
Page 448 9-14 In case of emergency/Flat tires CAUTION CAUTION Replace the sealant bottle with a Be careful not to spill the sealant. new one before the expiration date passes. ! How to seal the flat tire To seal the flat tire, perform the following two steps.
Page 449 8. Insert the power cord of the compres- mage, do not attempt to inflate sor into the accessory power outlet. the tire. Contact your SUBARU 9. Apply the parking brake and turn the dealer or a road service. ignition switch to the “ACC” position.
Page 450 11. Attach the speed limit label in the kPa for 10 minutes, you cannot position shown in the illustration. repair the tire with the flat tire repair kit. Contact your SUBARU dealer or WARNING a road service. Do not attach the label to the steer-...
Page 451 9-17 In case of emergency/Flat tires . If heavy vibrations, unsteady CAUTION steering behavior or noises oc- cur while driving, reduce your Be careful that sealant does not leak speed and drive with caution to a onto skin or fabric. location where it is safe for you to stop the vehicle.
Page 452 Running the engine in a non-venti- Contact your SUBARU dealer or a lated or poorly ventilated area (e.g., road service. inside a building) may cause as- phyxiation.
Page 453: Tire Pressure Monitoring System (Tpms) (If Equipped)
. Do not tow a trailer. repair shop or SUBARU dealer, and they should also be installed into the 12. Drive to the nearest SUBARU dealer kit by a specialist. Empty sealant or other workshop to have the damaged bottles and replacement parts must be tire replaced.
Page 454: Jump Starting
TPMS is unable to monitor all WARNING four road wheels. We recommend & Battery Precautions! that you contact your SUBARU deal- If the low tire pressure warning light er as soon as possible for tire and illuminates while driving, never...
Page 455 9-21 In case of emergency/Jump starting and protective gloves when inspect- can cause blindness and burns. gen gas. To prevent an explosion, ing your vehicle’s battery. Avoid charge your vehicle’s battery in a tipping the battery and subjecting it well ventilated area and keep flames Keep flames away: to shocks since this could cause away.
Page 456: How To Jump Start
9-22 In case of emergency/Jump starting for jump starting, consult a com- petent mechanic. CAUTION The battery used for boosting must be 12 V. Do not jump start unless you are sure that the booster battery is correct. When your vehicle does not start due to a run down (discharged) battery, the vehicle may be jump started by connecting your battery to another battery (called the...
Page 457 9-23 In case of emergency/Jump starting (1) Connect one jumper cable to the positive (+) terminal on the discharged battery. (2) Connect the other end of the jumper cable to the positive (+) term- inal of the booster battery. (3) Connect one end of the other cable to the negative (−) terminal of the booster battery.
Page 458: Engine Overheating
If towing is necessary, it is best done by WARNING Confirm that the cooling fan is turning. If your SUBARU dealer or a commercial the fan is not turning, immediately turn off towing service. Observe the following Never attempt to remove the radia- the engine and contact your authorized procedures for safety.
Page 459: Towing Hooks And Tie-Down Hooks/Holes
9-25 In case of emergency/Towing longer be seen. WARNING Never tow AWD vehicles with the front wheels raised off the ground while the rear wheels are on the ground, or with the rear wheels raised off the ground while the front wheels are on the ground.
Page 460 9-26 In case of emergency/Towing . Be sure to remove the towing 2. Pry off the cover on the rear bumper using a flat-head screwdriver, and you will hook after towing. Leaving the find a threaded hole for attaching the towing hook mounted on the towing hook.
Page 461: Using A Flat-Bed Truck
9-27 In case of emergency/Towing Rear tie-down holes: the plugs. After using the rear tie-down CAUTION holes, return the plugs to their original places. To prevent deformation to the bum- per and the towing hook, do not WARNING apply excessive lateral load to the towing hook.
Page 462: Towing With All Wheels On The Ground
We recommend that you contact your cause the steering wheel and the care must be taken not to pull the chains SUBARU dealer and have your SUBARU direction of the wheels will be so tightly that the suspension bottoms out.
Page 463: Access Key - If Access Key Does Not Operate Properly
9-29 In case of emergency/Access key – if access key does not operate properly & Locking and unlocking Access key – if access key models) or the select lever into the “P” position (CVT models). does not operate properly 3. Depress the clutch pedal (MT models) or brake pedal (CVT models).
Page 464: Starting Engine
SUBARU dealer. Left-hand drive models clutch pedal (MT models) or brake pedal (CVT models) released. The status of the push-button ignition switch then changes to “ON”.
Page 465: Trunk Lid (Sedan) - If The Trunk Lid Cannot Be Opened
9-31 In case of emergency/Trunk lid (Sedan) – if the trunk lid cannot be opened Trunk lid (Sedan) – if the Rear gate (Outback) – if the Always use a flat-head screwdriver or a similar tool. trunk lid cannot be opened rear gate cannot be opened In the event that you cannot open the In the event that you cannot open the rear...
Page 466: Power Rear Gate - If Power Rear Gate Does Not Operate Properly
! When the rear gate is stuck at the this operation, we recommend that you fully open position or does not fully have the vehicle checked at a SUBARU close dealer. 1. Gently close the rear gate by hand until it reaches the half-shut position.
Page 467: When The Rear Gate Cannot Be Opened
In case of emergency/Running out of fuel (diesel engine models) (Outback) – if the rear gate cannot be Running out of fuel (diesel checked at a SUBARU dealer. opened” F9-31. engine models) If the rear gate cannot be closed due to a 2.
Page 468: If Your Vehicle Is Involved In An Accident
If the engine still does not start the second activated. time, we recommend that you contact your Models without “keyless access with nearest SUBARU dealer for assistance. push-button start system”: 4. After starting the engine, depress the 1. Turn the ignition switch to the “LOCK”...
Page 469 9-35 In case of emergency/If your vehicle is involved in an accident Models with “keyless access with push-button start system”: 1. Turn the push-button ignition switch to the “ACC” or “OFF” position. 2. Restart the engine.
Page 470: Appearance Care
Appearance care Exterior care ............10-2 Cleaning the interior.......... 10-5 Washing............. 10-2 Seat fabric ............10-5 Waxing and polishing ......... 10-3 Leather seat materials........10-5 Cleaning aluminum wheels ......... 10-4 Synthetic leather upholstery....... 10-6 Corrosion protection.......... 10-4 Climate control panel, audio panel, instrument panel, console panel, switches, combination Most common causes of corrosion .....
Page 471: Exterior Care
10-2 Appearance care/Exterior care Exterior care The best way to preserve your vehicle’s wiper. If the wiper switch is in the “AUTO” position while washing beauty is frequent washing. Wash the & Washing vehicle at least once a month to avoid the vehicle, the wipers may oper- contamination by road grime.
Page 472: Waxing And Polishing
Always wash and dry the vehicle before in doubt, we recommend that you always the underbody. waxing and polishing. contact your SUBARU dealer or an auto Carefully flush the suspension and axle Use a good quality polish and wax and paint specialist.
Page 473: Cleaning Aluminum Wheels
. It is driven in areas of high humidity, be given an appropriate rust prevention treatment or should be replaced. We especially when temperatures range just above freezing. recommend that you contact your . Dampness in certain parts of the SUBARU dealer to perform this kind of...
Page 474: Cleaning The Interior
If your SUBARU is to be parked for a long time in bright sunlight, it is recommended that the seats and head restraints be covered, or the windows shaded, to prevent fading or shrinkage.
Page 475: Synthetic Leather Upholstery
Use a soft, damp cloth to clean the climate The synthetic leather material used on the any remaining detergent. control panel, audio equipment, instru- SUBARU may be cleaned using mild soap ment panel, center console, combination CAUTION or detergent and water, after first vacuum- meter panel, and switches.
Page 476: Maintenance And Service
Maintenance and service Maintenance schedule ........11-3 Recommended grade and viscosity ....11-27 Continuously variable transmission fluid ..11-28 Maintenance precautions........11-7 Front differential gear oil (CVT models) and Before checking or servicing in the engine rear differential gear oil........ 11-28 compartment............
Page 477 Maintenance and service Tire replacement ..........11-39 Front turn signal light ........11-51 Wheel replacement........... 11-40 Front fog light..........11-51 Aluminum wheels (if equipped) ...... 11-40 Rear combination lights ........11-53 Back-up light/Rear fog light (if equipped) Windshield washer fluid ........11-41 (Sedan)............
Page 478: Maintenance Schedule
Therefore there may be special requirement in your country. We recommend that you ask your authorized SUBARU dealer for the actual maintenance schedule applied to your vehicle. Continue periodic maintenance beyond 120,000 km (75,000 miles) or 96 months by returning to the second column of the maintenance schedule and adding 120,000 km (75,000 miles) or 96 months to the column headings.
Page 479 Drive belt km (100,000 miles) Cooling system, hoses and connections 1st replacement: 132 months (11 years)/220,000 km (137,500 Replace engine coolant (SUBARU Super miles) Coolant or equivalent) On and after the 2nd replacement: Every 72 months (6 years)/ 120,000 km (75,000 miles)
Page 480 11-5 Maintenance and service/Maintenance schedule MAINTENANCE INTERVAL (Number of months or km (miles), whichever occurs first) MAINTENANCE Months REMARKS ITEM 6 1,000 km 6 1,000 miles Transmission/differential (front & rear) See NOTE 4) lubricants (gear oil) Continuously variable transmission fluid See NOTE 6) Brake fluid See NOTE 5)
Page 481 11-6 Maintenance and service/Maintenance schedule NOTE 1) When the vehicle is used under severe driving conditions mentioned in the following examples*, the engine oil and oil filter should be changed more frequently. 2) When the vehicle is used under severe driving conditions mentioned in the following examples*, inspection should be performed at every 15,000 km (9,000 miles) or 12 months whichever occurs first.
Page 482: Maintenance Precautions
SUBARU dealer. that you consult your nearest . Never get under the vehicle sup- SUBARU dealer. If you perform maintenance and service ported only by a jack.
Page 483: When Checking Or Servicing In The Engine Compartment
11-8 Maintenance and service/Maintenance precautions & When checking or servicing could result in serious injury. To has stopped. avoid risk of injury, perform the in the engine compartment following precautions. & When checking or servicing – Models with push-button start in the engine compartment system: while the engine is running...
Page 484: Maintenance Tips
11-9 Maintenance and service/Maintenance tips Maintenance tips Some clips and fender linings must be removed before replacing the air cleaner elements or specific bulbs. & Removing and reinstalling clips ! Removing clips There are several types of clips used for your vehicle.
Page 485 11-10 Maintenance and service/Maintenance tips ! Reinstalling clips ! Type B clips ! Type C clips Type A clips 1. Pull out the center portion of the clip 1. Turn the clip counterclockwise using a using a flat-head screwdriver as shown in Phillips screwdriver until the center portion the illustration.
Page 486: Engine Hood
. Do not install accessories other WARNING than genuine SUBARU parts or an equivalent to the engine hood. Always check that the hood is If the engine hood becomes too properly locked before you start heavy, the stay may not be able driving.
Page 487 11-12 Maintenance and service/Engine hood 3. Release the secondary hood release by moving the lever between the front grille and the hood toward the left. 4. Lift up the hood. To close the hood: 1. Lower the hood to a height of approxi- mately 15 cm (5.9 in) above its closed position and then let it drop.
Page 488: Engine Compartment Overview
11-13 Maintenance and service/Engine compartment overview Brake fluid reservoir (page 11-28) Engine compartment overview Fuse box (page 11-47) & 2.5 L models Windshield washer tank (page 11-41) Battery (page 11-46) Engine oil filler cap (page 11-16) Engine coolant reservoir (page 11-23) Radiator cap (page 11-23) Engine oil filter (page 11-19) Engine oil level gauge (page 11-16)
Page 489: L Models
11-14 Maintenance and service/Engine compartment overview & 3.6 L models Brake fluid reservoir (page 11-28) Fuse box (page 11-47) Windshield washer tank (page 11-41) Battery (page 11-46) Engine oil filler cap (page 11-16) Engine coolant reservoir (page 11-23) Radiator cap (page 11-23) Engine oil level gauge (page 11-16) Air cleaner case (page 11-24) The illustration above is for left-hand drive models.
Page 490: Turbo Diesel Engine Models
11-15 Maintenance and service/Engine compartment overview & Turbo diesel engine models Priming pump (page 9-33) Brake fluid reservoir/Clutch fluid reservoir (MT) (page 11-28) Engine oil filter (page 11-19) Fuse box (page 11-47) Windshield washer tank (page 11-41) Battery (page 11-46) Engine oil filler cap (page 11-16) Engine coolant reservoir (page 11-23) Radiator cap (page 11-22)
Page 491: Engine Oil
1 liter every 2,000 kilometers or 1 & Engine oil consumption quart every 1,200 miles, contact your Some engine oil will be consumed while SUBARU dealer who may perform a test driving. Under the following conditions, oil under controlled conditions. consumption can be increased and thus...
Page 492 11-17 Maintenance and service/Engine oil 3. Be sure the level gauge is correctly inserted until it stops (for 3.6 L models, with the graphic symbol “ ” on its top appearing as shown in the illustration). 2.5 L models Full level Low level Approximately 1.0 liter (1.1 US qt, 0.9 Imp qt) from low level to full level...
Page 493 11-18 Maintenance and service/Engine oil ! Diesel engine CAUTION NOTE . For 2.5 L models, be careful not Make sure to check the engine oil level to touch the engine oil filter when 5 minutes after the engine stops. Wait- removing the oil filler cap.
Page 494: Changing The Oil And Oil Filter
11-19 Maintenance and service/Engine oil 4. Be sure the level gauge is correctly CAUTION inserted until it stops with the graphic symbol “ ” on its top appearing as . Use only engine oil with the shown in the illustration. recommended grade and vis- cosity.
Page 495 15 seconds. expert. We recommend that you con- After engine oil and the oil filter have been tact your SUBARU dealer for changing replaced, the oil replacement data should the engine oil and oil filter. Fully trained be reset.
Page 496: Recommended Grade And Viscosity
11-21 Maintenance and service/Engine oil (2) Turn the headlight switch to the following position. – “ ” position (except Australia models) – “ ” position (Australia models) Australia models Preheating indicator light (3) Push the rear window defogger 5. Preheating indicator light will blink switch to OFF.
Page 497: Synthetic Oil
If the radiator cooling fan does not operate SUBARU Super Coolant or an even when the engine coolant tempera- equivalent (non-amine type cool- ture gauge exceeds the normal operating ant).
Page 498: Engine Coolant
& Engine coolant we recommend that you have the cooling Check the coolant level at each fuel stop. system checked by your SUBARU dealer. 1. Check the coolant level on the outside ! Checking the coolant level of the reservoir while the engine is cool.
Page 499: Air Cleaner Element
(rear). CAUTION When replacing the air cleaner ele- ment, we recommend that you use a genuine SUBARU air cleaner ele- ment. If it is not used, there is the possibility of causing a negative effect to the engine.
Page 500 If the inside of the air cleaner case is extremely soiled (for example, by sand), we recommend that you con- tact a SUBARU dealer and have the air cleaner case cleaned. 4. If you find large foreign objects such as leaves inside the air cleaner case, remove the foreign objects.
Page 501 If the inside of the air cleaner case is extremely soiled (for example, by sand), we recommend that you con- tact a SUBARU dealer and have the air cleaner case cleaned. 3. If you find large foreign objects such as leaves inside the air cleaner case, remove the foreign objects.
Page 502: Spark Plugs (Petrol Engine Models)
SUBARU dealer. & Recommended grade and maintenance schedule. We recommend The spark plugs should be replaced that you consult your SUBARU dealer for viscosity according to the maintenance schedule. replacement. Each oil manufacturer has its own base Refer to “Maintenance schedule”...
Page 503: Continuously Variable Transmission Fluid
However, . Never let brake fluid contact your gear oil level, we recommend that you if necessary, we recommend that you consult your SUBARU dealer for inspec- eyes because brake fluid can be consult your SUBARU dealer for inspec- tion.
Page 504: Recommended Brake Fluid
Refer to “Fluids” F12-11. you suspect a problem, we re- commend that you have the CAUTION vehicle checked at your SUBARU dealer. Never use different brands of brake fluid together. Also, avoid mixing DOT 3 and DOT 4 brake fluids even if CAUTION they are the same brand.
Page 505: Clutch Fluid (Mt Models)
(shaded area in the illustration). If the fluid commend that you have the level is below “MIN”, add the recom- vehicle checked at your SUBARU mended clutch fluid to “MAX”. dealer. Use only clutch fluid from a sealed .
Page 506: Recommended Clutch Fluid
Check the brake pedal free play and CAUTION described in the following, we recommend reserve distance according to the main- that you have it checked by your SUBARU tenance schedule. Never use different brands of clutch dealer. fluid together. Also, avoid mixing &...
Page 507: Checking The Brake Pedal Reserve Distance
SUBARU dealer. the pedal pad and the floor. When the measurement is smaller than the specification, or when the pedal does not operate smoothly, we recommend that you contact with your SUBARU dealer.
Page 508: Replacement Of Brake Pad
SUBARU dealer as soon as possible. ment. driving including snowy and icy road . It is recommended that you dis- &...
Page 509: Tire Pressure Monitoring System (Tpms) (If Equipped)
Maintenance and service/Tires and wheels ! Winter (snow) tires temperature outside. By way of example, we recommend that you go to a SUBARU the following table shows the required tire dealer to have the system inspected as Winter tires are best suited for driving on pressures that correspond to various out- soon as possible.
Page 510: Tire Inspection
SUBARU dealer. that cannot be seen with the naked eye. sure warning light will illuminate This type of damage does not become...
Page 511 11-36 Maintenance and service/Tires and wheels . Correct tire pressure (tread worn before any long journey. WARNING evenly) Do not let air out of warm tires to adjust pressure. Doing so will result in low tire pressure. NOTE . The air pressure in a tire increases by approximately 30 kPa (0.3 kgf/cm 4.3 psi) when the tire becomes warm.
Page 512: Wheel Balance
SUBARU dealer. Also have them If the tire placard shows tire pressures for adjusted after tire repairs and after tire the vehicle when fully loaded and for the rotation.
Page 513: Wear Indicators
We to 1.6 mm (0.063 in). A tire must be recommend that you have the tires replaced when the tread wear indicator rotated by your SUBARU dealer. appears as a solid band across the tread.
Page 514: Tire Replacement
After driving approximately 1,000 km (600 For safe vehicle operation, SUBARU miles), check the wheel nuts again and recommends replacing all four tires at Vehicles equipped with 4 non-unidirec- retighten any nut that has become loose.
Page 515: Wheel Replacement
SUBARU parts designed for aluminum bias tires and/or bias-ply tires. ing approximately 1,000 km (600 miles). wheels.
Page 516: Windshield Washer Fluid
In areas where water freezes in winter, use an anti-freeze type windshield washer Windshield washer fluid warning indicator CAUTION fluid. SUBARU Windshield Washer Fluid When there is only a small amount of contains 58.5% methyl alcohol and 41.5% washer fluid remaining, the windshield Adjust the washer fluid concentra- surfactant, by volume.
Page 517: Replacement Of Wiper Blades
11-42 Maintenance and service/Replacement of wiper blades & Windshield wiper blade as- . Return the passenger-side wiper Replacement of wiper blades arm to its original position before sembly returning the driver-side wiper Grease, wax, insects, or other material on 1. Raise the wiper arm off the windshield. arm to its original position.
Page 518: Windshield Wiper Blade Rubber
11-43 Maintenance and service/Replacement of wiper blades & Windshield wiper blade rub- grooves in the rubber and slide the blade rubber assembly into the support until it locks. Metal spines 2. If the new blade rubber is not provided Support with two metal spines, remove the metal Claw spines from the old blade rubber and...
Page 519: Rear Window Wiper Blade Assembly (Outback)
11-44 Maintenance and service/Replacement of wiper blades & Rear window wiper blade & Rear window wiper blade assembly (Outback) rubber (Outback) 1. Raise the wiper arm off the rear window. 3. Pull the wiper blade assembly toward you to remove it from the wiper arm. 4.
Page 520 11-45 Maintenance and service/Replacement of wiper blades install them in the new blade rubber. with the stoppers on the plastic support ends. If the rubber is not retained properly, the wiper may scratch the rear window glass. 2. Pull the blade rubber assembly out of the plastic support.
Page 521: Battery
11-46 Maintenance and service/Battery Battery and protective gloves when inspect- can cause blindness and burns. ing your vehicle’s battery. Avoid & Battery Precautions! tipping the battery and subjecting it Keep flames away: to shocks since this could cause fluid to spill. WARNING Before working on or near your vehicle’s battery, extinguish all ci-...
Page 522: Fuses
11-47 Maintenance and service/Fuses Fuses gen gas. To prevent an explosion, CAUTION charge your vehicle’s battery in a well ventilated area and keep flames Never use more than 10 amperes CAUTION away. when charging the battery because it will shorten battery life. Never replace a fuse with one hav- ing a higher rating or with material other than a fuse because serious...
Page 523 Blown The spare fuses are stored in the main We recommend that you contact your If any lights, accessories or other electrical fuse box cover in the engine compart- SUBARU dealer for repairs. controls do not operate, inspect the ment.
Page 524: Installation Of Accessories
Replacing bulbs els with LED headlights) We recommend that you always consult WARNING your SUBARU dealer before installing fog lights or any other electrical equipment in Bulbs may become very hot while your vehicle. Such accessories may illuminated. Before replacing bulbs,...
Page 525: Halogen Headlights
Low beam headlight (if equipped) SUBARU dealer for proper adjustment of the headlight aim. . It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary. High beam headlight...
Page 526: Front Turn Signal Light
4. To install the bulb to the headlight assembly, turn it clockwise until it clicks. NOTE 5. Reconnect the electrical connector. It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary. – CONTINUED –...
Page 527 11-52 Maintenance and service/Replacing bulbs Sedan (type A) Sedan (type B) Outback (type A) Fog light Fog light Fog light Daytime running light...
Page 528: Rear Combination Lights
! Sedan NOTE It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary. 2. Turn over the trunk trim panel. 1. Turn the shopping bag hook 90 de- grees counterclockwise and pull it out.
Page 529 11-54 Maintenance and service/Replacing bulbs 4. Pull the bulb out of the bulb holder and replace it with a new one. 5. Set the bulb holder into the rear combination light assembly and turn it clockwise until it locks. 6. Securely lock the cover against the trunk trim.
Page 530: Back-Up Light/Rear Fog Light (If Equipped) (Sedan)
(if equipped) (Sedan) NOTE It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary. 1. Open the trunk. 8. Reinstall the rear combination light 3. Turn the bulb socket counterclockwise assembly by sliding the two-pronged part and remove it.
Page 531: Back-Up Light (Outback)
5. Install the light cover on the rear gate. & Rear fog light (Outback) NOTE It may be difficult to replace the bulb. We recommend that you have the bulb replaced by your SUBARU dealer if necessary. 2. Turn the bulb socket counterclockwise and remove it.
Page 532: License Plate Light
It may be difficult to replace the bulbs. insert a finger into the left side of the We recommend that you have the bulbs cover, and then press once to the right replaced by your SUBARU dealer if and pull it out. necessary. 1. Open the trunk.
Page 533: Dome Light
CAUTION Replacing the bulb could cause burns since the bulb may be very hot. We recommend that you have the bulb replaced by your SUBARU 2. Turn the bulb socket counterclockwise dealer. and pull out the socket. 1. Remove the lens by prying the edge of 3.
Page 534: Door Step Light
Replacing the bulb could cause burns since the bulb may be very hot. We recommend that you have the bulb replaced by your SUBARU dealer. 1. Remove the lens by prying the edge of the lens with a flat-head screwdriver.
Page 535: Other Lights On The Vehicle
We The access key / transmitter battery may recommend that you have the bulbs be discharged under the following condi- replaced by your SUBARU dealer if tions. necessary. . The operation of the keyless access function is unstable .
Page 536: Replacing Battery Of Access Key
Be careful not to bend the terminals. It may result in a malfunction. remove the cover. . It is recommended that the battery should be replaced by a SUBARU dealer. . Use a new battery. . After replacing the battery, confirm that the access key/transmitter func- tions properly.
Page 537: Replacing Battery Of Transmitter
11-62 Maintenance and service/Replacing battery & Replacing battery of trans- 2. Remove the three screws and then remove the cover. mitter ! Models without TPMS 4. Insert a new battery with its positive (+) side facing upward as shown in the figure. 3.
Page 538 11-63 Maintenance and service/Replacing battery After the battery is replaced, the trans- mitter must be synchronized with the remote keyless entry system’s control unit. Press either the “ ” or “ ” button several times to synchronize the unit. ! Models with TPMS 4.
Page 539 11-64 Maintenance and service/Replacing battery Negative (−) side facing up 2. Remove the transmitter case from the key head. 4. Replace the old battery with a new battery (type CR1620 or equivalent) mak- ing sure to install the new battery with the negative (−) side facing up.
Page 540: Specifications
Specifications Specifications ............. 12-2 Tires..............12-12 Brake disc ............12-13 Dimensions............12-2 Fuses and circuits ........... 12-14 Engine ............... 12-4 Fuel ..............12-4 Fuse panel located in the passenger compartment ..........12-14 Engine oil ............12-5 Fuse panel located in the engine Manual transmission, front differential and rear compartment ..........
Page 541 12-2 Specifications/Specifications Specifications These specifications are subject to change without notice. & Dimensions ! Sedan mm (in) Item 2.5 L models 3.6 L models Drive system Transmission type Overall length 4,795 (188.8) Overall width 1,840 (72.4) Overall height 1,500 (59.1) Wheelbase 2,750 (108.3) Front...
Page 542 12-3 Specifications/Specifications ! Outback mm (in) Ground clearance “200 mm (7.9 in)” models Ground clearance “213 mm (8.4 in)” models Item Petrol engine models Petrol engine models Diesel engine models Diesel engine models 2.5 L models 3.6 L models Drive system Transmission type Overall length 4,815 (189.6)
Page 543: Engine
12-4 Specifications/Specifications & Engine Petrol engine Diesel engine Engine model FB25 EZ36 EE20Z (2.5 L, DOHC, non-turbo) (3.6 L, DOHC, non-turbo) (2.0 L, DOHC, turbo) Horizontally opposed, liquid cooled Horizontally opposed, liquid cooled Horizontally opposed, liquid cooled Engine type 4 cylinder, 4-stroke petrol engine 6 cylinder, 4 stroke petrol engine 4 cylinder, 4-stroke diesel engine Displacement cc (cu-in)
Page 544: Engine Oil
SUBARU dealer. ! Approved engine oil Always use the SUBARU approved engine oil. For further details, we recommend that you contact your SUBARU dealer. If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
Page 545 12-6 Specifications/Specifications ! Alternative engine oil If the SUBARU approved oil is unavailable, the following alternative oil can be used. NOTE Each quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.
Page 546 12-7 Specifications/Specifications ! 3.6 L models SAE viscosity No. and Oil grade Engine oil capacity applicable temperature 5W-30 and 5W-40 can be used. · Adding the oil from L to F level: 1.0 liter (1.1 US qt, 0.9 Imp qt) 5W-30* is equivalent to the factory- filled engine oil and good for engine ·...
Page 547 12-8 Specifications/Specifications ! Diesel engine models SAE viscosity No. and Oil grade Engine oil capacity applicable temperature – Adding the oil from L to F level: 0W-30, 5W-30 can be used. 1.0 liter (1.1 US qt, 0.9 Imp qt) 0W-30* is equivalent to the factory- –...
Page 548: Manual Transmission, Front Differential And Rear Differential Gear Oil
12-9 Specifications/Specifications & Manual transmission, front differential and rear differential gear oil Manual transmission oil SUBARU Extra MT* Oil grade API classification GL-5 (75W-90)* Oil capacity* 3.3 liters (3.5 US qt, 2.9 Imp qt) “Manual transmission oil” F11-27 Remarks* *1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.
Page 549 12-10 Specifications/Specifications Front differential gear oil (CVT models) Rear differential gear oil SUBARU Extra MT* Oil grade API classification GL-5 API classification GL-5 (75W-90) 75W-90* SAE viscosity No. and applicable temperature *: recommended 2.5 L models 1.2 liters (1.3 US qt, 1.1 Imp qt) Oil capacity* 0.8 liters (0.8 US qt, 0.7 Imp qt)
Page 550: Fluids
10.1 Imp qt) “Continuously variable transmis- Continuously variable transmis- We recommend that you consult sion fluid” F11-28 sion fluid (CVT models) your SUBARU dealer. 12.7 liters (13.4 US qt, Other models 11.2 Imp qt) FMVSS No. 116, fresh DOT 3 or –...
Page 551: Electrical System
12-12 Specifications/Specifications & Electrical system Battery type and capacity (5HR) 2.5 L models Models with Auto Start Stop system Q-85-R Other models 55D23R 3.6 L models 95D26R Diesel engine models S95-R Alternator Petrol engine models 12V-130A Diesel engine models MT models 12V-150A CVT models 12V-170A...
Page 552: Brake Disc
12-13 Specifications/Specifications & Brake disc If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your SUBARU dealer.
Page 553: Fuses And Circuits
12-14 Specifications/Fuses and circuits Fuses and circuits Fuse Fuse Circuit panel rating & Fuse panel located in the passenger compartment 7.5A START1 12V SOCKET 7.5A IG1-1 AUDIO NAVI UNIT IG2-2 P/W R.LH CIGAR A/C IG 7.5A 7.5A UNIT IG2-1 P/W MAIN1 7.5A START2 Empty...
Page 554 12-15 Specifications/Fuses and circuits Fuse Fuse Circuit panel rating P/W MAIN2 Empty BACK UP WIPER DEICER 7.5A TRAIL R.FOG P/W PASS2 Empty 7.5A SEAT HTR F 7.5A KEY SW 7.5A D_OP+B SUN ROOF Empty 7.5A STOP 7.5A EYE SIGHT – CONTINUED –...
Page 555: Fuse Panel Located In The Engine Compartment
12-16 Specifications/Fuses and circuits & Fuse panel located in the engine compartment Fuse Fuse Circuit panel rating 7.5A HORN RH HORN LH 7.5A ILLUMI TAIL H/L LO RH H/L LO LH H/L HI RH H/L HI LH Auto Start Stop 7.5A ALT-S FUEL...
Page 556 12-17 Specifications/Fuses and circuits Fuse Fuse Circuit panel rating E/G1 AVCS 7.5A CVT SSR BACKUP 7.5A ACTGS SUB FAN MAIN FAN ABS SOL AUDIO R.DEF BLOWER BLOWER F.FOG RH F.FOG LH R.WIPER F.WASH F.WIPER *3: Diesel engine models *4: Petrol engine models...
Page 557: Bulb Chart
12-18 Specifications/Bulb chart Bulb chart NOTE Lights from A to G are the LED (Light Emitting Diode) type. We recommend that you consult your SUBARU dealer for replacement.
Page 558 12-19 Specifications/Bulb chart Wattage Bulb No. High beam headlight 12V-60W Low beam headlight (models without LED headlight) 12V-55W Map light 12V-8W Dome light 12V-8W Door step light 12V-5W Front turn signal light 12V-21W WY21W Front fog light 12V-19W Front fog light/Daytime running light 12V-35W/13W H8-P13W Vanity mirror light...
Page 559 12-20 Specifications/Bulb chart WARNING Wattage Bulb No. – Tail and stop light (Outback) 12V-0.4/4.7W Bulbs may become very hot while – illuminated. Before replacing bulbs, High mount stop light (Sedan) 12V-0.8W turn off the lights and wait until the – Tail and stop light (Sedan) 12V-0.4/4.7W bulbs cool down.
Page 560: Vehicle Identification
12-21 Specifications/Vehicle identification Vehicle identification Vehicle identification number ID label (Europe models) Tire inflation pressure label Year of manufacture label (Middle East models) Model number label (General models) Built date label (Australia models) ADR compliance plate (Australia models) Fuel label Air conditioner label 10) Vehicle identification number plate (if equipped)
Page 561: Supplement
Supplement Year of manufacture and a country of origin Serbia models ..........13-24 (Middle East models only) ......13-2 Indonesia models ..........13-25 Taiwan models..........13-25 ID label (Russia models)........13-2 Jordan models..........13-26 Speed limit, maximum torque and Argentina models ..........13-27 maximum power at rpm (Middle East Jamaica models..........
Page 562: Year Of Manufacture And A Country Of Origin (Middle East Models Only)
13-2 Supplement/Year of manufacture and a country of origin (Middle East models only) Year of manufacture and a ID label (Russia models) country of origin (Middle East models only) The ID label is located on the left side center pillar as shown in the illustration. The calendar year when your vehicle was manufactured and a country of origin are indicated in the “Year of manufacture...
Page 563: Speed Limit, Maximum Torque And Maximum Power At Rpm (Middle East Models Only)
13-3 Supplement/Speed limit, maximum torque and maximum power at rpm (Middle East models only) Speed limit, maximum torque and maximum power at rpm (Middle East models only) Sedan 2.5 L 3.6 L Model Speed limit km/h (mph) 210 (130) 240 (149) Maximum torque 235 (24.0, 173)/4,000 350 (35.7, 258)/4,400...
Page 564: Fuel Consumption And Co
13-4 Supplement/Fuel consumption and CO2–emissions (EU only) Fuel consumption and CO -emissions (EU only) Petrol engine models that conform to “Euro 6” Model and Type Fuel consumption according to Regulation -emissions according to Regulation (EC) No. 715/2007-136/2014 (L/100km) (EC) No. 715/2007-136/2014 (g/km) Urban Extra-urban Total...
Page 565: Declaration Of Conformity In Accordance With The Radio And Telecommunications Terminal Equipment Directive 1999/5/Ec
13-5 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC & Transmitter for the keyless entry system ! With TPMS – CONTINUED –...
Page 566 13-6 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC ! Without TPMS...
Page 567: Receiver For The Keyless Entry System
13-7 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC & Receiver for the keyless entry system ! With TPMS – CONTINUED –...
Page 568 13-8 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC ! Without TPMS...
Page 569: Immobilizer
13-9 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC & Immobilizer ! Models with “keyless access with push-button start system” – CONTINUED –...
Page 570 13-10 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC...
Page 571 13-11 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC – CONTINUED –...
Page 572 13-12 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC ! Models without “keyless access övriga relevanta bestämmelser som fram- går av direktiv 1999/5/EG. with push-button start system” English Dansk Hereby, Tokai Rika Co., Ltd., declares that Undertegnede Tokai Rika Co., Ltd.
Page 573 13-13 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC Español Slovenčina sownymi postanowieniami Dyrektywy 1999/5/EC. Por medio de la presente Tokai Rika Co., Tokai Rika Co., Ltd. týmto vyhlasuje, e Ltd. declara que el RI-38BFH cumple con RI-38BFH sp a základné...
Page 574: Lf Oscillator
13-14 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC & LF Oscillator Hrvatski Ovim Tokai Rika Co., Ltd., izjavljuje da je The latest “DECLARATION of CONFOR- RI-38BFH u sklau s bitnim zahtjevima i MITY” (DoC) is available at the following drugim relevantnim odredbama Direktive address: 1999/5/EC i Pravilnika o RiTT opremi (NN...
Page 575 13-15 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC – CONTINUED –...
Page 576 13-16 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC...
Page 577 13-17 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC – CONTINUED –...
Page 578 13-18 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC...
Page 579 13-19 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC – CONTINUED –...
Page 580: Bluetooth ® Module
13-20 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC & Bluetooth ® module...
Page 581: Compressor
13-21 Supplement/Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC & Compressor...
Page 582: Technical Information
13-22 Supplement/Technical information ! Remote keyless entry transmitter ! Immobilizer for models with “Key- Technical information less access with push-button start & Singapore models system” ! Access key...
Page 583: Panama Models
13-23 Supplement/Technical information ! Immobilizer for models without ! Bluetooth ® module CAUTION “Keyless access with push-button start system” FCC WARNING Changes or modifications not ex- pressly approved by the party re- sponsible for compliance could void the user’s authority to operate the equipment.
Page 584 13-24 Supplement/Technical information & Dominican Republic models & Serbia models ! Access key . Immobilizer for models with “keyless ! Tire pressure monitoring system access with push-button start system” . Immobilizer for models without “keyless access with push-button start system” FCC ID: Y8PSSPIMB02 FCC ID: MOZRI-38BFH CAUTION...
Page 585: Indonesia Models
13-25 Supplement/Technical information & Indonesia models & Taiwan models ! Keyless access with push-button start system Access key: ! Access key – CONTINUED –...
Page 586: Jordan Models
13-26 Supplement/Technical information & Jordan models ! Immobilizer for models with “key- ! Immobilizer for models without “keyless access with push-button less access with push-button start ! Access key system” start system” ! Remote keyless entry transmitter...
Page 587: Argentina Models
13-27 Supplement/Technical information & Argentina models & Jamaica models & Commonwealth of Dominica models ! Access key ! Access key . Access key This product has been Type Approved by . Keyless access with push-button start Jamaica: SMA-14AHB. system ! Keyless access with push-button The latest “DECLARATION of CONFOR- start system MITY”...
Page 588: Brazil Models
13-28 Supplement/Technical information & Brazil models ! Keyless access with push-button start system ! Access key ! Immobilizer for models with “key- less access with push-button start system”...
Page 589 13-29 Supplement/Technical information ! Immobilizer for models without “keyless access with push-button start system” – CONTINUED –...
Page 590: Russia/Kazakhstan Models
: GSREU52 (Keyless Recei- ver) Manufacturer: Calsonic Kansei Corp. Country of Production: JAPAN Contact Information: http://www.calsonickansei.co.jp Local Contact Person: Subaru Motor LLC & Paraguay models Remote keyless entry transmitter: Model Number: TF001 Approved Number: 2014-01-I-00015 Manufacturer: Calsonic Kansei Corpora- tion.
Page 591: Uruguay Models
13-31 Supplement/Technical information & Thailand models Vendor: Tokyo Motors S.A. Address: Av. Eusebio Ayala No. 4649 Km. Remote keyless entry transmitter: 5 1/2 Asuncion, Paraguay This telecommunication equipment con- Contains Transmitter Module Approved by forms to NTC technical requirement. CONATEL. &...
Page 592: Israel Models
13-32 Supplement/Technical information & Israel models ! Tire pressure monitoring system...
Page 593 13-33 Supplement/Technical information ! Remote keyless entry transmitter – CONTINUED –...
Page 594: Oman Models
13-34 Supplement/Technical information & Oman models & UAE models & Nigeria models Remote keyless entry transmitter: Remote keyless entry transmitter: Remote keyless entry transmitter: Model No.: TF001 TF001 Model No.: GSREU52 GSREU52...
Page 595: Declaration Of Conformity In Accordance With The Machinery Directive 2006/42/Ec
13-35 Supplement/Declaration of conformity in accordance with the Machinery Directive 2006/42/EC Declaration of conformity in accordance with the Machinery Directive 2006/42/EC & Jack...
Page 596: Index
Index...
Page 597 14-2 Index Set ................ 5-3 Abbreviation ..............2 Audio set..............5-3 ABS (Anti-lock Brake System) ........7-28 Type A audio set (for Europe) ........5-4 Warning light ............3-19 Type B audio set (except for Europe) ......5-5 Access key ..............2-8 Type C audio set (for Australia) .........
Page 598 14-3 Index Touch screen operation........... 5-10 Bulb Basic operation............5-16 Chart ..............12-18 Some basics ............5-16 Replacing ............11-49 Battery..............11-46 Disposal and recycling..........8 Drainage prevention function ........2-6 Cargo area Jump starting............9-20 Cover..............6-13 Replacement (access key) ........11-61 Light .............
Page 599 14-4 Index Top tether anchorages ..........1-42 Cup holder ..............6-6 Child safety ..............4 Front passenger’s............ 6-6 Locks ..............2-26 Rear passenger’s ............ 6-7 Chime Key ................ 3-4 Light..............3-47 Daytime running light system ........3-50 Seatbelt ..............3-13 Declaration of conformity in accordance with the radio Cleaning and telecommunications terminal equipment directive...
Page 600 14-5 Index Car phone/cell phone ..........7 Exterior care .............. 10-2 Drinking ..............6 Drugs ................ 6 Foreign countries ............. 8-5 Flat tire repair kit ............9-12 Off road ..............8-8 Technical data............9-19 Pets ................7 Flat tires ..............9-7 Snowy and icy roads ..........
Page 601 14-6 Index Reclining..............1-4 Hill descent control ..........7-33, 7-35 Seat height adjustment (driver’s seat) ......1-4 Indicator ..............3-33 Fuel ..............7-3, 12-4 Hill Holder ..............7-38 Consumption and CO -emissions (EU only) ....13-4 Indicator light ............3-23 Consumption indicator ..........
Page 602 14-7 Index Headlight .............. 3-33 Disabling keyless access functions ......2-16 High beam ............3-32 Locking and unlocking doors........2-12 Hill descent control..........3-33 Opening rear gate ..........2-14 Hill Holder ............. 3-23 Opening trunk ............2-14 Immobilizer............3-30 Warning chimes and warning indicator ...... 3-25 Preheating ............
Page 603 14-8 Index Low fuel warning light ..........3-24 Low tire pressure warning light ........3-18 Odometer ..............3-9 Off road driving ............8-8 Oil filter ..............11-19 Oil level Maintenance Engine ..............11-16 Precautions ............11-7 Manual transmission ..........11-27 Schedule ..............
Page 604 14-9 Index Pocket ................ 6-6 Armrest ..............1-15 Power Folding down ............1-14 Door locking switch ..........2-7 Head restraint adjustment........1-11 Outlets..............6-8 Reclining ............... 1-13 Outside mirrors ............3-67 Rear view camera ............6-18 Rear gate............2-33, 9-32 Rear window Seat ...............
Page 605 14-10 Index Dome light ............11-58 Memory function............1-5 Door step light ............11-59 Power ..............1-4 Front fog light ............11-51 Rear ..............1-11 Front turn signal light..........11-51 Seatbelt..............3, 1-15 Halogen headlight ..........11-50 Fastening .............. 1-17 License plate light ..........
Page 606 14-11 Index Starting & stopping engine ........7-7, 7-10 TPMS mode setting ..........7-44 Steering wheel Warning light............3-18 Power..............7-25 Tires and wheels ............11-33 Tilt/telescopic............3-68 Tools................9-3 Stop light ..............11-53 Top tether anchorages ..........1-42 Storage compartment ........... 6-4 Towing ..............
Page 607 14-12 Index Symbols ..............3 Low tire pressure............ 3-18 Vehicle Dynamics Control Oil pressure ............3-17 OFF indicator light..........3-21 Over-rev ..............3-34 OFF switch ............7-32 Power steering ............3-23 Operation indicator light .......... 3-21 Seatbelt..............3-13 System ..............7-30 SRS airbag system..........
Page 608 14-13 Index X-mode..............7-33 Indicator..............3-33 Year of manufacture (Middle East models only) ..... 13-2...
Page 609 & Engine oil: ! Australia models Always use the SUBARU approved engine oil. For further Use only unleaded petrol with 91 Octane or higher. This details, please contact your SUBARU dealer. octane rating is the Research Octane number. For optimum...
Page 610 & Engine oil capacity: 2.5 L models 4.8 liters (5.1 US qt, 4.2 Imp qt) Petrol engine models 3.6 L models 6.5 liters (6.9 US qt, 5.7 Imp qt) 5.9 liters (6.2 US qt, 5.2 Imp qt) Diesel engine models The indicated oil quantity is only a guideline and is estimated based on a case when the engine oil is changed with an oil filter.

Save PDF
