Status Display .............. 16 Control Panel ..............17 Getting Started ............. 21 Using Extra Functions ..........24 SMART FUNCTIONS ............28 LG ThinQ Application ........... 28 Smart Diagnosis ............30 MAINTENANCE ..............32 Maintaining the Appliance ..........32 Cleaning the Appliance ..........33 Maintaining the Filter ............
SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. This symbol is displayed to indicate matters and operations that can cause risk.
Page 4
Children in the Household • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Page 5
LG Electronics Customer Information Center. • User Servicing Instructions - Only an authorized repair person from an LG Electronics service center should disassemble, repair, or modify the product. • Do not use or store fire, combustibles (ether, benzene, alcohol, drugs, propane, butane, combustible spray, insecticide, air freshener, cosmetics, etc.) or flammable...
Page 6
• This product uses UVnano LED. Do not disconnect or replace the UVnano LED arbitrarily. LEDs must be replaced only by LG-approved service providers. • Harmful UVnano radiation may leak if the device is used in an unintended way or if the wires are damaged. UVnano radiation, even in very small amounts, can harm the eyes and skin.
Page 7
Maintenance • Dispose of the packing materials (vinyl, styrofoam, etc.) to keep them out of reach of children. • Take care not to injure or pinch yourself when you detach and reattach parts of the appliance. • Turn off and unplug the appliance before cleaning it or replacing the filter.
Page 8
Operation • Do not use the product for removal of toxic gas such as carbon monoxide. • Do not use the product for ventilation purposes. • Do not use the appliance for a long time in a region with unstable voltage. •...
Page 9
Maintenance • Do not use strong detergents or solvents to clean the product. Use a soft cloth to clean. • Do not clean the appliance with an alkaline detergent. • Do not wipe the appliance surface using sulfuric acid, hydrochloric acid or organic solvents (thinner, kerosene etc.) or attach a sticker on the appliance.
INSTALLATION • The appearance or functions of the appliance may differ depending on the model. Parts Instruction Front Rear...
Page 11
Control Panel Product Center Line • Sets the product functions. • It is the center line of the product. Vane UVnano LED (Only models with UVnano applied) • Moves depending on the operating mode • Remove the harmful bacteria at (Wide Mode/ Direct Mode / internal fan of the air purifier.
Page 12
Filter System Ultra Fine Filter Deodorizing Care filter Minimizes odors from the bathroom, cigarettes, food and other common sources. True HEPA filter Minimizes PM1.0 and cigarette smoke from the air. Filter Handle Use it to remove the filter from the product. Ultra Fine Filter Minimizes large particles floating in the air.
Page 13
NOTE • A slight odor may be emitted from the new filter at the beginning after purchase. The odor will disappear after a day or so of using the product, so you can use it without worry. • The frequency of cleaning and filter replacement may vary depending on environment and usage time.
Grab the cover and gently pull to separate it from the appliances. Insert the tabs at the bottom of the • The direction with the LG logo on cover into the slots in the base of the the product display is the front of appliance and close the cover.
Removing vane vinyl The performance of the product may differ depending on the operating environment Use the product after removing the vane (such as temperature and humidity). vinyl. • Product performance may be slightly degraded when used outside of a Operating product.
OPERATION • The appearance or accessories of the product may differ depending on the model. Status Display PM10 ㎍/㎥ Add-on Display Status display • Air quality, PM10/PM2.5/ • Up to three icons are displayed PM1.0 dust concentration, odor, • Icons are shown or displayed temperature, humidity, and according to display priority.
Control Panel Standby On/Off Button NOTE Can start or stop operation. • You can use extra functions by pressing the button on the control panel Speed Button for longer than 3 seconds. (Example : Mode button and the Press the Allows you to adjust the fan speed Auto Fan button at the same time for 3 of the product.
Page 18
Remote Controller Standby On/Off button Rotation button Can start or stop operation. Sets the rotation of the product. (45°, 60°, 90°, 140°, Stop) Speed button Allows you to adjust the fan speed Sleep Timer button of the product. Sets the sleep schedule. (1 ~ 12 - Off) Mode button Sets the operation mode.
Page 19
Preparing to Use the Remote Insert the battery tray back into the Controller remote controller. With the front side of the remote controller facing up, remove the battery tray by pushing in the direction of number 2 while pressing part 1 with a simple tool (cotton swab, etc.).
Page 20
WARNING • The remote controller uses button/coin type batteries (CR2025). • Swallowing batteries may cause serious injury or death. Go to hospital emergency room immediately to seek medical attention. • Keep the battery out of reach of children. • If the battery tray is not secured firmly, stop using the appliance immediately and keep it away from children.
Getting Started Using the Mode Sets the operation mode of the air purifier. Press the Standby On/Off button to start operation. • Each time the Mode button is pressed during operation, the sequence of Wide Mode – Direct Mode – Diffusion Mode is NOTE repeated.
Page 22
Adjusting the Fan Speed Using Turbo Adjusts the fan speed of the air purifier. Sets the fan speed to Turbo. • Each time the Speed button is pressed NOTE during operation, it changes in the order • After running on Turbo, if you turn of steps 1 to 10.
Page 23
Using Rotation • Do not forcefully rotate the product by holding it. Sets the rotation of the air purifier. • If you hold the product and force it to rotate, you will need to re-center the product. • To center the product, turn off the product, unplug the power cord, wait for a while, and then plug in the power cord again.
Using Extra Functions Setting standby display Displays air quality, air quality circulation, odor, temperature, humidity and operation information. • Press and hold the Auto Fan button in the control panel. • Press the show Show Info button on the remote controller. •...
Page 25
Checking air condition on the • Temperature and humidity may appear differently depending on air Status Display circulation in the same room. Also, the temperature and humidity may You can check the overall air quality and be different from other products and dust/odor(gas) concentration on the Status thermo-hygrometers.
Page 26
Setting a Sleep Timer Setting Display Brightness It is set to automatically stop operation Adjusts display brightness. after operation for a set period of time. • Press the Sleep Timer button for more • Press the Sleep Timer button while the than 2 seconds to enter the display brightness setting screen.
Page 27
3 seconds. • The remote controller can be used even when locked. NOTE • You can use the LG ThinQ application • To disable UVnano, press the Speed to change modes even when the device down and Rotation buttons button on is locked.
SMART FUNCTIONS LG ThinQ Application Before using LG ThinQ Application The LG ThinQ application allows you to communicate with the appliance using a This feature is only available on models smartphone. with Wi-Fi function. LG ThinQ Application Features Check the distance between the appliance and the wireless router (Wi-Fi network).
Page 29
Internet service provider or refer to your wireless router manual. Wireless LAN Module • LG ThinQ is not responsible for any network connection problems or any Specifications faults, malfunctions, or errors caused by network connection.
Wi-Fi, disconnection of Wi-Fi, app relevant documents, please visit https:// store policy, app unavailability, etc.) opensource.lge.com. that are not due to the negligence of LG LG Electronics will also provide open Electronics. source code to you on CD-ROM for a •...
Page 31
3 seconds. Place your phone near the product. • Make sure the phone’s microphone is facing the front of the product. The results of Smart Diagnosis will be displayed in the LG ThinQ application.
• The filter must be replaced at the end of its lifespan, and the cost of replacement filters is not covered under the warranty. To purchase new filters, contact an LG Electronics Customer Information Center or visit the website at www.lg.com •...
Cleaning the Appliance CAUTION • Do not clean the product with alkaline detergent. Cleaning the Exterior of the • Do not wipe the product surface using Product sulfuric acid, hydrochloric acid, or an organic solvent (thinner, kerosene, Use a vacuum cleaner to remove acetone, etc.) or attach stickers to the dust from the air inlet.
Grab both sides of the top of the remove the filter. air inlet (cover) from the front of the product and pull gently to separate it. • The direction with the LG logo on Handle the product display is the front of the product.
Page 35
Storing the Product Storing the Remote Controller If the product will not be used for a long period of time, store in a dry, shaded place without moisture. Operate the product for at least 1 hour on a sunny day. •...
TROUBLESHOOTING Before Calling for Service Please check the following before you contact the service center. If the problem persists, contact your local service center. Symptom Cause Remedy It does not Is the power cord unplugged • Insert it into the socket operate at all.
Page 37
Symptom Cause Remedy • Display status may not change when the amount of odor is greater than the product's Does the color not change ability to handle. even if it is moved to a clean The overall air room? • Remove the power cord from quality color is the outlet and reconnect after still in red.
Page 38
• Make sure that the levels of the PM1.0/PM2.5/PM10 dust The dust are displayed consistently concentration between the LG ThinQ app levels are Are you looking at the same and your product. different between type of dust particle? the product and •...
Page 39
LG ThinQ. • Turn off the Mobile data of Mobile data for your your smartphone and connect smartphone is turned on.
Page 40
Symptom Cause Remedy • Temperature and humidity values may fluctuate continuously in an environment where outside air is introduced. • Temperature and humidity may vary depending on the The temperature/ surrounding environment such humidity is Is outside air continuously as doorways, windows, and displayed coming into the place where ventilation holes.

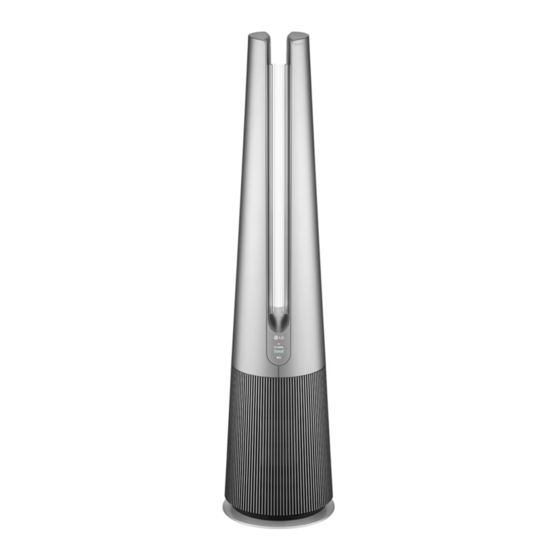

Appliance Specifications Height Width Depth The external appearance and dimensions of the product are subject to change without prior notice. Model Name FS15GP Series Power AC 220 - 230V~ 50Hz Exterior dimensions 265 mm x 265 mm x 1,120 mm (width x depth x height)
