Ascent MIGHTY MULTI Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIGHTY MULTI and is the answer not in the manual?

Questions and answers

Summary of Contents for Ascent MIGHTY MULTI

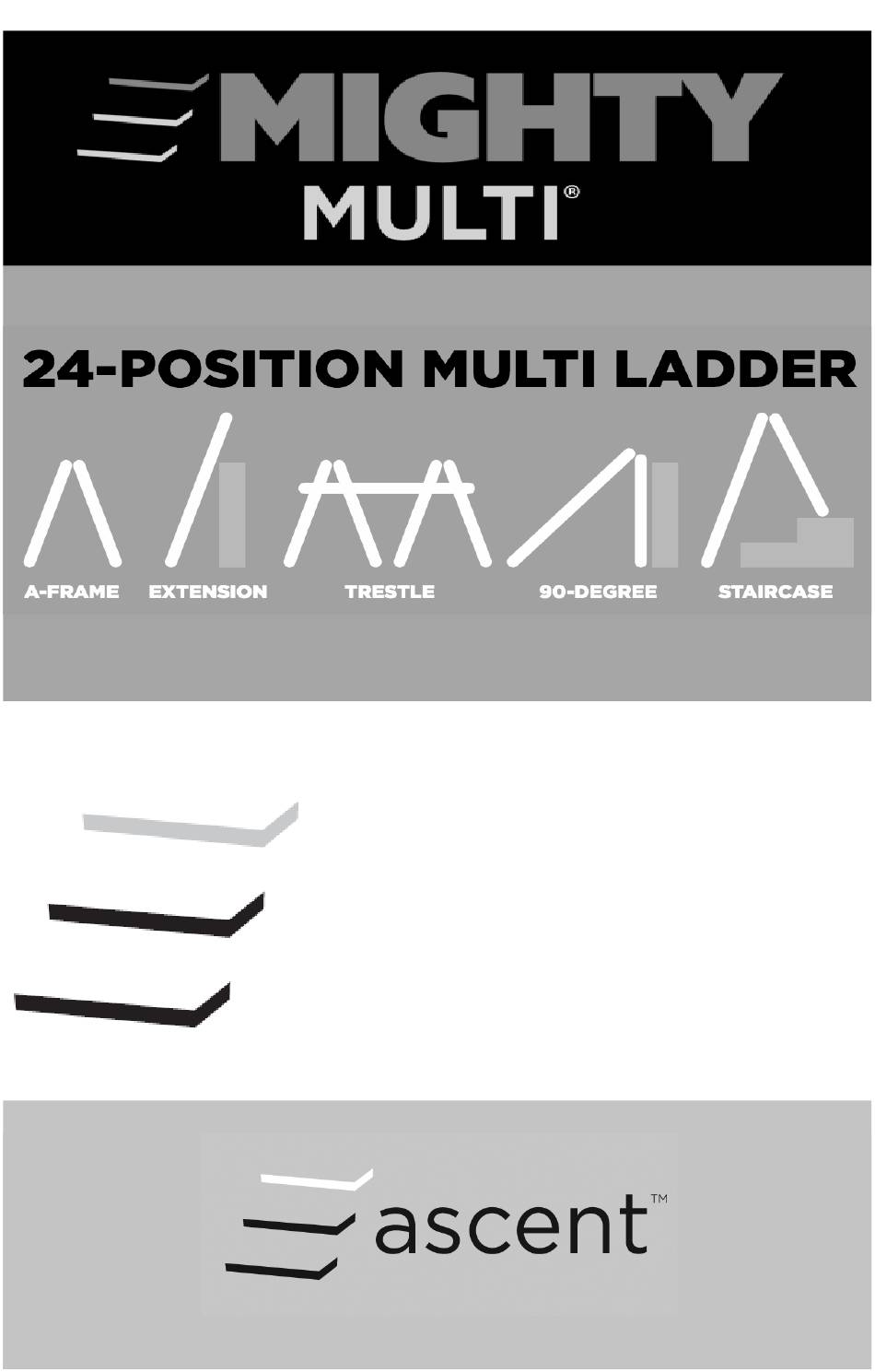

  • Page 1 OWNER’S MANUAL...
  • Page 2 Page 6 – Safety Basic Instruction Page 7 – Adjusting the Hinge Locks Page 8 – Adjusting the J-Locks Page 9 – Storage and Care for Your Mighty Multi™ Page 10-12 – Configuring Your Mighty Multi™ Page 13 – Product Warranty Page 14 –...
  • Page 3 Model Information/Product Specifications MIGHTY MULTI MIGHTY MULTI MIGHTY MULTI Product Features Model # AMT013 Model # AMT017 Model # AMT022 13 ft 17 ft 22 ft Height - Stepladder Standing level Highest - 3 ft. to 5 ft. 4 ft. to 7 ft.

  • Page 4: General Information

    General Information The Ascent Mighty Multi® is a multitask ladder made up of two primary components - the fixed INNER SECTION with two permanently mounted Hinge Locks, and the two movable OUTER SECTIONS with four J-Locks. This system can be configured into 24 different positions to make...
  • Page 5 WARNING! WARNING Read and understand these instructions completely and thoroughly before attempting to use this product. Serious injury can result from failing to comply with these strict safety instructions. If there are any signs of damage to this product, DO NOT CLIMB! If questions arise, please call us directly at 1-866-538-8118 before...

  • Page 6: Safety Basics

    • Do not stand above the third rung from top. • Ascent Products, LLC assumes no liability for damage or injury that may result from failing to • correctly follow all instructions. Keep your Mighty Multi clean and free from dirt and debris.
  • Page 7 Adjusting the Hinge Locks To store the Mighty Multi Ladder, and to put it into use, it is necessary to utilize the two Hinge Locks which are located on the top of the INNER SECTION. Pushing inwards on the Hinge Lock UNLOCKS the hinge to allow adjusting.
  • Page 8 Adjusting the J-Locks To adjust the height of the ladder, it is necessary to utilize the J- Locks. When adjusting the J-Locks, lock and unlock just one at a time, using your free hand to guide the OUTER SECTION. Visually confirm that each J-Lock is fully seated within the ladder rung to ensure it is in the locked position.
  • Page 9 Storage and Care of the Storage - The Mighty Multi can be stored quite compactly. To do this you must first unlock the J-Locks (if necessary, refer to the J-Lock instructions on page 8), lower the INNER SECTION to the ground and then lock the J-Locks back into place.
  • Page 10 Configuring the A-Frame Ladder • To configure the Mighty Multi into the A-Frame (Step Ladder position) follow instructions for adjusting the Hinge Lock on page • After placing the ladder into the Step Ladder configuration, you may then adjust the height of the Step Ladder by utilizing the J- Locks (see page 8).
  • Page 11 Configuring the Trestle-and-Plank Scaffolding System • Unlock all four J-Locks and slide out the INNER SECTION completely. • Set aside the two OUTER SECTIONS. • Open the INNER SECTION into the A-Frame Ladder configuration. This now becomes Trestle #1. • Create Trestle #2 by taking the two OUTER SECTIONS and locking them together with two of the J-Locks.
  • Page 12 Configuring the Staircase Ladder • Place the ladder into the shortest A-Frame Ladder configuration. • Position the ladder on the stairway. • Lower the downhill section to the correct step utilizing the J-Locks and sliding the INNER SECTION to the required length.

  • Page 13: Product Warranty

    Product Warranty 3 Year Limited Warranty Ascent Products, LLC warranties this product to be free from defects in material or workmanship for a period of three (3) years following the date of purchase, provided that the product is used in a manner as described within this manual and used in accordance with all safety and warning labels.

  • Page 14: Replacement Parts

    Replacement Parts...
  • Page 15 Notes Notes: _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________...
  • Page 16 Contact Information: Ascent Products LLC P. O. Box 311 Island Lake, IL 60042 Toll Free 866-538-8118 info@ascentproducts.com Find us at www.ascent-products.com...
