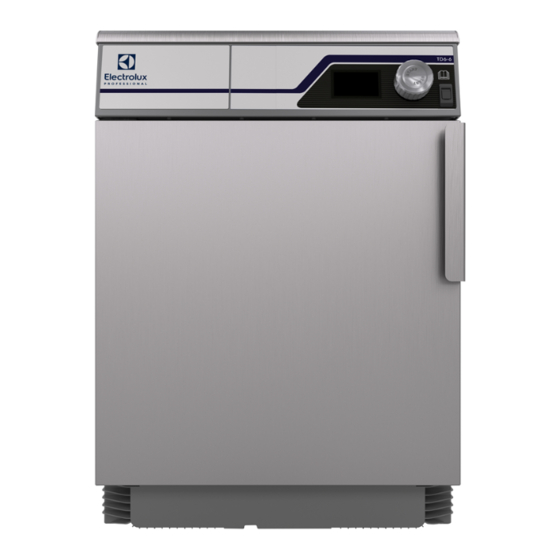

- Page 1 User manual Tumble dryer TD6–6 Lagoon Type N1130.. 438917910/EN Original instructions 2022.09.07...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................6 Commercial use only........................6 Ergonomics certification ......................6 Symbols............................7 2 Warranty terms and exclusions......................8 3 Program description ..........................9 Lagoon programs........................9 General programs........................10 4 Handling ............................11 Load ............................11 To start the machine.........................13 Additional functions........................13 When program has ended ......................14 5 Error codes ............................15... -
Page 5: Safety Precautions
User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... -
Page 6: General Safety Information
User manual • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. -
Page 7: Symbols
User manual In case several machines are managed by the same operator the repetitive movements will increase and as a conse- quence of this the related biomechanical risk will increase exponentially. The possible postural risks are the interaction with the door handle in case the machine is placed directly on the floor without a base and with the door handle and the user interface, display and knob, in case the machine is placed on top of a washing machine. -
Page 8: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 9: Program Description
User manual 3 Program description There are two types of programs, automatic programs and time programs. Automatic programs has moisture detection and will stop when selected dryness is achieved. Time programs has no moisture detection and will stop when the preset or selected time has ended. 3.1 Lagoon programs The following table shows some examples of available programs and a short description of those: Automatic programs... -
Page 10: General Programs
User manual 3.2 General programs The following table shows some examples of available programs and a short description of those: Automatic programs Description COTTON Denim and terry. EXTRA DRY The program will stop when set dryness is achieved. COTTON Cotton and terry. CARE The program will stop when set dryness is achieved. -
Page 11: Handling
User manual 4 Handling 4.1 Load Note! Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left. Metal objects might cause damage to the drum. Make sure the filter is clean. fig.7363... - Page 12 User manual Load the goods into the machine and close the door. The recommended maximum load is 6 kg.
-
Page 13: To Start The Machine
User manual 4.2 To start the machine Automatic programs Select program with the control knob. Start the machine by pressing the control knob. Time programs Select program with the control knob. Start the machine by pressing the control knob. After start it is possible to change the time for the selected program. Turn the control knob to set the desired time. Coin operated machines Select program with the control knob. -
Page 14: When Program Has Ended
User manual 4.4 When program has ended Note! For the best possible drying result it is important to empty the machine as soon as the program has ended. If the machine is not emptied as soon as the program has ended the drum will rotate in short intervalls in order to keep the goods from being wrinkled. -
Page 15: Error Codes
User manual 5 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH RMC The longest permitted RMC time has been exceeded. -
Page 16: Fresh Air Intake
User manual Check that the filter is clean and unbroken. Clean or replace if necessary. fig.7363 Remove any lint and dust around the machine. 6.4 Fresh air intake At regular basis, check that the fresh air intake on the front of the machine is not clogged by lint and dust or otherwise blocked. -
Page 17: Disposal Information
User manual 7 Disposal information 7.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 20 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
