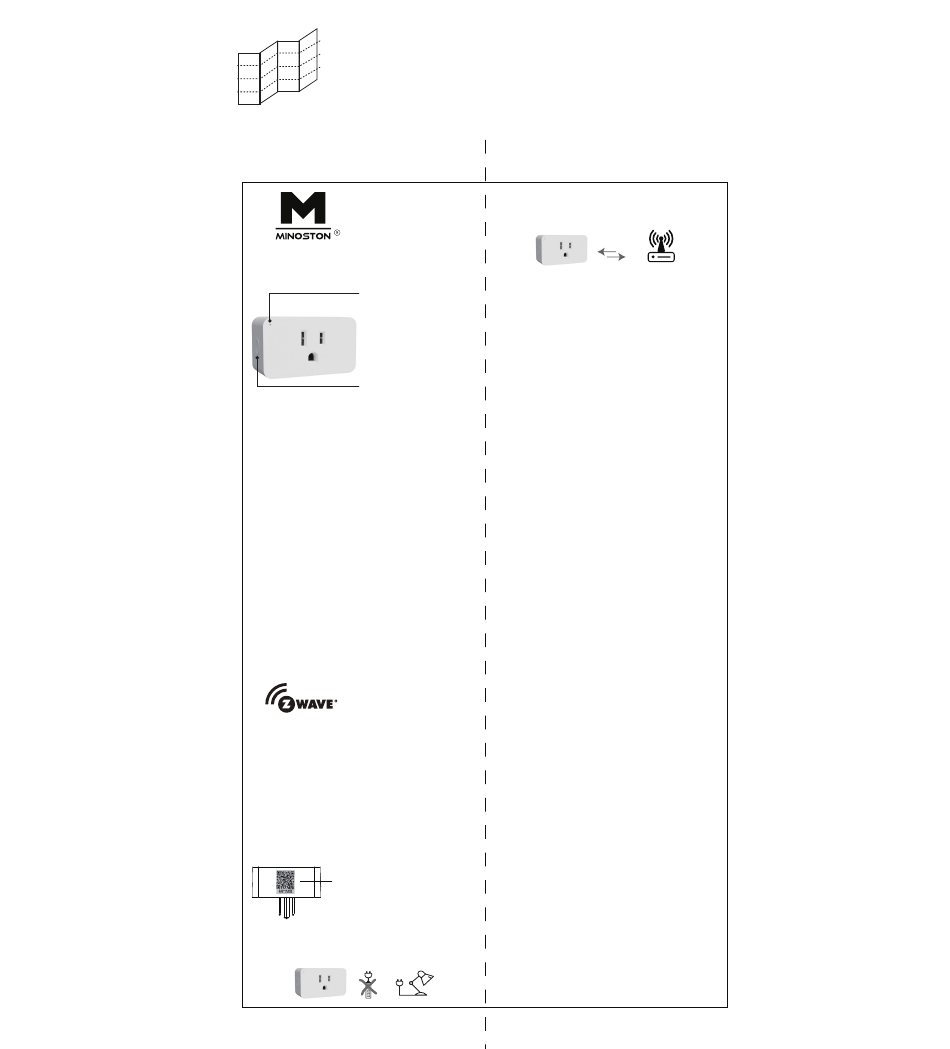

Minoston MP31ZP Quick Start Manual

MP31ZP
SIZE: 150 x 255 mm
材质：80G 书写纸
拆法：风琴页 65 x 39 mm 成品
单色黑白印刷
正面
Specification
Input: 125VAC 60Hz
Frequency: 908.42 MHz
Loading: 15A 1875W RESISTIVE OR
GENERAL PURPOSE
5A MAX625W TUNGSTEN
Z-Wave Plug
1/3 HP
with Energy Monitor
Indoor use in dry location
• MP31ZP •
(ZW38M)
LED indicator
Blue: Light status indicator
Blue: ADD / Inclusion
Purple: Remove / Exclusion
Red: Network Failure / Over-temperature
Warning / Over-Loading Warning
Program button
Press 1x: Manually
Press 3x: Z-Wave Network configuration
Reset: Press the button twice then hold it
for 10 seconds
Features:
1. Z-Wave control on / off.
2. Z-Wave controlled AC outlet for standard incandescent lighting, CFL/LEDs, fans
or small appliances (1875W Resistive Max).
3. Grounded 3-wire power connection for safety.
4. Remembers and restores on / off status after power failure.
5. Built-in Z-Wave Plus signal repeater to extend network range.
6. S2 security and for reliable wireless communication.
7. Work with all certificated Z-Wave controllers.
8. Protection function
(When the protection function is triggered, it needs to be powered the device on
again for normal use.)
Voltage protection: when the voltage＞135V, the device will be forcibly shut down
Current protection, when the current＞16A, the device will be forcibly shut down
Power Wattage protection, when the power＞2000W, the device will be forcibly
shut down.
Please contact us if you have any questions:
www.minoston.com
ask@minoston.com
Z-WAVE INTEROPERABILITY
This product can be included and operated in any Z-Wave network with other
Z-Wave certified devices from other manufacturers and/or other applications. All
non-battery operated nodes within the network will act as repeaters regardless of
vendor to increase the reliability of the network. This Device supports Lifeline
(association group 1) supporting 1 node for lifeline communication. Group 1 must
be assigned the Node ID of the primary controller where unsolicited notifications
will be sent. The Z-Wave controller should set this association automatically after
inclusion. Lifeline association only supports the "Device Reset Locally" function.
Adding Device To Z-Wave Network for QR CODE
Scan here for SmartStar inclusion
Note: DSK Code can be found on the packaging box.
Do not remove or damage them.
Notes:
1. Plug the device you want to control into the Z-Wave Smart plug controlled outlet.
NOTE: Plug directly into the outlet, do not use with power strip.
2. Your device may need to be within 100 feet of the controller to be included. If so,
include the device to the network within 10 feet of the controller and relocate it to the
desired position in your home. Be sure to refresh the network if the device is included
in this manner.
100 feet
Z-Wave Network Configuration
Adding Device To Z-Wave Network
1. Follow the instructions for your Z-Wave certified controller to add a device to the
Z-Wave network.
2. Once the controller is ready to add your device, press the Manual/ Program button
on the smart plug 3 times quickly. The blue LED will blink quickly.
Auto-add mode: LED will blink within 30 seconds after first plugged in. Now, you have
completed control to turn your fixture ON/OFF according to groups, schedules and
interactive automation programmed by your controller.
If your Z-Wave certified controller features remote access, you can control your fixture
from your mobile devices.
Again: If you have issues with pairing / including, please move the device as close as
possible to the hub and try again--you can move to your final location when completed.
Note: If the manual button doesn't light up after pressed 3 times, please reset the
Device: click the button twice quickly then hold for at least 10 seconds.
This operation could be done when manual control is functional--single press can turn
on / off the lamp.
To Remove The Device:
1. Follow the instructions for your Z-Wave certified controller to remove a device from
the Z-Wave network.
2. Once the controller is ready to remove your device, press the manual/program
button on the smart plug 3 times quickly.
KWH Reset:
If you'd like to reset the KWH record, just click the button 10 times very quickly.
Network exclusion or factory reset will NOT automatically erase the KWH data.
To Return The Device To Factory Defaults:
Manual: Click the button twice quickly then hold for at least 10 seconds.
(Light flashes once when reset successfully.)
Host reset: Remove it from hub the device will be restore to factory default.
Association Group:
Group 1 supports 1 node ID,Group 2 Supports maximum of 5 node ID's
Association Group 1: Z-Wave Plus Lifeline
Association Group 2: Send Basic Set ON / Off
Warranty
Our Products warrant this product to be free from manufacturing defects for a period of
one year from the original date of consumer purchase. This warranty is limited to the
repair or replacement of this product only and does not extend to consequential or
incidental damage to other products that may be used with this product. This warranty
is in lieu of all other warranties, expressed or implied.
Some states do not allow limitations on how long an implied warranty lasts or permit
the exclusion or limitation of incidental or consequential damage, so the above
limitations may not apply to you. This warranty gives you specific rights, and you may
also have other rights which vary from state to state.
Parameter Settings
Locally Button Press function:
1: press 1x: turn output ON or OFF
2: quickly press 3x: inclusion or exclusion
3: quickly press 5x: change Parameter 1
4: quickly press 8x: change Parameter 4
5: quickly press 10x: Reset KWH
6: Factory reset: click Z-Wave button twice quickly, then hold it at least 10 seconds.
LED Indicator
This parameter can access you to choose the LED indicator to be on when the plug
(light) is on / off, or LED indicator remains on / off all times.
