- Page 1 AEA R44 OWNER’S MANUAL THE CLASSIC RIBBON MICROPHONE...
-
Page 2: Welcome
We invite you to become part of the AEA community by sharing your experiences with the R44 via e-mail, phone or our social media channels. Wes Dooley... -
Page 3: Table Of Contents
CONTENTS WELCOME INTRODUCTION SUPPORT GENERAL GUIDELINES APPLICATION ADVICE THE VARIANTS SPECIFICATIONS... -
Page 4: Introduction

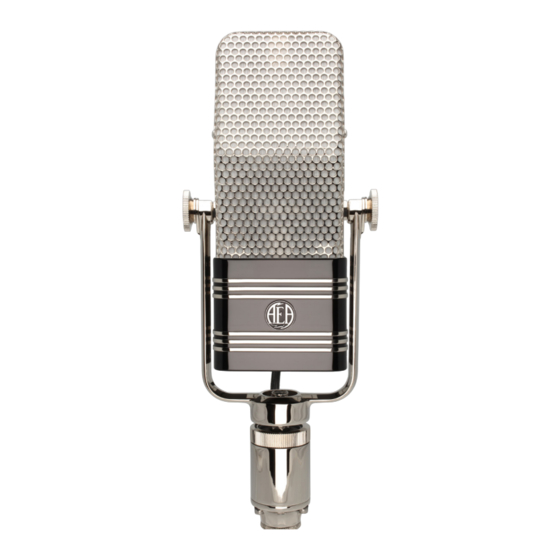

INTRODUCTION The R44 is a passive, side address ribbon microphone with a bidirectional (or figure-of-8) pickup pattern. It was designed to be a part-for-part replica of the RCA R44 series, with the exception of using neodymium rather than alnico magnets. Everything else, including the 1.8 micron thick ribbon tuned to 16.5 Hz and the 1:28... -
Page 5: General Guidelines
However, passive ribbons such as the R44 can be damaged if ground (Pin 1) is accidently shorted, miswired, or hot patched in a patch bay to (Pin 2) or (Pin 3). Using phantom power with a faulty or miswired cable or a defective supply can severely stretch or break a ribbon. - Page 6 While the ribbon may not break, it nonetheless could significantly degrade the microphone’s performance. The ribbon in your R44 is protected from plosive and direct wind blasts by both the diamond-shaped grille and its acoustical fabric, as well as perforated metal and fabric blast screens internally on each side of the ribbon.
- Page 7 MICROPHONE POSITIONING Always use a sturdy microphone stand with the R44. Weighing in at over 8 pounds and more than 13 inches long, the R44 requires mounting on a strong, robust microphone stand with a heavy base or tripod. Large studio-booms with an appropriate counter-weight are recommended to prevent your R44 from tipping-over and crashing, causing injury to itself, a musician, or a valuable musical instrument.
-
Page 8: Application Advice
We actively encourage users to visit access our comprehensive collection of in-depth articles and tutorials featuring the R44, along with a library of audio and video demonstrations of the R44 in action. If you are experiencing problems with your microphone, please visit the following troubleshooting section of our website: AEAribbonmics.com/support/troubleshooting-aea-products/... - Page 9 HOW TO MINIMIZE BLEED A significant and ever-present challenge in contemporary studio recording is minimizing leakage from nearby instruments into the various microphones. The deep nulls of ribbon microphones provide good rejection of unwanted sounds, which can be beneficial in sound reinforcement situations where feedback is always a threat.
- Page 10 R44 SERIES VARIANTS Our R44 Series microphones all share the authentic sound, feel and look of the original RCA 44. With careful technical modifications, we've created several varitions to accommodate modern applications and budgets. R44C - THE ORIGINAL The R44C is an exact replica of the RCA 44 born from years of experience with RCA repairs.
- Page 11 R44CX - HIGH OUTPUT AEA developed the X-motor as a means of increasing the output of the R44C without active electronics. It comes equipped with a modified R44 transducer that includes two additional magnets, providing an extra 6db of output. It is visually...
-
Page 12: Specifications
SPECIFICATIONS R44 Series Pressure gradient transducer Operating Principle: Bidirectional Directional Pattern: <20 Hz to >20 kHz Frequency Range: 165+ dB SPL (1% third harmonic > 1 kHz) Maximum SPL: 2.25 mV/Pa (-53 dBV) into loaded circuit Sensitivity R44C/CE: 4.47 mV/Pa (-47 dBV) into loaded circuit... - Page 13 DIMENSIONS & POLAR PATTERN • Data below 200 Hz omitted due to measuring room restrictions • 0 dVB is equivalent to 2.5 mV/Pa (-52 dBV) for R44C/CE • 0 dVB is equivalent to 4.47 mV/Pa (-47 dBV) for R44CX/CXE • Normalized to 0 dB at 1kHz. 1/3 octave smoothing...
- Page 14 AEARIBBONMICS.COM | @RIBBONMICS | INFO@RIBBONMICS.COM | (800) 798-9127...
