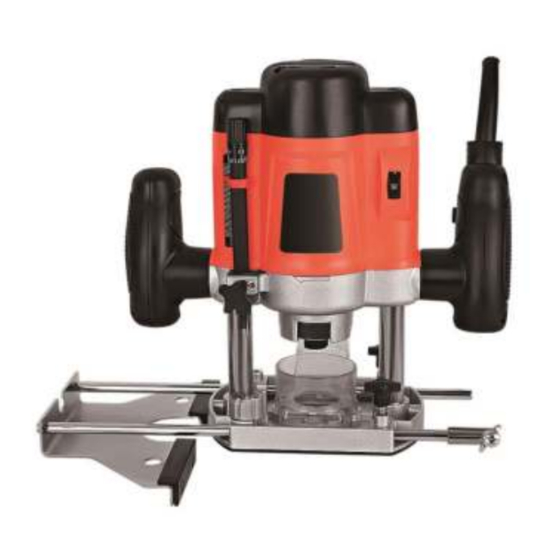

- Page 1 User’s Manual – A S Plunge Router REBO Plunge Router AR-HE-OB-1250 Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
User’s Manual – A S Plunge Router REBO List of contents 1. Safety instructions ........4 1.1 Explanation of the symbols ..........4 1.2 General safety instructions ..........4 1.2.1 Work area safety ............4 1.2.2 Electrical safety ............4 1.2.3 Personal safety ............ - Page 3 User’s Manual – A S Plunge Router REBO 6 Cleaning and maintenance ..... 13 6.1 Cleaning ................ 13 6.2 Maintenance ..............13 6.3 Storage ................. 14 7. Disposal instruction ........ 14 7.1 Disposal of the packaging ..........14 7.2 Disposal of waste equipment ........14 7.3 Meaning of the "dustbin"...
-
Page 4: Safety Instructions
User’s Manual – A S Plunge Router REBO Please read and save these instructions. Read through this user’s manual carefully before using this product. Protect yourself and others by observing all safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. -
Page 5: Personal Safety
User’s Manual – A S Plunge Router REBO from heat, oil, sharp edges or moving parts. Damaged or tangled cords raise the risk of an electrical shock. • When operating a tool outdoors, use only extension cords which are usable for the exterior. -
Page 6: Service
User’s Manual – A S Plunge Router REBO 1.2.5 Service • Have the power tool serviced by a qualified repair person using only original replacement parts. This ensures that the safety of the power tool is maintained. 1.3 Safety notices for milling cutters •... -
Page 7: Technical Data
User’s Manual – A S Plunge Router REBO • Warning! During operation, this electrical tool generates an electromagnetic field which, under certain circumstances may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine. -
Page 8: Exploded Draw
User’s Manual – A S Plunge Router REBO 3. Exploded draw... - Page 9 User’s Manual – A S Plunge Router REBO Number Name Number Name ST4x20 screw M5x16 screw ST4x16 screw Capacitor Rear cover Auto-lock button M4x90 screw Auto-lock Carbon brush Spring Brush holder Fixed pole Body housing Long spring Side cover Short spring Adjuster complete Long guide tube Stotor...
-
Page 10: Initial Operation
User’s Manual – A S Plunge Router REBO 4. Initial operation • Attention! Disconnect the mains plug before working on the device. Risk of electric shock. • Before you switch on the device, you must - insert the desired cutter, - connect the dust extraction, - set the milling depth, - if necessary, mount the rip fence,... -
Page 11: Fitting/Removing The Cutting Tool
User’s Manual – A S Plunge Router REBO 4.6 Fitting/Removing the cutting tool • Warning! Pull out the power plug first. • Caution! After working with the router, the cutting tool will remain very hot for a relatively long time. •... -
Page 12: Adjusting The Routing Depth
User’s Manual – A S Plunge Router REBO • You can choose from 7 different switch positions. The speeds in the various switch positions are as follows: Switch position 1: approx. 11000 rpm (minimum speed) Switch position 2: approx. 12000 rpm Switch position 3: approx. -
Page 13: Routing In Stages
User’s Manual – A S Plunge Router REBO cuts on a waste piece of the same type. This will enable you to find the best working speed for the workpiece very easily. Feed speed too low: The cutter could heat up excessively. If you are cutting inflammable material such as wood, the workpiece could ignite. - Page 14 User’s Manual – A S Plunge Router REBO • Replacement of the power cord: Danger! If the power cord of this equipment is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid hazards. •...
- Page 15 Authorised representative for the technical documentation: Korhan Canbolat Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
