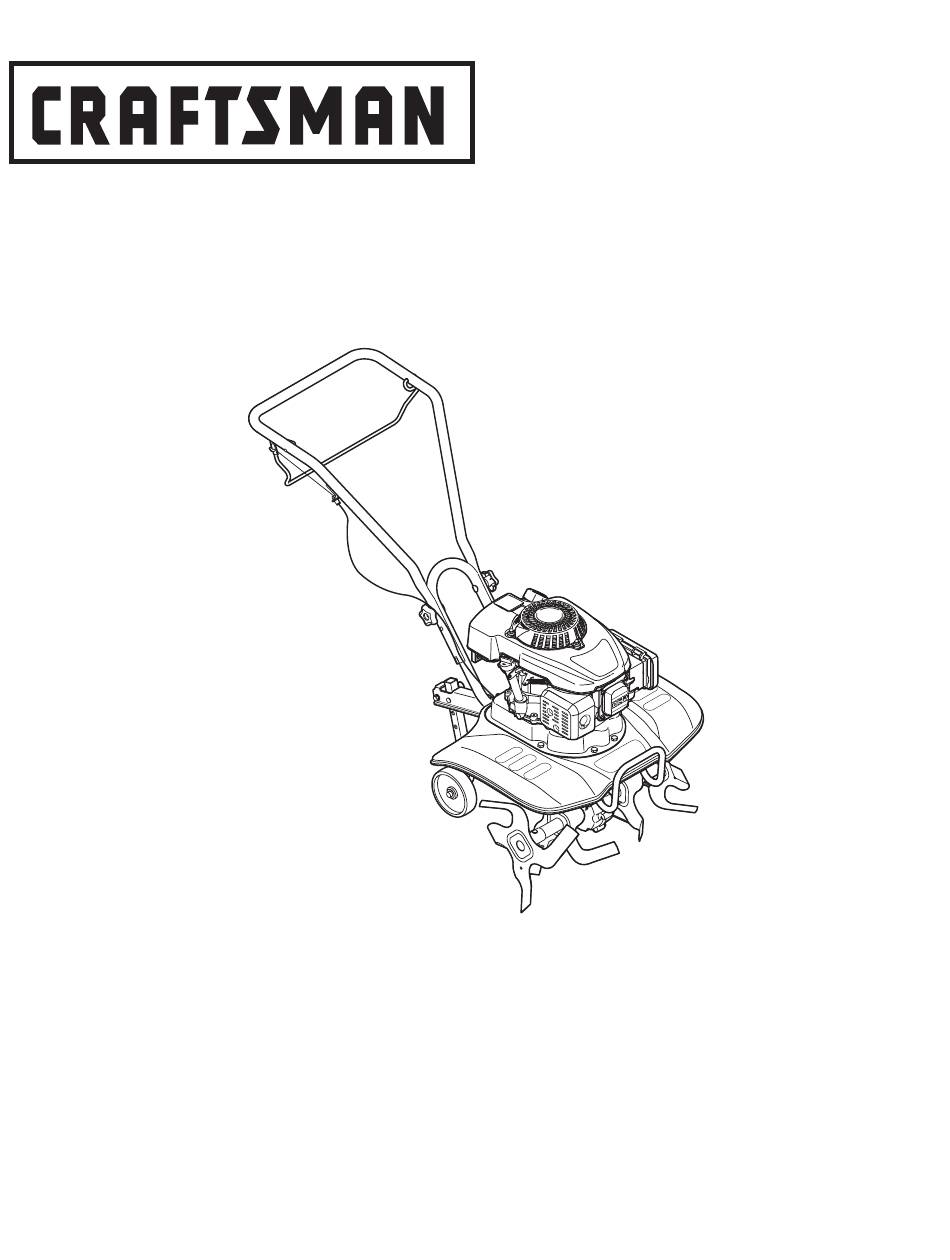

Operator's Manual
159cc Engine
Front Tine Tiller
Model No. C459-62304
CAUTION: Before using this
product, read this manual
and follow all safety rules
and operating instructions.
Sears Canada Inc., 290 Yonge Street, Toronto, On M5B 2C3
®
Visit our web: sears.ca
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
769-09517
11.17.13
Advertisement
Table of Contents
Related Manuals for Craftsman C459-62304
Summary of Contents for Craftsman C459-62304
- Page 1 Operator’s Manual ® 159cc Engine Front Tine Tiller Model No. C459-62304 • SAFETY • ASSEMBLY • OPERATION • MAINTENANCE • PARTS LIST CAUTION: Before using this product, read this manual and follow all safety rules and operating instructions. Sears Canada Inc., 290 Yonge Street, Toronto, On M5B 2C3 769-09517 Visit our web: sears.ca...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safe Operation Practices ..... 3 Parts List (Tiller) ......20 Safety Symbols . -
Page 3: Safe Operation Practices
SAFETY INSTRUCTIONS WARNING DANGER This machine was built to be operated according to the safe opera- This symbol points out important safety instructions which, if not tion practices in this manual. As with any type of power equipment, followed, could endanger the personal safety and/or property of carelessness or error on the part of the operator can result in yourself and others. - Page 4 SAFETY INSTRUCTIONS • Replace gasoline cap and tighten securely. • If the machine should start making an unusual noise or vibration, stop the engine, disconnect the spark plug wire and ground it • If gasoline is spilled, wipe it off the engine and equipment. Move against the engine.
-
Page 5: Safety Symbols
SAFETY INSTRUCTIONS NOTICE REGARDING EMISSIONS WARNING Engines which are certified to comply with California and federal This machine is equipped with an internal combustion engine and EPA emission regulations for SORE (Small Off Road Equipment) are should not be used on or near any unimproved forest-covered, certified to operate on regular unleaded gasoline, and may include brushcovered or grass-covered land unless the engine’s exhaust the following emission control systems: Engine Modification (EM),... -
Page 6: Labels
LABELS Craftsman Tiller Model No. C459-62304 777I23449 777X45317 777X45317 777S34234 777S35146 777S34235 Read and follow Operating Instructions before running engine. 777i25136 Gasoline is flammable. Allow engine to cool at least 2 minutes before refueling. Engines emit carbon monoxide. DO NOT run in enclosed area. -
Page 7: Assembly & Adjustments
ASSEMBLY IMPORTANT: This unit is shipped without gasoline or oil in the engine. Position the upper handle onto the lower handle, Step A in Figure Be certain to service engine with gasoline and oil as instructed in the 2. Align the holes on the lower handle with the holes on the Operation section of this manual before operating your machine. - Page 8 ASSEMBLY ADJUSTMENTS Insert the Z-fitting on the clutch cable into the hole on the tine clutch control. Hook the “Z” end into the opening from the inside Wheels to the outside as shown in Figure 4. The tiller is shipped with the wheel adjusted such that the unit sits level.
-
Page 9: Operation
The engine switch is located on the engine. Turn it on when starting the engine and use it to turn off the engine. Meets ANSI Safety Standards Craftsman Tillers conform to the safety standard of the American National Standards Institute (ANSI). - Page 10 OPERATION Fuel Cap Remove the fuel cap to add fuel. GAS AND OIL FILL-UP Oil Filler Cap/Dipstick NOTE: The engine is shipped without gasoline or oil in the engine. Running the engine with insufficient oil can cause serious engine damage and void the engine warranty. Oil Recommendations Before starting engine, fill with motor oil, capacity is 600 ml/20 oz.
- Page 11 OPERATION Adding Fuel USING YOUR TILLER WARNING Your tiller is designed for seed bed preparation, cultivating, furrowing, and mulching. An adult should fuel this engine. NEVER allow children to refuel its Controlling Tilling and Depth Speed engine. Gasoline (fuel) vapors are highly flammable and can explode. Fuel vapors can spread and be ignited by a spark or flame many feet By increasing the depth of the depth stake, the forward speed of the away from engine.
- Page 12 OPERATION passes across its width. The addition of decayed organic matter will substantially increase the fertility of your garden. For proper decaying action, fertilizer should be applied and worked in with the mulch materials. Breaking up leaves and straw and mixing it with several inches of soil allows proper aeration of the plant root system and retards the growth of weeds.
-
Page 13: Service & Maintenance
SERVICE & MAINTENANCE MAINTENANCE SCHEDULE WARNING Follow the maintenance schedule given below. This chart describes Before performing any type of maintenance/service, disengage all service guidelines only. Use the Service Log column to keep track of controls and stop the engine. Wait until all moving parts have come to completed maintenance tasks. - Page 14 SERVICE & MAINTENANCE Remove the spark plug boot and use a spark plug wrench to remove the plug. See Figure 15. Visually inspect the spark plug. Discard the spark plug if there is apparent wear, or if the insulator is cracked or chipped. Clean the spark plug with a wire brush if it is to be reused.
- Page 15 SERVICE & MAINTENANCE CARBON CANISTER FILTER SERVICE Oil Fill Cap * Extended Dipstick Shown Drain Fuel Filter Plug Figure 18 OIL SERVICE Figure 19 • Check oil level regularly. The foam carbon canister filter must be cleaned or replaced once a •...
- Page 16 SERVICE & MAINTENANCE CAUTION Do not spray engine with water to clean because water could contaminate fuel. Using a garden hose or pressure washing equip- ment can also force water into the air cleaner or muffler opening. Water in the air cleaner will soak the paper element, and water that passes through the element or muffler can enter the cylinder, causing damage.
- Page 17 SERVICE & MAINTENANCE DEPTH STAKE ADJUSTMENT Loosen the lock nut shown in Figure 25. Unloop the belt from the pulleys. See Figure 26. The depth stake acts as a brake for the tiller and controls the depth and speed at which the machine will operate, Figure 24. Remove the Reassemble the new belt and tighten the lock nut.
-
Page 18: Off-Season Storage
OFF-SEASON STORAGE CAUTION Failure to use a fuel stabilizing additive such as STA-BIL® or completely run the engine until it’s out of fuel before off-season stor- age may result in damage to your engine’s carburetor. Subsequent damage would not be covered under the manufacturer’s warranty. PREPARING THE TILLER WARNING When the tiller won’t be used for an extended period, prepare it for... -
Page 19: Troubleshooting
TROUBLESHOOTING WARNING Before performing any type of maintenance/service, disengage all controls and stop the engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting. Always wear safety glasses during operation or while performing any adjustments or repairs. Problem Cause Remedy... -
Page 20: Parts List (Tiller)
PARTS LIST/PIÈCES DÉTACHÉES Snow Thrower Model C459-62304 / Souffleuse de 21 po Modèle No. C459-62304... - Page 21 PARTS LIST/PIÈCES DÉTACHÉES Snow Thrower Model C459-62304 / Souffleuse de 21 po Modèle No. C459-62304 PART N° DE N° DE RÉF PIÈCE DESCRIPTION DESCRIPTION 749-04282-4044 Upper Handle Assembly Poignée supérieur 720-04072A Handle Knob Bouton 749-04281-4044 Lower Handle Assembly Poignée inférieur 710-04398 Flange Screw 5/16-18 x 7.5 Gr.
-
Page 22: Warranty Statement
WARRANTY STATEMENT General: Craftsman products are warranted to be free from defects in materials or workmanship for a specific time period as set-out below (the “Warranty Period”). Warranties extend to the original purchaser of a Craftsman product only. Purchases made through an online auction or through any website other than www.sears.ca are excluded. -
Page 23: Statement
(This page applicable in the U.S.A. and Canada only.) Sears Brands Management Corporation (Sears), the California Air Resources Board (CARB) and the United States Environmental Protection Agency (U.S. EPA) Emission Control System Warranty Statement (Owner’s Defect Warranty Rights and Obligations) EMISSION CONTROL WARRANTY COVERAGE IS APPLICABLE TO CERTI- YEAR 1997 AND LATER ENGINES WHICH ARE PURCHASED AND USED FIED ENGINES PURCHASED IN CALIFORNIA IN 1995 AND THEREAF-... -
Page 24: Emisions Durability Period
Look For Relevant Emissions Durability Period and Air Index Information On Your Engine Emissions Label Engines that are certified to meet the California Air Resources Board (CARB) Tier 2 Emission Standards must display information regarding the Emissions Durability Period and the Air Index. Sears Brands Management Corporation makes this information available to the consumer on our emission labels. -
Page 25: Repair Protection Agreement
REPAIR PROTECTION AGREEMENT Congratulations on making a smart purchase. Your new Craftsman® Once you purchase the Agreement, a simple phone call is all that it product is designed and manufactured for years of dependable opera- takes for you to schedule service. You can call anytime day or night, or tion. - Page 26 02488 Trademarks of Sears Brands Management Corp. used under license by Sears Canada Marque déposée / Marque de commerce de Sears Brands Management Corp. utilisée en vertu d’une licence de Sears Canada...
- Page 46 Ethanol Maximum S34234 AC I23449...
