RANGEXTD Wi-Fi Range Extender (Booster) Quick Installation Guide

Introduction

RangeXTD is best used on Repeater Mode by extending your existing 802.11n wireless WiFi signal to black spots around your home or workplace. On Router Mode It can also be used as a WiFi router when wired to your modem or on AP Mode when wired to your existing wireless router. RangeXTD supports 2.4G wireless network connection, and it can support 2.4G transmission speeds of up to 300Mbps. It has 2X built-in antennas and provides excellent wireless performance, transmission rates and stability technology automatically avoids channel conflicts using its channel selection feature.

Package Contents

• 1 x WiFi Extender/AP/Router (the device)
• 1 x Instruction Manual
• 1 x RJ45 Cable

Hardware Overview

Default Setting
URL: 192.168.7.234
Login Password: admin
Wi-Fi SSID: RANGEXTD
WiFi Key: None

1. Power On/Off
2. WPS Button
3. Mode Selector
4. Reset Pinhole Button
5. WAN/LAN Port
6. LAN Port
7. 3 Stage WiFi Signal Indicators
8. Power/WPS LED Indicator
9. WAN/LAN LED Indicator
10. LAN Indicator
11. AC Power Plug

    WPS Button: Press once to initiate WPS mode, press and hold WPS button for 6 seconds to activate WPS search mode on your device (on Repeater Mode).
    Reset Pinhole Button: Press and hold 3 Seconds to reset the device.

LED Indicators

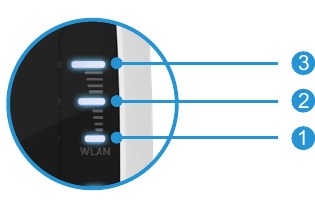

WiFi Signal Strength Indicators (refer to the diagram on the right)

Getting Started

Setting up a Wireless Infrastructure Network
For a typical wireless setup at home (as shown below), please do the following:

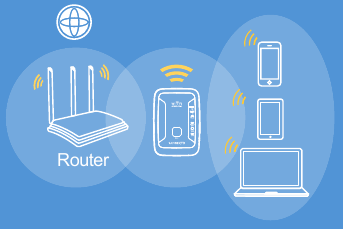

WIRELESS REPEATER MODE

The device copies and reinforces the existing wireless signal to extend the coverage of the signal. This mode is especially useful for a large space to eliminate signal-blind spots.
This mode is best for a large house, office, warehouse or other spaces where the existing signal is weak.

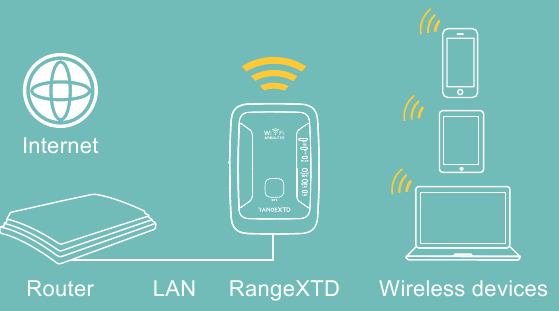

WIRELESS AP MODE

The device is connected to a wired network then transforms the wired Internet access into wireless so that multiple devices can share the Internet.
This mode is best used when there is intereference between rooms like a basement. Extend wired connection from router to device in basement to gain wireless signal to that area.

ROUTER MODE

The device is connected to a DSL or cable modem and works as a regular wireless router. This mode is fit for an environment where Internet access from DSL or cable modem is available for one user but more users need to share the Internet.

Configure via WPS Button

This is the easiest way to configure the device. First, check whether your wireless router supports WPS. For further details, please read the operating instructions for your wireless router. If your router does not have a WPS button, skip this page and follow the next page "Configure via Web Browser".

Quick and Easy

Tips: If you want to keep the stable connection between your router and RangeXTD on REPEATER mode, please install the device at a suitable position. You can find a suitable position by checking the signal indicator on the device, if the LED is below 2 levels, please find new location.

STEPS

1. The mode selector on the device must be set to the "Repeater" position for Repeater Mode.
2. Plug the device into a wall socket. Turn on the device.
3. Press the WPS button for 1-2 seconds on the device. The WPS LED will slowly flashing for approx. 2 minutes.
4. Within these 2 minutes, please press the WPS button of your Wireless Router directly for 2-3 seconds. (For further details, please read the operating instructions for your wireless router.

Configure the Wi-Fi Repeater Mode with RJ45 Cable.

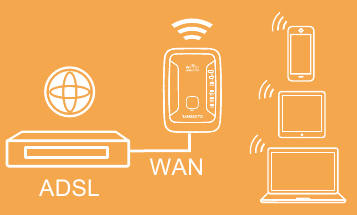

The device is connected to a DSL or cable modem and works as a regular wireless router. Internet access from DSL or cable modem is available for one user but more users need to share the Internet.


STEPS

1. The mode selector must be set to the "Router" position for Router Mode.
2. Plug the Device into a wall socket.
3. Connect your DSL Modem with the Device with RJ45 Cable.
4. When connected, open your web browser and type 192.168.7.234 in the browser address box. This number is the default IP address for this device.
5. The login screen below will appear. Enter the default password "admin" and then click 'Login'.

6. After logging in, you will see the web page below, click on the "Router" button to start setup.

   Choose your WAN Connection Type.

   If DHCP is selected, please follow step 7.


   If PPPOE is selected, please follow steps 7* to 9*.

7. Enter the device wireless parameter. It's recommended that you rename an SSID, choose an Authentication Mode and create a WiFi Password. Click "Apply" button, it will restart. Wait for a few seconds the Device is ready for use.

   SSID	Create the wireless SSID/Name of the device
   Authentication Mode	Setup the wireless security and encryption to prevent unauthorized access and monitoring. Supports WPA, WPA2, WPA/WPA2 encryption methods.
   Password	Create a password for the device

Change Management Password

Default password of the device is "admin", and it's displayed on the login prompt when accessed from web browser. There's a security risk if you don't change the default password, since everyone can see it. This is very important when you have the wireless function enabled.
To change password, please follow the following instructions:

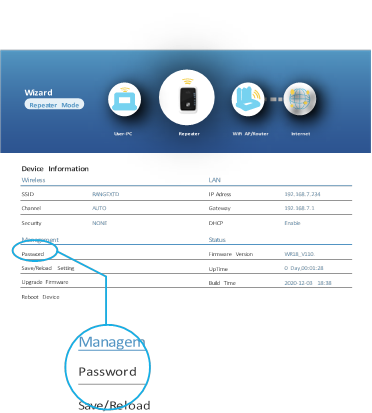

Please click "Password" button on the management setting interface, the following message will be displayed on your web browser:

Click "Apply" button, the Device will log off.
If you forgot your existing password, you can reset the password by clicking the reset pinhole button on the side of the device for 10 seconds and then release, the indicators will all turn off. After you reset your device, unplug the it for 3 seconds. Plug it back in and wait about 30 seconds, then check your WiFi network for the network called 'RANGEXTD' on your computer or mobile device.

Firmware Upgrade

The system software used by this router is called "Firmware", just like any applications on your computer, when you replace the old application with a new one, your computer will be equipped with new functions. You can also use this firmware upgrade function to add new functions to your router, even fix the bugs of this router.

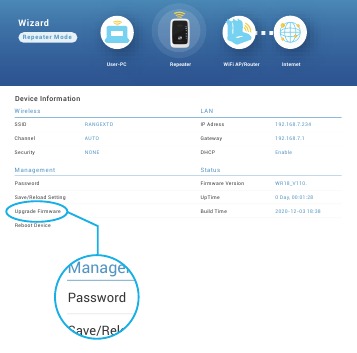

Please click Upgrade Firmware located at the management setting interface, and then the following message will be displayed on your web brouser:

Click "Browse..." or "Choose File" button first; you'll be prompted to provide the filename of firmware upgrade file. Please download the latest firmware file from our website, and use it to upgrade your router.
After a firmware upgrade file is selected, click "Upload" button, and the device will start firmware upgrade procedure automatically.
The procedure may take serveral minutes, please be patient.
Note:

• Never interrupt the upgrade procedure by closing the web browser or physically disconnect your computer from the device. If the firmware you uploaded is interrupted, the firmware upgrade will fail, contact customer support for assistance if needed.
• Warranty is void if you interrupted the upgrade procedure.

How to Connect your Computer/Laptop with the Device

Adding a wireless computer to the device

1. Log on to the computer.

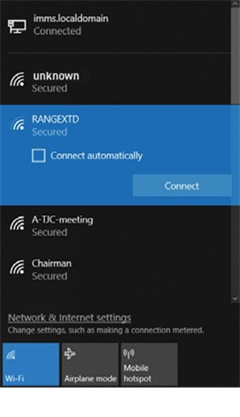

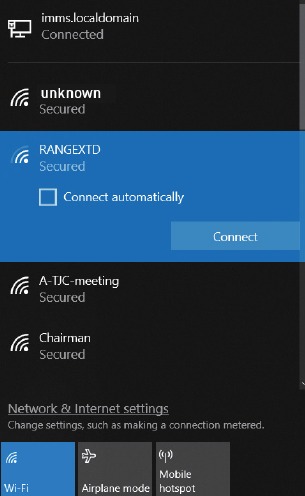

2. Connect to a network by right-clicking the network icon ( or ) in the notification area.
3. Choose the wireless network from the list that appears, and then click Connect.
4. Type the network security key or passphrase if you are asked to do so, and then click OK. You'll see a confirmation message when you are connected to the network.
5. To confirm that you added the computer, please do the following: Open network by clicking the Start button , and then clicking Control Panel. In the search box, type network, and then, under Network and Sharing Center, click View network computers and devices. You should see icons for the computer you added and for the other computers and devices that are part of the network.
   Note:
   If you don't see icons in the Network folder, then network discovery and file sharing might be turned off.

   Scan the below QR code for MAC set up


Difficulties with setting up your Device?

We are here to help!
Please visit https://support.myrangextd.com/ or scan the QR code for any urgent inquiries!

WEEE Directive & Product Disposal

At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal

FCCID NO: 2AVK9-30251

FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
Canada EMC statement
This device complies with RSS 210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This Class [B] digital apparatus complies with Canadian ICES-003.
This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This equipment should be installed and operated with a minimum distance of 20cm （may be adjusted according to actual calculation result） between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
