Fountain Components
Item Description
Water Feature
Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is
installed properly, please read our instructions and tips before you begin.
Step 1 - Seek Professional Help: Check if professional installation is recommended for your fountain.
Step 2 - Check Foundation: Place your fountain on a level surface. It is recommended to place your fountain on concrete or a hard packed
gravel pad. If the base is level but some components seem off, rotate components or use wedges to level them.
Step 3 - Create a Drip Loop: To prevent water from dripping down the cord and damaging the electrical socket, create a drip loop by allowing
the pump power cord to fall below the wall outlet.
Step 4 - Use a GFCI Outlet: Use only a GFCI outlet when running a fountain.
Fountain Information:
• Two people are recommended for the installation of this fountain!
• This fountain holds approximately 15 gallon of water.
• This fountain uses a small fountain cover: FTNCOV-SM
• No refill device or submersible lights are suggested for this fountain.
Pump Information:
OEMPF320 - 320 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
Manzanita
Fountain -
FT-367A
1
Manzanita
Fountain -
FT-367B
1
Basin
Fountain Set-Up:

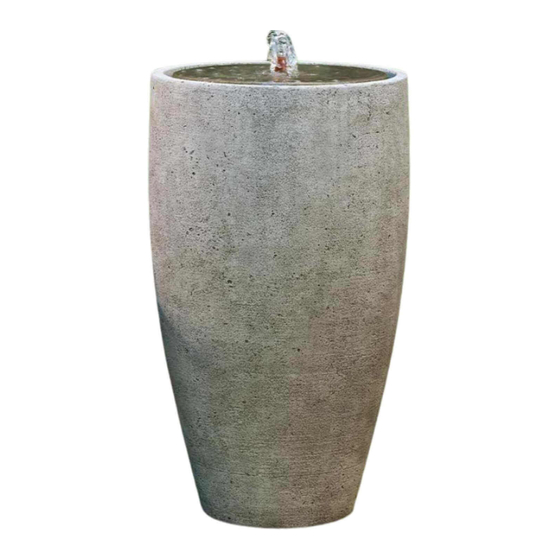

FT-367 Manzanita Fountain
SHOP NOW
Assembly Instructions
Pump Kit Parts List
Component
PK300 Pump
(use adapter indicated)
#10 Stopper
Approx. 36" length of 1/2" black
non-kink tubing
Approx. 1.5" length of 5/8" clear vinyl
tubing
Approx. 1.5" length of 1/2" CPVC pipe
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
1
1
1
rev 8/18/21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Campania International Manzanita FT-367
Summary of Contents for Campania International Manzanita FT-367
- Page 1 FT-367 Manzanita Fountain Assembly Instructions Fountain Information: • Two people are recommended for the installation of this fountain! • This fountain holds approximately 15 gallon of water. • This fountain uses a small fountain cover: FTNCOV-SM • No refill device or submersible lights are suggested for this fountain. Pump Information: OEMPF320 - 320 GPH Pump (16 ft.
- Page 2 FT-367 Manzanita Fountain Assembly Instructions Assemble your fountain on a level surface capable of holding a minimum of 325 lbs with an approximate 1 sq. ft. footprint (actual dimensions 11" Diam.). Step 1 - Position the basin (FT-367B) where the fountain is to be installed, ensuring that it is level. Step 2 - Assemble the pump kit: 2a - Using a hose clamp, attach the 1/2"...
- Page 3 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - Ensure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
