Sealey SC10LR.V3 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. SAFETY
Keep crane, lifting slings, support and beams in good working order and condition. Follow the inspection requirements as
9
described in Section 6 Maintenance. Take immediate action to repair or replace damaged parts by contacting your
supplier. Ensure that all accessory lifting devices are suitably certified. If crane is damaged, remove from service immediately.
Ensure the surface on which the crane is used is level, firm and capable of supporting the weight of the crane with maximum
9
load - we recommend concrete. Never use the crane on tarmacadam or other soft surfaces.
Ensure the crane legs and arms are locked before use.
9
Keep children and unauthorised persons away from the working area.
9
Keep working area clean and tidy, free from unrelated materials and ensure that there is adequate lighting.
9
Ensure that load does not exceed the maximum lifting capacity of the crane. Overloading the crane is dangerous. Where
9
appropriate, use only the lifting points recommended by the manufacturer of the item to be lifted, e.g. vehicle engine.
Before lifting the load ensure that the crane jib is in the lowest practical position, that there are no obstacles which may snag
9
the load whilst it is being lifted and that the area above the jib is clear.
To avoid injury, be fully aware of your own and other persons locations in relation to the lifting, and lowering, of the load.
9
Keep a sound footing and balance, and ensure the floor is not slippery.
9
Ensure jib extension locking bolt and nut are in position before lifting.
9
Ensure the centre of gravity always remains inside the crane base.
9
DO NOT harness the load at an angle or use any attachments not verified as fit for purpose.
8
DO NOT allow the load to swing during lifting.
8
DO NOT allow the load to drop suddenly. Lower load with care, ensuring that you are fully aware of the condition of the surface onto
8
which the load is to be placed.
DO NOT load crane beyond its rated capacity for each specified jib extension position as indicated in Section 3. The capacity of
8
the crane reduces as the jib is extended.
DO NOT position any part of your body beneath the load.
8
DO NOT use the crane to move or transport a load other than for repositioning. The crane is a lifting device only.
8
DO NOT apply any sideways pressure to any part of the crane during lifting or when a load is suspended.
8
DO NOT attempt to adjust the safety valve, which has been set and sealed by the manufacturer.
8
DO NOT use this product to perform a task for which it is not designed.
8
DO NOT use whilst under the influence of drugs, alcohol or intoxicating medication.
8
DO NOT climb on the crane.
8
When not in use fold the crane down and store in a safe, dry, childproof area.
9
This crane is designed for lifting within a garage or workshop environment.
9
WARNING! Failure to heed safety and warning instructions may result in damage and/or personal injury and will invalidate the
‰
warranty.
2. INTRODUCTION
Delivered in knock-down form for reduced freight cost. Heavy-duty front and rear castors are on extendible legs to give improved stability,
particularly when operating at maximum jib extension of 1447mm. Side pump access with removable handle.
3. SPECIFICATION
Model No: ............................................................ SC10LR.V3
Minimum frame under body clearance: ...................... 180mm
Length of Jib Position 1: ............................................. 937mm
Length of Jib Position 2: ........................................... 1107mm
Length of Jib Position 3: ........................................... 1277mm
Length of Jib Position 4: ........................................... 1447mm
Length: ............................................................ 1450-1600mm
© Jack Sealey Limited

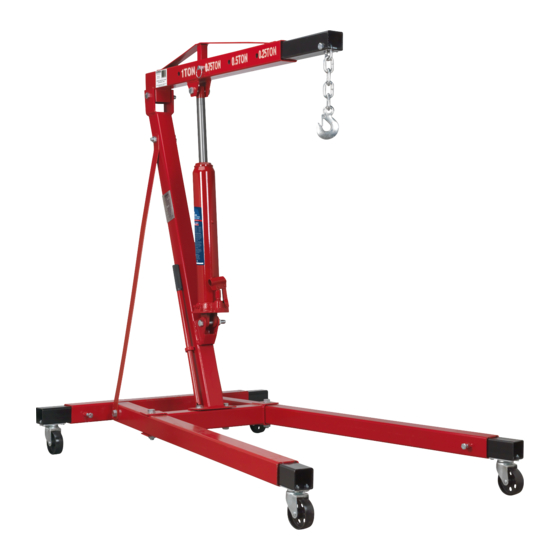

1TONNE LONG REACH ENGINE CRANE WITH
EXTENDABLE LEGS
SC10LR.V3
MODEL NO:
Wear safety
footwear
Original Language Version
Lifting Capacity in Position 1: ..................................... 1000kg
Lifting Capacity in Position 2: ....................................... 750kg
Lifting Capacity in Position 3: ....................................... 500kg
Lifting Capacity in Position 4: ....................................... 250kg
Max. Lift Height at Jib Position 1: ............................. 1750mm
Max. Lift Height at Jib Position 2: ............................. 1850mm
Max. Lift Height at Jib Position 3: ............................. 1950mm
Max. Lift Height at Jib Position 4: ............................. 2050mm
Rear Width: ....................................................... 860-1160mm
SC10LR.V3 Issue 1 31/08/22
