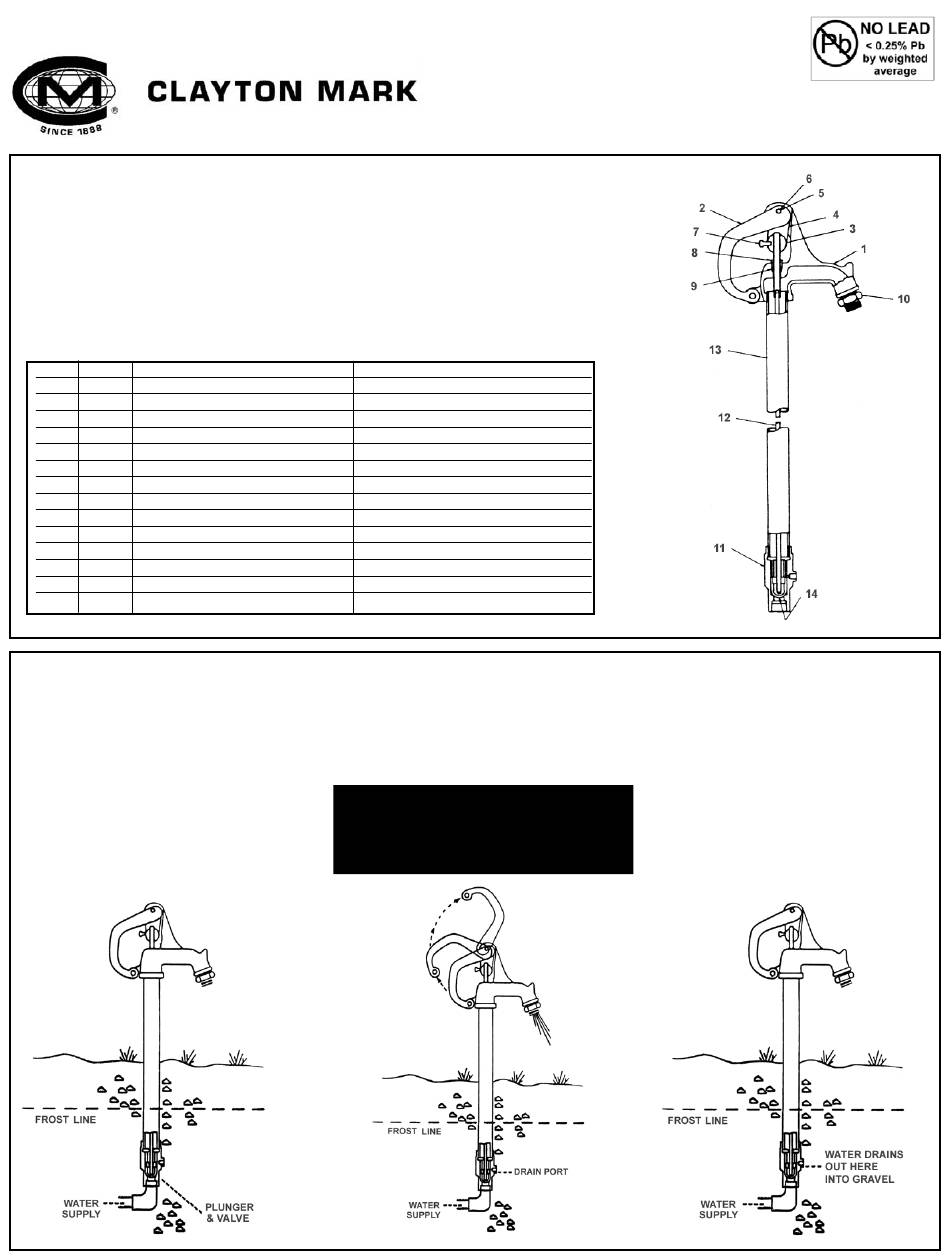

CLAYTON MARK 5451 Series Installation

LEAVE THIS SHEET WITH END USER.
• HEAVY DUTY-BUILT FOR YEARS OF RELIABLE USE
• HIGH STRENGTH STAND PIPE PROVIDES PROTECTION AGAINST DAMAGE
• STAND PIPE HAS SUPERIOR CORROSION RESISTANCE
• STEEL, ZINC PLATED ROD FOR LONG LIFE
• HEAVY DUTY DUAL BYPASS BOTTOM VALVE ALLOWS BETTER FLOW WITH LESS
RISK OF BLOCKAGE FROM DEBRIS
• COMPONENTS CAN BE REPLACED FROM ABOVE GROUND WITHOUT DIGGING
• LOCKING EYE HOLES ALLOW HYDRANT TO BE PADLOCKED WHEN NOT IN USE.
• INLET 3/4" NPT, OUTLET 3/4" GARDEN HOSE THREAD.
ITEM QTY DESCRIPTION
1 1 HEAD
2 1 HANDLE
3 * 1 CONNECTOR
4 * 2 LINK
5 * 1 FULCRUM BOLT
6 * 1 FULCRUM NUT
7 * 1 SQUARE HEAD SET SCREW
8 * 1 PACKING NUT
9 * 1 PACKING
10 1 HOSE ADAPTER 3/4"
11 1 BOTTOM VALVE
12 1 CLEVIS ROD/ROD ASSEMBLY
13 1 PIPE
14 * 1 PLUNGER
* ITEMS ARE INCLUDED IN YRK1 REPAIR KIT.
CLOSED
The hydrant is closed and no water is in the
riser pipe or head. Water is stopped by the
plunger (valve) below the frost line.
Protected like this, no freezing can occur.
MAT'L OF CONSTRUCTION
CAST IRON
CAST IRON
BRASS
STEEL-ZINC PLATED
STEEL-ZINC PLATED
STEEL-ZINC PLATED
STEEL-ZINC PLATED
BRASS
GRAPHITE
BRASS
BRASS
STAINLESS STEEL/STEEL-ZINC PLATED
STEEL, GALVANIZED
BUNA-N/BRASS
HOW A FROST-PROOF HYDRANT WORKS
OPEN - WATER FLOWING
Water is made available by raising the handle.
This will lift the plunger allowing water to flow and
the plunger to seal off the drain hole.
NOTE: WATER FLOW CANNOT BE THROTTLED.
Hydrant handle must be positioned in the FULL
open position for proper water flow and drainback
seal. This hydrant will not operate properly in a
PARTIALLY open position.
5451 SERIES
®
FROST-PROOF YARD HYDRANT
CLOSED - DRAINING
Closing the handle pushes the plunger
down to seal off the water and uncover
the drain hole. This allows the water in
the head and riser pipe to drain back
down into the gravel drain bed. The
hydrant is now empty and cannot freeze.
