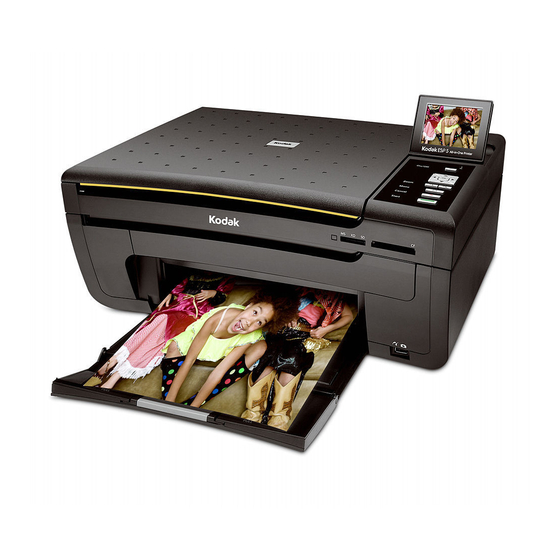

Start Here
All-in-One Printer
Print
Copy
Scan
Note: A USB 2.0 (High Speed) cable is required to connect your Kodak All-in-One printer to your Windows
or Macintosh OS computer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESP 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Kodak ESP 5

Summary of Contents for Kodak ESP 5

  • Page 1 Start Here All-in-One Printer Print Copy Scan Note: A USB 2.0 (High Speed) cable is required to connect your Kodak All-in-One printer to your Windows or Macintosh OS computer.

  • Page 2: Unpacking The Printer

    Lift the printer access door. lid. c) Remove all orange shipping tape and any foam pieces from the inside of the printer. d) Close the printer access door. www.kodak.com/go/aiosupport Inkjet Printer Software FOR WINDOWS & MACINTOSH 10 10 Software and...

  • Page 3: Connecting The Power

    2. Connect adapter to printer. 3. Connect to power source. b) Remove the plastic fi lm from the LCD display. Position the LCD display. c) Press ON . Select your language when prompted. Do not insert paper until prompted by the LCD display. www.kodak.com/go/aiosupport...

  • Page 4: Inserting The Printhead

    Inserting the Printhead a) Lift the printer access door. b) Remove the printhead from its bag. Insert the printhead immediately upon opening sealed bag. The printhead is fragile, handle carefully. c) Pull on the orange tab to remove the protective retainer. www.kodak.com/go/aiosupport...
  • Page 5 Carefully remove and discard the orange protective cap. Do not touch the copper-colored contacts. Carriage e) Place the printhead into the carriage. Insert at the angle shown. f) Push fi rmly against the target label of the printhead until you hear a loud snap. www.kodak.com/go/aiosupport...
  • Page 6 Remove the black ink cartridge from its bag. Insert ink cartridges immediately upon opening sealed bag. b) Carefully remove and discard the orange cap. Handle ink cartridges carefully to avoid ink transfer. c) Insert the black ink cartridge into the printhead. www.kodak.com/go/aiosupport...
  • Page 7 Press down on the ink cartridge until you hear it click into position. e) Open and uncap the color ink cartridge. Insert it into the printhead. f) Press down fi rmly on the ink cartridge until you hear it click into position. g) Close the printer access door. www.kodak.com/go/aiosupport...
  • Page 8 Squeeze the paper edge guide and slide it guide against the left edge of the paper. Leave the paper tray extended. NOTE: For photo paper, insert a stack of paper into the paper tray face down. Leave the paper tray extended. www.kodak.com/go/aiosupport...
  • Page 9 Flip up the paper stop. d) Press Start. The printer will automatically begin to calibrate. e) Calibration will take about two minutes and is complete when the sheet has printed. www.kodak.com/go/aiosupport...

  • Page 10: Installing Windows Software

    WINDOWSWINDOWS WINDOWSWINDOWS WINDOWSWINDOWS WINDOWSWINDOWS Setting your KODAK All-in-One Printer as the default on your WINDOWS OS WINDOWS XP: Start Right-click the icon for the printer you want to use as the default printer, and then click Set As Default Printer.
  • Page 11 MACINTOSHMACINTOSH MACINTOSHMACINTOSH Setting your KODAK All-in-One Printer as the default on your MACINTOSH OS MAC OS X defaults to the printer most recently added. To change the default printer, follow these steps: 1. From the print dialog, choose Edit Printer List from the Printer pop-up menu.

  • Page 12: Home Center Software

    You can use Kodak Home Center to browse, print, copy, scan, order supplies, and confi gure your AiO Printer from the computer. Home Center Software for Macintosh You can use Kodak Home Center to order supplies and confi gure your AiO Printer from the computer. www.kodak.com/go/aiosupport...

  • Page 13: Warranty Information

    The option of repair, replacement, or refund is Kodak’s only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause.

  • Page 14: Safety Information

    - Do not place your All-in-One Printer on an unstable cart, stand, bracket, or table. Injury to persons and damage to the equipment may occur. - The use of an accessory attachment that is not recommended by Kodak, such as an AC adapter, may cause fi re, electric shock, or injury.
  • Page 15 Registration has its rewards- including a terrifi c off er. Register your KODAK All-in-One Printer and get great support, expert tips, free software downloads- plus a phenomenal deal on inkjet supplies to get you started. Simply register right away when prompted during software installation or on the web at www.kodak.com/go/register.
  • Page 16 Make sure that you have the most up-to-date software, fi rmware and Help fi les from the Web. Visit The User Guide is installed with your KODAK Inkjet Printer Software and is located here: WINDOWS OS: MACINTOSH OS: Further, you can access topics for troubleshooting through Home Center by clicking the question mark (?) button at the top right-hand corner of the menu bar.
