Classic Accessories Cimarron Owner's Manual

Classic crafts corporation ltd. cimarron pontoon boat owner's manual
Hide thumbs Also See for Cimarron:
Table of Contents

Advertisement

Quick Links

The
Cimarron
Pontoon Boat
O W N E R ' S
M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cimarron and is the answer not in the manual?

Questions and answers

Related Manuals for Classic Accessories Cimarron

Summary of Contents for Classic Accessories Cimarron

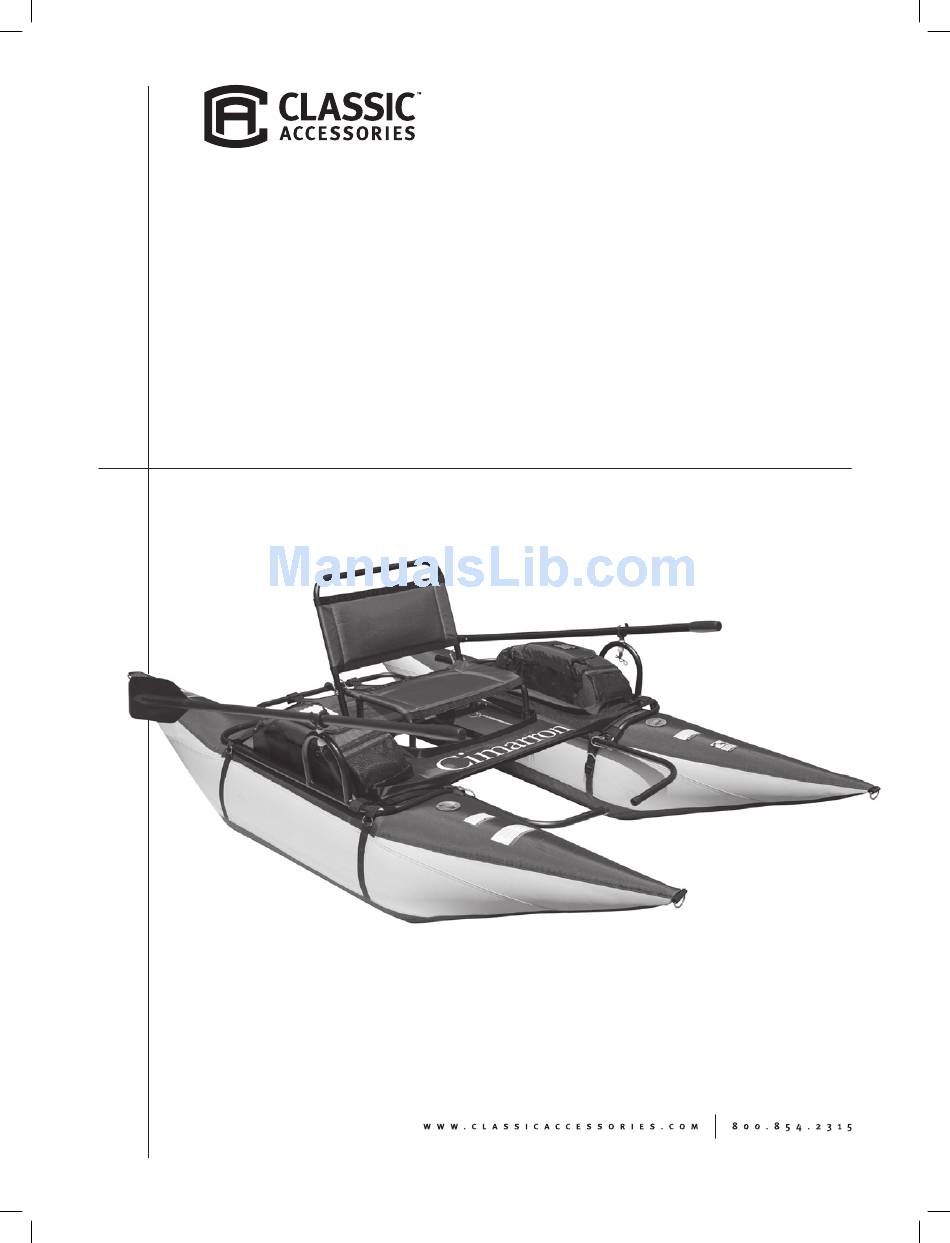

  • Page 1 Cimarron Pontoon Boat O W N E R ' S M A N U A L...

  • Page 3: Table Of Contents

    C I M A R R O N P O N T O O N B O A T O W N E R ’ S M A N U A L T A B L E O F C O N T E N T S INTRODUCTION SAFETY INFORMATION AND SYMBOLS RESPONSIBILITIES OF THE OPERATOR(S)

  • Page 4: Introduction

    Please read it carefully, and familiarize yourself with your boat before using it. If this is your first pontoon boat, or if you are changing to this type of boat for the first time, for your own comfort and safety, please ensure that you obtain handling and operating experience before serious use.

  • Page 5: Safety Information And Symbols

    However, this list of precautions is not all-inclusive. Users must follow all applicable laws, rules, and regulations and should exercise appropriate caution in the safe operation of this pontoon boat. REMEMBER - always use common sense when using your pontoon boat.

  • Page 6: Responsibilities Of The Operator(S)

    • Recommended working pressure is 2.5 psi (0.17 bar). DO NOT EXCEED 2.5 PSI. • Check for leaks before using. • Partially deflate if leaving boat in direct sunlight or within a vehicle in sunlight. • Remember that air pressure changes with temperature and elevation so always...

  • Page 7: Product Specifications & Capacity

    P R O D U C T S P E C I F I C A T I O N S & C A P A C I T Y BOAT SPECIFICATIONS Product Name: CIMARRON Pontoon Boat Dimensions: 96"L x 54"W x 29"H (top of the seat) Dry Weight: 37.5 lbs.

  • Page 8: Inflation

    (hot or cold). CAUTION On warm sunny days, keep the pontoon boat either in water or in shade (if kept inflated on land). This will decrease the risk of overexpansion of the pontoon chambers posed by rising temperatures, which can result in seam tears, delamination and pinholes.

  • Page 9: Parts List

    P A R T S L I S T Tools Needed: Pump with cone fitting Rubber Mallet Before you begin please unpack the carton and check that you have all your parts. Miscellaneous Parts: 2 Long Frame Clevis Pins  Short Frame Clevis Pins 2 Oars ( pieces or 2 per Oar) 2 Oarlocks 2 Oarlock Cotter Pins 2 Bladder Repair Kit (Two 0mm self-adhesive patches)

  • Page 10: Assembly And Care Instructions

    A S S E M B L Y A N D C A R E I N S T R U C T I O N S It is important to follow these instructions to successfully and safely assemble your Classic Accessories Pontoon Boat. Please pay particular attention to the bold faced instructions and any information which has this symbol next to it.
  • Page 11 Locate the left and right pontoon frames. On the front of each rail (where the front of the boat will be) there is a “L” or “R” label indicating left or right. Place a left pontoon frame on top of the left pontoon (remember—the left/right label is in the pocket)
  • Page 12 Frame Pontoon Buckle • Over the top and match hook and loop straps with each other. • Adjust fit with cam buckle. Repeat for the remaining strap then attach the other pontoon to its frame. 4. Inflate the pontoon completely. Finish inflating the pontoons using both valves in each pontoon as outlined in Step 3.
  • Page 13 11. Do the first fitting. Sit in the boat and adjust the length of the foot pegs. (Many people find the most comfortable position is to have their knees slightly bent.)
  • Page 14 Sit in the boat on dry land and adjust the foot pegs and oar lock placement to your leg length and preference. Float your Cimarron Pontoon Boat in shallow water. Push off, get seated comfortably, place your feet on the foot pegs and check to see if you are level in the water.

  • Page 15: Clean Angler Statement

    C I M A R R O N P O N T O O N B O A T O W N E R ’ S M A N U A L C L E A N A N G L E R S T A T E M E N T Classic Accessories is a proud partner of the Federation of Fly Fishers Clean Angler program.

  • Page 16: Repairing Tears/Holes In Pontoon Bladders

    C I M A R R O N P O N T O O N B O A T O W N E R ’ S M A N U A L R E P A I R & T R O U B L E S H O O T I N G Repairing Tears and Holes in Pontoon Bladders If your pontoon bladder becomes torn or punctured, use the enclosed patches to fix it.

  • Page 17: Checking For A Leaking Valve

    T R O U B L E S H O O T I N G If your boat appears to be losing air, it might not be because of a leak. Changes in air temperature, elevation and use on cold water (which can cool the air inside the pontoon bladders) can all have an effect on the air inside the bladders.

  • Page 20: Warranty

    C I M A R R O N P O N T O O N B O A T O W N E R ’ S M A N U A L One Year Limited Warranty If the boat, oars, carrying case or pump fail due to a defect in workmanship and materials within one year from the date of purchase Classic Accessories will repair or replace it free of charge.
