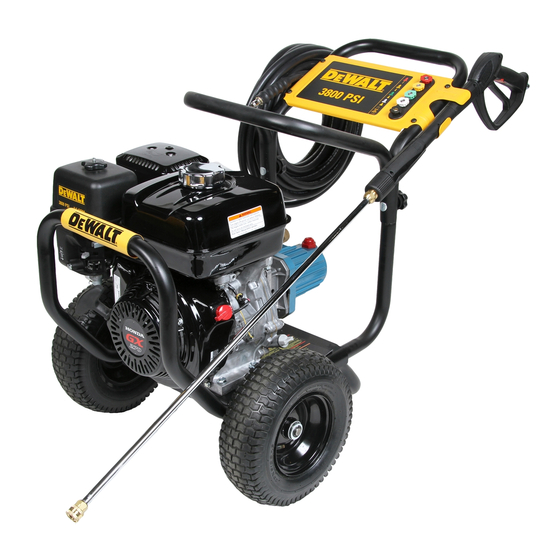

DXPW
PRESSURE WASHER
A. Panel assembly
B. Nozzle holder
C. Professional Spray gun
D. Wheel
E. Quick-connect
spray wand
F. Frame
G. Engine dipstick/oil plug
H. Engine switch
I. Starter grip
Refer to the engine instruction manual for location and
operation of other engine controls.
For best results, pump oil designed specifically for
pressure washers is recommended, as these contain a
rust inhibitor and an anti-foaming agent. If this oil is not
available, an SAE 30W non-detergent oil may be used.
J. Engine
K. Throttle control lever
L. Choke control
M. Fuel valve lever
N. Gas cap
O. Handle assembly
P. High-pressure hose
Q. High-pressure pump
R. Top handle
K
L
M
I
FIG. 1
J
N
F
2
B
P
A
R
H
G
C
O
Q
E
D
Advertisement
Related Manuals for DeWalt DXPW60604
Summary of Contents for DeWalt DXPW60604
- Page 1 DXPW PRESSURE WASHER FIG. 1 A. Panel assembly J. Engine B. Nozzle holder K. Throttle control lever C. Professional Spray gun L. Choke control D. Wheel M. Fuel valve lever E. Quick-connect N. Gas cap spray wand O. Handle assembly F.
- Page 2 MODEL WEIGHT HEIGHT WIDTH LENGTH PSI** GPM** ENGINE DXPW 125 lbs 28" 24" 38" 3800 HONDA GX270*** (56.7 kg) (26,200 kPa) (13.2 L/min) 270 cc OHV (71.1 cm) (60.7 cm) (96.5 cm) ** PSI and GPM ratings determined in accordance with the Pressure Washers Manufacturers Association (PWMA) standard PW101.
- Page 3 Service land and may also be legally required under other statutes and WARNING: Do not operate this unit until you read this instruction ordinances. manual and the engine instruction manual for safety, operation and maintenance instructions. WARNING: This product and its exhaust contain chemicals known to the State of California to cause cancer, and birth WARNING: When using this product basic precautions should defects or other reproductive harm.
- Page 4 washer in an explosive in well-ventilated areas free corrosive chemicals, environment could poisons, insecticides, or any result in a fire. areas with fire extinguisher kind of flammable solvent suitable for gasoline fires. with this product could result in serious injury or death.
- Page 5 muffler. DANGER: RISK OF FLUID INJECTION AND LACERATION wand or hose fittings while WHAT CAN HAPPEN HOW TO PREVENT IT system is pressurized. operates at fluid pressures hose regularly. Replace lances or guns with this and velocities high enough the hose immediately if it is pressure washer, DO NOT to penetrate human and damaged, worn, has melted...
- Page 6 DANGER: RISK OF UNSAFE OPERATION DANGER: RISK OF INJURY FROM SPRAY WHAT CAN HAPPEN HOW TO PREVENT IT WHAT CAN HAPPEN HOW TO PREVENT IT pressure washer could lead bleach or any other can cause objects to break, Z87.1 safety glasses. Wear to serious injury or death to corrosive compound.
- Page 7 is not followed, engine can kickback causing serious of gun to relieve pump DANGER: RISK OF INJURY OR PROPER TY DAMAGE hand and arm injury. pressure. Pull starter cord WHEN TRANSPORTING OR STORING slowly until resistance is felt. WHAT CAN HAPPEN HOW TO PREVENT IT Then pull cord rapidly to avoid kickback and prevent...
- Page 8 directed at pneumatic tire above 1600 psi (11032 kPa) sidewalls (such as found use the widest fan spray WARNING: RISK OF BURSTING on automobiles, trailers and (40º nozzle) and keep the the like) could damage the spray a minimum of 8" WHAT CAN HAPPEN HOW TO PREVENT IT sidewall resulting in serious...
-
Page 9: Installation
WARNING: RISK OF CHEMICAL BURN WARNING: RISK OF INJURY FROM LIFTING WHAT CAN HAPPEN HOW TO PREVENT IT WHAT CAN HAPPEN HOW TO PREVENT IT corrosive chemicals, kerosene, or any other poisons, insecticides, or any flammable materials with this from attempting to lift too heavy to be lifted by one kind of flammable solvent product. -
Page 10: Operation
WARNING: Risk of bursting. Use a tire pressure gauge to check the tires pressure before each use and while inflating tires; see the tire sidewall for the correct tire pressure. NOTE: tires can fill small tires similar to these very rapidly. Adjust pressure regulator on air supply to no more than the rating of the tire pressure. - Page 11 CHANGING NOZZLES ON SPRAY WAND Nozzle Color Spray Pattern Uses Surfaces* DANGER: Risk of fluid injection. Do not direct discharge stream 0˚ powerful metal or toward persons, unprotected skin, eyes or any pets or animals. pinpoint for very concrete; Serious injury will occur. intense cleaning DO NOT use on WARNING: Flying objects could cause risk of serious injury.
- Page 12 wand, refer to Spray Wand Nozzles. NOTE: Chemicals and soaps enclosed areas such as garages, basements, etc. will not siphon if the black soap nozzle is not installed on the spray wand. animals. 4. After use of chemicals, place chemical hose into container of clean WARNING: Risk of fire, asphyxiation and burning.
- Page 13 START-UP PROCEDURE gasoline with a pump octane rating of 86 or higher. Do not overfill. Wipe up spilled fuel before starting the engine. Refer to engine instruction manual for correct procedure. 2. Check engine oil level. Refer to the engine instruction manual for correct procedure.
-
Page 14: Maintenance
connect nozzle. Refer to Spray Wand Nozzles. Consult the engine instruction manual for the manufacturer's recommendations for any and all maintenance. NOTE: 1. If chemicals were applied, place the chemical hose into a container hole to help make changing the engine oil easier. of clean water and draw clean water through chemical injection system to rinse system thoroughly. - Page 15 STORAGE If the nozzle becomes clogged with foreign materials, such as dirt, excessive pressure may develop. If the nozzle becomes partially Consult the engine instruction manual for the manufacturer's clogged or restricted, the pump pressure will pulsate. Clean the recommendations for storage. nozzle immediately using the nozzle kit supplied and the following instructions: 1.
-
Page 16: Service Information
WARNING: The use of any other accessory not recommended for use with this tool could be hazardous. Use only accessories rated 1. Drain all water from high-pressure hose, coil it and store it in equal to or higher than the rating of the pressure washer. cradle of the pressure washer handle. - Page 17 Bypass mode: Allows water to re-circulate within pump when the gun trigger is not pulled. Chemical hose: Feeds cleaning agents into the pump to mix with the water. Refer to Chemicals and Cleaning Solvents. Chemical injection system: Mixes cleaners or cleaning solvents with water to improve cleaning effectiveness. Choke control: Opens and closes carburetor choke valve.
- Page 18 or your dealer. Problem Code Engine will not start ......................1, 2, 3, 4, 5, 6, 7, 8, 36 (refer to the engine's instruction manual for further engine troubleshooting) No or low pressure (initial use) ..................9, 10, 11, 12, 13, 14, 15, 16 Will not draw chemicals ....................16, 17, 18, 19, 20, 21 No or low pressure (after period of normal use) ..............22, 23, 24 Water leaking at gun/spray wand connection ..............25, 26...
- Page 19 cont.) CODE POSSIBLE CAUSE POSSIBLE SOLUTION Fuel valve closed. Move the fuel valve lever to the OPEN position. Spray wand not in high pressure. See Spray Wand Nozzles under Operation. Low water supply. Water supply must be at least 5 GPM @ 20 psi (138 kPa). Leak at high-pressure hose fitting.
- Page 20 cont.) CODE POSSIBLE CAUSE POSSIBLE SOLUTION Pump head or tubes damaged from freezing. Have replaced by authorized service center. Oil seals worn. Have replaced by authorized service center Loose drain plug. Tighten. Worn drain plug o-ring Check and replace. Worn fill plug o-ring. Check and replace.
