Record of Revisions
Revision
Date
1.00
Aug, 2019
4.00
Oct, 2020

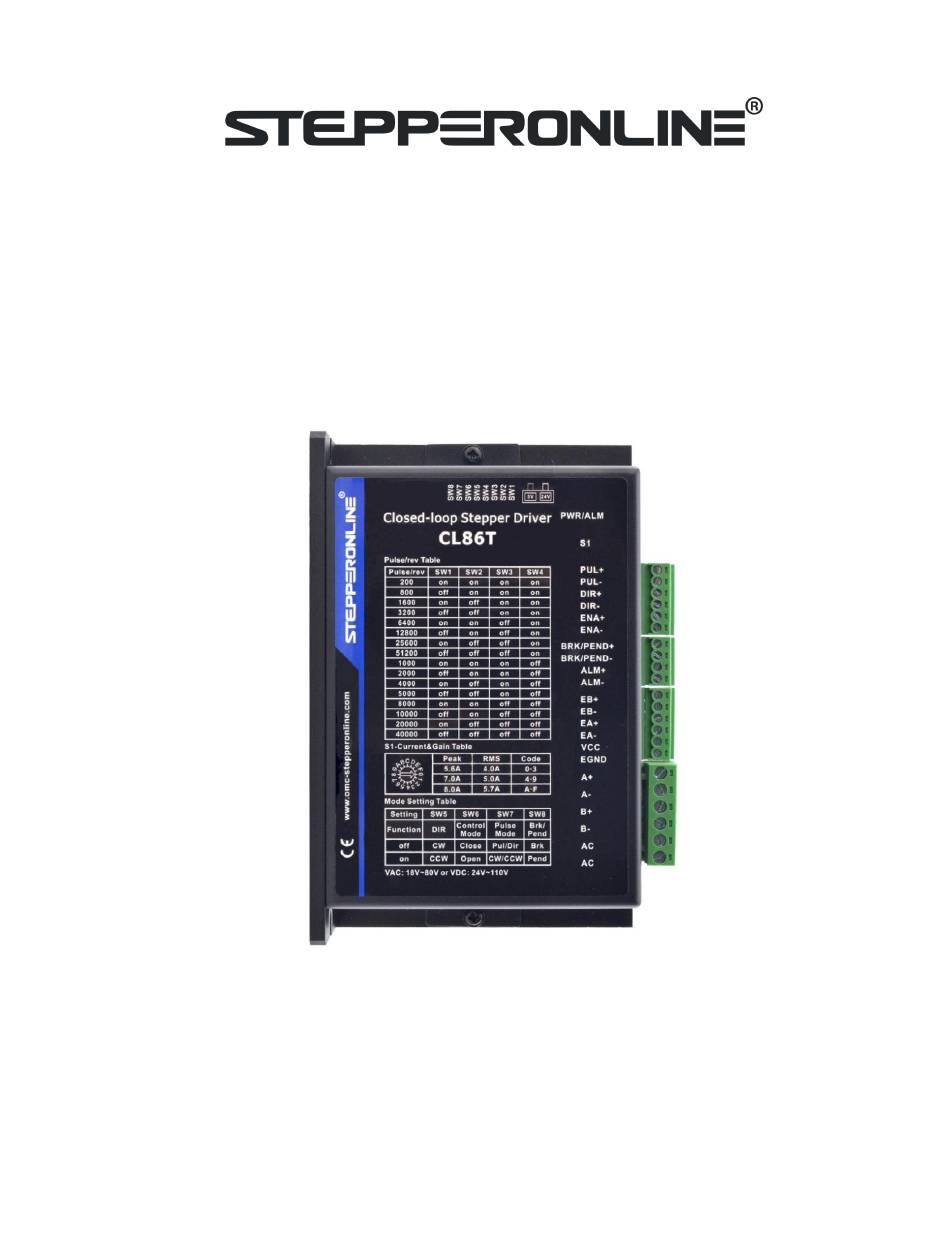

User Manual
CL86T (V4.0)
Closed Loop Stepper Driver
Revision 4.0
Description of Release
Initial Release
Add rotating switch, 5/24V selector switch, brake output.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL86T and is the answer not in the manual?

Questions and answers

Summary of Contents for StepperOnline CL86T

  • Page 1 User Manual CL86T (V4.0) Closed Loop Stepper Driver Revision 4.0 Record of Revisions Revision Date Description of Release 1.00 Aug, 2019 Initial Release 4.00 Oct, 2020 Add rotating switch, 5/24V selector switch, brake output.
  • Page 2: Table Of Contents

    CL86T(V4.0) Closed Loop Stepper Drive User Manual Table of Content 1. Features ..................................1 2. Specifications .................................1 2.1 Electrical Specifications ............................. 1 2.2 Environment .................................1 2.3 Mechanical Specifications ..........................2 2.4 Heat Dissipation ..............................2 3. Connections and LED Indication ..........................3 3.1 Control and Digital Output Connections ......................
  • Page 3: Features

    CL86T(V4.0) Closed Loop Stepper Drive User Manual 1. Features  Input voltage 18-80VAC or 24-110VDC  No loss of step, No tuning  500 KHz max pulse input frequency  Resolutions of 200-51,200 via DIP switches SW1 - SW4  2 out current settings and gain tuning via S1 rotating switch ...
  • Page 4: Mechanical Specifications

    It is recommended to mount the drive vertically to maximize heat dissipation. Mount a cooling fan nearby  if necessary. If multiple CL86T (V4.0) drives are installed, it is suggested to keep a minimal 30mm (12 inches)  between two of them.
  • Page 5: Connections And Led Indication

    CL86T(V4.0) Closed Loop Stepper Drive User Manual 3. Connections and LED Indication 3.1 Control and Digital Output Connections Details Pulse and Direction Connection: PUL+ (CW+) (1) Optically isolated, high level 3.5-5V or 24V, low voltage 0-0.5V (2) Maximum 500 KHz input frequency PUL- (CW-) (3) The width of PUL signal is at least 1.0μs, duty cycle is recommended 50%...
  • Page 6: Motor Connector

    4.2 Selecting Supply Voltage The CL86T (V4.0) is designed to operate within 24 - 110VDC or 18 - 80VAC voltage input. When selecting a power supply, besides voltage from the power supply power line voltage fluctuation and back EMF voltage generated during motor deceleration needs also to be taken into account.
  • Page 7: Switch Configurations

    The 8-bit is located on the side and used to configure settings of micro step resolution, output current, and motor standstill current as shown below Figure 2: DIP switches 5.2.1 Micro Step (SW1-SW4) Each CL86T (V4.0) has 16 microstep settings which can be configured through DIP switches SW1, SW2, SW3 and SW4. See the following table for detail.
  • Page 8: Mode Setting (Sw5 - Sw8)

    6. Typical Connection 6.1 Digital Input Connection The CL86T (V4.0) can accept can accept differential or single-ended control signals (pulse, direction, and enable) in open-collector or PNP connection. It is recommend to add an EMI line filter between the power...
  • Page 9: Fault Output Connection

    (2) ENA signal is no connected as default, and 6.2 Fault Output Connection When over voltage or over current protection happens, CL86T(V4.0) red status LED light will blink and the impedance state between ALM+ and ALM- will change (from low to high or high to low depending on configuration) and can thus be detected.
  • Page 10: Sequence Chart Of Control Signals

    CL86T(V4.0) Closed Loop Stepper Drive User Manual Figure 7:Brake output connection 7. Sequence Chart of Control Signals In order to avoid some fault operations and deviations, PUL, DIR and ENA should abide by some rules, shown as following diagram: Figure 8: Sequence chart of control signals Remark: t1: ENA must be ahead of DIR by at least 200ms.
  • Page 11: Fault Protections & Troubleshooting

    CL86T(V4.0) Closed Loop Stepper Drive User Manual 8. Fault Protections & Troubleshooting To improve reliability, the drive incorporates some built-in protection features. Blink Sequence wave of red LED Description Trouble shooting time(s) Turn off the power immediately. a) Check wiring is short-circuited or 0 .2 S...
  • Page 12 CL86T(V4.0) Closed Loop Stepper Drive User Manual Many of the problems that affect motion control systems can be traced to electrical noise, controller software errors, or mistake in wiring. Symptoms Possible Problems Solutions Connect power supply correctly No power Microstep resolution setting is...
