Summary of Contents for RHINO TS10

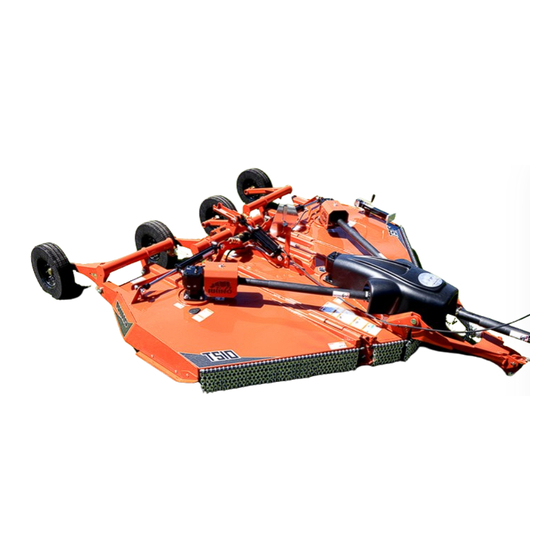

Page 1 TS10 FLEX-WING MECHANICAL LEVEL LIFT ROTARY CUTTER/SHREDDER Published 08/21 Part No. 00793132C OPERATOR’S MANUAL This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment.
Page 3 Your Authorized Rhino Dealer may have shown this video and presented you a DVD Video when you purchased your mower. If you or any mower operator have not seen this video, Watch the Video, Read this Operator’s Manual, and Complete the Video Guidebook before operating your new mower.
Page 4 Alamo Group Ag. Division will provide one (1) AEM Mower Safety Practices Video Please Send Me:  VHS Format – AEM/FEMA Mower Operator Safety Video  DVD Format – AEM/FEMA Mower Operator Safety Video  Mower Operator’s Manual  AEM Mower Operator’s Safety Manual Requester Name: Phone: ________________________________________...
Page 5 A Manual canister is provided on the implement where this manual can be properly stored. If you lose or damage this manual a free replacement manual can be obtained from an authorized Rhino dealer or by down loading the manual from the Rhino website www.servis-rhino.com...
Page 6 DEALER to CUSTOMER Pre-Delivery / Operation Instructions Dealer should inform the Purchaser of this product of Warranty terms, provisions, and procedures that are applica- ble. Dealer should also inform the Purchaser to review the contents of the Operator’s Manual including safety equipment, safe operation and maintenance, to review the Safety Signs on the implement (and tractor if possible) and of Purchaser’s responsibility to train his/her operators in safe operation procedures.
Page 7: Table Of Contents
Table of Contents SAFETY SECTION ..................1 - 1 GENERAL SAFETY INSTRUCTIONS AND PRACTICES ................1 - 2 OPERATOR SAFETY ............................1 - 3 CRUSHING HAZARDS............................ 1 - 4 CONNECTING OR DISCONNECTING IMPLEMENT SAFETY ..............1 - 5 THROWN OBJECTS HAZARDS ........................1 - 6 RUN OVER HAZARDS ...........................
Page 8 Table of Contents Dismounting the Tractor ..........................4 - 7 STARTING THE TRACTOR ..........................4 - 7 CONNECTING THE MOWER TO THE TRACTOR ..................4 - 8 Connecting Mower Tongue to the Tractor ....................4 - 8 Safety Tow Chain ............................4 - 9 Connecting Mower Hydraulic Lines to the Tractor..................
Page 9 MAINTENANCE SECTION ................5 - 1 HAZARDS WITH MAINTENANCE OF IMPLEMENT..................5 - 2 PARTS INFORMATION ..........................5 - 4 See Your Rhino Dealer..........................5 - 4 LUBRICATION ..............................5 - 4 CENTER & WING GEARBOXES ........................5 - 6 Divider Gearbox ...............................
Page 11: Safety Section
SAFETY SECTION Safety Section 1-1 @ 2021 Alamo Group Inc.
Page 12: General Safety Instructions And Practices
NOTE: If you want a translation of this safety section in one of the following Languages, please contact: Translations at 1502 E. Walnut Street Seguin, TX 78155; Fax: (830) 372-9529; Safety Section Translations are available in Spanish, Portuguese, French, German, Russian. PN GS01str TS10 08/21 Safety Section 1-2 @ 2021 Alamo Group Inc.
Page 13: Operator Safety
PTO SPEED: • AVOID exceeding rated PTO speeds that may result in broken drivelines or blade failures. SAFETY SIGNS: • REPLACE missing, damaged or unreadable safety signs immediately. PN OS01 str TS10 08/21 Safety Section 1-3 @ 2021 Alamo Group Inc.
Page 14: Crushing Hazards
FILL Wing Cylinders with oil. (Refer to Instructions in Operation Section) • • KEEP bystanders away before operating wings. • KEEP bystanders away before operating wings. • LOWER WINGS slowly and carefully. PN CH01 str TS10 08/21 Safety Section 1-4 @ 2021 Alamo Group Inc.
Page 15: Connecting Or Disconnecting Implement Safety
KEEP bystanders clear of area before operating wings. • LOWER WINGS slowly and carefully. DO NOT connect the Mower to a tractor with the PTO directly connected to the Tractor transmission. CD01 str TS10 08/21 Safety Section 1-5 @ 2021 Alamo Group Inc.
Page 16: Thrown Objects Hazards
INSPECT AREA thoroughly before mowing to REMOVE potential THROWN OBJECT HAZARDS, NEVER ALLOW BLADES to CONTACT SOLID OBJECTS like wire, rocks, post, curbs, guardrails, or ground PN TO01 str while mowing. TS10 08/21 Safety Section 1-6 @ 2021 Alamo Group Inc.
Page 17 STOP mowing when EXCESSIVE VIBRATION occurs: • 1. STOP PTO and tractor ENGINE. 2. INSPECT mower for vibration source. 3. REPLACE any damage parts and bent or damaged BLADES. PN TO01-X TS10 08/21 Safety Section 1-7 @ 2021 Alamo Group Inc.
Page 18: Run Over Hazards
ONLY mount or dismount when tractor and moving parts are stopped. • STOP ENGINE AND PTO, engage parking brake, lower implement, allow all moving parts to stop and remove key before dismounting from tractor. PN RO01 str TS10 08/21 Safety Section 1-8 @ 2021 Alamo Group Inc.
Page 19: Pto Entanglement Hazards
DO NOT USE PTO ADAPTER. Using a PTO adapter can cause excessive vibration, thrown objects, blade and implement failures by doubling operating speed. Increased working length exposing unshielded driveline areas. PN PE01str TS10 08/21 Safety Section 1-9 @ 2021 Alamo Group Inc.
Page 20: Mower Blade Contact Hazards
If you raise the mower or mower wing to access the blockage, engage the wing lock up latch and securely block up the mower before placing any parts of the body beneath the mower. PN MB01str TS10 08/21 Safety Section 1-10 @ 2021 Alamo Group Inc.
Page 21: High Pressure Oil Leak Hazards
KEEP AWAY • Injected Hydraulic fluid may cause gangrene if not surgically removed immediately by a doctor familiar with this form of injury. PN HP01str TS10 08/21 Safety Section 1-11 @ 2021 Alamo Group Inc.
Page 22: Electrical Fire Hazards
ADJUST SLIP CLUTCHES to avoid excessive slippage and clutch plate heating • CLEAR any grass clippings or debris buildup around mower drivelines, slip clutches, and gearboxes. • SHUT OFF ENGINE while refueling. PN EF01 str TS10 08/21 Safety Section 1-12 @ 2021 Alamo Group Inc.
Page 23: Transporting Hazards
TURN ON tractor FLASHING WARNING LIGHTS. • ALLOW clearance for implement swing while turning. KEEP all raised wings at 10 feet or greater distance from all power lines and overhead obstructions. PN TH01 str TS10 08/21 Safety Section 1-13 @ 2021 Alamo Group Inc.
Page 24: Hazards With Maintenance Of Implement
DO NOT modify or alter implement, functions or components. DO NOT WELD or repair rotating mower components. These may cause vibrations and component • failures being thrown from mower. PN HM02 str TS10 08/21 Safety Section 1-14 @ 2021 Alamo Group Inc.
Page 25 Skirts and Skid Shoes in place and in good condition. • REPLACE any missing, broken or worn safety shields, guards and safety devices. Cancer and Reproductive Harm www.P65Warnings.ca.gov PN HM02-A TS10 08/21 Safety Section 1-15 @ 2021 Alamo Group Inc.
Page 26: Parts Information
Rhino mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Rhino specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit”...
Page 27: Decal Location
SAFETY DECAL LOCATION NOTE: Rhino supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Rhino cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply).
Page 28 Amber Reflector D1064 INSTRUCT Safety Information System - 20 MPH D1085 Towing Vehicle Mass INSTRUCT *Furnished by Driveline Manufacturer Decal Sheets: Flex-Wing - D420 TS10 Logo Decal Sheet - D562 TS10 08/21 Safety Section 1-18 @ 2021 Alamo Group Inc.
Page 29: Decal Description
SAFETY DECAL DESCRIPTION TS10 08/21 Safety Section 1-19 @ 2021 Alamo Group Inc.
Page 30 SAFETY TS10 08/21 Safety Section 1-20 @ 2021 Alamo Group Inc.
Page 31 SAFETY TS10 08/21 Safety Section 1-21 @ 2021 Alamo Group Inc.
Page 32 SAFETY TS10 08/21 Safety Section 1-22 @ 2021 Alamo Group Inc.
Page 33 SAFETY TS10 08/21 Safety Section 1-23 @ 2021 Alamo Group Inc.
Page 34 SAFETY TS10 08/21 Safety Section 1-24 @ 2021 Alamo Group Inc.
Page 35 SAFETY TS10 08/21 Safety Section 1-25 @ 2021 Alamo Group Inc.
Page 36 SAFETY TS10 08/21 Safety Section 1-26 @ 2021 Alamo Group Inc.
Page 37 SAFETY TS10 08/21 Safety Section 1-27 @ 2021 Alamo Group Inc.
Page 38 (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102.) TS10 08/21 Safety Section 1-28 @ 2021 Alamo Group Inc.
Page 39: Introduction Section
INTRODUCTION SECTION Introduction Section 2-1 @ 2021 Alamo Group Inc.
Page 40 INTRODUCTION We are pleased to have you as a Rhino customer. Your Rotary Cutter has been carefully designed with care and built with quality materials by skilled workers to give maximum service with minimum down time. This manual is provided to give you the necessary operating and maintenance instructions for keeping your rotary cutter in top operating condition.
Page 41: Equipment Specifications
INTRODUCTION The Rhino Model TS10 Rotary Cutter is designed primarily for weed and grass control, and cutting small brush to 2” diameter. The TS10 targets tractors in the 25-60 horsepower class. Designed specifically for customers with smaller tractors, this machine’s very short wheel base, and its anti-scalp features make this the ideal machine for customers who need a flex- wing cutter’s versatility but may not have a tractor large enough to pull a 15 foot unit.
Page 42: Key Operation Points
A. Warranty is ONE-YEAR (12 MONTHS) for Seals (After one year, seals are considered to be WEARING PARTS and replacement is the users' responsibility.) B. Users' Gearboxes may be rebuilt by Rhino or replaced by new or rebuilt Gearboxes at the option of Rhino.
Page 43 RHINOAG Implement Model____________________________ Serial Number_______________________ Date Purchased______________________________________ Dealer______________________________ RHINO ® ATTENTION: 1020 S Sangamon Ave. READ YOUR OERATOR’S MANUAL Gibson City, IL 60936 800-446-5158 E-mail: parts@rhinoag.com TS10 08/21 Introduction Section 2-5 @ 2021 Alamo Group Inc.
Page 45: Assembly Section
ASSEMBLY SECTION Assembly Section 3-1 @ 2021 Alamo Group Inc.
Page 46: Dealer Setup Instructions
The implement wings should lower slowly when they are allowed to float down and are not powered down. This is a safety feature built into the system. If the wings fall rapidly, have the cylinders repaired before operating the implement. Asm-0003 str TS10 08/21 Assembly Section 3-2 @ 2021 Alamo Group Inc.
Page 47: Assembly
Continue to apply pressure to cylinders for at least 10 seconds to assure they have filled with fluid Keep coworkers and bystanders away from the implement while filling 8. Remove main driveline from mower and place on ground or hard surface. TS10 08/21 Assembly Section 3-3 @ 2021 Alamo Group Inc.
Page 48: Connecting Driveline
(S3PT-14)str Do not connect the driveline to the tractor PTO until the implement is securely connected to the tractor. Serious injury might occur from the driveline separating from the tractor. TS10 08/21 Assembly Section 3-4 @ 2021 Alamo Group Inc.
Page 49: Driveline Attachment
3. Lubricate the PTO drivelines and wheel hubs according to the lubrication information found in the Maintenance Section. Mower is now assembled and ready for pre-delivery checks. TS10 08/21 Assembly Section 3-5 @ 2021 Alamo Group Inc.
Page 50: Tires And Wheels
TIRE TO PREVENT EXPLOSIVE SEPERATION OF WHEEL HALVES WITH POSSIBLE SERIOUS BODILY INJURY. Do not exceed 20 M.P.H. on Airplane or Rib Implement Tires. Inflate ribbed implement tires to manufacturer rated PSI as shown on the tire sidewall. TS10 08/21 Assembly Section 3-6 @ 2021 Alamo Group Inc.
Page 51 ASSEMBLY TS10 08/21 Assembly Section 3-7 @ 2021 Alamo Group Inc.
Page 53: Operation Section
OPERATION SECTION Operation Section 4-1 @ 2021 Alamo Group Inc.
Page 54 RHINO TS10 ROTARY MOWER OPERATION INSTRUCTIONS Rhino TS10 rotary mowers are manufactured with quality material by skilled workers. These mowers are designed to cut grass, weeds, small brush and other vegetative material up to 2” diameter in areas such as pastures and along highway right-of-ways.
Page 55: Operator Requirements
Serious injury or death to the operator or others could result if the operator is under the influence of drugs or alcohol. (SG-27)str TS10 08/21 Operation Section 4-3 @ 2021 Alamo Group Inc.
Page 56: Tractor Requirements
Never operate the tractor PTO with the PTO master shield missing or in the raised position. OPS-U- 0004str TS10 08/21 Operation Section 4-4 @ 2021 Alamo Group Inc.
Page 57: Tractor Horsepower
For most mowing conditions, the TS10 mower requires a tractor with a minimum of 25 PTO HP. Operating the mower with a tractor that does not have adequate power many damage the tractor engine. Exceeding 60 HP PTO may cause mower damage by overpowering the unit in heavy cutting conditions.
Page 58: Getting On And Off The Tractor
(SG-11) str Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in death or serious injury. (SG-10)str TS10 08/21 Operation Section 4-6 @ 2021 Alamo Group Inc.
Page 59: Dismounting The Tractor
After the tractor engine is running, avoid accidental contact with the tractor transmission to prevent sudden and unexpected tractor movement. OPS-U-0028str Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health. (SG-23) str TS10 08/21 Operation Section 4-7 @ 2021 Alamo Group Inc.
Page 60: Connecting The Mower To The Tractor
6. Lower the jack until the tongue is completely supported by the drawbar. Remove jack from the tongue and place on storage bracket of mower. TS10 08/21 Operation Section 4-8 @ 2021 Alamo Group Inc.
Page 61: Safety Tow Chain
5.4 Operating Mower Hydraulics with One Tractor Hydraulic Port Connect hose into hydraulic port. Connect line to correspond with position of hydraulic control levers. TS10 08/21 Operation Section 4-9 @ 2021 Alamo Group Inc.
Page 62: Operating Mower Hydraulics With Two Or Three Tractor Hydraulic Ports
5.5 Operating Mower Hydraulics with Two or Three Tractor Hydraulic Ports Optional Two-Function or Three-Function Hose Kit must be purchased (Contact your nearest Rhino dealer for details). Two-Function kit will allow wings to be operated as a pair, separate from the lift function. Three- Function will allow each wing to be operated independently from the lift function.
Page 63: Setting Deck Height And Pitch
To lower the wing, loosen the jamnut and lengthen the turnbuckle, shorten the screw assembly to raise the wing. After wings are leveled, retighten jamnuts to maintain settings. TS10 08/21 Operation Section 4-11 @ 2021 Alamo Group Inc.
Page 64: Setting Deck Pitch
If the levelness of the wings seems to change, inspect circuit for hydraulic leaks and or the presence of air in the circuit. The cylinders will only rephase in the extended position. TS10 08/21 Operation Section 4-12 @ 2021 Alamo Group Inc.
Page 65 The Constant Velocity PTO driveline is HEAVY (70 lbs or greater) and Special Lifting Procedures are recommended. Use lifting assistance such as mechanical assistance, two people, and proper lifting techniques when connecting or installing the driveshaft to reduce the possibility of back injuries. TS10 08/21 Operation Section 4-13 @ 2021 Alamo Group Inc.
Page 66: Driveline Attachment
At its shortest length, there must be at least a 1” clearance between each profile end and opposite profile universal joint. At its farthest operating extension, a minimum profile engagement of 12” must be maintained. TS10 08/21 Operation Section 4-14 @ 2021 Alamo Group Inc.
Page 67: Pre-Operation Inspection And Service
Never work on the Implement with the tractor PTO driveline connected and running. Rotating Parts, Blades or Drivelines could turn without warning and cause immediate entanglement, injury or death. (S3PT-11)str TS10 08/21 Operation Section 4-15 @ 2021 Alamo Group Inc.
Page 68 Make sure all pins have cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order. (SG-21 )str TS10 08/21 Operation Section 4-16 @ 2021 Alamo Group Inc.
Page 69: Tractor Pre-Operation Inspection/Service
Ensure the manual canister is secured to the equipment with the operator’s manual inside. • Ensure all safety signs are in place and legi- ble. Replace missing, damaged, and illegible decals. OPS-U- 0011 str TS10 08/21 Operation Section 4-17 @ 2021 Alamo Group Inc.
Page 70 Missing, broken, or worn items must be replaced at once to reduce the possibility of injury or death from thrown objects, entanglement, or blade contact. (SGM-3str) TS10 08/21 Operation Section 4-18 @ 2021 Alamo Group Inc.
Page 71 Ensure carrier hub nuts are tightened with the cotter pin inserted and spread. • Inspect the condition of the deck skid shoes and the skid shoe attaching hardware. OPS- R-0012 str TS10 08/21 Operation Section 4-19 @ 2021 Alamo Group Inc.
Page 72 Ensure that the mower is equipped and secured with wing brace supports • Check the condition of the wing hinge pins. • Inspect mower tire condition, wheel bearings, and lug nut torque. TS10 08/21 Operation Section 4-20 @ 2021 Alamo Group Inc.
Page 73 OPERATION 9.2 Cutting Component Inspection Inspect blade pan and blade assembly for the following: OPS-U-0031str TS10 08/21 Operation Section 4-21 @ 2021 Alamo Group Inc.
Page 74 Failure to replace abnormally worn blades may lead to catastrophic failure of the blades and ejection of the broken part with tremendous force which may cause serious bodily injury or death. OPS-U-0032str TS10 08/21 Operation Section 4-22 @ 2021 Alamo Group Inc.
Page 75: Blade Bolt Inspection
Failure to replace abnormally worn blade bolts may lead to catastrophic failure of the blades and ejection of the broken part which may cause serious bodily injury or death. Always replace Blade Bolts with new bolts whenever replacing the Blades. OPS-U-0037str TS10 08/21 Operation Section 4-23 @ 2021 Alamo Group Inc.
Page 76 Blades are not chipped, cracked or bent Blade bolts are tight Wheel lug nuts are tight Transport locks are in good condition Make:________________________ Shift:_________________________ Operator’s Signature: ____________________________________________ DO NOT OPERATE an UNSAFE TRACTOR or MOWER TS10 08/21 Operation Section 4-24 @ 2021 Alamo Group Inc.
Page 77 The engine coolant fluid level is full The radiator is free of debris The air filter is in good condition Operator’s Signature: ____________________________________________ DO NOT OPERATE an UNSAFE TRACTOR or MOWER TS10 08/21 Operation Section 4-25 @ 2021 Alamo Group Inc.
Page 78: Driving The Tractor And Implement
When operating in traffic always use the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy. (SG-19)str TS10 08/21 Operation Section 4-26 @ 2021 Alamo Group Inc.
Page 79: Starting The Tractor
Only operate the mower with both wings fully lowered, NEVER operate the mower with a raised wing. Wait until the blades are at a complete stop before raising wings. OPS-R-0015_D str TS10 08/21 Operation Section 4-27 @ 2021 Alamo Group Inc.
Page 80: Raising The Mower
Allow ample clearance around the implement when folding or unfolding the wings. Use extreme caution around buildings or overhead power lines. (S3PT-05) str TS10 08/21 Operation Section 4-28 @ 2021 Alamo Group Inc.
Page 81: Driving The Tractor And Cutter
Use extreme caution when operating on steep slopes. Keep the tractor in a low gear when going downhill. DO NOT coast or free-wheel downhill. OPS-R-0018 str TS10 08/21 Operation Section 4-29 @ 2021 Alamo Group Inc.
Page 82: Crossing Ditches And Steep Inclines
When crossing such terrain, the implement should be fully lowered for a lower center of gravity and added stability. OPS-R-0021 str TS10 08/21 Operation Section 4-30 @ 2021 Alamo Group Inc.
Page 83: Operating The Tractor And Implement
Inspect the cutting area for such objects before mowing. Remove any like object from the site. Never allow the cutting blades to contact such items. (SGM-06) str TS10 08/21 Operation Section 4-31 @ 2021 Alamo Group Inc.
Page 84: Foreign Debris Hazards
If a bystander comes within 300 feet of the tractor while the mower is being operated, stop the tractor at once, idle the engine and disengage the PTO. Do not engage the PTO again until all bystanders are well past the 300 foot distance. OPS-R-0024 str TS10 08/21 Operation Section 4-32 @ 2021 Alamo Group Inc.
Page 85: Engaging The Power Take Off (Pto)
Do not put hands or feet under mower decks. Blade Contact can result in death or serious injury. Stay away until all motion has stopped and the decks are securely blocked up. (SGM-09) str TS10 08/21 Operation Section 4-33 @ 2021 Alamo Group Inc.
Page 86: Pto Rpm And Ground Speed
When mowing in reverse, operate the tractor and mower at a reduced ground speed to ensure tractor and mower control is maintained. Do not mow with two machines in the same area except with Cab tractors with the windows closed. (SGM-11)str TS10 08/21 Operation Section 4-34 @ 2021 Alamo Group Inc.
Page 87 Never allow clippings or debris to collect near drivelines, slip clutches, and gear- boxes. Periodically shut down the Tractor and Mower and clean clippings and collected debris from the mower deck. (SGM-12) str TS10 08/21 Operation Section 4-35 @ 2021 Alamo Group Inc.
Page 88 Stay alert and watch for trees, low hanging limbs, power lines, and other overhead obstacles and solid ground objects while you are operating. Use care to avoid hitting these items OPS-R- 0028 str TS10 08/21 Operation Section 4-36 @ 2021 Alamo Group Inc.
Page 89 Always avoid operating the mower at a height or position which may cause the blades to contact the ground. Cutting into the berm or edge of the ditch will cause abnormal and accelerated blade wear and possible blade component failure. OPS-R-0029 str TS10 08/21 Operation Section 4-37 @ 2021 Alamo Group Inc.
Page 90: Right Of Way (Highway) Mowing
Mower sections or wings are adjusted to be close and parallel to ground without exposing blades. MOWING AREA has been inspected and foreign materials and debris have been removed. • • PASSERSBY are inside enclosed vehicle. OPS-U-0040 str TS10 08/21 Operation Section 4-38 @ 2021 Alamo Group Inc.
Page 91: Shutting Down The Implement
Use the Tongue Jack for lifting the Implement only. Overloading the Tongue Jack can cause failure with possible serious bodily injury or even death. (STI-04) str TS10 08/21 Operation Section 4-39 @ 2021 Alamo Group Inc.
Page 92: Mower Storage
Properly preparing and storing the mower at the end of the season is critical to maintaining its appearance and to help ensure years of dependable service. The following are suggested storage procedures: TS10 08/21 Operation Section 4-40 @ 2021 Alamo Group Inc.
Page 93: Transporting The Tractor And Implement
OPS-U- 0017str Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in death or serious injury. (SG-10)str TS10 08/21 Operation Section 4-41 @ 2021 Alamo Group Inc.
Page 94 PTO output shaft. Secure the driveline to the mower deck to prevent driveline damage or loss during transport. OPS-R-0034 str TS10 08/21 Operation Section 4-42 @ 2021 Alamo Group Inc.
Page 95: Transporting On Public Roadways
15 MPH. Excessive speed can cause damage to the machine and tire sections. Laminated tires must be installed with the laminations orientated as shown. Foam Filled used Airplane and Rhino Trax Tires are ideal for conditions where a puncture proof tire is needed and the mower is frequently transported between locations. OPS-R-0035_F str Tire Size and Matching Requirements - Center Axle Tire assemblies when mounted on center axle duals should always be within limits listed.
Page 96 Consult an authorized tractor dealer for lighting kits and modifications available to upgrade the lighting on older tractor models. OPS-U- 0021str TS10 08/21 Operation Section 4-44 @ 2021 Alamo Group Inc.
Page 97: Hauling The Tractor And Implement
If during transport a hard braking, sharp turning, or swerving action was performed, stop at the next safe location to inspect the security of the load. TS10 08/21 Operation Section 4-45 @ 2021 Alamo Group Inc.
Page 98: Troubleshooting Guide
Gearbox over- Low on lubricant. Fill to level plug/dipstick. heating 100° Improper type lubricant. Replace with Rhino 00786250 lubricant. above ambient temperature Not vented properly; excessive trash Remove trash. build-up around gear box Bearing or gears set up improperly Consult your dealer.
Page 99 Repair or replace as necessary. Phasing cylinders are not filled with oil. Rephase cylinders. Air trapped in phasing cylinder circuit. Rephase cylinders. Damaged cylinder. Replace damaged cylinder and rephase cylinders. TS10 08/21 Operation Section 4-47 @ 2021 Alamo Group Inc.
Page 100 (Refer to the "Operation Section- distribution Setting the Mower- Setting Deck Height”). Excessive ground speed Reduce ground speed. Conditions too wet. Wait for conditions to dry. Reduce ground speed. TS10 08/21 Operation Section 4-48 @ 2021 Alamo Group Inc.
Page 102: Hazards With Maintenance Of Implement
DO NOT modify or alter implement, functions or components. • DO NOT WELD or repair rotating mower components. These may cause vibrations and component fail- ures being thrown from mower. PN HM02 str TS10 08/21 Maintenance Section 5-2 © 2021 Alamo Group Inc.
Page 103 Side Skirts and Skid Shoes in place and in good condition. • REPLACE any missing, broken or worn safety shields, guards and safety devices. Cancer and Reproductive Harm www.P65Warnings.ca.gov PN HM02-A TS10 08/21 Maintenance Section 5-3 © 2021 Alamo Group Inc.
Page 104: Parts Information
Rhino mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Rhino speci- fications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit” parts may reduce mower performance, void warranties, and present a safety hazard.
Page 106: Center & Wing Gearboxes
Do not over-fill. If gearboxes are filled above the recommended level, the pressure under working conditions may cause grease seals to leak. Use Gearbox Lube (85W140) with a capacity of 2 quarts TS10 08/21 Maintenance Section 5-6 © 2021 Alamo Group Inc.
Page 107: Gearbox Lubricant Replacement
Drain ports are provided in gearboxes as shown in Figures MntP-R-0151 and MntP-R- 0316. NOTE: Always tighten plug securely after lubricant change. Loss of plug will result in gearbox failure. CENTER & WING GEARBOX DIVIDER GEARBOX TS10 08/21 Maintenance Section 5-7 © 2021 Alamo Group Inc.
Page 108: Drivelines
Driveline replace the U-Joint before it causes severe damage to the Driveline. CV DRIVELINE LUBRICATION LOCATION EXTENDED LUBE INTERVAL LEVER ACTION PUMPS Cross & Bearings 8 Hours Telescoping Tube 8 Hours TS10 08/21 Maintenance Section 5-8 © 2021 Alamo Group Inc.
Page 109 INTERMEDIATE DRIVELINE LUBRICATION LOCATION EXTENDED LUBE INTERVAL LEVER ACTION PUMPS Cross & Bearings 8 Hours 2 - 3 Telescoping Tube 8 Hours 6 - 8 Shield Bearings 50 Hours 1 - 2 TS10 08/21 Maintenance Section 5-9 © 2021 Alamo Group Inc.
Page 110: Main & Wing Driveline Shields
Install locking screws. FIGURE Mnt-0028. IMPORTANT! Check that Guard Missing decal on steel tube under inner guard Rotating Driveline Decal are firmly affixed, undamaged readable. not, replace. TS10 08/21 Maintenance Section 5-10 © 2021 Alamo Group Inc.
Page 111: Slip Clutches
5. Turn tractor off and tighten nuts on the disc spring until belleville spring is flat, then loosen each nut 2 turns. Check that the spring gap is not less than 1/16”. TS10 08/21 Maintenance Section 5-11 © 2021 Alamo Group Inc.
Page 112: Blade Servicing
NOTE: Replace Blades in pairs after no more than 1/2” notch wear. TS10 08/21 Maintenance Section 5-12 © 2021 Alamo Group Inc.
Page 113: Blade Sharpening
Avoid personal injury. Blade and/or blade carrier removal should be done only with the tractor engine shut off, key removed, in neutral, parking brake on, PTO disengaged, and the cutter blocked in the raised position. TS10 08/21 Maintenance Section 5-13 © 2021 Alamo Group Inc.
Page 115: Blade Bolt Inspection
Strike opposite end of bar with sledge hammer. Rotate blade carrier 180 degrees and repeat process. TS10 08/21 Maintenance Section 5-15 © 2021 Alamo Group Inc.
Page 116: Blade Carrier Installation
Do not exceed 15 M.P.H. on Airplane or Rib Implement Tires. Lug nuts should be re-torqued to 85 ft/lbs after the initial 8 hours of operation and inspected regularly thereafter. TS10 08/21 Maintenance Section 5-16 © 2021 Alamo Group Inc.
Page 117: Tongue
Replace as needed. The Drawbar 3/4” Bolts fasten the mower to the tractor Drawbar. When the mower is unhitched and these Bolts are removed, examine for signs of cracking or wear. Replace the Drawbar 3/4” Bolts at first sign of either problem. FIGURE Op-1155. TS10 08/21 Maintenance Section 5-17 © 2021 Alamo Group Inc.
Page 118: High Pressure Oil Leak Hazard
Cylinder immediately before the Cylinder is damaged or too much hydraulic fluid is lost. MAXIMUM ALLOWABLE OPERATING OIL TEMPERATURE Do not operate this implement if the tractor hydraulic oil temperature exceeds 200°F TS10 08/21 Maintenance Section 5-18 © 2021 Alamo Group Inc.
Page 119: Flex Wing Hydraulic Cylinder Replacement Instructions
19. Check the hydraulic reservoir of the tractor to ensure there is sufficient oil. 20. If the wing is to remain in the raised position attach the wing transport latch. TS10 08/21 Maintenance Section 5-19 © 2021 Alamo Group Inc.
Page 120: Skid Shoes
NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal engine oil. They do not apply if special graphited or molydisulphide greases or other extreme pressure lubricants are used. This applies to both UNF fine and UNC coarse threads. TS10 08/21 Maintenance Section 5-20 © 2021 Alamo Group Inc.
Page 122: Gearbox Servicing
An assembled gearbox is quite heavy. Use a hoist or get help to handle them safely. Lift carefully and properly using your legs to lift - not your back NOTICE: Refer to operator’s manual for instructions for proper re-assembly onto the mower deck. Tighten correctly. TS10 08/21 Maintenance Section 5-22 © 2021 Alamo Group Inc.
Page 123 Plug 3/8” Gas Snap Ring Bearing Pinion Z20 Bearing Shim Casing Snap Ring Oil Seal Shim Bearing Shaft Snap Ring Bearing Gear Z24 Plug Spring Washer Bolt Cover Snap Ring TS10 08/21 Maintenance Section 5-23 © 2021 Alamo Group Inc.
Page 124: Disassembly And Assembly Procedures - Divider Gearbox
Note: Shims #2, 7, and 15 come in three thickness ranges 0.012, 0.016 and 0.020. Always use the 0.12 shim unless gearbox was set up originally with a thicker shim. Note: Place loctite on all bearing bores to assure that bearings do not turn in housing. TS10 08/21 Maintenance Section 5-24 © 2021 Alamo Group Inc.
Page 125: Side Output Shafts
To reduce backlash procedure is reversed, remove shims from front side and place on output side... Step VI Press in all seals and install top cover plate. Fill with proper gear lubricant.. TS10 08/21 Maintenance Section 5-25 © 2021 Alamo Group Inc.
Page 126: Gearbox Service Instructions
Cotter PIn (4 x 40) Name Plate Top Cover Bolt M10 x 15 HHB 3/8” Gas Solid Plug Supplied Separately 251. Bush 252. 3/8” Gas Oil Breather Plug 253. Cotter Pin (5 x 50) TS10 08/21 Maintenance Section 5-26 © 2021 Alamo Group Inc.
Page 127: Disassembly
6. Pick up crown wheel (2) and inner ring (3). 7. Disassemble bearing (19), using pipe and hammer, from the shaft (5). 8. Disassemble inner ring (3) from the shaft (5), using chisel and hammer. TS10 08/21 Maintenance Section 5-27 © 2021 Alamo Group Inc.
Page 128 17. Hit the shaft (17) from side B and extract it from housing (1), using a chisel and hammer, pick up inner ring (15). 18. Extract inner ring (16) from shaft (17), using a chisel and hammer TS10 08/21 Maintenance Section 5-28 © 2021 Alamo Group Inc.
Page 129: Assembly
1. Assemble inner ring (16) on shaft (17) using pipe and hammer. 2. Assemble outer rings (15), (16) inside housing (1), using pipe and hammer. 3. Insert shaft (17) inside housing (1). TS10 08/21 Maintenance Section 5-29 © 2021 Alamo Group Inc.
Page 130 10. Assemble snap ring (6) using pliers, shims (7) and outer ring (3) using pipe and hammer. 11. Insert inner ring (3) and crown wheel (2) inside the housing (1). TS10 08/21 Maintenance Section 5-30 © 2021 Alamo Group Inc.
Page 131 25. In order to have the correct backlash, change shims set (7), (Please be aware that when you change the shims set you will also have to reset the preload). TS10 08/21 Maintenance Section 5-31 © 2021 Alamo Group Inc.
Page 132 31. Assemble bush (251), bolt washer (10). 32. Assemble castle nut (11) and tighten to 50 ÷ 60 kg (450 ft./lbs). 33. Assemble cotter pin (253). 34. Bend cotter pin (253) TS10 08/21 Maintenance Section 5-32 © 2021 Alamo Group Inc.
Page 133 (scale about 0.6 bar) for 10 minute 37. Dry the gearbox 38. Fill the gearbox with oil 85W140. 39. Assemble the plug (252) and tighten to 3 kg (22 ft./lbs). TS10 08/21 Maintenance Section 5-33 © 2021 Alamo Group Inc.

RHINO TS10 Operator's Manual

Quick Links

Need help?

Questions and answers

Related Manuals for RHINO TS10

Summary of Contents for RHINO TS10

Table of Contents
