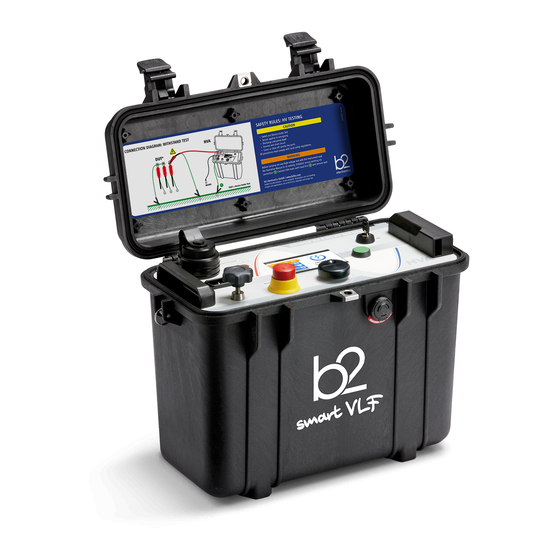

Ultra-compact, universal vlf high voltage testing set with tan delta
Hide thumbs
Table of Contents

Advertisement

Quick Links

E N G L I S H
DHV0086 Rev06
b2 electronic GmbH
Riedstrasse 1
6833 Klaus
Austria
T +43 (0) 5523 57373
F + 43 (0) 5523 57373-5
www.b2hv.at
info@b2hv.at
ZERTIFIZIERT
EN ISO 9001
ZERTIFIKAT NR. 20 100 92003758
TÜV AUSTRIA CERT GMBH
Subject to alterations.
Errors excepted.
Illustrations are not binding.
HVA Family
HVA28 | HVA34-1 | HVA45
and corresponding TD models
User Manual
Ultra-compact, universal
VLF High Voltage Testing Set with Tan Delta
Firmware V2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HVA Series and is the answer not in the manual?

Questions and answers

Related Manuals for B2 HVA Series

Summary of Contents for B2 HVA Series

  • Page 1 HVA Family HVA28 | HVA34-1 | HVA45 and corresponding TD models User Manual E N G L I S H DHV0086 Rev06 b2 electronic GmbH Riedstrasse 1 6833 Klaus Austria T +43 (0) 5523 57373 F + 43 (0) 5523 57373-5 www.b2hv.at...
  • Page 2 DHV0086 Rev06 © b2 electronic GmbH...

  • Page 3: Table Of Contents

    Report Naming Instructions ............88 Manage Reports ................90 Disconnection Procedure �����������������������������������������������������������96 Disconnection Diagram - Normal Conditions ........96 Disconnection Diagram - System Failure ........98 Instrument Care �������������������������������������������������������������������������100 Accessories �������������������������������������������������������������������������������101 Glossary and Abbreviations ����������������������������������������������������102 Declaration of Conformity ��������������������������������������������������������104 © b2 electronic GmbH DHV0086 Rev06...

  • Page 4: Introduction

    Particular focus on management required equipment safety messages and information regarding • Assuring that HVA operators are qualified tech- general product nicians description. • Assuring that operators fulfil their responsibilities Safety NOTICE This manual should always be on hand when using the HVA testing instruments. DHV0086 Rev06 © b2 electronic GmbH...

  • Page 5: Documentation Conventions

    Circle outlined in red with red diagonal line: Used to indicate forbidden practices. The practice described must not be carried out! Blue circle with white exclamation mark: Used to indicate recommended precautionary measures or a situation that can lead to property damage. © b2 electronic GmbH DHV0086 Rev06...
  • Page 6 Customer Portal – customers�b2hv�com Register now and gain access to quick and comprehensive support and the product data base. The b2 Customer Portal is exclusively reserved for b2 electronic customers. Register now for: • Information about meetings and training sessions •...

  • Page 7: Legal Considerations

    All rights reserved. No part of this publication may be reproduced, transmitted, stored, or translated in hard copy or electronic form without the written consent of b2 electronic GmbH. Your opinion matters! Your comments and suggestions are of value. We are dedicated to supporting your needs. Offering you optimal documentation is part of our promise of...

  • Page 8: Safety

    Damaged equipment must not be used. • Earth connections must be made first and removed last. • DUT must be discharged and earthed before disconnecting the test lead. • Avoid testing alone. In the event of an emergency, another person’s presence may be essential. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 9 Wear high voltage gloves when handling high voltage cables and equipment. WARNING This is a class A product. In a domestic environment, this product may cause technical interference, in which case the user may be required to take adequate measures. © b2 electronic GmbH DHV0086 Rev06...

  • Page 10: Appropriate Applications

    • RMS current • Applied voltage NOTICE Other Applications Before proceeding, contact b2 to validate appropriate use! 2�4 Operator Qualifications HVA operators must be qualified electrical technicians! Proof of necessary qualifications for working in high voltage domain is mandatory. It is highly recommended that operators have completed an emergency rescue training programme.

  • Page 11: General Description

    -25°C to +70°C, operating: -20°C to +55°C Environment humidity: 5-85% non condensing technical specifications are subject to change. b2 reserves the right to modify values in accordance with future HVA development. at lower frequency and voltage in combination with locating device (not in scope of delivery) ©...
  • Page 12 +70°C, operating: -20°C to +55°C Environment humidity: 5-85% non condensing technical specifications are subject to change. b2 reserves the right to modify values in accordance with future HVA development. at lower frequency and voltage in combination with locating device (not in scope of delivery) DHV0086 Rev06 ©...
  • Page 13 +70°C, operating: -20°C to +55°C Environment humidity: 5-85% non condensing technical specifications are subject to change. b2 reserves the right to modify values in accordance with future HVA development. at lower frequency and voltage in combination with locating device (not in scope of delivery) ©...

  • Page 14: Design Features

    • To check automatically for shorts or • Improves safety test at reduced grounds, during load measurement, voltages before test initiation Return voltage • To monitor external high voltage • Improves safety indication greater than 100 V (AC) DHV0086 Rev06 © b2 electronic GmbH...

  • Page 15: External Interlock And Control

    Data: 12 V, max 1.2 W • Recommended colours: red, green PIN1: Interlock PIN2: Interlock PIN3: Not in use PIN4: Not in use PIN5: Lamp HV ON PIN6: Lamp HV OFF PIN7: Ground (GND) © b2 electronic GmbH DHV0086 Rev06...

  • Page 16: Materials

    GH0584 HVA28 HV Test Lead KMD0086 HVA28 HV plug 65 kV TD 4 m 80 A protection cover Clamp VK0046 HVA28 card board VKR0027 HVA28 lap top bag 475 x 365 x 555 mm DHV0086 Rev06 © b2 electronic GmbH...
  • Page 17 KMD0081 Corona Shield Two- HVA Guard connection KMSO0064 Part, Min. Clearance Distance = 10 mm The HV cable GH0661 is not PD free. For measuremts in combination with a PD system you need a PD-free cable. © b2 electronic GmbH DHV0086 Rev06...

  • Page 18: Design And Construction

    All HVA control and connection components are located on the front panel. Location Description Front Panel • Test controls and emergency shutdown • HV status information • Cable and power source connections • Air vent • USB HVA28/HVA28TD Front panel HVA34-1/HVA34TD-1/HVA45/HV45TD Front panel DHV0086 Rev06 © b2 electronic GmbH...
  • Page 19 Indicates HV status. Red light indicates: - High Voltage is ON (possible DANGER) - DUT is not discharged (residual voltage > 100 V) Green LED Indicates HV status. Green light indicates: - High Voltage is OFF © b2 electronic GmbH DHV0086 Rev06...

  • Page 20: User Interface

    Up & Down Use to navigate up and down in activated control arrows boxes. Control Box Control box is selected, press “Enter” to activate/ Selected change/ edit Button Selected Button is selected. Press “Enter” to activate DHV0086 Rev06 © b2 electronic GmbH...
  • Page 21 • To move to another item in a menu list or to any other field possible on the screen currently displayed, rotate the knob. • To scroll through options or to change the value displayed in an active field, rotate the knob. • To select marked option or to accept set value, push in/click. © b2 electronic GmbH DHV0086 Rev06...
  • Page 22 “No”. Warning This screen shows a warning. Press “OK” to confirm. Error This screen indicates an error. The operation in progress could not be finished successfully. Please consider the information and decide if further action is necessary. Press “OK” to confirm. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 23 To select characters, rotate knob then push in/click. Press and hold the “Enter” button for auto- repeat. Activate Symbols To select characters, rotate knob then push in/click For special characters, press the button .?!. © b2 electronic GmbH DHV0086 Rev06...
  • Page 24 To delete characters, select the backspace symbol and press Enter. Press and hold “Enter” for auto-repeat. Cancel Changes To cancel your changes in the text field, select the cancel symbol and press “Enter”. Save Changes To save your changes in the text field, select the OK symbol and press “Enter”. DHV0086 Rev06 © b2 electronic GmbH...

  • Page 25: Instrument Setup

    4�3 Instrument Setup The instrument setup must be made prior to the HVA’s first use. Settings can be modified anytime. You will find the selection option Instrument Setup in the main menu under Settings. 4�3�1 Setup Steps IS1-IS7 describe how to setup the instrument� Step Procedure (Instrument Setup) IS1: Settings Select “Settings”. IS2: Instrument Setup Select “Instrument Setup”. © b2 electronic GmbH DHV0086 Rev06...
  • Page 26 Basic reporting only states the DUT type and a title, whereas extended reporting provides detailed information. IS5: Bluetooth Depending on the Bluetooth setting (Class 1/2/3/Disabled), the device selects the corresponding RF transmission speed. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 27 “imperial” is selected, the temperature unit is also set to °F. IS7: Update from USB This function is used when installing updates and for transferring information from the PC software to the unit via USB. Insert the USB flash drive before selecting this function. © b2 electronic GmbH DHV0086 Rev06...
  • Page 28 “System Information” displays HVA characteristics. This information cannot be modified by the operator: • Software versions • Serial number of the HVA • Nickname (to alter via PC software) • Bluetooth MAC address • Date of last calibration • Temperature DHV0086 Rev06 © b2 electronic GmbH...
  • Page 29 Choose language. Select from different options depending on the firmware version. L4: Region Choose region: Select from different options depending on the firmware version. Based on the region setting, the unit selects the corresponding date/time format and other localized information. The language and region can be set independently. © b2 electronic GmbH DHV0086 Rev06...
  • Page 30 Select “Data Administration”. SRM3: Delete All Sequences To delete all sequences, select “Delete all Sequences”. SRM4: Import from USB To import sequences from a USB flash drive, select “Import from USB”. Refer to the PC software user manual for further information about file formats. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 31 SRM6: Export Reports To export the stored reports on the unit, insert a USB flash drive and select this function. All reports will be automatically written in multiple file formats (HTML/XML/PC software database). The reports will remain on the unit and may be deleted manually. © b2 electronic GmbH DHV0086 Rev06...

  • Page 32: Operation Modes

    • Test parameters can be changed before activating a test. • Test types: VLF, VLF TD, DC, ST, SFL, VB Automatic Designed for testing with a predefined configuration in order to satisfy specific requirements (e.g. IEEE or IEC standards). • The test sequence must be configured and saved before testing. • Test types: VLF, VLF TD, DC, ST, VB DHV0086 Rev06 © b2 electronic GmbH...
  • Page 33 • Max test voltage: 10 kV Sheath Fault • Suitable for sheath fault location Location Mode (SFL) • Duration is user defined • Pulse is user defined • (1:3 / 4 s, 1:5 / 4 s, 1:5 / 6 s, 1:9 / 6 s) © b2 electronic GmbH DHV0086 Rev06...
  • Page 34 The “Burn on Arc” mode will condition the fault whereas the “Trip out on Arc” mode will immediately switch off the Fault detected Trip out on arc Burn on Arc Dwell time starts HV still ON HV automatically OFF DUT discharges DUT energizes Dwell time ends Tripping time recorded Fault conditioned Fault detected DHV0086 Rev06 © b2 electronic GmbH...
  • Page 35 All reports saved in the HVA memory can be transferred to a USB flash drive: Bluetooth If the HVA is connected to the b2 ControlCenter, reports and sequences can be downloaded from the HVA using the corresponding functions. See software manual for further information.

  • Page 36: Test Procedure

    High Voltage is a business division of b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5000 - Rev01...
  • Page 37 • Start-up default screen appears. Select appropriate option from default screen and proceed to appropriate section for further instructions: • see 5.2 Manual Test Mode on page 40 • see 5.3 Automatic Test Mode on page 55 © b2 electronic GmbH DHV0086 Rev06...
  • Page 38 High Voltage is a business division of b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5000 - Rev01...
  • Page 39 • Startup default screen appears Select appropriate option from default screen and proceed to appropriate section for further instructions: • see 5.2 Manual Test Mode on page 40 • see 5.3 Automatic Test Mode on page 55 © b2 electronic GmbH DHV0086 Rev06...

  • Page 40: Manual Test Mode

    This HVA test mode facilitates rapid testing. Select “Start new Test” from the Main Menu, then “Manual Mode”. Depending on the Instrument Settings the unit also reports also for manual mode. Main Menu Manual Mode Report Details Setup Modify Test Voltage Start Test DHV0086 Rev06 © b2 electronic GmbH...
  • Page 41 Test Procedure 5�2�1 Setting Report Details Steps RS1-RS14 describe how to set report details. Step Procedure (Set manual test parameters) RS1: Start New Test Select “Start Test”. RS2: Start Manual Mode Select “Manual Mode”. © b2 electronic GmbH DHV0086 Rev06...
  • Page 42 • Vacuum Bottle • Other RS3�1�03: Report Details - Basic Voltage Rating Set voltage rating: • 0 - 50 kV This is a characteristic of the DUT and does NOT refer to the test voltage! DHV0086 Rev06 © b2 electronic GmbH...
  • Page 43 • EPR (mineral) • EPR (dis. res.) • PE • PVC • HYBR RS3�1�05: Report Details - Basic Phase Set phase: • A • B • C • AB • AC • BC • ABC © b2 electronic GmbH DHV0086 Rev06...
  • Page 44 • Vacuum Bottle • Other RS3�2�03: Report Details - Extended Voltage Rating Set voltage rating: • 0 - 50 kV This is a characteristic of the DUT and does NOT refer to the test voltage! DHV0086 Rev06 © b2 electronic GmbH...
  • Page 45 • A • B • C • AB • AC • BC • ABC RS3�2�06: Report Details - Extended Company Name For instructions on how to edit the company name, „7.3 Report Naming Instructions“ © b2 electronic GmbH DHV0086 Rev06...
  • Page 46 7.3 Report Naming Instructions on page 88 RS3�2�10: Report Details - Extended Size of DUT For instructions on how to edit the size of DUT, see 7.3 Report Naming Instructions on page 88 DHV0086 Rev06 © b2 electronic GmbH...
  • Page 47 7.2 Report Activation on page RS3�2�14: Finish Set report details: By pressing “Next”, you will store the report details in the non-volatile memory. They will be used as default values for the next test. © b2 electronic GmbH DHV0086 Rev06...
  • Page 48 MS4: SETUP Arc Management Mode Select one of the following: • Trip out on arc • Burn on arc If you have selected “Burn on Arc”, make sure that the appropriate dwell time is selected. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 49 0.1 Hz as possible. MS8: Trip Current applicable for sheath testing, vacuum bottle testing Set trip current and testing time: • 0.1-5.0 mA • Time: 1 min-10 min © b2 electronic GmbH DHV0086 Rev06...
  • Page 50 To accept the value, push in knob . The dot in upper right hand disappears indicating that the test voltage is set. The value will also be updated if the knob is not rotated for 2 seconds. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 51 Steps MR1-MR10 describe how to run a test in manual mode. Step Procedure (Run a manual test) MR1: Start New Test Select “Start Test”. MR2: Start Manual Mode Select “Manual Mode”. MR3: Report Details – Basic or Extended Define specifications for reporting. © b2 electronic GmbH DHV0086 Rev06...
  • Page 52 10 seconds. If the HV switch is not activated within 10 seconds, the “Manual Mode” screen will reappear. MR7: Test Startup “Startup” appears on the screen to indicate that the HVA is initializing the test. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 53 “Next Phase” button and push in/click the navigation knob MR10-2: Test End - New Test Display indicates end of manual test. For starting a new test, select “Next Test” button and push in/click the navigation knob © b2 electronic GmbH DHV0086 Rev06...
  • Page 54 “Report” button and push in/click the navigation knob MR10-4: Test End - Main Display indicates end of manual test. For going back to the main menu, select the “Main” button and push in/click the navigation knob DHV0086 Rev06 © b2 electronic GmbH...

  • Page 55: Automatic Test Mode

    This HVA test mode facilitates sytisfying specific requirements (e.g. IEEE, IEC standards) when testing. The test sequence can be configured, modified and saved at anytime before testing. 5�3�1 Configuring Automatic Testing Sequence - Overview Main Menu Edit/New Sequence Edit Details Edit Test Parameters Store Details © b2 electronic GmbH DHV0086 Rev06...
  • Page 56 To create a new sequence, select the “New” option on the right-hand side of the screen. NS03: Title For entering a title for the test sequence, activate the keyboard and type the title. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 57 • Vacuum bottle • Other NS07: Insulation Set insulation: • XLPE • TRXLPE • PILC • EPR • EPR (carbon) • EPR (mineral) • EPR (dis. res.) • PE • PVC • HYBR • Other © b2 electronic GmbH DHV0086 Rev06...
  • Page 58 NS11: Test Standard Set the test standard: • IEEE400.2-2013 • HD620 • No guide Guide: If you select a test standard (guide), some of the parameters are locked. e.g. IEEE 400.2 -> no DC Test possible DHV0086 Rev06 © b2 electronic GmbH...
  • Page 59 U for definition of the test step voltage. Depending on the DUT type, determine whether to use a three-phase calculation or a one-phase calculation of U NS14: Next Step Press “Next” to continue. © b2 electronic GmbH DHV0086 Rev06...
  • Page 60 • Fail: Runs to end • Fail. Immed. Stop NS17: Voltage not reached Set action to be taken in case voltage is not reached: • No Action (default) • Fail: Runs to end • Fail. Immed. Stop DHV0086 Rev06 © b2 electronic GmbH...
  • Page 61 Set action to be taken in case minimum insulation resistance is reached: • No Action (default) • Fail: Runs to end • Fail. Immed. Stop AS19: Store To store the sequence, press the “Store” button. © b2 electronic GmbH DHV0086 Rev06...
  • Page 62 “EDIT” option on the list. To create a new sequence, select the “New” option on the right-hand side of the screen. AS03: Title For entering a test sequence title, activate the keyboard and type the title. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 63 If “Burn on Arc” is activated, you can set the duration of burning. AS06: Overload during test Set action to be taken in case of overload: • No Action (default) • Fail: Runs to end • Fail. Immed. Stop © b2 electronic GmbH DHV0086 Rev06...
  • Page 64 • No Action (default) • Fail: Runs to end • Fail. Immed. Stop AS09: Test Parameters – Use period count Set period count: • time (see AS11) • period (see AS16) DHV0086 Rev06 © b2 electronic GmbH...
  • Page 65 AS12: Test Parameters – Duration Specify the test duration for each step: • Min.: 1 period • Max.: 500 periods T = 1/f The testing time depends on the frequency chosen. Note: When selecting Auto Frequency can differ from the expected value. © b2 electronic GmbH DHV0086 Rev06...
  • Page 66 Set the frequency to as close to 0.1Hz as possible. • 0.1 Hz/Auto: Recommended setting that automatically maintains the frequency as close to 0.1 Hz as possible. AS15: Store To store sequence, press “Finish” button. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 67 Test Procedure © b2 electronic GmbH DHV0086 Rev06...
  • Page 68 Test Procedure 5�3�4 Running an Automatic Test - Overview Main Menu Last used sequence Use a different test sequence Select sequence Start auto test Start auto test DHV0086 Rev06 © b2 electronic GmbH...
  • Page 69 Select “Start Test”. AR2: Choose Test To repeat the previous test sequence: • Select “Last Used Sequence” from the “Main Menu” • Skip step AR3-AR5: Select Sequence AR3: Slect Sequence Select one of the sequences. © b2 electronic GmbH DHV0086 Rev06...
  • Page 70 All information about the selected sequence is displayed. Press the “Start” button to see a summary of the sequence. AR6: Sequence Summary The summary of the selected sequence is displayed. To start the test, press the “Start” button. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 71 The bottom line of the screen display the preset values AR10�1: Test End – New Phase Display indicates end of automatic test. For testing the next phase, select the “Next Phase” button and push in/click the navigation knob © b2 electronic GmbH DHV0086 Rev06...
  • Page 72 “Report” button and push in/click the navigation knob AR10�4: Test End Main Display indicates end of automatic test. For going back to the main menu, select the “Main” button and push in/click the navigation knob DHV0086 Rev06 © b2 electronic GmbH...

  • Page 73: Interrupting A Test

    • HVA hardware deactivates HV. • Test stops. Emergency Stop In an emergency situation, press the emergency off button to shutdown the system. • HVA hardware deactivates HV. • Test stops. © b2 electronic GmbH DHV0086 Rev06...

  • Page 74: Discharge Status

    (sec.) ≈ 20 (µF) µF Discharge Example: Load capacitance C = 1.2 µF.. t ≈ 20 x 1.2 = 24 sec. Discharge This is an approximation only and does not replace the safety rules. DHV0086 Rev06 © b2 electronic GmbH...

  • Page 75: Tan Delta

    Bluetooth synchronization or internal memory. Suitable PC software (b2 ControlCenter) is included in the scope of delivery. With this PC software test results can easily be stored on a standard PC or laptop for analysis, trending or quality control. This enables the cable engineer to now make Tan Delta testing a routine maintenance test.

  • Page 76: Equipment Setup

    - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5010 - Rev00 Instrument is not earthed by connection DHV0086 Rev06 © b2 electronic GmbH...
  • Page 77 The HVA system automatically boots. • Start-up default screen appears. Select appropriate option from default screen and proceed to appropriate section for further instructions: • see 6.3.1 Running a Manual Test with Tan Delta on page 82 © b2 electronic GmbH DHV0086 Rev06...
  • Page 78 - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5012 - Rev00 DHV0086 Rev06 © b2 electronic GmbH...
  • Page 79 The HVA system automatically boots. • Startup default screen appears Select appropriate option from default screen and proceed to appropriate section for further instructions: • see 6.3.1 Running a Manual Test with Tan Delta on page 82 © b2 electronic GmbH DHV0086 Rev06...
  • Page 80 • Connect the other end of the cable at the conducting hook and loop fastener Connections on far end: Mount corona shield to the DUT. KMD0081 • Mount corona shield on the same phase at the far end. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 81 OSG7 Connect the guard connection cable. KEK0126 • Connect the cable at the conducting hook and loop fastener • Connect the other end of the cable with the 4 mm socket jack at the corona shield © b2 electronic GmbH DHV0086 Rev06...

  • Page 82: Tan Delta Test

    Steps TD1-TD9 describe how to run a test in manual mode with Tan Delta. Step Procedure (Manual TD test) TD1: Start New Test Select “Start Test”. TD2: Start Manual Mode Select “Manual Mode”. TD3: Report Details – Basic or Extended Define specifications for the report. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 83 Startup appears on the screen to indicate that the HVA is initializing the test. TD7: Set Test Voltage (if not pre-set in step MS 8) Rotate the navigation knob to modify the voltage value. © b2 electronic GmbH DHV0086 Rev06...
  • Page 84 TD9�3: Test End Report Display indicates end of manual test. If you wish to view the corresponding report, select the “Report” button and push in/click the navigation knob DHV0086 Rev06 © b2 electronic GmbH...
  • Page 85 Tan Delta Step Procedure (Manual TD test) TD9�4: Test End Main Display indicates end of manual test. For going back to the main menu, select the “Main” button and push in/click the navigation knob © b2 electronic GmbH DHV0086 Rev06...

  • Page 86: Pc Software

    6�4 PC Software The HVA system is delivered with a set of Windows-based software tools in an integrated software package. This software connects, records, analyses and reports the test results from the HVA testing instruments. DHV0086 Rev06 © b2 electronic GmbH...

  • Page 87: Reporting

    Work order Operator name 7�2 Report Activation Reporting can be activated or deactivated in “Instrument Settings”. Ssee 4.3 Instrument Setup on page 25 If reporting is set to “Disabled”, no report will be produced. © b2 electronic GmbH DHV0086 Rev06...

  • Page 88: Report Naming Instructions

    • 0 1 2 3 4 5 6 7 8 9 Step Procedure Activate Naming To select characters: rotate the knob then push in/click. To select characters: rotate the knob then push in/click. For more characters, press the “.?!” button. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 89 To delete, rotate the knob until reaching button, then push in/click. Exit without saving To exit without saving, rotate the knob until reaching the button, then push in/click. Confirm To confirm, rotate the knob until reaching the button, then push in/ click. © b2 electronic GmbH DHV0086 Rev06...

  • Page 90: Manage Reports

    Reports can be viewed directly on the HVA display and can be exported on a USB flash drive or downloaded to b2 Control Center or b2 Suite via Bluetooth. Step Procedure Reports Open “Reports”. Report List All reports are listed. “Graph” indicates if TD data are available to be displayed in graph form. Choose Report Choose one of the reports. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 91 Select “View” for viewing the report on the HVA screen. The whole Report appears. Graph Select “Graph” for viewing the TD Graph on the HVA screen. The whole Report appears. Only possible if you use a TD unit. © b2 electronic GmbH DHV0086 Rev06...
  • Page 92 Reporting Step Procedure Edit Report Select “Edit” to change the name or phase of the report. DHV0086 Rev06 © b2 electronic GmbH...
  • Page 93 Select the phase to be tested. The phase last measured is indicated. To enter, push in/click “OK” with the navigation knob This functionality allows you to start a measurement on a three-phase system at one time and finish it later. © b2 electronic GmbH DHV0086 Rev06...
  • Page 94 Reporting Step Procedure Delete Report Select “Delete” to remove the corresponding report from the HVA. Return to Main Menu Return to the main menu by pushing in/ clicking “Main” with the navigation knob DHV0086 Rev06 © b2 electronic GmbH...
  • Page 95 Reporting © b2 electronic GmbH DHV0086 Rev06...

  • Page 96: Disconnection Procedure

    High Voltage is a business division of b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5000 - Rev01...
  • Page 97 • Unscrew HV test lead from HVA HV output connector • Disconnect power supply cable from power supply plug Disconnect all earthing cables • Disconnect earthing cable from DUT earth • Disconnect earthing cable form HVA earthing connector © b2 electronic GmbH DHV0086 Rev06...

  • Page 98: Disconnection Diagram - System Failure

    High Voltage is a business division of b2 electronic GmbH - Riedstrase 1 - A-6833 Klaus - T +43 (0)5523 57373 - F +43 (0)5523/57373-5 - info@b2hv.at - www.b2hv.com Subject to alternations - errors excepted. Illustrations are not binding. Text, images and applications presented on this page are protected under copyright law. - DHV5000 - Rev01...
  • Page 99 • Unscrew HV test lead from HVA HV output connector DSF6 • Disconnect power supply cable from power supply plug DSF7 Disconnect all earthing cables • Disconnect earthing cable from DUT earth • Disconnect earthing cable form HVA earthing connector © b2 electronic GmbH DHV0086 Rev06...

  • Page 100: Instrument Care

    • Earth connections must be removed last! HV CABLE Clean the HV Cable connection points after use before storing. Maintenance and Repairs NOTICE Authorized personnel only! Repairs and maintenance should only be performed by authorized b2 personnel. Annual inspection by authorized b2 staff is recommended. DHV0086 Rev06 © b2 electronic GmbH...

  • Page 101: Accessories

    Accessories 10 Accessories Accessories are not included in the scope of standard delivery of the HVA. These items are available for order through b2. For orders, please contact Art� No� Item Description SH5030 PD60-2 Partial Discharge Diagnostics System 60 kV...

  • Page 102: Glossary And Abbreviations

    • High Voltage: up to 110 kV • Extremely High Voltage: 220 kV, 380 kV or higher (according to IEC/International Electrotechnical Vocabulary) International Electrotechnical Commission Peak value Maximum Voltage = Vmax RMS value Root mean square voltage • Vrms = Vmax / √2 DHV0086 Rev06 © b2 electronic GmbH...
  • Page 103 Glossary and Abbreviations Term Explanation To short Forcing the electric potential differences between two or more conductive parts to be equal to or close to zero (infinite current flows in a short circuit). To trip Opening the circuit (no current flows in open circuit). Sheath fault location Sheath test Tan delta TDTS Tan delta time stability (TD temporal stability) Differential Tan Delta Very low frequency • typically between 0.01-0.1 Hz © b2 electronic GmbH DHV0086 Rev06...

  • Page 104: Declaration Of Conformity

    Declaration of Conformity 12 Declaration of Conformity The HVA28, HVA28TD, HVA34-1, HVA34TD-1 and HVA45, HVA45TD is CE certified and has met the following requirements of the European Council: DHV0086 Rev06 © b2 electronic GmbH...
  • Page 105 Konformitätserklärung EC-DECLARATION OF CONFORMITY b2 electronic GmbH Die Firma: Riedstraße 1 The Company: 6833 Klaus AUSTRIA erklärt, dass das Produkt: HVA34-1 / TD declares that the product: Universal VLF & DC High Voltage Test System Verwendungszweck: Intended purpose: Das bezeichnete Produkt stimmt mit den Vorschriften folgender europäischer Richtlinien überein: The indicated product is in correspondence with the following regulations of European Council: Subsequently the instrument complies with the requirements of the EMC directive 89/336/EEC and 92/31/EEC.
  • Page 106 Konformitätserklärung EC-DECLARATION OF CONFORMITY b2 electronic GmbH Die Firma: Riedstraße 1 The Company: 6833 Klaus AUSTRIA erklärt, dass das Produkt: HVA45 / TD declares that the product: Verwendungszweck: Universal VLF & DC High Voltage Test System Intended purpose: Das bezeichnete Produkt stimmt mit den Vorschriften folgender europäischer Richtlinien überein: The indicated product is in correspondence with the following regulations of European Council: Subsequently the instrument complies with the requirements of the EMC directive 89/336/EEC and 92/31/EEC.

This manual is also suitable for:

Hva28Hva34-1Hva45Hva28tdHva34td-1Hva45td
