Page 1

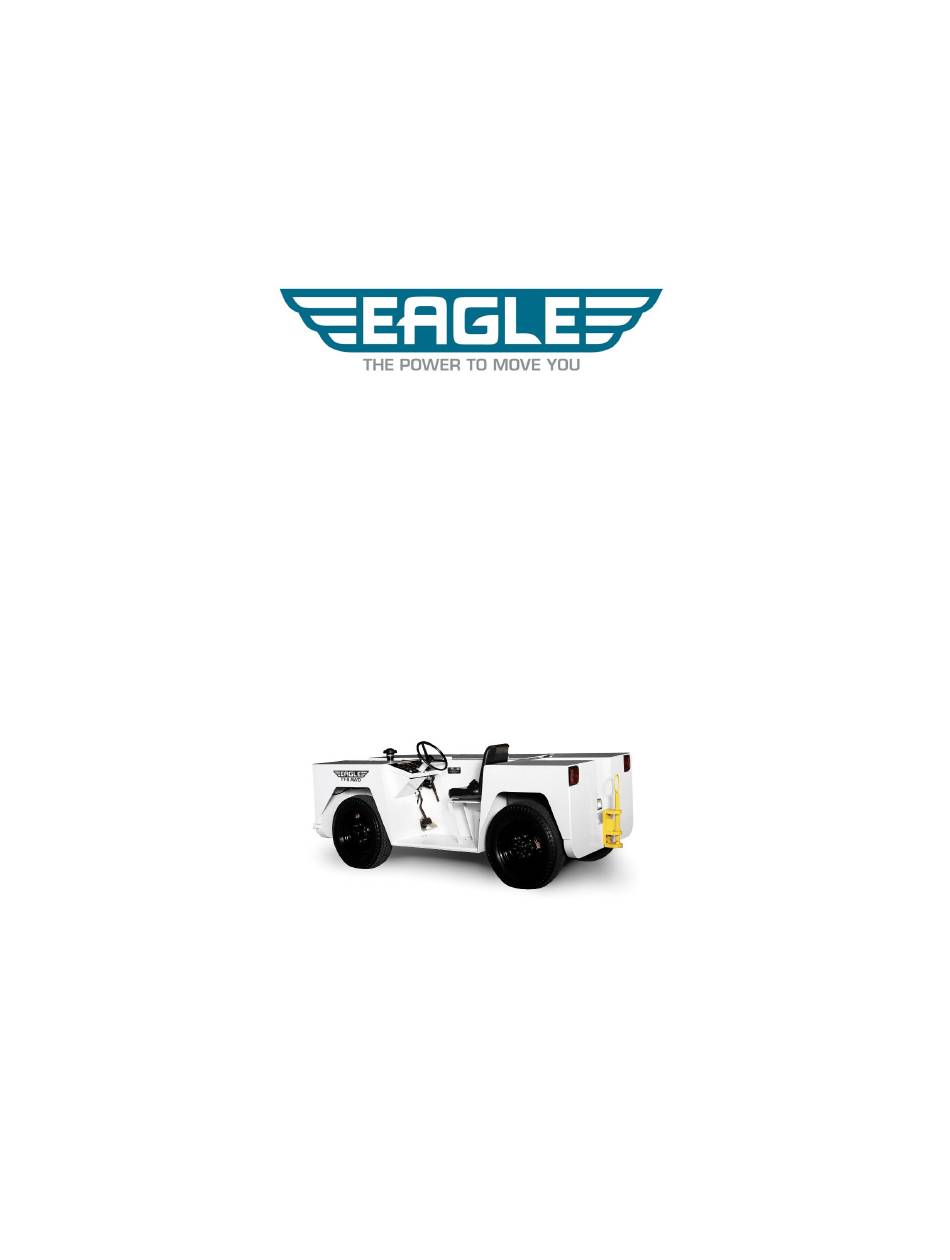

Eagle Tugs Parts and Service Manual V e hicl e T ype s: T T - 4 , TT - 5 , TT - 6 , & T T - 8 En gine T ype : Yanmar Diesel 4TNV98 Tier II & Tier III Engine Models TT4-8 4TNV98 REV27 4.7.15...
Page 2
This page was intentionally left blank REV27 4.7.15 TT4-8 4TNV98...
Introduction From everyone at Eagle Tugs, we would like to say Thank You for purchasing an Eagle TT-series tow tractor. We take a lot of pride in the quality of the products that we build, as well as our continued customer service. Our goal is to build a long term relationship with our customers.
Page 4
This page was intentionally left blank REV27 4.7.15 TT4-8 4TNV98...
Warranty Warranty Information Please read the Eagle Tugs warranty statement (available on our website) carefully. When contacting Eagle Tugs for warranty or parts service, please have the following information ready: Tractor model number Tractor serial number Current hour reading TT4-8 4TNV98...
Page 10
Keep hands and other objects clear of the radiator and blades. For more information regarding safety please refer to the operations manual provided with your tug. This manual can also be found on the Eagle Tugs website at www.eagletugs.com. REV27 4.7.15...
Warranty Vehicle ID Information This information can be found on the tractor’s I.D. Plate located on the firewall next to the driver’s seat. Additionally, there is a permanent serial number located on the rear bulkhead inside the engine compartment. MODEL _________________________________________ SERIAL NO _________________________________________...
Outside the Continental U.S. and Canada please contact Eagle directly. NOTE: At the time a warranty claim is filed it may be necessary for Eagle Tugs to request a copy the maintenance records kept on your tug. For your convenience a printable Preventative Maintenance Schedule page is available in the Maintenance section of this manual.
Service Parts Illustrations & Detail Identification Key The following abbreviations are used throughout the parts lists in this section. Abbreviation Meaning Purpose Part required but not shown on diagram Not Listed No Part Number Parts shown and numbered, but not stocked and sold by Eagle. Typ- ically used for bolts, clamps, etc…...
Power train ENGINE DRESS - FAN ASSEMBLY, PRINCE PUMP, AND MOTOR MOUNTS *See page 20 to determine proper spacer (item 10) needed TORQUE TO 100 ft-lb TORQUE TO 37 ft-lb TORQUE TO 100 ft-lb TORQUE TO 37 ft-lb REV27 4.7.15 TT4-8 4TNV98...
Page 17
Power train Item Part Number Qty. Description HCS, M8X1.25 X 45 LOCK WASHER, M8 FLAT WASHER, 1/4 A-TT8-00312 A-TT8-00360 FAN SPACER 129900-42450 PULLEY (INCLUDED WITH ENGINE) HCS, M8X1.25 X 70 HCS, M8X1.25 X 60 A-TT8-00354 REMOTE FAN BRACKET FAN BRACKET SPACER (SEE PG. 20) HCS, M8X1.25 X 40 A-TT8-00353 WATER PUMP SHEAVE...
Page 18
Power train ENGINE DRESS - TRANSMISSION TORQUE TO 70 ft-lb TORQUE TO 50 ft-lb TORQUE TO 70 ft-lb TORQUE TORQUE TO 45 ft-lb TO 55 ft-lb TORQUE TO 50 ft-lb TORQUE TO 45 ft-lb TORQUE TO 45 ft-lb TORQUE TO 45 ft-lb Used on engines not equipped with integrated rear crank seal.
Page 19
Power train Item Part Number Qty. Description SHCS, M12X1.75 X 40, GR 10.9 TT08-54-003-KA TRANSMISSION - AWD TT08-54-005-KA TRANSMISSION - 2WD HCS, M12X1.75 X 25, GR 10.9, ZN PLATED TM27C00305-ID FLEX PLATE WASHER B-TT10TD-00016-ID FLEX PLATE HCS, M16X2.0 X 45 LOCK WASHER, M16 B-TT5D-00017-4TNV FLEX PLATE ADAPTER...
Page 20
Power train Choosing the Correct Fan Bracket Spacer The fan bracket spacer shown above comes in two different versions. Version A-TT8-00361 is .625" thick. Ver- sion A-TT8-00363 is .50" thick. Using this guide will make determining which version you need very easy. Version A-TT8-00361: This part should be used if the cover circled below is a stamped part with a dome in the center and a ridge around the outside as shown: Version A-TT8-00363: This part should be used if the cover circled below is a flat sheet as shown:...
Page 21
Power train 55 AND 80 AMP ALTERNATOR ASSEMBLY Item Part Number Description 129795-01900 STUD, ALTERNATOR 55 AMP ALT 26116-101202 STUD, ALTERNATOR 80 AMP ALT 26306-100002 NUT, ALTERNATOR 55 AMP ALT 26366-100002 NUT, ALTERNATOR 80 AMP ALT 26106-080222 BOLT, M8 X 22 PLATED 55 AMP ALT 26014-080252 STUD 80 AMP ALT 129972-77341...
Page 22
Power train 40 AMP ALTERNATOR ASSEMBLY Item Part Number Description 129795-01900 STUD, ALTERNATOR 26306-100002 NUT, ALTERNATOR 26014-080252 BOLT, M8 X 25 PLATED 119810-77340 BOLT ,ADJUSTING 129900-77330 ADJUSTER BRACKET, ALTERNATOR 40 AMP 129423-77200 ALTERNATOR 40 AMP(BLUE ID TAG) 129211-77920 TIMER 25132-004150 ALTERNATOR BELT NOT SHOWN REV27 4.7.15 TT4-8 4TNV98...
Page 23
Power train 105 AMP HIGH OUTPUT ALTERNATOR ASSEMBLY (INSTALLED ON SOME UNITS PRIOR TO APRIL, 2015) Item Part Number Description AE-OPT-0021 105A ALTERNATOR 1.40 SPACER .23 SPACER M10-1.5 x 130 5/16 FLAT WASHER 119940-77270 SPACER 26306-100002 M10-1.5 LOCK NUT 9440 ALTERNATOR BELT(NOT SHOWN) TT4-8 4TNV98 REV27 4.7.15...
Page 24
Power train HEAD COVER ASSEMBLY REV27 4.7.15 TT4-8 4TNV98...
Page 25
Power train HEAD COVER ASSEMBLY Item Part Number Description 22857-500100 SCREW 5 X 10 TAPIING 123907-03120 PLATE, BREATHER 123907-03100 DIAPHRAM, BREATHER 123907-03140 SPRING, DIAPHRAM 123907-03110 CENTER PLATE 124160-11360 KNOB 24311-000120 O-RING 1A P12.0 119640-61400 PLUG 129907-11310 HEAD COVER GASKET 129907-03070 BAFFLE 129907-03010 BAFFLE PLATE...
Page 26
Power train CYLINDER BLOCK ASSEMBLY—YANMAR TIER II DIESEL REV27 4.7.15 TT4-8 4TNV98...
Power train CYLINDER BLOCK ASSEMBLY—YANMAR TIER II Item Part Number Description 22351-060012 SPRING PIN 6 X 12 129900-01250 PLUG 55 27241-300000 PLUG 30 23876-030000 PLUG PT 3/8 SCREW 129907-01190 SPACER 129900-02930 BEARING ASSY, THRUST 129900-02940 BEARING ASSY, THRUST O/S=.025 729900-02800 MAIN BEARING SET 129900-02340 MAIN BEARING SET O/S=.025...
Page 28
Power train CYLINDER BLOCK ASSEMBLY—YANMAR TIER III DIESEL REV27 4.7.15 TT4-8 4TNV98...
Page 29
Power train CYLINDER BLOCK ASSEMBLY—YANMAR TIER III DIESEL Item Part Number Description 22351-060012 SPRING PIN 6 X 12 129900-01250 PLUG 55 27241-300000 PLUG 30 23876-030000 PLUG PT 3/8 SCREW 129900-02931 BEARING ASSY, THRUST 129900-02941 BEARING ASSY, THRUST O/S=.025 729900-02801 MAIN BEARING SET 129900-02341 MAIN BEARING SET O/S=.025 129900-02020...
Page 30
Power train CRANKSHAFT & PISTON—YANMAR TIER II DIESEL REV27 4.7.15 TT4-8 4TNV98...
Page 31
Power train CRANKSHAFT & PISTON—YANMAR TIER II DIESEL Item Part Number Description 129907-22050 RING SET STANDARD 729907-22950 RING SET O/S=0.25 129907-22090 PISTON WITH RING STANDARD 129907-22910 PISTON WITH RING STANDARD O/S=0.25 120130-22301 PISTON PIN 22252-000300 CIRCLIP 30 129900-23910 BUSH, PISTON PIN 129900-23600 BEARING ASSY, CRANKCASE PIN STANDARD 129900-23610...
Page 32
Power train CRANKSHAFT & PISTON—YANMAR TIER III DIESEL REV27 4.7.15 TT4-8 4TNV98...
Page 33
Power train CRANKSHAFT & PISTON—YANMAR TIER III DIESEL Item Part Number Description 129927-22050 RING SET STANDARD 729927-22950 RING SET O/S=0.25 129907-22080 PISTON WITH RING STANDARD 129907-22900 PISTON WITH RING STANDARD O/S=0.25 120130-22301 PISTON PIN 22252-000300 CIRCLIP 30 129900-23911 BUSH, PISTON PIN 129900-23601 BEARING ASSY, CRANKCASE PIN STANDARD 129900-23611...
Page 34
Power train CAMSHAFT & DRIVING GEAR—YANMAR TIER II DIESEL REV27 4.7.15 TT4-8 4TNV98...
Page 35
Power train CAMSHAFT & DRIVING GEAR—YANMAR TIER II DIESEL Item Part Number Description 129900-26250 BALL BEARING 129980-26200 GEAR, HO PUMP 129907-14400 PUSH ROD 129150-14200 TAPPET 22512-070140 KEY 7 X 14 129150-02450 THRUST BEARING(CAM) 129900-14100 GEAR, CAMSHAFT 129907-14581 CAMSHAFT ASSEMBLY INCLUDES ITEMS 5-7 26106-080162 BOLT, M8 X 16 PLATED 26106-080552...
Page 36
Power train CAMSHAFT & DRIVING GEAR—YANMAR TIER III DIESEL REV27 4.7.15 TT4-8 4TNV98...
Page 37
Power train CAMSHAFT & DRIVING GEAR—YANMAR TIER III DIESEL Item Part Number Description 129900-26250 BALL BEARING 129980-26200 GEAR, HO PUMP 129907-14400 PUSH ROD 129150-14200 TAPPET 22512-070140 KEY 7 X 14 129150-02450 THRUST BEARING(CAM) 129900-14100 GEAR, CAMSHAFT 129907-14581 CAMSHAFT ASSEMBLY INCLUDES ITEMS 5-7 26106-080162 BOLT, M8 X 16 PLATED 26106-080552...
Page 38
Power train GOVERNOR ASSEMBLY—YANMAR TIER III DIESEL (ONLY) Item Part Number Description 26106-080252 BOLT, M8 X 25 PLATED 24341-000480 O-RING 1A S-48.0 26106-060252 BOLT, M6 X 25 PLATED 23887-120002 PLUG, M12 HEX 22190-120000 SEAL WASHER 12(BOLT) 158560-61050 GASKET 158553-61780 GEAR, SENSOR 129008-61301 NUT, GOVERNOR WEIGHT 26106-060162...
Page 39
Power train OIL PAN ASSEMBLY Item Part Number Description 122916-01790 SEAL 977770-01212 GASKET, LIQUID 26106-080122 BOLT M8 X 12 PLATED 119640-01640 DRAIN PLUG 22190-220002 SEAL WASHER 22S 129916-01710 OIL PAN ASSEMBLY INCLUDES ITEMS 4 & 5 TT4-8 4TNV98 REV27 4.7.15...
Page 40
Power train LUBE — OIL SYSTEM REV27 4.7.15 TT4-8 4TNV98...
Page 41
Power train LUBE — OIL SYSTEM Item Part Number Description 22190-080002 SEAL WASHER 8S 105010-39140 BOLT, PIPE JOINT 129930-39050 PIPE 129900-32030 O-RING P20 129953-35000 PIPE ASSEMBLY OIL INLET 26106-080162 BOLT, M8 X 16 PLATED 26106-080122 BOLT M8 X 12 PLATED 129005-59830 BOLT ASSEMBLY, JOINT 129907-39061...
Page 42
Power train GEAR HOUSING REV27 4.7.15 TT4-8 4TNV98...
Page 43
Power train GEAR HOUSING Item Part Number Description 24311-000070 O-RING 1A P7.0 977770-01212 GASKET, LIQUID 129900-26250 BALL BEARING 26106-080202 BOLT, M8 X 20 PLATED 26106-080452 BOLT, M8 X 45 PLATED 129900-32001 OIL PUMP ASSEMBLY TIER II ONLY 129900-32060 OIL PUMP ASSEMBLY TIER III ONLY 26106-080162 BOLT, M8 X 16 PLATED 129962-01500...
Driveline DRIVE SHAFT ASSEMBLY-FRONT (ALL TT 4-8 MODELS) Item Part Number Qty. Description A-TT8-00201-1 TRANSMISSION OUTPUT YOKE SHAFT-FRONT A-TT4-00132-1 CROSS BEARING FRONT D/S NEW STYLE A-TT4-00134 DRIVE SHAFT SPRING A-TT8-00202-4 DRIVE SHAFT A-TT4-00130 END YOKE STRAP AND BOLT KIT A-TT4-00137-1 CROSS BEARING FRONT D/S NEW STYLE 2-4-1921 END YOKE...
Page 59
Transmission TRANSAXLE CASE EXTENTION & RETAINER (ALL TT 4-8 MODELS) Item Part Number Description 6501474 SCREW-HEX CAP-WASH M8-1.25 X 16 4471573 CUP(NOT SOLD SEPARATELY) 4504568 SPACER KIT 4269787 RETAINER, OIL 4329829 RETAINER, BEARING 6500368 SCREW-HEX CAP-M8 X 1.25 X 23 SCREW-HEX CAP-WASH HEAD M8-1.25 X 2 SCREW-HEX CAP M8-1.25 X 15 4659342...
Page 60
This page was intentionally left blank REV27 4.7.15 TT4-8 4TNV98...
Axles AXLE ASSEMBLY—BRIERTON FRONT NON-DRIVE TT4-TT6 2WD ONLY Item Part Number Description A-TT10-00117 U-BOLT KIT A-TT4-00113 SPRING MOUNT PAD A-TT4-00116 LEAF SPRING TT4-8 4TNV98 REV27 4.7.15...
Page 62
Axles AXLE ASSEMBLY—FRONT NON-DRIVE TT4-TT6 2WD ONLY Item Part Number Description A-TT4-00111 AXLE ASSY-FRONT NON-DRIVE C-TT4-00113-1-MACH STEERING ARM - TT4-6 2WD A-TT8-00115 STUD-STEERING ARM 3965138 BUSHING HEX NUT, 9/16-18 UNF, GR 8 HCS, 3/8-16 UNC X 3.5, GR 8 FLAT WASHER, 3/8 A-TT4-00116 LEAF SPRING LOCK NUT, 3/8-16 UNC...
U-BOLT KIT A-TT4-00363 AXLE CLAMP PLATE A-TT4-00366* WASHER A-TT4-00365* 4313905 LEFT HAND BACKING PLATE 4313904 RIGHT HAND BACKING PLATE *INCLUDED IN U-BOLT KIT **CALL EAGLE TUGS FOR INFORMATION IF YOUR TUG IS EQUIPPED WITH LIMITED SLIP REV27 4.7.15 TT4-8 4TNV98...
Page 65
Axles RECOMMENDED TORQUE SPECIFICATIONS FOR DANA 44 AXLE (FRONT) WRENCH TORQUE POSITION THREAD (LBS.-FT) Drive Pinion Nut 3/4 - 16 175-225 Differential Bearing Cup Cap Screws 1/2 - 13 70-90 Ring Gear Cap Screws 3/8 - 24 45-65 Cover Screws 5/16 - 18 28-33 (Note A) Axle Shaft Bearing &...
Steering System STEERING SYSTEM BREAKDOWN REV27 4.7.15 TT4-8 4TNV98...
Page 95
Steering System STEERING SYSTEM BREAKDOWN Item Part Number Description A-TT4-00381 STEERING BOX SCREW-HEX CAP-7/16-14 X 2 GR8 A-TT4-00382 PITTMAN ARM WASHER-LOCK-3/4 NUT-LOW-3/4-10 A-TT4-00386 DRAG LINK NPN* COTTER PIN 1/8 X 1 ½ NPN* NUT-TIE ROD ½-20 A-TT4-00389 UNIVERSAL COUPLER A-TT4-00390 SHAFT COUPLING A-TT4-00391 UNIVERSAL JOINT...
Air Cleaner AIR CLEANER ASSEMBLY Item Part Number Description A-TT4-00091-2 AIR CLEANER A-TT4-00092-1 AIR CLEANER BRACKET #60 HOSE CLAMP A-TT4-00099 INTAKE TUBE REDUCER #40 HOSE CLAMP AIR CLEANER TUBE 2 1/2 OD X 26.5 A-TT4-00093 INTAKE TUBE #36 HOSE CLAMP P601437 AIR CLEANER ELEMENT REV27 4.7.15...
Exhaust & intake system EXHAUST SYSTEM Note: Item 13 used on tractors manufactured before June 2013. Item Part Number Qty. Description A-TT4-00258-2 MUFFLER TT08-57-001-KA 2 PIECE EXHAUST PIPE ASSEMBLY 129930-13200 EXHAUST GASKET A-TT4-00260 EXHAUST HANGAR A-TT4-00254 2 IN HEAVY DUTY EXHAUST CLAMP TT08-57-002-SA SPACER, 3/8 ID X 2 LG HCS, 3/8-16 UNC X 3.0, GR 8...
Page 108
Exhaust & intake system EXHAUST MANIFOLD—YANMAR TIER II DIESEL Item Part Number Description 123900-13610 STUD, M8 X 80 26306-080002 119131-18320 BOLT, M8 X 22 129930-13200 GASKET, SILENCER 123900-13630 BOLT, M8 X 80 129907-13200 EXHAUST MANIFOLD 129900-13251 GASKET, EXHAUST MANIFOLD REV27 4.7.15 TT4-8 4TNV98...
Page 109
Exhaust & intake system INTAKE MANIFOLD—YANMAR TIER II DIESEL Item Part Number Description 119129-77520 INTAKE ELBOW 119129-77020 GASKET, AIR HEATER 119005-77050 AIR HEATER 121850-77021 GASKET, AIR HEATER 26106-080352 BOLT, M8 X 35 PLATED 26106-080802 BOLT, M8 X 80 PLATED 26106-080452 BOLT, M8 X 45 PLATED 129944-12110 INTAKE MANIFOLD...
Page 110
Exhaust & intake system EXHAUST MANIFOLD—YANMAR TIER III DIESEL REV27 4.7.15 TT4-8 4TNV98...
Page 111
Exhaust & intake system EXHAUST MANIFOLD—YANMAR TIER III DIESEL Item Part Number Description 26106-100302 BOLT, M10 X 30 PLATED 26306-080002 129927-13800 PIPE, EGR 129927-13810 GASKET, EGR 129930-13201 GASKET, SILENCER 129418-18320 STUD BOLT M8 X 20 129927-13100 EXHAUST MANIFOLD 119131-18320 BOLT, M8 X 22 129263-13210 STUD 26306-080002...
Page 112
Exhaust & intake system INTAKE MANIFOLD—YANMAR TIER III DIESEL REV27 4.7.15 TT4-8 4TNV98...
Page 113
Exhaust & intake system INTAKE MANIFOLD—YANMAR TIER III DIESEL Item Part Number Description 26106-080902 BOLT, M8 X 90 PLATED 26106-080402 BOLT, M8 X 40 PLATED 119129-77520 BEND 119129-77020 GASKET 119005-77051 AIR HEATER 121850-77021 GASKET, AIR HEATER 26216-060202 STUD, M6 X 20 PLATED 26106-080802 BOLT, M8 X 80 PLATED 129927-12100...
Page 117
NVSP-05-005-CA SEALED KEY SWITCH, 3-POSITION SEALED KEYLESS SWITCH, 3-POSITION (OPTIONAL) NVSP-05-005-CB Eagle Tugs TT-series Quick Start Guide Powering up the tractor: Verify that the transmission is in “Park” or “Neutral.” Verify that the parking brake has been set. Turn the ignition switch to the “ON” position.
Page 118
Operator Compartment INSTRUMENT PANEL - H30 DISPLAY/CONTROLLER - NO LONGER AVAILABLE REV27 4.7.15 TT4-8 4TNV98...
Page 119
Operator Compartment INSTRUMENT PANEL - H30 DISPLAY/CONTROLLER - NO LONGER AVAILABLE Item Part Number Description A-TT8-00415 ELECTRONIC CONTROLLER DISPLAY C-TT4-00411-1 DASH PANEL (NO INSTRUMENTS) A-TT4-00433-1 SPOTLIGHT TOGGLE SWITCH(OPTIONAL) A-TT4-00423-2 HEADLIGHT SWITCH A-TT4-00609 HEATER FAN SWITCH(OPTIONAL) A-TT4-00608 HEATER CONTROL CABLE(OPTIONAL) A-TT4-00428 HORN BUTTON AE-OPT-0084 AMMETER GUAGE (OPTIONAL)
Other Assembly BODY ASSEMBLY Item Part Number Description C-TT4-0012-3 LOCKING T-HANDLE LATCH C-TT4-0012 HOOD HOOD PROP ASSEMBLY D-TT4-0009-1 GRILL GUARD/ACCESS DOOR 62-10-603-20 LATCH FOR ACCESS DOOR A-TT4-0052 HORN ASSEMBLY REV27 4.7.15 TT4-8 4TNV98...
Page 141
Other Assembly SEAT AND SEAT OPTIONS Item Part Number Description A-TT4-0048-1 STANDARD SEAT AE-OPT-0055-A STANDARD SEAT BOTTOM CUSHION AE-OPT-0090 STANDARD SEAT W/ KILL SWITCH(OPTION) A-TT10-00048 BENCH SEAT (DUAL REAR WHEEL MODELS) AE-OPT-0055-B BENCH SEAT BACK CUSHION AE-OPT-0055-C BENCH SEAT BOTTOM CUSHION AE-OPT-0183 BENCH SEAT W/ KILL SWITCH (OPTION) E10000...
Wheels & Tires WHEEL & TIRE ASSEMBLY Tire options: Item Part Number Description A-TT4-00121 TIRE, 8.00X16.5, LOAD RANGE E A-SATS-00121 TIRE, 8.75X16.5, LOAD RANGE E A-TT8/2-00121-1 TIRE, LT225/75R16, LOAD RANGE E A-TT8-00121 TIRE, LT225/75R16, LOAD RANGE E, MUD AND SNOW Wheel options (must match to tire mounting diameter): Item Part Number...
Page 143
Wheels & Tires WHEEL & TIRE ASSEMBLY—DUAL REAR WHEEL MODELS Item Part Number Description A-TT8/2-00121-1 TIRE, LT225/75R16, LOAD RANGE E A-TT4-00122-1 RIM, 16X6, BC 8-6.5 (FRONT AXLE) A-TT8/2-00126 RIM, 16X6, BC 8-6.5 (REAR AXLE) A-TT4-00123 LUG NUT A-TT8/2-00129 WHEEL ADAPTER LUG NUT A-TT8/2-00127 WHEEL ADAPTER TT4-8 4TNV98...
Options OTHER OPTIONS LISTED NOT SHOWN AE-OPT-0001 BACK UP ALARM AE-OPT-0086 INTERCOM JACK AE-OPT-0094 12V ACCESSORY OUTLET AE-OPT-0200 DESERT PACKAGE-INCLUDING AE-OPT-0201 SY-KLONE PRE FILTER & X002351 DIESEL AIR FLOW SERVICE INDICATOR TT4-8 4TNV98 REV27 4.7.15...
Maintenance DAILY OPERATOR RESPONSIBILITIES Proper Fluid Checks Engine Oil Check engine oil with the unit on a level surface, the key in the “OFF” position, the shifter position in “PARK” and parking brake applied. Open side access door. Remove dipstick from crankcase, wipe it with a cloth. Insert it fully and take out it gently again.
Maintenance Recommended Filter Guide Part Number Filter Description 129150-35153 Oil Filter 119802-55801 Fuel Filter 129242-55730 Fuel/Water Separator Filter Fleetguard FS20000 Lubricity Filter Donaldson P601437 Air Filter Wix 58705 Transmission Filter and Gasket SF-6520 Power Steering Filter *See Steering Fluid and Fill Procedure. REV27 4.7.15 TT4-8 4TNV98...
Page 153
Maintenance Preventive Maintenance Schedule Preventive Maintenance Item Any items found to be deficient during the preventive maintenance re- view should be repaired or replaced. All fluids found low should be topped off. Perform daily pre-operation checklist (see Operations Manual) Engine Oil Change engine oil and replace filter Transmission Oil Change transmission fluid and replace filter...
Page 154
Maintenance TT4-8 DIESEL SPECIFICATIONS & CAPACITIES MODEL # YANMAR 4TNV98 DESCRIPTION: Vertical In-line diesel, 3.3 Liter, four cylinder, direct injection engine # OF CYLINDERS 4 IN-LINE BORE & STROKE INCHES (mm) 3.858 X 4.331 in (98 X 112 mm) DISPLACEMENT, CUBIC INCHES (L) 202, 502 cu in (3.319L) COMPRESSION RATIO 171 (2.8)
Page 155
Maintenance TT4-8 DIESEL SPECIFICATIONS & CAPACITIES TRANSMISSION REFILL CAPACITIES ENGINE U.S. PINTS IMPERIAL PINTS LITRES 3.3 L DIESEL 8.00 6.60 3.80 * USE DEXTRON III TYPE TRANSMISSION FLUID OR EQUIVALENT **ADD 9 PINTS, 7.5 IMPERIAL PINTS OR 4.25 LITERS IF TORQUE CONVERTOR HAS BEEN DRAINED ENGINE COOLING SYSTEM REFILL CAPACITIES ENGINE U.S.
Maintenance YANMAR ENGINE TROUBLE SHOOTING SYMPTOM PROBABLE CAUSE ACTION Indicator Turns On-Engine Running Low engine Coolant Add engine coolant Dirty radiator fins Clean the radiator fins See authorized Yanmar Engine coolant leaking industrial engine dealer Engine Coolant or distributor Indicator V-belt loose or damaged Adjust V-belt or replace See authorized Yanmar...
Page 157
Maintenance YANMAR ENGINE TROUBLE SHOOTING SYMPTOM PROBABLE CAUSE ACTION Engine Does Not Start No diesel fuel Refuel and prime fuel system Air in fuel system Prime fuel system Replace with recommended Improper diesel fuel diesel fuel Starter motor operates Clogged fuel filter Replace fuel filter but engine does not start See authorized Yanmar...
Maintenance Recommended TT 4-12 Tool List 1) Screwdrivers a. Philips #1, #2 4” long b. Slotted 1/8 X 4, 3/16 X 4, 1/4 X 6, 5/16 X 8 2) Torx a. T25, T27, T30, T40 3) Nut Drivers a. 1/4”, 5/16”, 3/8” 4) Allen Wrench a.
Page 159
Maintenance 14) Swivel Universal 1/2, 3/8 Drives 15) Extension 3/8 Drive 3, 6, 10 inch 16) Extension ½ Drive 3, 6, 10 inch 17) OTC 7157 18) OTC 7080 19) OTC 1902 20) 12 volt test light 21) Torque Wrench 25-250 Foot Pounds 22) 7 inch diagonal pliers 23) 8 inch long nose pliers...
Page 160
7.Keep fuel tank full, as much as possible. 8.Consult with Eagle Tugs factory for additional assistance. REV27 4.7.15 TT4-8 4TNV98...
Maintenance FRONT END ALIGNMENT PROCEDURE Find center line of tire front and back Check with tape measure to see difference The front should be 1/16 inch more that the rear 1/16 inch toe out, if less or greater loosen the two bolts on the tie rod clamp Turn clamp in or out to achieve desired setting—1/16 in toe out Retighten two bolts on the tie rod clamp + 1/16 TOE OUT...
Maintenance DANA FRONT AXLE MAINTENANCE Dana 44 Front Axle Disassembly Procedure Please refer to the steps below for proper adjustment procedure. Note: Please refer to the attached picture of the Dana 44 axle for number reference. Disassembly Procedure: Step 1: Lift the tug so that both of the front tires are off the ground and make sure the unit is secured properly. Step 2: Remove both front wheels.
Page 163
Maintenance DANA FRONT AXLE MAINTENANCE Reassembly Procedure If the Backing Plate & Spindle Were Removed: Step 1: Install the backing plate with the chamfer facing the spindle. Note: Be sure the backing plate is aligned in the correct position as it was before it was removed. Step 2: Tighten the 6 new 3/8-24 stover lock nuts to 33ft lbs.
Revision Log Date Description Appr. 16-May-2013 Revised aluminum radiator part number, revised transmission mount part num- ber, added exhaust bracket part number. 10-Jun-2013 Revised exhaust system design. 29-Aug-2013 Replaced cab wiring schematic 24-Sep-2013 Revised 80A alternator part number and alternator excite wiring/installation 30-Oct-2013 Added key switch and key switch bracket part numbers 20-Nov-2013...
