Lawnmower 1000w 32cm
Hide thumbs

Advertisement

Table of Contents

Lawnmower
1000W 32cm
NMLM1000
EAN : 5059340239637
BX220IM
WARNING: Read the instructions before using the product!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NMLM1000 and is the answer not in the manual?

Questions and answers

Related Manuals for B&Q NMLM1000

Summary of Contents for B&Q NMLM1000

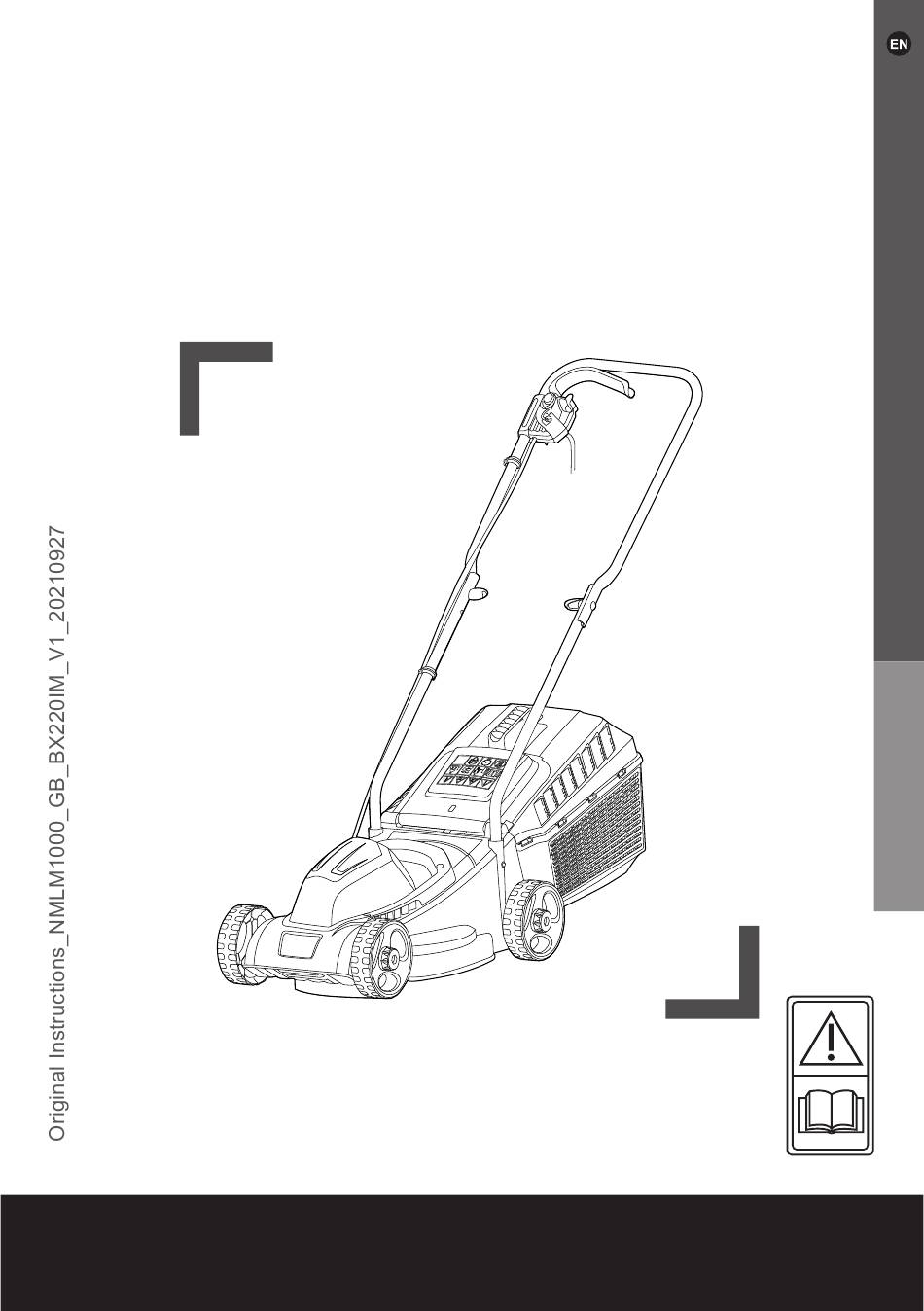

  • Page 1 Lawnmower 1000W 32cm NMLM1000 EAN : 5059340239637 BX220IM WARNING: Read the instructions before using the product!

  • Page 2: Table Of Contents

    NMLM1000 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Your product Before start detail... more Product functions Operation Care maintenance Trouble shooting...

  • Page 3: Safety Information

    Safety information NMLM1000 Safety warnings 1. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. 2. If an extension cord is used, it cannot lighter than H05VV-F, wire diameter cannot less than 2 x 1.5 mm...
  • Page 4 Safety information NMLM1000 3. Before using, always visually inspect to see that the blade, blade bolt and the blade assembly are not worn or damaged. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.
  • Page 5 Safety information NMLM1000 12. Do not start the machine when standing in front of the discharge opening. 13. Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. 14. Do not transport the machine while the power source is running.
  • Page 6 Safety information NMLM1000 7. Plan your work schedule to spread any high vibration tool use across a longer period of time. 8. When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.
  • Page 7 Safety information NMLM1000 Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1. Always be alert when using this product, so that you can recognise and handle risks early.
  • Page 8 Safety information NMLM1000 Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt (alternating voltage)
  • Page 9 Safety information NMLM1000 Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is.

  • Page 10: Your Product

    Safety information Your product NMLM1000 Your product...
  • Page 11 Your product NMLM1000 1. Handle 10. Grass catcher 2. Upper handle bar a. Handle 3. Mounting set (x 2) b. Top part * a. Knob * c. Bottom part * b. Bolt * 11. Deflector guard 4. Lower handle bar 12.

  • Page 12: Before You Start

    Before you start NMLM1000 Assembly WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! Ne branchez pas l’outil dans une alimentation électrique tant qu’il n’est pas complètement assemblé...
  • Page 13 Before you start NMLM1000 Fig. 1 5. Place the lawnmower on its side when tightening each wheel. Important: Ensure all four wheels are securely tightened before each use.
  • Page 14 Before you start NMLM1000 Lower handle bar 1. Insert the lower handle bars (4) into the slots on both sides of the lawnmower housing (Fig. 2). 2. Use the 2 screws (4a) provided to lock each handle into position in the deck (Fig. 2).
  • Page 15 Before you start NMLM1000 Upper handle bar 1. Attach the upper handle bar (2) to the lower handle bars (4) and align the holes in the upper handle bar with the ones in the lower handle bars (Fig. 3). 2. Secure the upper handle bar (2) with the mounting sets (3) to the lower handle bars (4) and tighten the knobs (3a) clockwise (Fig.
  • Page 16 Before you start NMLM1000 Grass catcher 1. Align the fronts end of the top part (10b) and the bottom part (10c) of the grass box. Clip the two halves together starting at the front. 2. Once the front clips on either side are secure, work back on either side to secure each clip.

  • Page 17: In More Detail

    Before you start NMLM1000 more detail... Product functions Operation Care maintenance Trouble shooting Recycling disposal Guarantee Technical specifications declaration conformity...

  • Page 18: Product Functions

    NMLM1000 Intended use This electric lawnmower NMLM1000 is designated with a rated input of 1000 Watts. 1. The product is intended for mowing grass in domestic gardens only. It must not be used to mow unusually high dry grass or wet grass, e.g. pasture grass; for shredding leaves or mulching.
  • Page 19 Product functions NMLM1000 20mm 40mm 60mm Fig. 7 1. Release the start lever (16) and disconnect the product from the power supply before adjusting the height of the wheels. 2. Loose the knob with bolt (8a) and remove them together the wheel (8).
  • Page 20 Product functions NMLM1000 Handle bar adjustment 1. Disconnect the plug from the extension cord and loosen the knobs (3b) anti-clockwise to fold the handle assembly for storage (Figs. 8, 9). 2. Ensure the power cord (13) is not squeezed, and then tighten the knobs (3b) clockwise.
  • Page 21 Product functions NMLM1000 Grass catcher Always attach the grass catcher (10) when using the product for grass collection. Always carry the grass catcher by its handle (10a). Emptying Empty the grass catcher (10) frequently during use. Do not wait until it is completely full.

  • Page 22: Operation

    Operation NMLM1000 General operation Check the product, its interconnection cord and extension cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 1. Double check that accessories or cutting device are properly fixed.
  • Page 23 Operation NMLM1000 Mowing 1. Make sure that the lawn is clear of stones, sticks, wire or other objects that could damage the product or its motor. 2. Do not cut wet grass because it tends to stick to the underbody of the product, preventing the proper discharge of grass clippings, and it could also cause you to slip and fall.

  • Page 24: Care And Maintenance

    Care and maintenance NMLM1000 The golden rules for care WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage.
  • Page 25 Care and maintenance NMLM1000 Underbody and cutting device WARNING! Wear safety gloves when working on the cutting device and close to it! Use proper tools to remove debris, e. g. a wooden stick! Never use your bare hands! Always use original spare parts for replacement. The cutting device must be replaced by an identification no.
  • Page 26 Care and maintenance NMLM1000 Fig. 12 Grass catcher Inspect the grass catcher (10) before each use. Do not use it if you find any damage.
  • Page 27 Care and maintenance NMLM1000 Power cord If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. UK plug If you need to replace the fitted plug, then follow the instructions below.
  • Page 28 Care and maintenance NMLM1000 Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly to have it checked and repaired. Storage 1. Clean the product as described above.

  • Page 29: Trouble Shooting

    Trouble shooting NMLM1000 Trouble shooting Suspected malfunctions are often due to causes that the user can fix themselves . Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All...

  • Page 30: Recycling And Disposal

    Recycling and disposal NMLM1000 Recycling and disposal Old products are potentially recyclable under WEEE and do not, therefore, belong in your house hold rubbish. You are requested to assist us and our contribution to saving resources and protecting the environment by handing in this appliance at an equipped collection centre (if there is one available).

  • Page 31: Guarantee

    Guarantee NMLM1000 Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
  • Page 32 Guarantee NMLM1000 Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, W26PX London United Kingdom www.kingfisher.com/products Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...

  • Page 33: Technical Specifications

    Technical specifications NMLM1000 Technical specifications General Rated voltage: > 220-240 V~, 50 Hz > Rated input: 1000 W > Rated no load speed n 3500 min Cutting width: > 320 mm > Cutting height: 20/40/60 mm; 3 levels > Grass catcher volume:...
  • Page 34 Technical specifications NMLM1000 AVERTISSEMENT ! The vibration emission value during actual use of the tool can differ from the declared value depending on the ways in which the tool is used. Identify safety measures to protect the operator that are based...

  • Page 35: Ec Declaration Of Conformity

    (UK) DECLARATION OF CONFORMITY Product • 1000W 32cm Lawnmower • NMLM1000 Serial number 000001-999999 • Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
  • Page 36 Product/ Produit/ Produkt/Produsul/Producto/Produto 1000w 32cm Lawnmower/ Tondeuse à gazon 1000W 32cm/ Kosiarka 1000W 32cm/ Maşină de tuns Iarba de 1000w 32cm/ • Cortacésped 1000W, 32cm/ Corta-relvas de 1000W e 32cm NMLM1000 • • Serial number 000001-999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
  • Page 37 Measured Sound Power Level Guaranteed Sound Power Level Le niveau de puissance acoustique mesuré Le niveau de puissance acoustique garant Zmierzony poziom mocy akustycznej Gwarantowany poziom mocy akustycznej Nivel de putere acustică măsurat Nivel de putere acustică garantat Nivel de potencia sonora medido Nivel de potencia sonora garantizado Nível de potência sonora medido Nível de potência sonora garantido...
  • Page 38 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.screwfix.com www.kingfisher.com/products www.screwfix.ie www.castorama.fr Pour consulter les manuels d’instructions en ligne, rendez- www.bricodepot.fr...
