Sealey HVLP732 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Refer to Wear eye
instruction protection
manual
 Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
 WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
 Maintain the spray gun in good condition (use an authorised service agent).
 Replace or repair damaged parts. Use authorised parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 Keep the spray gun clean for best and safest performance.
 Ensure that the compressed air system can supply the spray gun air consumption for the model to be used.
 Wear approved safety respiratory protection and safety eye goggles.
 If spraying isocynate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves and an
impervious hooded coverall.
 Remove ill-fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
 Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is adequate
ventilation and lighting.
 Keep children and unauthorised persons away from the work area.
 When not in use, ensure that the air supply is turned off.
 Avoid unintentional operation of spray gun.
 The spray gun has been treated with an anticorrosive agent at the factory and MUST be flushed out thoroughly with thinner before use.
 DO NOT point spray gun at yourself, other persons or animals.
 DO NOT direct air from the air hose at yourself, other persons or animals.
 DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
 DO NOT exceed the working pressure of 43psi (3bar).
 DO NOT use the spray gun for any purpose other than that for which it is designed.
 DO NOT allow untrained persons to operate the spray gun.
 DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
 DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
 When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.

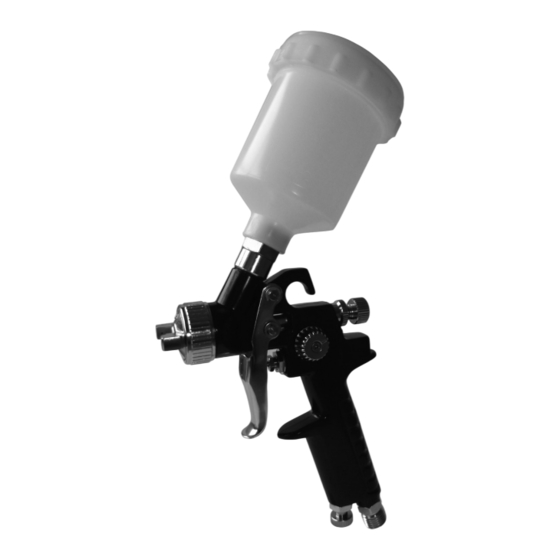

HVLP732 Gravity Feed Touch Up Spray Gun
Ideal for blowing-in small areas of panel where fine control of paint and
air is necessary. Anodized spray gun body resists corrosion and makes
for easier cleaning. Brass air cap with stainless steel needle and nozzle
make it suitable for waterborne paint. Supplied with 0.8mm set-up,
1.0mm set-up is available separately.
Model No: .............................................................HVLP732
Supplied standard set-up: ...................................................... 0.8mm
Available set-ups: ................................................................... 1.0mm
Working pressure: ..........................................................43psi (3bar)
Air consumption: ................................................... 9.0cfm (255 l/min)
Pot capacity ............................................................................. 100ml
© Jack Sealey Limited
INSTRUCTIONS FOR:
HVLP GRAVITY FEED TOUCH UP SPRAY GUN
0.8MM SET UP
MODEL NO:
Wear
respiratory
protection
Original Language Version
HVLP732
HVLP732 Issue: 1 - 14/11/14
