Seaside Casual Greenwich 611W Assembly Instructions

80” bench

Download this manual

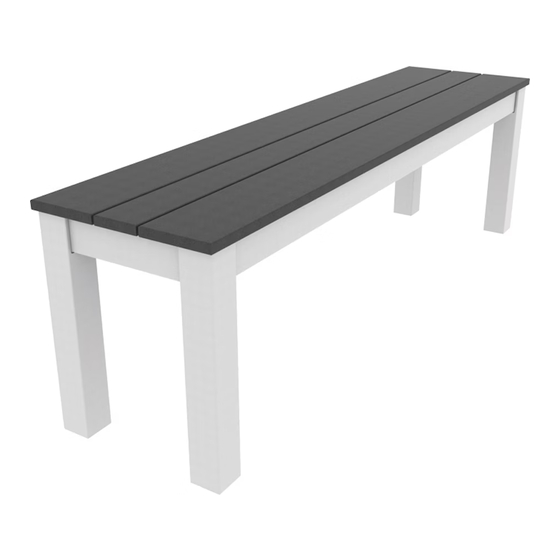

Greenwich 80" Bench

611W

PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.

Carefully remove contents from box. Make sure that all parts and hardware are

Included using the Parts List below.

Tools Required:

WOVEN TOP ASSEMBLY

FRAME ASSEMBLY

M6 SHOULDER SCREW

WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114

Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com

ASSEMBLY INSTRUCTIONS

4mm Allen Wrench (included); #2 Phillips Head Screwdriver; Socket set

(Recommended: Rubber Mallet; Power Drill)

x 1

80mm HEX HEAD LAG

x 1

x 6

LEG

4mm ALLEN WRENCH

Actual Size

x 4

x 8

x 1

Page 1

Page 1 FRAME ASSEMBLY 80mm HEX HEAD LAG M6 SHOULDER SCREW 4mm ALLEN WRENCH Actual Size WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114 Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com Page 1...
Page 2 ATTACH LEGS On a clean at surface connect Legs to Frame Assembly with (2) 80mm Lags Per Leg (AS SHOWN). Do Not Over Tighten. ATTACH SEAT BACK ASSEMBLY On a clean surface place frame and legs on top of the top assembly and attach with (6) M6 Shoulder Screws (AS SHOWN).
