Summary of Contents for LifeProof AQUAPHONICS AQ10
- Page 1 User Guide...
-
Page 2: Speaker Anatomy

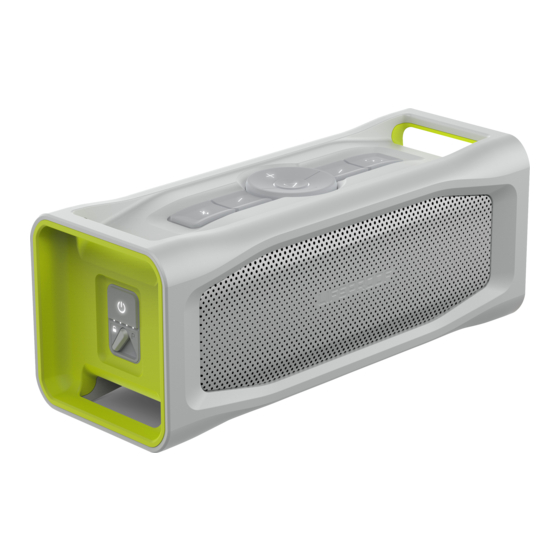

SECTION 1 SPEAKER ANATOMY... - Page 3 AQ10 + AQ11 ANATOMY Power Button Long press to turn on and off Short press to check battery level Lock Switch Flip to lock and unlock all buttons...
- Page 4 AQ10 + AQ11 ANATOMY 3.5 mm Auxiliary Audio Jack Stream by wire Power In Recharge your speaker USB Charge Out Plug in and charge up your device...
- Page 5 AQ10 + AQ11 ANATOMY Pair Source Connect to Bluetooth devices Switch between audio sources Back Volume Down Return to the previous track Hush your music Play Volume Up Press to get the party started Amplify your music Forward Advance to the next track...
- Page 6 AQ10 + AQ11 ANATOMY Drybox Watertight space to stash your stuff 3.5 mm Auxiliary Audio Jack Stream by wire USB Charge Out Press to get the party started...
-
Page 7: Getting Started
SECTION 2 GETTING STARTED... - Page 8 Press the Power button until you hear chimes AQ10 + AQ11 automatically go into pairing mode, and the Pair LED blinks Go to your device’s Bluetooth settings, pick LIFEPROOF AQ10 or LIFEPROOF AQ11 and follow the manufacturer’s pairing instructions When you connect, the speaker chimes and the Pair LED slowly pulses...
- Page 9 SECTION 3 DRYBOX...
- Page 10 AQ10 + AQ11 DRYBOX To open the Drybox, slide the latch and pull up on the lid Stash your stuff in the compartment — it’s watertight when fully closed Use the 3.5 mm Auxiliary Audio Jack and USB ports to connect small, Wi-Fi devices and other audio sources To close, slide the latch, push down on the lid until seated and release the latch...
-
Page 11: External Audio Sources
SECTION 4 EXTERNAL AUDIO SOURCES... - Page 12 AQ10 + AQ11 AUDIO SOURCES AQ10 + AQ11 have two 3.5 mm Auxiliary Audio Jacks to stream by wire — one on the right side and one in the Drybox To use, connect a compatible cable from the audio source to the speaker Press the Source button to switch between audio sources Press the Source button again to return to your Bluetooth source...
-
Page 13: Lock Switch
SECTION 5 LOCK SWITCH... - Page 14 LOCKING AQ10 + AQ11 Once you have your settings dialed in, you can lock them down with the Lock Switch Flip the Lock Switch to the Locked icon to shut down button functions Flip it to the Unlocked icon to bring function back If a call comes through while Locked, flip to Unlocked to answer...
-
Page 15: Charging Speaker
SECTION 6 CHARGING SPEAKER... - Page 16 CHARGING AQ10 + AQ11 Use the included 12V, 2A power adaptor to charge AQ10 + AQ11 (indoors only) The Power Level LEDs light up to show the charging progress — each illuminated LED represents approximately 25% of capacity Disconnect the power adaptor when AQ10 + AQ11 reaches 100% charge To check the power level, press the Power button and count the illuminated LEDs...
-
Page 17: Charging Devices
SECTION 7 CHARGING DEVICES... - Page 18 CHARGING DEVICES AQ10 + AQ11 let you charge out to mobile devices Connect the charge cable from the device to the USB port on the side of your speaker or in the Drybox Note: when the Drybox is open, AQ10 + AQ11 are not WaterProof Tap the Power button to start charging out —...
-
Page 19: Handsfree Calling
SECTION 8 HANDS-FREE CALLING... - Page 20 HANDS-FREE CALLS When you’re connected to AQ10 + AQ11, you can take calls through the speaker As the call comes in, the music stops and AQ10 + AQ11 turn into speakerphones Press Play to answer When the call ends, press Play to hang up — the music picks back up Note: mic is located under the front metal grille...
- Page 21 SECTION 9 CARE...
- Page 22 CARING FOR YOUR AQ10 + AQ11 Wipe with a dry cloth if it gets dirty Rinse with fresh water after exposure to soap, chlorine or seawater Do not use solvents, chemicals, cleaning solutions, alcohol, ammonia or abrasives...
- Page 23 SECTION 10 WARNING...
- Page 24 SAFETY INSTRUCTIONS Read, heed and refer back to these instructions and warnings Use in accordance with LifeProof instructions Do not store your speaker in extremely cold or hot places Only use attachments/accessories specified by LifeProof Unplug your speaker during lightning storms or when unused for long periods of time...
- Page 25 Battery: Do not leave a battery on prolonged charge when not in use. The battery provided with your speaker is not user serviceable. Contact LifeProof Customer Service for all battery related issues. Charging: The charger provided is designed for indoor use only. Charge your speaker with the provided adapter.
- Page 26 SECTION 11 SUPPORT...
- Page 27 AQ10 + AQ11 SUPPORT Visit www.lifeproof.com/speakers for support Life Support: If the LifeProof product was purchased from a retailer or other reseller of LifeProof product, you should first contact that retailer/reseller to ask about their return policy. If you are within the return policy of your retailer/reseller, you should return your LifeProof product to them.
-
Page 28: Warranty
SECTION 12 WARRANTY... - Page 29 All LifeProof products are backed by a limited warranty. Product warranty only covers the LifeProof product – it does not cover any non-LifeProof product or device. Otter Products, LLC together with its affiliated entities worldwide is the company responsible for providing this warranty coverage. Visit...
- Page 30 SECTION 13 REGULATIONS...
- Page 31 REGULATIONS FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 32 Maximum output power LPSAN-0006-A AQ10: 0.83 mW Maximum output power LPSAN-0007-A AQ11: 0.96 mW CE Mark: Please refer to www.lifeproof.com/speakers for a European Declaration of Conformity showing the product standards that this product is in compliance with and why Otter Products, LLC is able to place the CE mark on this product.
- Page 33 Please contact your local authority for further details of your nearest designated collection point. California Energy Commission compliant. Please refer to www.lifeproof.com/speakers for additional regulatory information. Regulatory Model Number (RMN): LPSAN-0005-A.
- Page 34 SECTION 14 LEGAL...
- Page 35 LEGAL NOTICES Though all LifeProof products are tested to meet stated claims, your device can still be damaged. It is your responsibility to take reasonable precautions regarding how you use your device. Expose your device to hazards at your own risk. The LifeProof product warranty only covers the LifeProof product —...
