GE LED Puck Lights User Manual

INSTALLATION
Carefully plan out your installation prior
to securing your lights to the mounting
surface, making sure that your 5ft. line cord
will reach the nearest electrical outlet.
For kitchen installations, the recommended
mounting surface is near the front lip
of your kitchen under cabinets. This will
provide the best light distribution across
a countertop.
STEP 1: CHOOSE INSTALL LOCATION
Before installing, select a suitable mounting
location that is dry and capable of
supporting the pucks. Make sure that there
is plenty of room for the included 5ft. power
cord to reach the nearest outlet.
DO NOT ATTEMPT TO INSTALL LED PUCK
LIGHTS WHILE PLUGGED IN.
CABINET
COUNTER TOP
STEP 2: MARK SCREW LOCATIONS

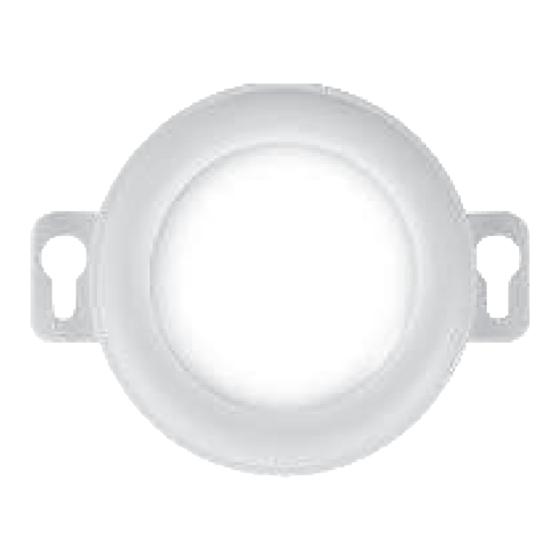

On either side of the puck are keyhole tabs.
Using these for guidance, hold the puck in
place and use a pencil to mark the location
for the screws.
MARK
STEP 3: PRE-DRILL HOLES
Using the pencil marks for guidance, pre-
drill holes in the mounting surface with a
1/16in. (1.5mm) drill bit for soft woods and
a 3/32in. (2.4mm) drill bit for hard woods.
PRE-DRILL
STEP 4: INSERT SCREWS
Insert the screws with a #1 Phillips
screwdriver, leaving 1/8in. beyond
the surface.
STEP 5: MOUNT PUCKS
Align the keyhole tabs with the screws and
slide the puck into place. Tighten the screws
as needed.
.
MOUNT
OPERATION
STEP 6: CONNECT WITH LINKING CORDS
Insert the 3-pin connector on the power
cord into the fixture and the flat plug into
the nearest 120VAC 60Hz outlet.
STEP 7: PLUG IN TO POWER
The included power cord has a flat plug on
one end and a 3-pin connection point on
the other. Plug the 3-pin connector into the
nearest puck in the sequence and the flat
plug into a 120VAC 60Hz outlet.
3 PIN
2 PIN 3 PIN 2 PIN
3 PIN
ELECTRICAL CORD CAN BE ROUTED
AROUND CORNERS
TO SUIT THE INSTALLATION
WARNINGS TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS:
This fixture has a polarized plug (one blade is wider than the
other) to reduce the risk of electric shock. This plug will fit into a
polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Never use an extension cord unless the plug can be
fully inserted. Do not alter the plug.
• Read the entire installation procedure before
you begin.
• Not to be used with a dimming circuit or any other
electronically switched control.
• Do not attempt to install the fixture while plugged in.
• Save these instructions so you can refer to them at
a later time.
LOW/OFF/HIGH SWITCH
Use the switch on the side of each LED puck
to change between OFF, low-level white
light and high-level white light. Each puck in
the sequence is independently controlled.
SWITCH
LINKING ADDITIONAL FIXTURES:
To add more light pucks (sold separately),
simply follow the steps above. Keep in
mind the distance between each puck
and not to exceed the maximum of 20 LED
light fixtures per outlet. The sequence is
independently controlled.
LIGHTING SPECS FOR 3 PUCKS
LUMENS: 450 WATTAGE: 8.4
CRI: 94 LUMENS/WATT: 53.6
CCT: 3000K
LIGHTING SPECS FOR 5 PUCKS
LUMENS: 750 WATTAGE: 14
CRI: 94 LUMENS/WATT: 53.6
CCT: 3000K
CLEANING INSTRUCTIONS: Your fixture is made from quality
materials that will last for many years with minimum care.
When cleaning, make sure you have unplugged your fixture
and allowed sufficient time for the unit to cool to room
temperature. You should clean the housing and lens using a
soft, damp cloth. You should plug your fixture back in only
after the fixture has thoroughly dried.
