- Page 1 USER GUIDE 18 Cu. Ft. Top Mount Refrigerator NS-RTM18WH2 / NS-RTM18SS2 / NS-RTM18SS2L / NS-RTM18BK2 / NS-RTM18BK2L Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Introduction ............3 Important Safety Instructions . -
Page 3: Introduction
18 Cu. Ft. Top Mount Refrigerator Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RTM18WH2, NS-RTM18SS2, NS-RTM18SS2L, NS-RTM18BK2, or NS-RTM18BK2L represents the state of the art in refrigerator design and is designed for reliable and trouble-free performance. - Page 4 • refrigerator must be disconnected from the source of the electrical supply before attempting the installation of an accessory. CHILDREN • should be supervised to ensure that they do not play with the appliance. REFRIGERANT • and cyclopentane foaming material used for the appliance are flammable.
- Page 5 18 Cu. Ft. Top Mount Refrigerator • Do not use electrical appliances on the top of the refrigerator, unless they are recommended by the manufacturer. Warnings for using • Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
-
Page 6: Features
Warnings for disposal • Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it must be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm. -
Page 7: Main Components
18 Cu. Ft. Top Mount Refrigerator Main components Air outlet Shelf Door trays Air outlet Control panel Storage box Air outlet Shelf Deli drawer Shelf Door trays Crisper drawers Note: The image above is only for reference and may vary from the actual product. -
Page 8: Finding A Suitable Location
Finding a suitable location • Position the refrigerator away from heat and direct sunlight. For the best performance, install in an area with an ambient temperature between 50° F (10° C) and 110° F (43° C). • To prevent rust and to protect the electrical insulation, do not place the refrigerator in moist areas. -
Page 9: Providing A Proper Power Supply
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. Installing an optional ice maker The refrigerator comes set up for ice maker installation. This refrigerator is compatible with the Insignia NS-ICEF2W2 ice maker (not included). www.insigniaproducts.com... -
Page 10: Reversing The Door Position
To check your refrigerator version, look at the label on the inside left side of the refrigerator cabinet, if the label says "Rev A." contact Insignia Customer Service at 1-877-467-4289 to receive complimentary parts to complete the door reversal. -
Page 11: Reversing The Door Position

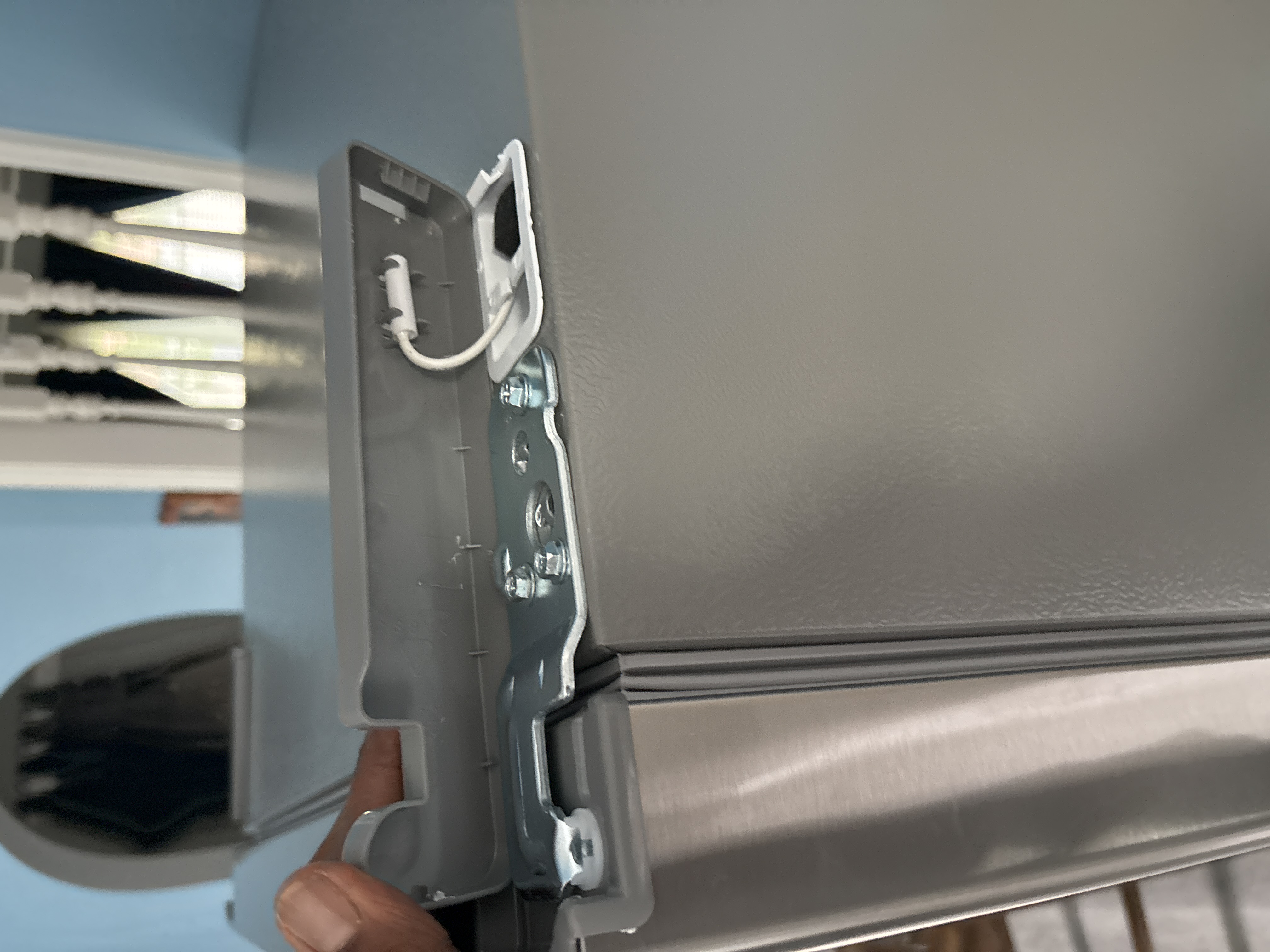

18 Cu. Ft. Top Mount Refrigerator Reversing the door position Note: Left-opening model shown for illustration purposes. Parts included with the hinge kit: If your doors currently open If your doors currently open on the left side: on the right side: Right top hinge cover Center right hinge Center left hinge... - Page 12 Remove the cover plate and the top hinge cover, then unscrew and remove the top hinge. Keep the screws to reuse. Top hinge cover Cover plate Note: Images show a refrigerator that opens on the left side. Your refrigerator may open on the right side.
- Page 13 18 Cu. Ft. Top Mount Refrigerator Unscrew the two screws holding the bottom hinge, then remove the bottom hinge from the refrigerator. Bottom hinge Unscrew the hinge pin from the bottom hinge and reattach it to the other hole in the hinge pin, then secure the bottom hinge to the opposite side of the refrigerator using the screws you removed previously.
- Page 14 Remove the hole cap and plastic bushings from the top of the freezer and refrigerator doors. Save them for the next step. Hole cap Plastic bushings Insert the hole cap and plastic bushings into the opposite sides (from where you removed them) of the freezer and refrigerator doors. Hole cap Plastic bushings www.insigniaproducts.com...
- Page 15 18 Cu. Ft. Top Mount Refrigerator Remove the door block from the bottom of the refrigerator door and attach it to the other side. Refrigerator door Door block Lower door self -locking block Attach the upper door self-locking block and the door-open stopper to the side of the freezer door where the hinge will be.
- Page 16 Remove the old upper door self-locking block and the door-open stopper (do not remove the parts attached in step 10). Store in a safe place in case you need to reverse the door position again. Attach the refrigerator door to the bottom hinge, then attach the center hinge to the refrigerator.
- Page 17 18 Cu. Ft. Top Mount Refrigerator Add covers to the screw holes and hinge pivot. www.insigniaproducts.com...
-
Page 18: Using Your Refrigerator
Using your refrigerator After plugging in your refrigerator, you’ll hear a beep and the refrigerator starts normal operation with the refrigerator and freezer set to the mid-range temperatures. Note: If the refrigerator is unplugged, wait 10 minutes before restarting it to prevent damage to the compressor. -
Page 19: Using Your Freezer Compartment
18 Cu. Ft. Top Mount Refrigerator Using the refrigerator shelves The two glass shelves in the refrigerator compartment can be adjusted to various heights, as needed. To remove a shelf, lift the front of the shelf, then gently pull it forward until the shelf comes clear of the shelf guides. -
Page 20: Dismissing The Open Door Alarm
Hold the door tray with one hand, then use the other hand to tap the bottom of the tray up several inches. Align the door try where you want to place it, then push it down into place. Dismissing the open door alarm When the refrigerator or freezer door is left open for two minutes, a buzzer sounds until you close the door. -
Page 21: Cleaning And Maintaining Your Refrigerator
18 Cu. Ft. Top Mount Refrigerator Cleaning and maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the cabinet with a mild detergent and warm water, then wipe dry. Do this periodically to keep your refrigerator looking new. Caution: •... -
Page 22: Handling Power Outages
Remove as many items as you can at one time, and close the door as soon as possible. Obtaining replacement parts Call Insignia Customer Service at 1-877-467-4289. To obtain replacement parts outside of the product warranty, visit https://partstore.encompass.com and search for the product model number. -
Page 23: Troubleshooting
18 Cu. Ft. Top Mount Refrigerator Troubleshooting CAUTION: Do not try to repair your refrigerator yourself. Doing so invalidates the warranty. Understanding error codes When a fault occurs, the refrigerator alarm sounds and the fridge and freezer LEDs light up to show what the error is. Press ALARM OFF to turn off the alarm. LED 1 LED 3 LED 4... -
Page 24: Common Problems And Solutions
Common problems and solutions PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The refrigerator The refrigerator is unplugged. Make sure that the refrigerator is does not operate. plugged in and that the plug is pushed completely into the outlet. The voltage is too low. Make sure that the refrigerator is plugged into a 110V–120V, 60Hz power outlet. - Page 25 18 Cu. Ft. Top Mount Refrigerator PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Food in the The door has been opened too Make sure that the door is refrigerator often or was not closed properly. closed properly. compartment is You have just added a large Allow time for the new food to not cold.
- Page 26 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The exterior of In the insulated walls of the This is normal. The longer your the refrigerator is refrigerator there is a heat refrigerator runs the warmer the warm. exchanger coil. This produces sides and top will get. heat.
-
Page 27: Specifications
18 Cu. Ft. Top Mount Refrigerator Specifications Dimensions (H × W × D) 66 5/8 × 29 3/4 × 30 3/4 in. (169.2 × 75.5 × 78 cm) Weight Net weight: 166.4 lbs. (75.5 kg) Gross weight: 185.2 lbs. (84 kg) Power requirements 115V~60Hz Current... -
Page 28: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 29 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults”...
- Page 30 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2022 Best Buy. All rights reserved. V2 ENGLISH 22-0512...
