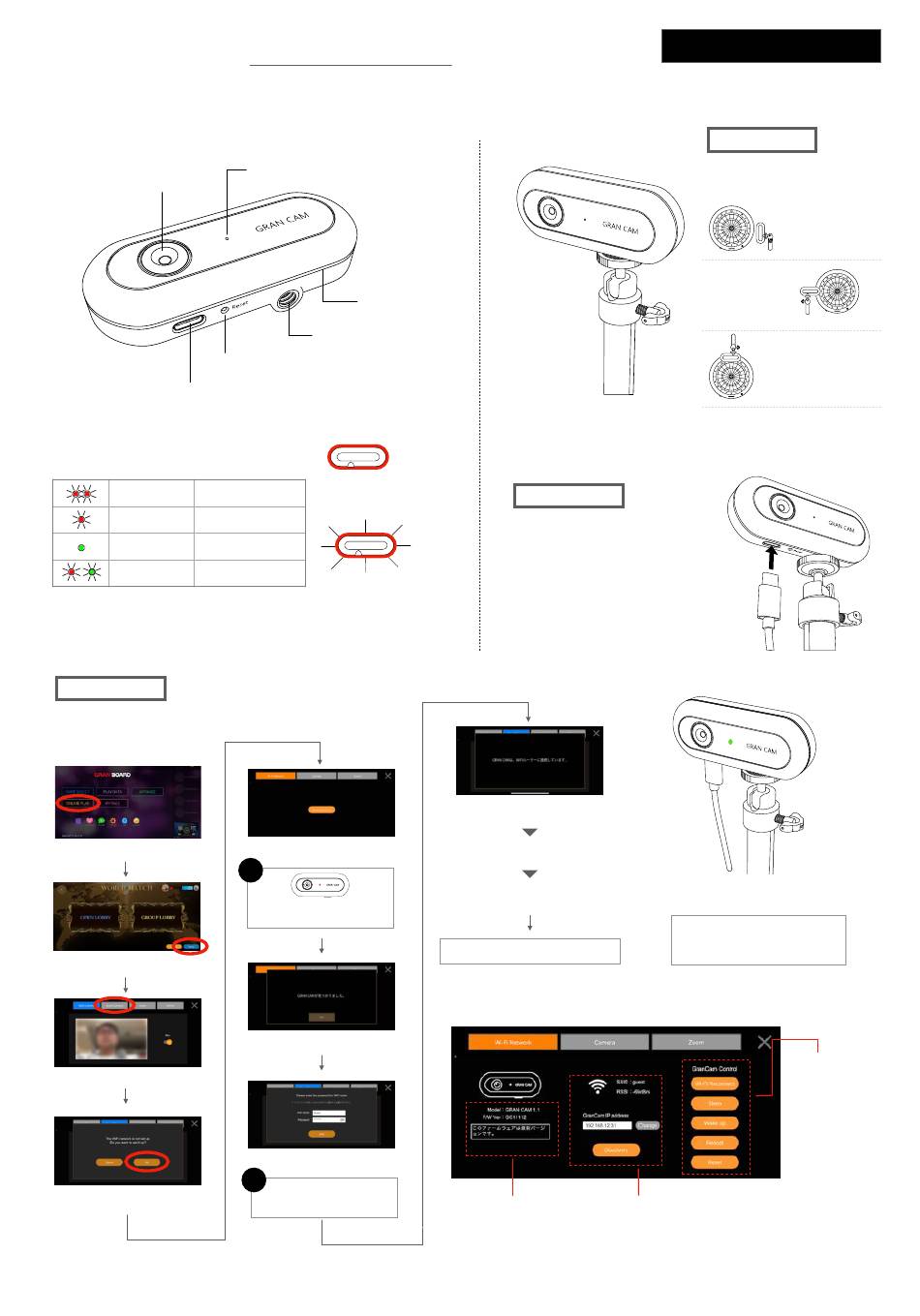

GRAN DARTS GRAN CAM Setup Manual

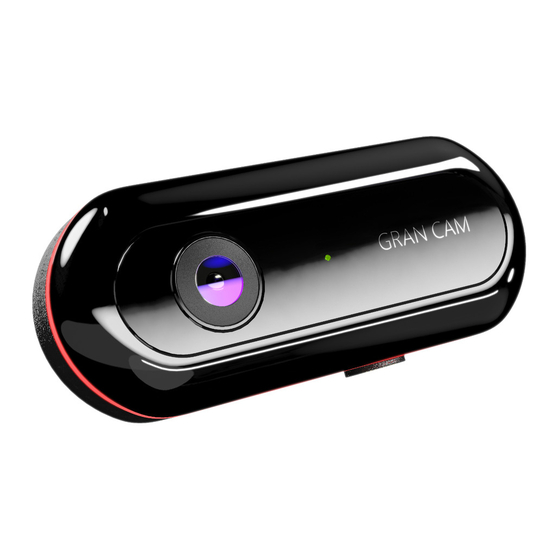

GRAN CAM
2-megapixel camera lens
Reset button
USB Type-C port for power supply
Power Indicator Light status
Red blinks twice in
Pairing mode
a row continuous
Red blinks once in
Wi-Fi not connected
a row continuous
Solid Green light
Wi-Fi connection is active
Red & Green light
Firmware update in progress
flashing alternately
Wi-Fi network and camera settings are
Step3
accessible from the GranBoard App.
Press "ONLINE PLAY"
Press "Setting"
in the lower right corner
Press the "Board Camera" tab.
Press "Yes"
Board Camera for GRANBOARD
2MegaPixel / Bluetooth4.0 / Wi-Fi2.4GHz
Power Indicator Light
Action Indicator
LED light
Tripod screw hole
1/4inch/6.35mm
Action Indicator LED Light status
Glowing
Camera is active. Video signal
is being sent to the App.
Blinking
Flashes three times when a
signal is received from the
App. Flashes to let you know
if the IP address of GRAN
CAM has been changed.
Press "Serch GRANCAM"
!
Make sure that GRAN CAM
is in pairing mode
Press "OK"
Enter your Wi-Fi information
!
2.4GHz Wi-Fi is required;
GRAN CAM cannot
connect to 5GHz.
Step2
Connect the USB Type-C cable
(sold separately) and turn the
power on.
The GRAN CAM starts up in pairing
mode when first turned on.
It has an auto-sleep power save
function, so please leave it plugged in.
GRAN CAM has received
your SSID and Password
Connected to Wi-Fi.
(EX)rssi : -77dBm (signal strength)
Wi-Fi connection has been established.
(EX)IP address : 192.16.1.28
Wi-Fi connection setup complete
Network settings screen
GRAN CAM firmware information
If an update is available, the "Update"
button will be displayed.
GRAN CAM Setup Guide
ver.1.0 2021.05
Step1
Use a tripod or camera
arm to set the GRAN CAM
in the desired place.
Installed vertically
on the right side
of the board
Installed on the left
side of the board,
facing right.
Installed on the
top of the board,
facing downwards
GRAN CAM can be installed
horizontally, vertically, or upside
down. The video can be rotated
or flipped in the App settings.
When the Wi-Fi connection is
complete, the GRAN CAM power
indicator light will turn green.
If the connection fails, please check
that the access point with Wi-Fi
information of "2.4GHz" is entered.
Command button
The following GRAN
CAM operations can be
performed from the
GranBoard App
- Reconnect to Wi-Fi
- Forced sleep mode
- Waking-up from sleep
- Restart power
- Reset
information)
Wi-Fi setting information
Displays the IP address of the paired
GRAN CAM. If the IP address has
changed and you cannot connect, you
can use the "Discovery" button to search
again.
(Reset WiFi connect
