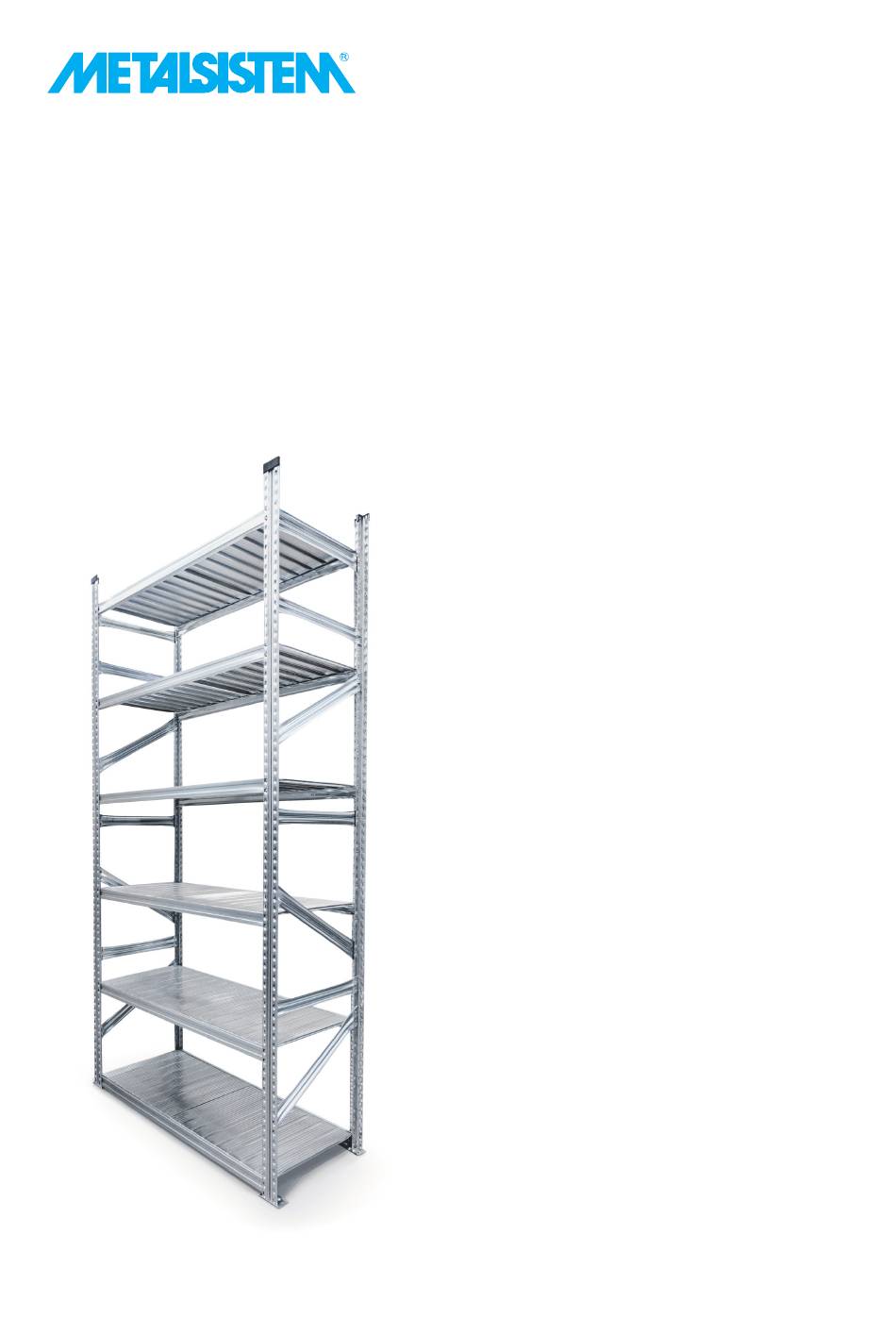

Instructions for the correct assembly of the
SUPER 1-2-3 SHELVING
viale dell'Industria, 2 - 38068 Rovereto (TN)
|
tel. +39 0464 303030 - fax +39 0464 303031
Assembly instructions
|
cod. ISTM027
Edition
|
04/2019
Revision
|
1
Classification
|
Controlled
|
www.metalsistem.com - info@metalsistem.com
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Metal Sistem SUPER 1-2-3 SHELVING
- Page 1 Instructions for the correct assembly of the SUPER 1-2-3 SHELVING Assembly instructions cod. ISTM027 Edition 04/2019 Revision Classification Controlled viale dell’Industria, 2 - 38068 Rovereto (TN) tel. +39 0464 303030 - fax +39 0464 303031 www.metalsistem.com - info@metalsistem.com...
- Page 2 SUPER 1-2-3 - Assembly instructions cod: ISTM027 PREAMBLE Refer to the Super 1-2-3 Technical Manual (MT08) for the cor- Images below detail the pitch of upright connection lugs and rect location of the frame bracing components. the correct connection point onto the upright for each brac- For each available frame height the manual provides: ing component.
- Page 3 SUPER 1-2-3 - Assembly instructions cod: ISTM027 Mark out the frame bracing connection points on the pair of uprights of a frame. During this operation make sure to mark the correct side of the upright for each frame component, as detailed in the Technical Manual.
- Page 4 SUPER 1-2-3 - Assembly instructions cod: ISTM027 Start the assembly procedure from the lower diagonal. Knock the top of the diagonal, with a plastic capped hammer, until the bottom connection sits on the start of the opposite upright lug. Tap the bottom connection so that it seats.
- Page 5 SUPER 1-2-3 - Assembly instructions cod: ISTM027 Assemble the first face of the frame following MT-08. Rotate the frame. Assemble the second face of the frame following MT-08 and repeat the passages listed above. classification : CONTROLLED...
- Page 6 SUPER 1-2-3 - Assembly instructions cod: ISTM027 Assemble the base plates, first positioning it by hand as shown, then knocking it in the final position with the plastic tipped hammer. Complete the frame assembly with the single side top cap. NOTE: double side top caps are assembled once the shelving has been erected.
- Page 7 SUPER 1-2-3 - Assembly instructions cod: ISTM027 Use the back of the palm to press the beam in position. Repeat at the opposite upright. The upright may be rotated to assist. Complete assembly with plastic capped hammer. Beam correctly assembled with two connection points at both ends of the beam in place as shown.
- Page 8 SUPER 1-2-3 - Assembly instructions cod: ISTM027 Complete the assembly of the rear beams before assembling the front beams. Three safety pin models may be used. First safety pin: not suited for the central beams of double side installations. Insert the ends of the ribbon in the connection holes on the front face of the upright.
- Page 9 SUPER 1-2-3 - Assembly instructions cod: ISTM027 Compact safety pin: suited for both single and double side installations. Position by hand the safety pin on top of the beam at the inside face of the upright. 17b. Secure the safety pin tapping it in position as shown.
- Page 10 SUPER 1-2-3 - Assembly instructions cod: ISTM027 Place the shelving panels in position. Assembly complete. classification : CONTROLLED...
- Page 12 METALSISTEM S.p.A. Viale dell’Industria, 2 - 38068 Rovereto (TN) Italy tel. +39 0464 303030 - fax +39 0464 303031 info@metalsistem.com - www.metalsistem.com...
