Product Name:
Tools Thumbkeyboard
Product No.:
SMKD72-A/B/C
Brand:
Koolertron
Type: Mechanical Keyboard / Wired
SPECIFICATION
Dimension: 19.2X12.0X2.8(cm)
Key Number: 48(A) / 46(B) / 44(C)
MCU, 12MHz
Rating：DC 5V, < 100mA
Plug and Play connectivity for Windows/Mac OS/Linux
Keyboard Management software based Windows
FEATURES
All Keys are programmable.
4 profiles (Keymaps) inside
Fn1-Shift(Scroll), Fn2-Shift (Num). Need to
Key Macro: Burst Macro/Combination Macro
Gaming Macro: Round Robin /Continue/Jitter Macro
INDICATORS
1#
Num Lock/Fn2/Profile-1(blink)
2#
Scroll/Fn1/Profile-2(blink)
3#
Caps Lock(disabled)
Configuration Mode
User can change the key map in this mode, and change the macro in the keypad.
First, run the software on computer, Thumbkeyboard Configuration Software, download it from product website.
http://amazonfiles.s3.amazonaws.com/smkd72.rar
Press and Hold top-left key, then plug the end of USB cable, Device will change to Configuration Mode. The panel LED
flash in 2-1-2.

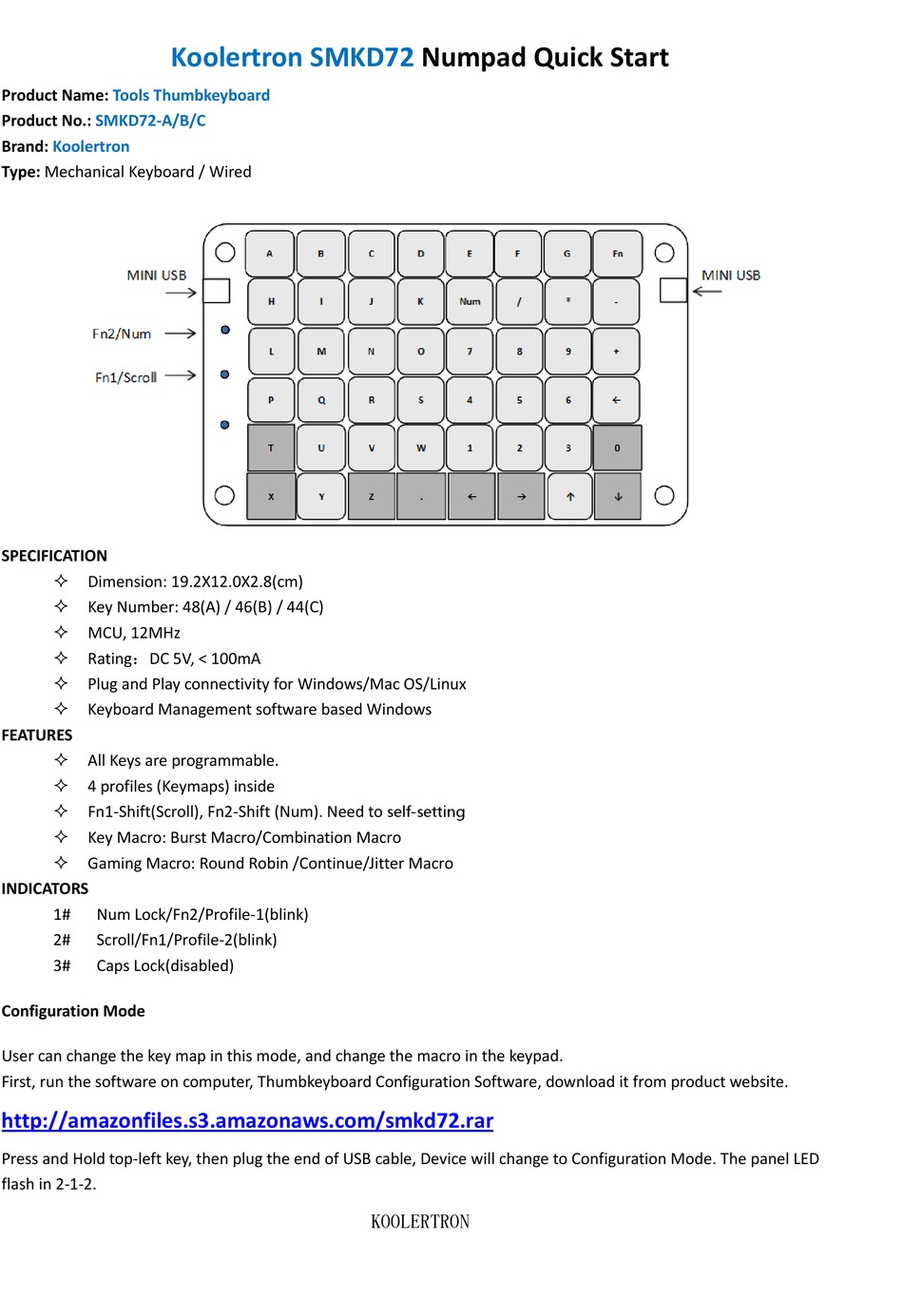

Koolertron SMKD72
Numpad Quick Start
self-setting
KOOLERTRON
