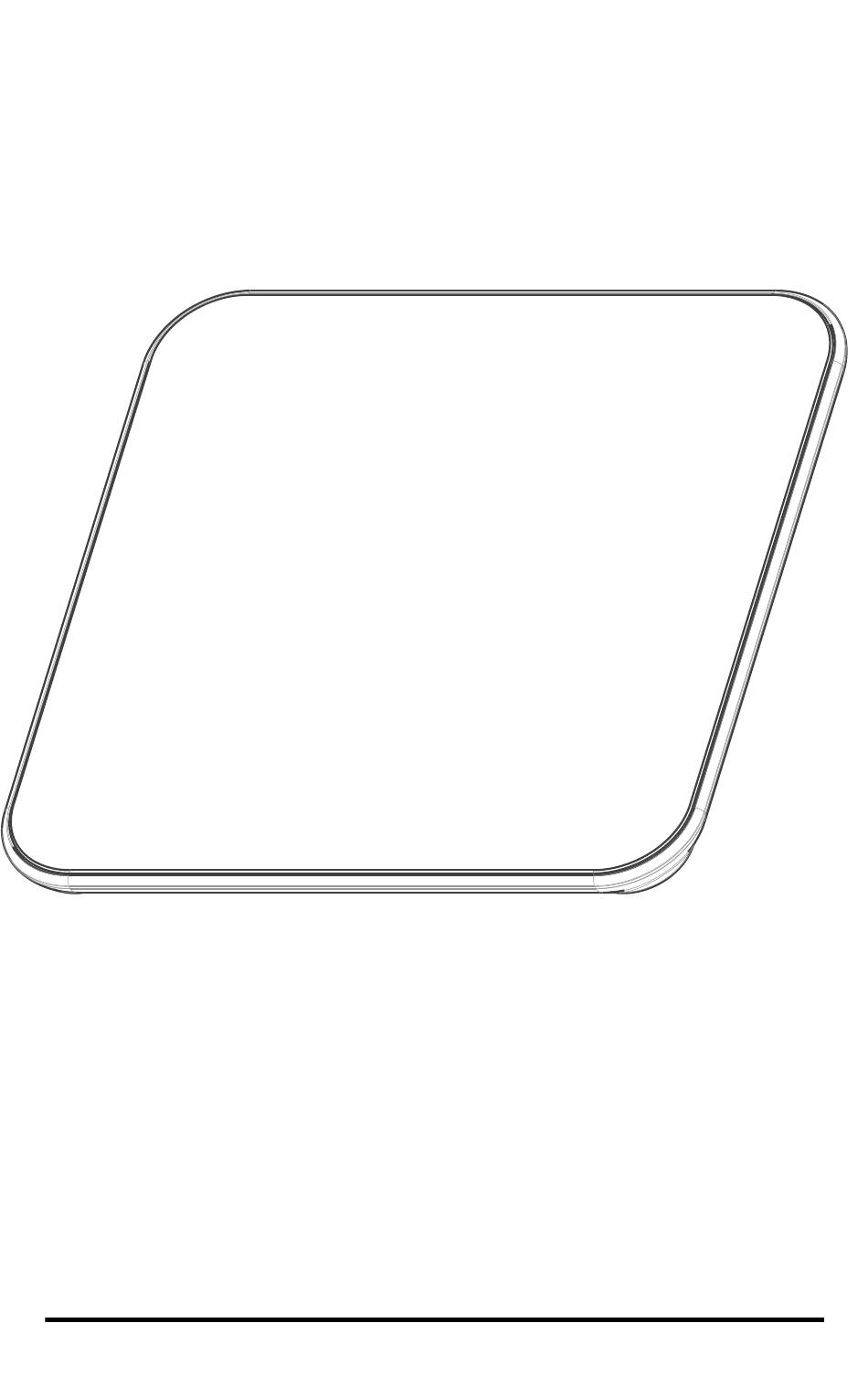

- Page 1 WEIGHT SCALE BT005V USER MANUAL v1.1...
-
Page 3: Installing The Batteries
Installing the Batteries If this is your first time using the device: 1. Open the battery door on the back of the device. 2. Install the batteries provided with the device. Follow the diagram inside the battery compartment for correct polarity—the springs should align with the negative sign on the batteries. -
Page 4: Before Use
Before Use Place the scale on a hard, even surface. Avoid using the device on carpet. Taking a Measurement 1. Step on the glass platform of the device and remain still. 2. Wait for the device to power on and perform the measurement. - Page 5 7. When the measurement has been successfully transmitted, the device shows the indication above before powering off. Notes • If you wish to abort the measurement, siply step off the glass platform.
- Page 6 Contraindications • Do not use this device for infants. Precautions • Only use Duracell alkaline AA batteries with this device as these offer the longest battery life. Other brands may not be able to provide sufficient power for cellular data transmission. •...
- Page 7 • Measurements may not be accurate if the device is used in close proximity to devices generating strong electromagnetic fields, such as microwave ovens, wireless charging stations, X-ray machines, etc. • Wireless communication devices, such as Wi-Fi access points, mobile phones, and cordless phones may cause interference that may affect the accuracy of measurements.
-
Page 8: Troubleshooting
Troubleshooting Problem Possible Reason Resolution Device doesn't Batteries Replace batteries power on when completely with new Duracell stepping on the drained. AAs. glass platform. Batteries inserted Remove batteries (display remains with incorrect and reinstall them off) polarity. making sure the + and −... -
Page 9: Error Codes
Error Codes Code Description Resolution Er 1 Battery low Replace batteries with four Duracell AAs. Er 2 Movement Avoid moving or talking while detected taking a measurement. Er 3 Overload The device is only accurate up to its rated capacity. Er 4 No cellular Move to another area, closer to a coverage window. - Page 10 Code Description Resolution Er 10 Subscription Contact customer support. suspended Er 11 Subscription terminated...
-
Page 11: Storage And Maintenance
Storage and Maintenance • Only use Duracell AA batteries with the device. • It is best to store and use the device at the same location. If possible, try to avoid moving the device while not in use. • Store your device in a clean and dry place. •... - Page 12 • Do not use the device while under maintenance, or being serviced. • Dispose of the device, its accessories, and batteries according to your local waste disposal regulations and guidelines.
- Page 13 Body Weight Body weight is expressed as a number in a unit of mass (kg or lb). This device measures weight using load cells. As weight is applied to the glass platform, it is transferred to four load cells placed above the feet of the device. The load cells measure the force exterted on them which is then coverted to a value of mass.
- Page 14 Symbols Symbol Description Follow instructions for use Caution: consult instructions for use Weight range Temperature range Relative humidity range Model number Serial number Date of manufacture Ingress protection: against solid objects of 12.5 mm IP21 or greater and vertically falling water drops.
- Page 15 Symbol Description Type BF applied part Complies with European Community directives Do not dispose of this product as unsorted municipal waste, take it for recycling.
-
Page 16: Technical Specification
Technical Specification Model BT005V Measurement Load cells with stain gauges Method Measurement 10–200 kg Range Resolution 0.1 kg Accuracy 0–50 kg: ±0.3 kg 50–100 kg: ±0.4 kg 100–150 kg: ±0.5 kg 150–200 kg: ±0.8 kg Expected Lifetime 5 years or 10,000 measurements... - Page 17 Storage Conditions Temperature: −20–55 °C Relative 0–90 % humidity: (non‑condensing) Pressure: 80–105 kPa Device Weight 2065 g (excl. batteries) Device Dimensions 320×320×28 mm Device Ingress IP21 Protection Software Version...
-
Page 18: Manufacturer's Declaration
Manufacturer’s Declaration Electromagnetic Emissions Emissions Test Compliance RF emissions CISPR 11 Group 1 RF emissions CISPR 11 Class B Electromagnetic Immunity Immunity Test IEC 60601-1-2 Compliance Level Electrostatic discharge (ESD) IEC ±8 kV contact 61000-4-2 ±2 kV, ±4kV, ±8 kV, ±15 Power frequency magnetic field IEC 30 A/m 50Hz/60Hz 61000-4-8... - Page 19 Test Freq. (MHz) Freq. Service Modulation Power Distance Immunity Band Test Level (MHz) (V/m) 380– Tetra 400 Pulse 18 Hz 430– GMRS / Freq. 5 kHz, FRS 460 dev. 1kHz sine 704– LTE Bands Pulse 217 13, 17 800– Pulse 18 Hz 800/900;...
-
Page 20: Fcc Compliance Statement
FCC Compliance Statement Contains FCC ID: XMR201707BG96 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. -
Page 21: Contact Information
Contact Information Please contact your program's customer support. BodyTrace will not be able to directly assist customers. Manufactured for: BodyTrace, Inc. 3505 El Camino Real Palo Alto, CA 94306 Manufactured at: 23 Jin'an Road, Minzhong Zhongshan, Guangdong China 528441... - Page 24 BT005V-UM-101...
